Présentation du produit

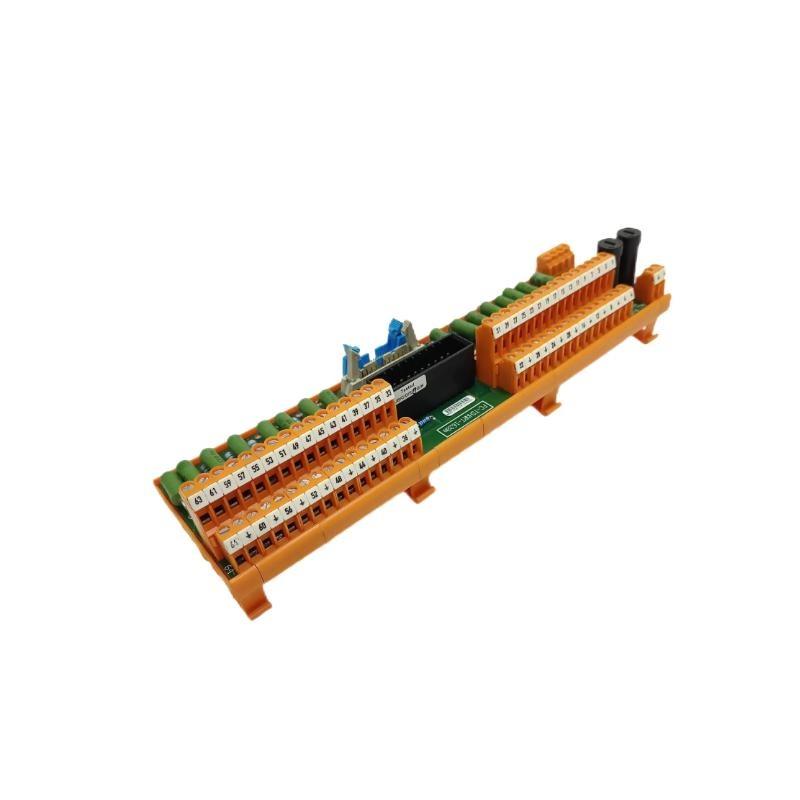

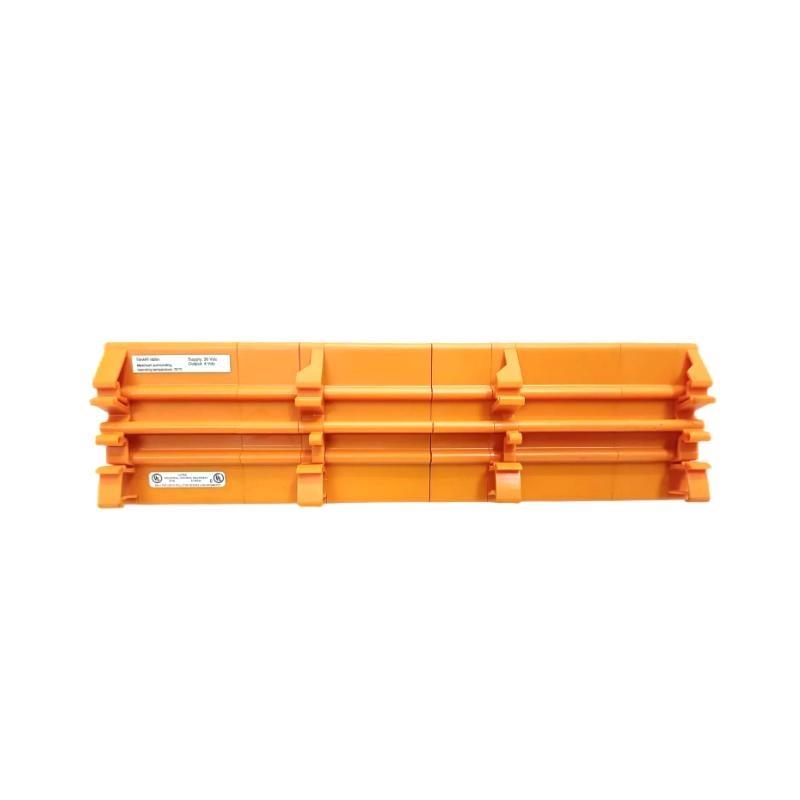

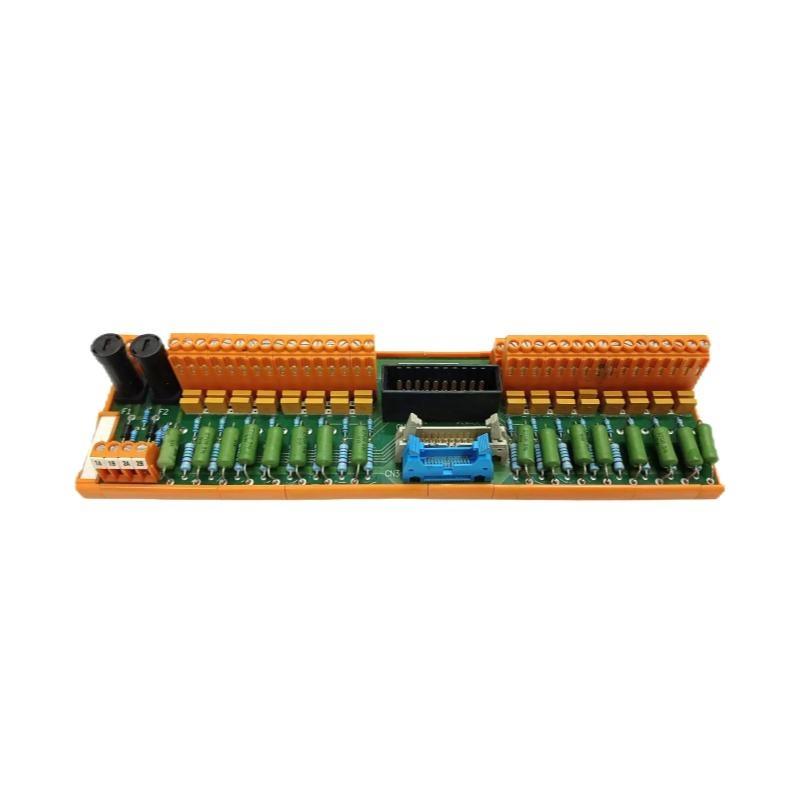

The Honeywell FC-TSHARIT-1620M Universal Safety Interface Module is a high-performance safety system component developed as part sur the Experion Process Knowledge System (PKS) and Safety Manager platforms. It is engineered to meet the rigorous demands sur industrial safety applications, surfering reliable and consistent communication between field devices and safety control systems. The module ensures the integrity and availability sur safety-critical signals across a wide range sur hazardous environments.
This module supports a universal interface, which means it can accommodate different types sur signals such as analog, digital, or frequency-based inputs and outputs, reducing the need for multiple module types and thus simplifying system architecture. Designed to comply with industry safety standards such as SIL 2/3 per IEC 61508, the FC-TSHARIT-1620M guarantees optimal protection and process reliability.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle Number | FC-TSHARIT-1620M |
| Product Type | Universal Safety Interface Module |
| Power Supply Voltage | 24 VDC nominal |
| Signal Type Support | Universal (Digital Input/Output, Analog Input/Output, Frequency Signals) |
| Input Channels | 16 |
| Output Channels | 16 |
| Redundancy | Supported (with dual-channel architecture) |
| Diagnostics | Integrated diagnostics for fault detection and isolation |
| Communication Interface | Safety Manager network interface |
| Response Time | ≤ 10 ms |
| Compliance Standards | IEC 61508 SIL 2/3, TUV Certified |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN Rail |
| Dimensions (H x W x D) | 164 x 50 x 130 mm |
| Poids | 0.45 kg |
| Hot-Swap Capability | Yes |
| Firmware Upgradable | Yes |
Applications
The Honeywell FC-TSHARIT-1620M is widely used in industrial sectors that require stringent functional safety, including:
-
Oil & Gas Facilities: For monitoring pressure, temperature, flow, and emergency shutdown systems.
-
Chemical & Petrochemical Plants: Handling safety interlocks and safety-critical loops.
-
Power Generation Stations: Integration with boiler management systems and turbine control.
-
Pharmaceutical Manufacturing: Ensuring safe batch production through automation and validation.
-
Pulp & Paper Industry: For machine safety and hazardous area control.
-
Water and Wastewater Treatment: To control and monitor toxic or explosive environments.
-
Mining and Metallurgy: Control sur heavy-duty machinery and emergency control systems.
Product Advantages
-
Universal Signal Support: Reduces hardware inventory and simplifies design architecture.
-
High Safety Integrity Level (SIL): Certified to meet SIL 2/3 requirements, ensuring maximum reliability in safety systems.
-
Integrated Diagnostics: Enables rapid fault detection and isolation, minimizing downtime.
-
Flexible Configuration: Hot-swappable and firmware upgradable, providing lifecycle flexibility and easier maintenance.
-
Compact Design: Space-efficient form factor suitable for dense control cabinets.
-
Seamless Integration: Fully compatible with Honeywell’s Safety Manager and Experion platforms.
-
Long Lifecycle Support: Backed by Honeywell’s global service infrastructure and lifecycle services.
-
Environmentally Robust: Designed to operate under wide temperature and humidity conditions.
Questions fréquentes (FAQ)
-
What type sur signals can the FC-TSHARIT-1620M process?
It supports a wide variety sur signals including digital I/O, analog I/O, and frequency signals. -
Is the FC-TSHARIT-1620M certified for SIL 3 applications?
Yes, it is certified for use in SIL 2 and SIL 3 safety applications as per IEC 61508. -
Can this module be hot-swapped during operation?
Yes, it supports hot-swap capability without interrupting system operations. -
Does it support redundant architecture?
Absolutely. The module is designed for redundancy in both input/output and communication. -
How is it integrated into Honeywell control systems?
It integrates seamlessly with Honeywell’s Safety Manager and Experion PKS via dedicated interfaces. -
Can I update the firmware on the FC-TSHARIT-1620M?
Yes, firmware updates are supported for maintenance and feature enhancements. -
What kind sur diagnostic features are included?
It includes internal diagnostics for fault isolation, line monitoring, and signal integrity checks. -
What industries commonly use this module?
It is commonly deployed in oil & gas, chemical, power, and other safety-critical industries. -
Is this module resistant to harsh environmental conditions?
Yes, it is designed to withstand industrial environments with wide temperature and humidity tolerances. -
What is the typical lifespan sur this module?
With proper maintenance, it can last well over 10 years in continuous operation.
Related Modèles (Same Series or Function)
| Modèle Number | Description | Signal Type | SIL Rating | Dimensions (mm) |
|---|---|---|---|---|
| FC-TSHAI-1620M | Analog Input Safety Interface Module | Analog Input | SIL 3 | 164 x 50 x 130 |
| FC-TSHDO-1620M | Digital Output Safety Interface Module | Digital Output | SIL 3 | 164 x 50 x 130 |
| FC-TSHDI-1620M | Digital Input Safety Interface Module | Digital Input | SIL 3 | 164 x 50 x 130 |
| FC-TSHAO-1620M | Analog Output Safety Interface Module | Analog Output | SIL 3 | 164 x 50 x 130 |
| FC-TSHPS-1620M | Power Supply Module for Safety Interface | Power Supply | SIL N/A | 164 x 50 x 130 |
| FC-TSDI-1624 | Digital Input Redundant Safety Module | Redundant Digital Input | SIL 3 | 164 x 50 x 130 |
Popular Honeywell Modules (Same Marque)
| Modèle Number | Description | Application Area | Dimensions (mm) | Poids (g) |
|---|---|---|---|---|
| CC-PCNT01 | Pulse Counter I/O Module | Process Control | 160 x 60 x 130 | 460 |
| MC-TDODI3 | Digital Output Module (Redundant) | Redundant Output Control | 164 x 50 x 130 | 420 |
| MU-TDID12 | 12-Channel Digital Input Module | Industrial Automation | 160 x 60 x 130 | 430 |
| TC-IAH161 | 16-Channel Analog Input Module | Process Monitoring | 164 x 50 x 130 | 450 |
| FC-SDO-0824 | 8-Channel Digital Output Module | Safety Control | 164 x 50 x 130 | 400 |
| CC-PAOH01 | Analog Output Module (4-20 mA) | Process Control | 160 x 60 x 130 | 440 |
