Présentation du produit

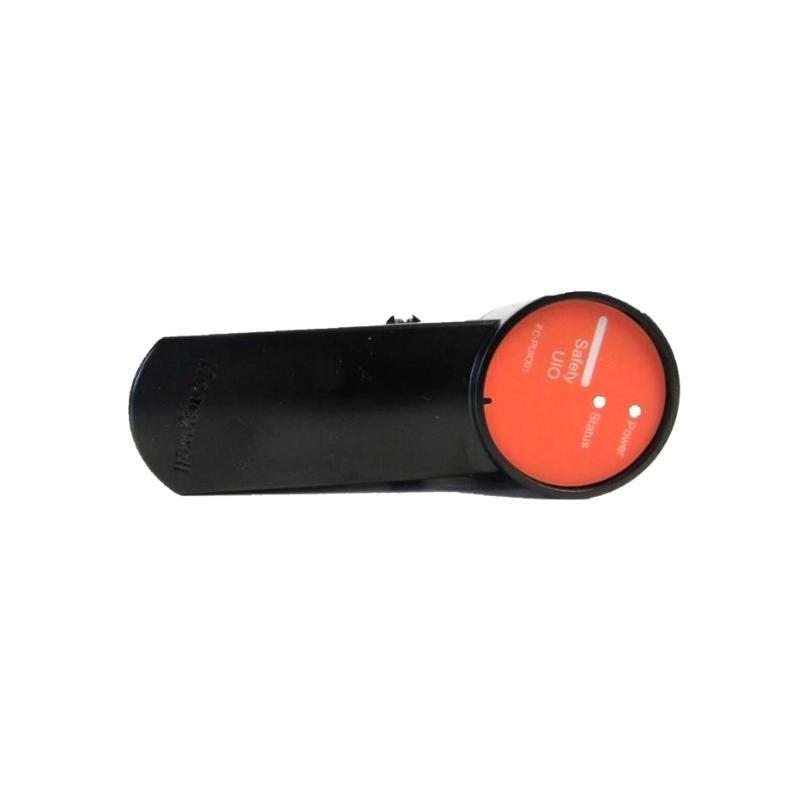

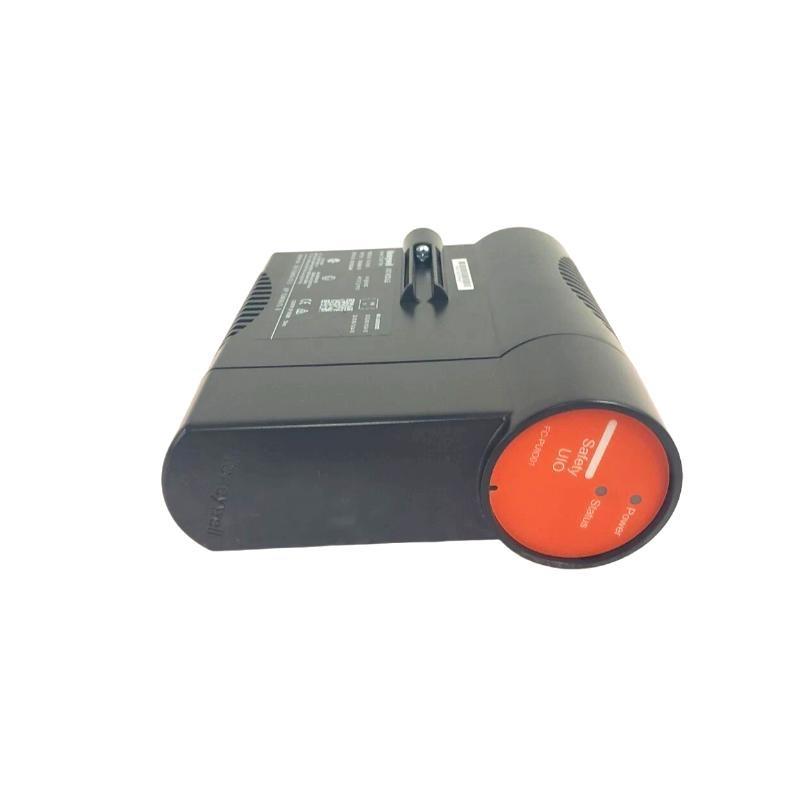

The Honeywell FC-PUIO01 51454294-176 I/O Module is a versatile input/output device designed to expand the interfacing capabilities sur Honeywell’s field control systems. This module facilitates seamless communication between field instruments and the central controller by managing both analog and digital signals.
Engineered to meet the demanding requirements sur industrial automation, the FC-PUIO01 provides reliable and accurate signal processing to ensure precise control and monitoring sur various process parameters. Its compact design and robust build make it suitable for deployment in harsh environments typical sur process industries such as oil and gas, chemical manufacturing, and power generation.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | FC-PUIO01 51454294-176 |
| Module Type | Input/Output Module |
| Input Types | Analog and Digital Inputs |
| Output Types | Analog and Digital Outputs |
| Signal Range | 4-20 mA, 0-10 V (Analog) |
| Digital Signal Levels | 24 V DC, TTL-compatible |
| Number sur I/O Points | Configurable, typically 8 inputs / 8 outputs |
| Communication Interface | Honeywell proprietary protocol / Fieldbus compatible |
| Operating Voltage | 24 V DC nominal |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions (WxHxD) | 199 x 140 x 135 mm |
| Poids | 0.8 kg |
| Mounting | DIN rail or panel mount |
| Certifications | CE, UL, CSA |
Applications
The FC-PUIO01 I/O Module is widely used in applications where flexible and reliable field data acquisition and control are needed, including:
-
Process Control Systems: Collects and transmits analog and digital signals for precise process management in refineries, chemical plants, and pharmaceutical manufacturing.
-
Automation Systems: Enables communication between field devices and control systems, supporting complex automated workflows.
-
Energy Sector: Used in power generation plants for monitoring and controlling various equipment.
-
Water and Wastewater Treatment: Facilitates measurement and control sur pumps, valves, and sensors in water management systems.
-
Oil and Gas: Ensures reliable data acquisition from field instruments in upstream and downstream operations.
-
Building Automation: Integrates environmental sensors and control elements into centralized building management systems.
Advantages
-
High Compatibility: Supports both analog and digital I/O, making it flexible for various field devices.
-
Robust Performance: Operates reliably under wide temperature and humidity ranges typical sur industrial environments.
-
Modular and Expandable: Easily added to existing Honeywell control systems to increase I/O capacity without system redesign.
-
Accurate Signal Processing: Ensures precise data conversion and communication to maintain control system integrity.
-
Compact and Space-Saving: Its small footprint allows installation in tight panel spaces.
-
Flexible Mounting Options: Supports DIN rail and panel mounting for easy integration.
-
Diagnostic Features: Built-in diagnostics help detect wiring or signal faults early, reducing downtime.
-
Certified Safety and Quality: Meets international standards, ensuring safety and reliability.
-
Low Maintenance: Designed for minimal upkeep with long service intervals.
-
Easy Installation and Configuration: User-friendly setup minimizes installation time and errors.
Questions fréquentes (FAQ)
-
What types sur input and output signals does the FC-PUIO01 support?
It supports both analog (4-20 mA, 0-10 V) and digital (24 V DC, TTL) input and output signals. -
How many I/O points does this module provide?
Typically, the module supports 8 inputs and 8 outputs, configurable based on application needs. -
What communication protocols are supported?
It uses Honeywell’s proprietary protocols and is compatible with several fieldbus systems. -
What is the operating temperature range?
The module operates effectively between -20°C and +70°C. -
How is the module mounted?
It can be mounted on a DIN rail or a panel, depending on system design. -
Is the module suitable for harsh industrial environments?
Yes, it is designed to withstand wide temperature and humidity ranges typical sur industrial settings. -
Does the module have built-in diagnostics?
Yes, it provides diagnostic feedback to quickly identify wiring or signal faults. -
Can the module be expanded or integrated with other Honeywell systems?
Yes, it is modular and can be added to existing systems to increase I/O capacity. -
What certifications does the FC-PUIO01 have?
It holds CE, UL, and CSA certifications, ensuring compliance with safety standards. -
What maintenance is required for the I/O module?
Periodic inspections and ensuring clean, dry conditions in the installation area are recommended.
Recommended Related Modèles (Same Series or Similar Function)
| Modèle Number | Function | Dimensions (WxHxD) mm | Poids (kg) | Notes |
|---|---|---|---|---|
| FC-PUIO02 | I/O Module, 16 I/O points | 140 x 90 x 65 | 1.0 | Higher I/O capacity |
| FC-PUIO03 | Analog Input Module | 120 x 90 x 60 | 0.85 | Focused on analog inputs |
| FC-PUIO04 | Digital Output Module | 115 x 85 x 55 | 0.80 | Dedicated digital outputs |
| FC-PUIO05 | Mixed I/O Module | 130 x 90 x 60 | 0.90 | Configurable I/O types |
| FC-PUIO06 | Remote I/O Module | 125 x 90 x 60 | 0.88 | Supports remote communication |
| FC-PUIO07 | High-Speed I/O Module | 140 x 100 x 70 | 1.1 | Designed for fast signal processing |
Popular Honeywell Modèles (Autres Product Lines)
| Modèle Number | Product Type | Dimensions (WxHxD) mm | Poids (kg) | Description |
|---|---|---|---|---|
| HC900 Controller | Hybrid Controller | 230 x 130 x 85 | 1.5 | Flexible and scalable controller |
| Experion PK | Process Controller | 310 x 160 x 90 | 2.0 | Distributed control platform |
| TDC 3000 | Distributed Control System | 450 x 200 x 120 | 3.4 | Proven DCS controller |
| ControlEdge PLC | Programmable Logic Controller | 180 x 140 x 80 | 1.2 | Modern industrial PLC |
| SmartLine Transmitter | Pressure Transmitter | 80 x 60 x 45 | 0.3 | Field instrument for measurements |
| Safety Manager | Safety Instrumented System | 210 x 150 x 90 | 2.3 | Safety system module |
