Présentation du produit

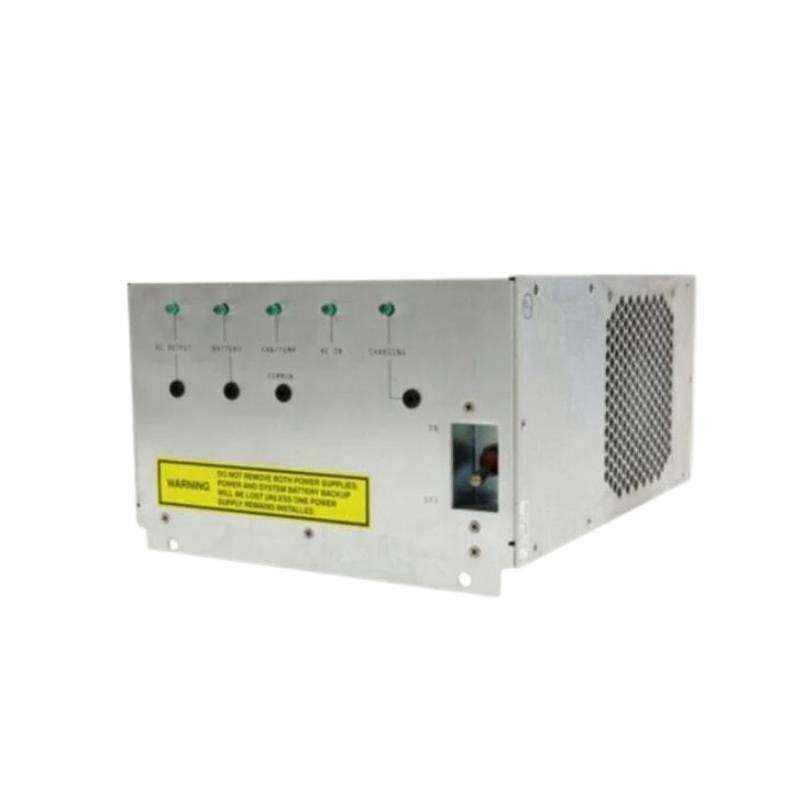

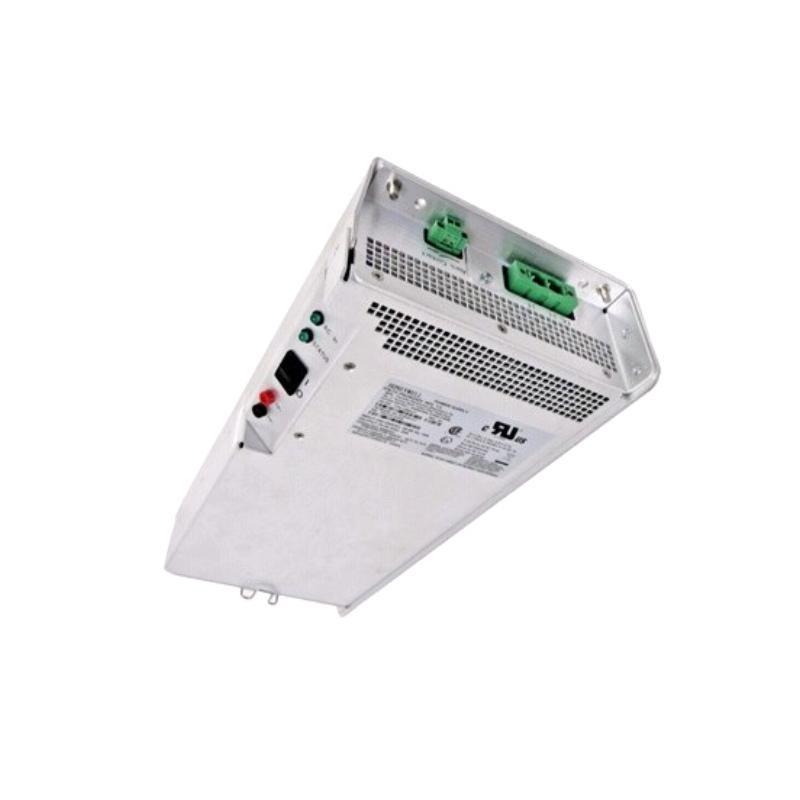

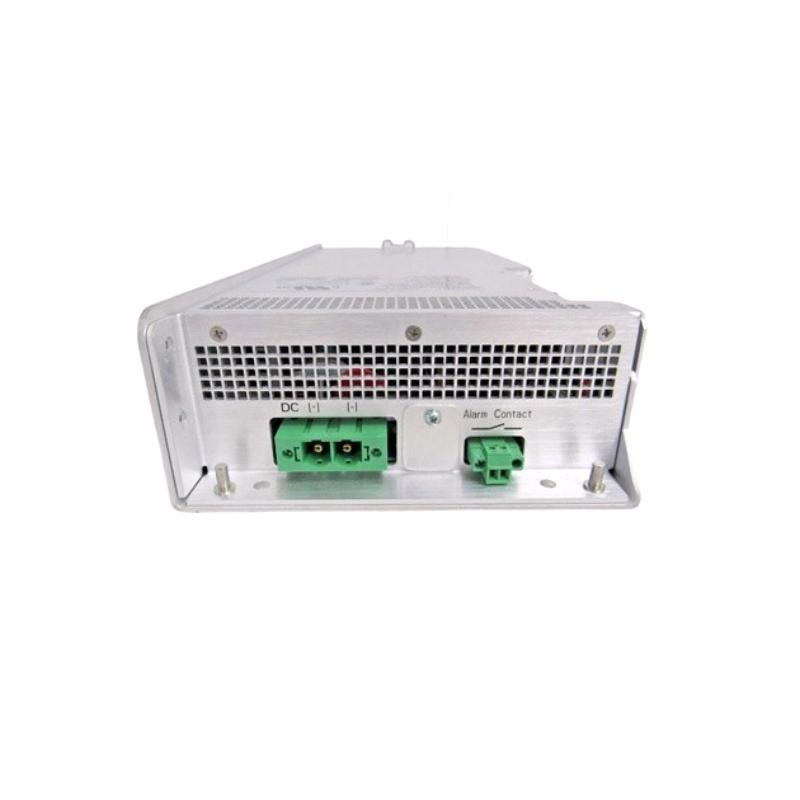

The Honeywell FC-PSUNI2424 is a reliable, industrial-grade power supply unité designed to deliver a regulated 24V DC output in automation control environments. As part sur Honeywell’s Experion PKS and C300 controller ecosystem, it provides clean and consistent power to I/O modules and controllers. Engineered for robust industrial environments, it ensures long-term stability, high availability, and secure operation for process automation tasks across a wide range sur industries.
Product Features and Advantages
-
Stable Power Output: Provides a regulated 24 VDC power output with minimal ripple and noise.
-
Wide Input Range: Accepts a broad input voltage range, enabling compatibility in various installations.
-
Industrial Durability: Designed to operate reliably in harsh environments, including high temperature and vibration conditions.
-
Compact Design: Space-efficient form factor suitable for DIN rail mounting.
-
Easy Integration: Fully compatible with Honeywell C300, FIM4, and Series 8 modules.
-
Status Monitoring: Equipped with diagnostic LEDs for power and fault status indicators.
-
High Efficiency: Reduced energy loss through optimized power conversion.
-
Protection Features: Includes overload, short-circuit, and over-voltage protection to safeguard connected devices.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle | FC-PSUNI2424 |
| Input Voltage Range | 90–264 VAC, 47–63 Hz |
| Output Voltage | 24 VDC ±2% |
| Output Current | 5.0 A |
| Rated Output Power | 120 W |
| Efficiency | ≥ 88% |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Cooling | Natural convection |
| Installation | DIN rail mount (35mm) |
| Dimensions | 370 × 159 × 67.3 mm |
| Poids | 2.9 kg |
| Protection | Short-circuit, overload, over-voltage, thermal |
| Certifications | CE, UL, RoHS compliant |
Applications
-
Distributed Control Systems (DCS) in process industries
-
Power supply for Honeywell Experion PKS components
-
SCADA systems requiring high-availability power
-
I/O module and controller energization in industrial panels
-
OEM automation solutions across energy, chemical, and oil & gas sectors
-
Control cabinet integration in water treatment plants and utilities
Installation Notes
-
Mount vertically on DIN rail to ensure proper convection cooling.
-
Maintain 10mm clearance around the unité for airflow.
-
Ensure the power supply is installed in a dust-free, vibration-resistant control panel.
-
Ground the chassis terminal to ensure safe and stable operation.
-
Connect the output terminals to load devices with proper polarity.
10 FAQs (De-AI Style)
Q1: What is the main function sur the FC-PSUNI2424?
A1: It supplies 24V DC power to Honeywell automation hardware such as I/O modules and controllers.
Q2: Can I use this unité in a high-temperature environment?
A2: Yes, it is rated for operation up to 60°C under natural convection cooling.
Q3: Is it compatible with non-Honeywell systems?
A3: Technically yes, as long as the voltage and current requirements match, but it’s optimized for Honeywell platforms.
Q4: What happens during a short circuit?
A4: The unité has built-in protection and will shut down to prevent damage. It resets once the fault is cleared.
Q5: How should I mount it?
A5: Vertically on a standard 35mm DIN rail inside a control panel.
Q6: Does it have visual status indicators?
A6: Yes, it has LED indicators for output status and fault conditions.
Q7: What is the total output capacity?
A7: It delivers up to 120 watts sur continuous output power at 24VDC.
Q8: Is this model redundant-compatible?
A8: Yes, it can be configured in parallel with another unité for redundancy in critical applications.
Q9: How do I ensure it meets compliance?
A9: It is CE-marked, UL-listed, and RoHS-compliant for international standards.
Q10: What if the power goes above 264VAC?
A10: Operation is not guaranteed outside the rated input range; protective shutdown may occur to prevent damage.
6 Recommended Modèles from Same Series or Functionality
| Modèle | Description |
|---|---|
| FC-PSU-NUI2450U | High-power PSU module, 24VDC, 10A output |
| FC-PSU-NUI2410U | Compact PSU, 24VDC, 2.5A for smaller loads |
| FC-PSU-CNTRL2405 | Control cabinet PSU, rail mount, 24V 5A |
| FC-PSUNI2424D | Dual output version with 2x 24VDC channels |
| FC-PSU-RDNT2424 | Redundant-ready 24VDC PSU with monitoring |
| FC-IOCHAS-0002R | I/O chassis with integrated PSU support |
6 Popular Modèles from Honeywell (Same Marque)
| Modèle | Description | Output Voltage | Output Current | Dimensions (mm) | Poids |
|---|---|---|---|---|---|
| FC-PSU-NUI2450U | High-capacity 24VDC PSU | 24 VDC | 10 A | 65 × 125 × 140 | 1.2 kg |
| 621-6550 | High-performance I/O Module | N/A | N/A | 130 × 150 × 35 | 0.7 kg |
| FC-IOCHAS-0002R | I/O Chassis Power Interface | N/A | N/A | 160 × 200 × 100 | 2.0 kg |
| 51204172-175 | Universal Power Supply Module | 24 VDC | 5 A | 75 × 130 × 110 | 1.0 kg |
| 621-9933C | Compact Power Interface | 24 VDC | 2 A | 55 × 100 × 90 | 0.65 kg |
| FC-TDIO-0824 | Digital Input/Output Module | N/A | N/A | 140 × 135 × 50 | 0.85 kg |
