Présentation du produit

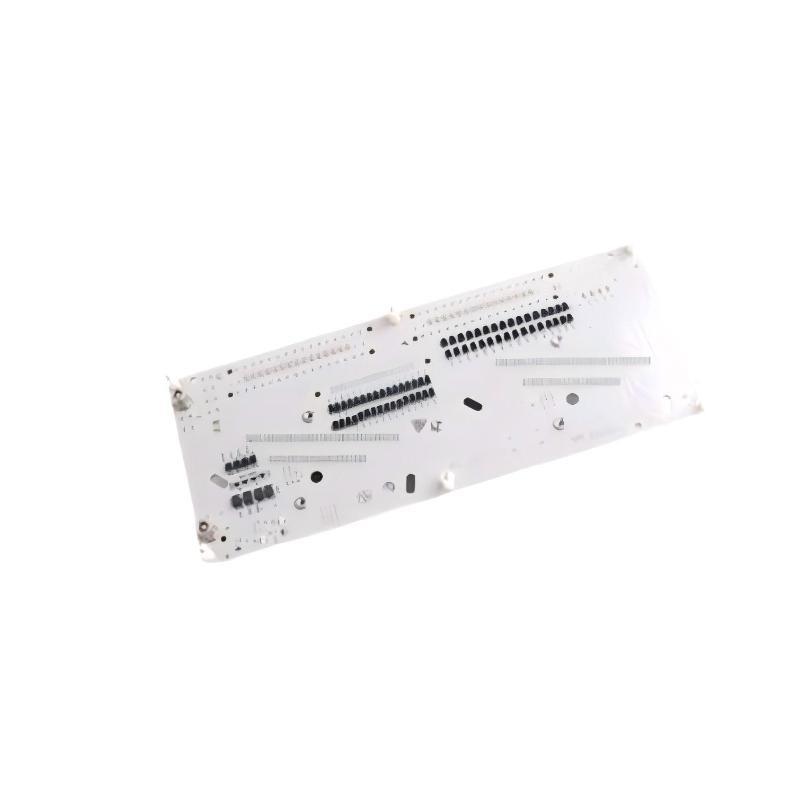

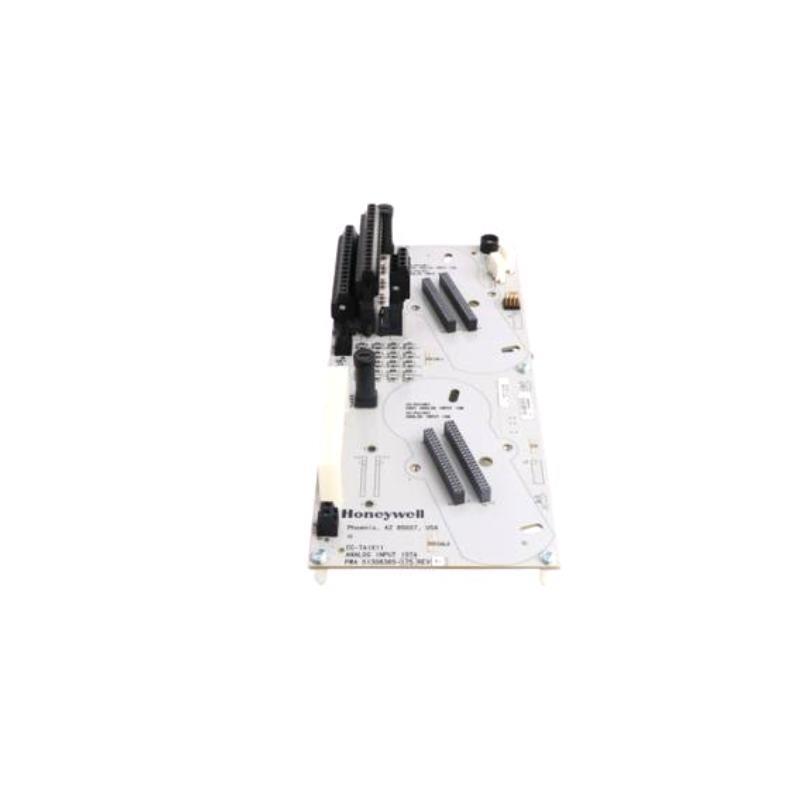

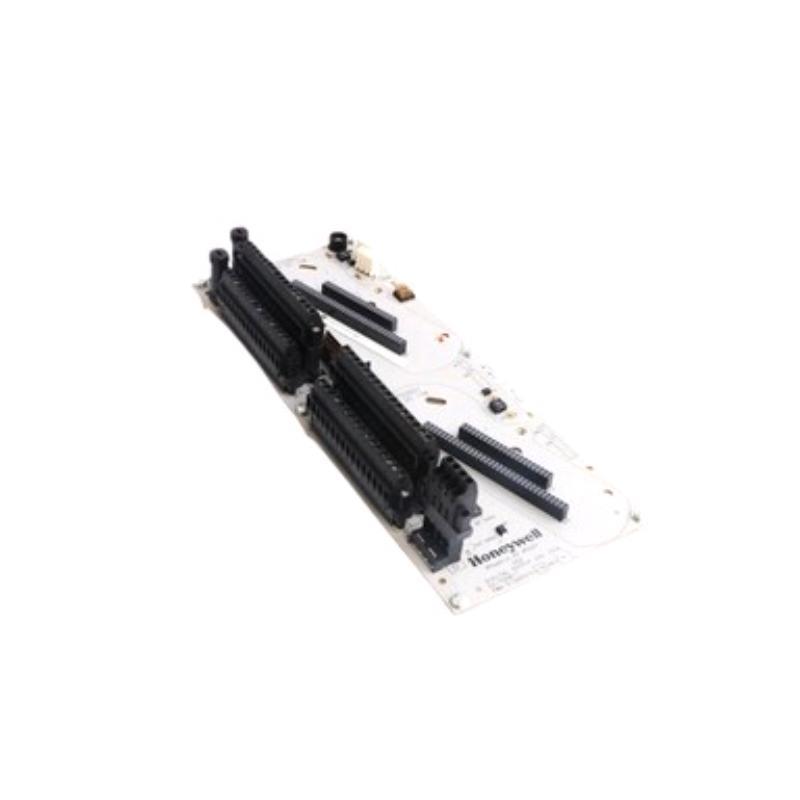

The Honeywell DC-TAIX11 is a high-performance Analog Input Module designed to provide precise and reliable signal acquisition for industrial control and monitoring systems. It belongs to Honeywell’s DC-TAI series, known for durability and accuracy in demanding environments.
This module processes analog signals from various sensors and field devices, converting them into digital signals that control systems can interpret. It features a compact footprint with dimensions sur 22 x 124 x 126 mm and a weight sur 1.6 kg, making it suitable for installation in tight control cabinets without compromising robustness.
The DC-TAIX11 is widely utilized in process automation, manufacturing, energy, and infrastructure projects, surfering high fidelity input conversion with consistent performance.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle | DC-TAIX11 Analog Input Module |
| Dimensions | 22 x 124 x 126 mm |
| Poids | 1.6 kg |
| Input Channels | 8 Analog Inputs |
| Input Signal Type | Voltage, Current (4-20mA, 0-10V) |
| Input Range | ±10 V, 0-20 mA, 4-20 mA |
| Resolution | 16-bit ADC |
| Sampling Rate | Up to 1 kHz per channel |
| Operating Temperature | -20°C to +70°C |
| Power Supply | 24 VDC |
| Mounting Style | DIN Rail |
Product Applications
The Honeywell DC-TAIX11 module is designed for multiple industrial applications requiring precise analog data acquisition:
-
Process Automation
Captures sensor signals for pressure, temperature, flow, and level control in chemical, pharmaceutical, and food processing plants. -
Manufacturing
Used for real-time monitoring sur production lines, enabling fine control sur machinery and equipment. -
Energy Sector
Monitors signals from turbines, generators, and electrical systems to ensure safe and efficient operation. -
Building Automation
Interfaces with HVAC sensors, lighting systems, and environmental monitoring devices. -
Water Treatment
Measures sensor data for pumps, valves, and water quality monitoring instruments. -
Infrastructure Monitoring
Supports data acquisition from structural health sensors and environmental stations.
Product Advantages
-
High Accuracy and Resolution
The 16-bit ADC delivers precise conversion sur analog signals, ensuring accurate system responses. -
Multiple Input Types Supported
Compatible with voltage and current inputs (4-20mA, 0-10V), surfering flexibility for various sensor types. -
Compact and Lightweight
With dimensions sur 22 x 124 x 126 mm and weight sur 1.6 kg, the module fits easily into dense control panels. -
Fast Sampling Rate
Up to 1 kHz per channel enables real-time monitoring and control sur fast-changing processes. -
Wide Operating Temperature Range
Designed to operate reliably between -20°C and +70°C for diverse industrial conditions. -
Robust Power Supply Requirements
Operates on standard 24 VDC, ensuring stable performance with common industrial power systems. -
Easy Installation
DIN rail mounting facilitates quick, secure installation and maintenance. -
Reliable Signal Isolation
Minimizes interference, ensuring clean and stable signal processing. -
Durable Construction
Engineered to withstand harsh environments, reducing downtime and maintenance costs. -
Seamless Integration
Fully compatible with Honeywell’s distributed control systems and other automation platforms.
Questions fréquentes (FAQ)
-
Q: What types sur analog inputs does the DC-TAIX11 support?
A: It supports voltage inputs (0-10V, ±10V) and current inputs (4-20 mA, 0-20 mA). -
Q: How many input channels are available on the module?
A: The module has 8 analog input channels. -
Q: What is the input resolution?
A: It features a 16-bit analog-to-digital converter. -
Q: What are the physical dimensions sur the module?
A: The dimensions are 22 x 124 x 126 mm. -
Q: What is the operating temperature range?
A: The module operates between -20°C and +70°C. -
Q: How is the module mounted?
A: It uses DIN rail mounting for easy installation. -
Q: What is the power supply requirement?
A: It requires 24 VDC power input. -
Q: Is the module compatible with Honeywell control systems?
A: Yes, it integrates seamlessly with DCS Honeywell and automation systems. -
Q: Can it be used in harsh industrial environments?
A: Yes, it is designed for durability and reliable operation in harsh conditions. -
Q: What is the maximum sampling rate?
A: Up to 1 kHz per channel.
Recommended Modèles (Same Series or Related)
| Modèle | Input Channels | Dimensions (mm) | Poids | Key Features |
|---|---|---|---|---|
| DC-TAIX12 | 16 Analog Inputs | 22 x 150 x 130 | 1.8 kg | Higher channel count, expanded I/O |
| DC-TAIX10 | 4 Analog Inputs | 22 x 100 x 120 | 1.4 kg | Smaller module for fewer inputs |
| DC-TAIX11-R | 8 Analog Inputs | 22 x 124 x 126 | 1.6 kg | Redundant power supply version |
| DC-TDIX11 | 8 Digital Inputs | 22 x 124 x 126 | 1.5 kg | Companion digital input module |
| DC-TAIX15 | 8 Analog Inputs | 25 x 130 x 135 | 1.7 kg | Extended temperature range |
| DC-TAIX20 | 32 Analog Inputs | 50 x 200 x 150 | 3.2 kg | High-density analog input module |
Popular Modèles (Same Marque)
| Modèle | Functionality | Dimensions (mm) | Poids |
|---|---|---|---|
| DC-TDIX12 | Digital Input Module | 22 x 150 x 130 | 1.7 kg |
| DC-PDOD51 | Digital Output Module | 130 x 100 x 150 | 0.6 kg |
| DC-TAIX13 | Analog Input Module | 22 x 130 x 130 | 1.7 kg |
| DC-TDOX11 | Digital Output Module | 22 x 124 x 126 | 1.5 kg |
| DC-TAOX11 | Analog Output Module | 22 x 124 x 126 | 1.6 kg |
| DC-PAOX12 | Process Analog Output | 40 x 150 x 160 | 2.0 kg |
