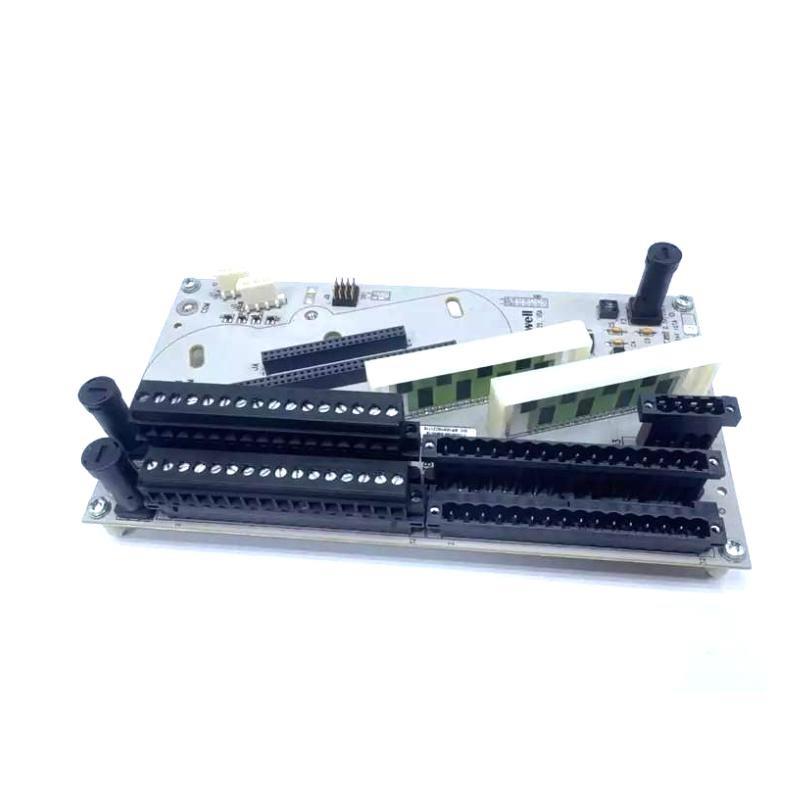

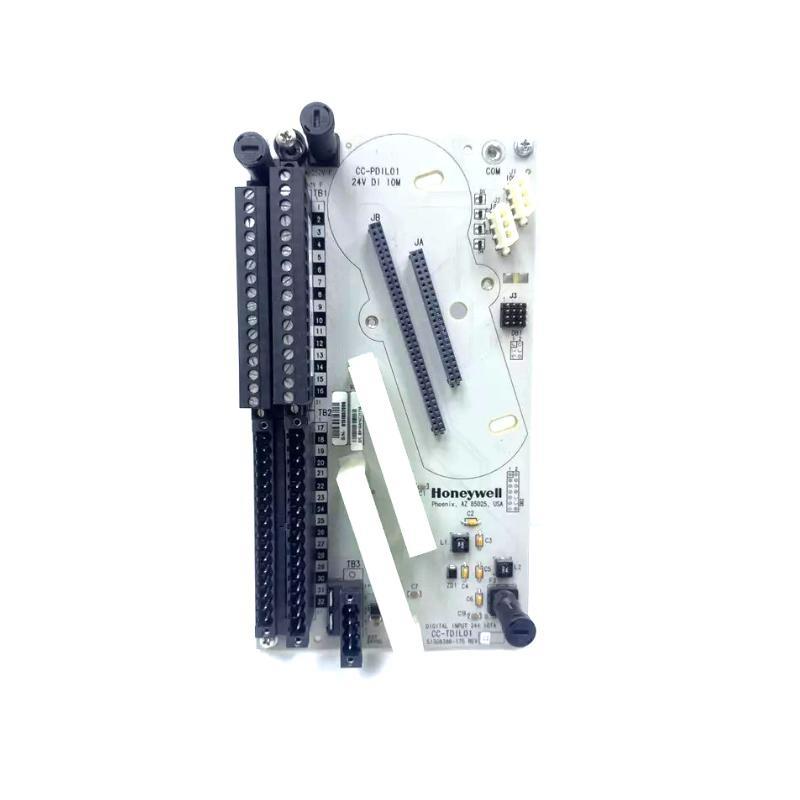

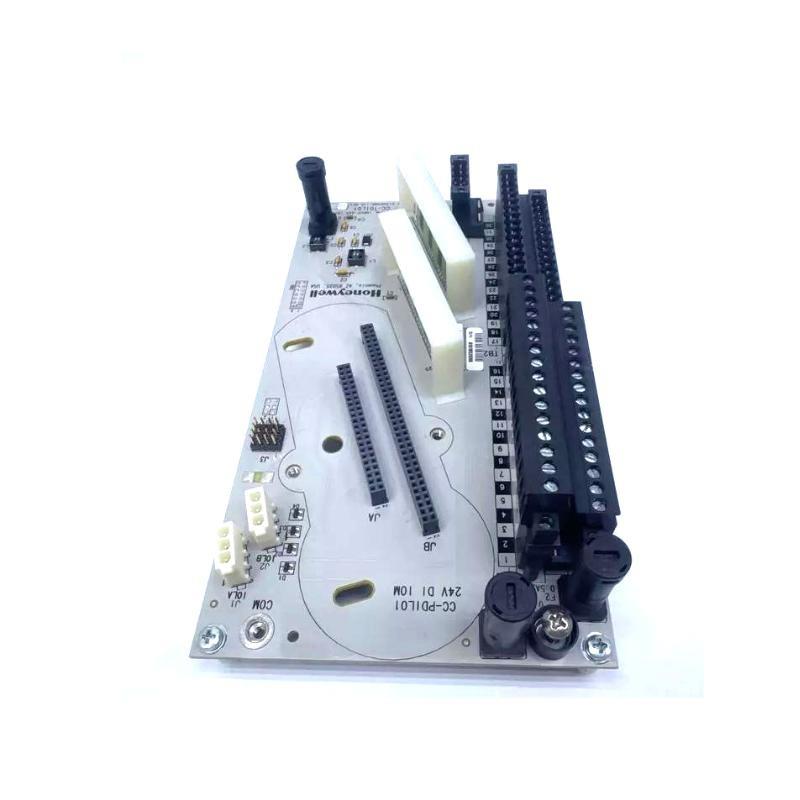

Honeywell CC-TDIL01 51308394-175 Présentation du produit
The Honeywell CC-TDIL01 51308394-175 is a high-performance digital input module designed for industrial automation and control systems. This module is part sur Honeywell’s renowned ControlEdge series, known for its reliability, precision, and robust construction. It is widely used in process control, safety systems, and distributed control systems (DCS). The CC-TDIL01 module provides seamless integration with Honeywell’s Experion PKS and other control platforms, ensuring efficient data acquisition and real-time monitoring.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle Number | CC-TDIL01 51308394-175 |
| Input Type | Digital Input |
| Number sur Channels | 16 |
| Input Voltage Range | 24V DC (Standard) |
| Isolation Voltage | 1500V AC |
| Response Time | <10ms |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -50°C to +85°C |
| Humidity Range | 5% to 95% (Non-condensing) |
| Dimensions | 132 x 56 x 125 mm |
| Poids | 0.45 kg |
| Mounting Type | DIN Rail |
| Certifications | CE, ATEX, IECEx, SIL2 |
| Communication Protocol | Modbus RTU, Prsuribus DP |
Product Applications
The Honeywell CC-TDIL01 51308394-175 is ideal for a wide range sur industrial applications, including:
-
Process Control Systems: Used in oil refineries, chemical plants, and power generation facilities for monitoring and controlling digital signals.
-
Safety Instrumented Systems (SIS): Ensures reliable input handling for critical safety functions.
-
Manufacturing Automation: Integrates with PLCs and DCS for automated production lines.
-
Water and Wastewater Treatment: Monitors pump statuses, valve positions, and alarm signals.
-
Pharmaceutical Industry: Complies with stringent regulatory requirements for precise data acquisition.
Product Advantages
-
High Reliability: Designed for 24/7 operation in harsh industrial environments.
-
Wide Voltage Range: Supports 24V DC inputs, compatible with most industrial sensors and switches.
-
Robust Isolation: 1500V AC isolation ensures protection against electrical noise and surges.
-
Fast Response Time: <10ms response time for real-time control applications.
-
Compact Design: Space-saving DIN rail mounting for easy installation.
-
Global Certifications: Complies with CE, ATEX, and SIL2 standards for safety and performance.
-
Seamless Integration: Works with Honeywell Experion PKS and third-party control systems.
-
Long Lifespan: Built with high-quality components for extended operational life.
Questions fréquentes (FAQ)
-
What is the input voltage range for the CC-TDIL01 module?
The module supports a standard 24V DC input range. -
How many digital input channels does this module have?
It features 16 digital input channels. -
Is the CC-TDIL01 suitable for hazardous environments?
Yes, it is certified for use in hazardous areas (ATEX, IECEx). -
What is the isolation voltage sur this module?
The isolation voltage is 1500V AC. -
Can this module be used with non-Honeywell control systems?
Yes, it supports Modbus RTU and Prsuribus DP for compatibility with third-party systems. -
What is the operating temperature range?
It operates from -40°C to +70°C. -
Does the module require external power?
Yes, it requires a 24V DC power supply. -
Is the CC-TDIL01 SIL2 certified?
Yes, it meets SIL2 safety integrity level requirements. -
What are the dimensions sur the module?
The dimensions are 120mm x 80mm x 40mm. -
How is the module mounted?
It is designed for DIN rail mounting.
Recommended Similar and Related Modèles
| Modèle Number | Description |
|---|---|
| CC-TDIL02 | 32-Channel Digital Input Module |
| CC-TAIL01 | 16-Channel Analog Input Module |
| CC-TDOB01 | 16-Channel Digital Output Module |
| CC-TAOB01 | 8-Channel Analog Output Module |
| CC-TCNT01 | High-Speed Counter Module |
| CC-TRTD01 | RTD Input Module for Temperature Sensing |
Popular Honeywell Modèles in the Same Marque
| Modèle Number | Description |
|---|---|
| CC-PAIX01 | 8-Channel Analog Input Module |
| CC-PDIL01 | 16-Channel Digital Input Module |
| CC-PDOB01 | 16-Channel Digital Output Module |
| CC-PAOB01 | 4-Channel Analog Output Module |
| CC-PCNT01 | Pulse Counter Module |
| CC-PTCR01 | Thermocouple Input Module |
