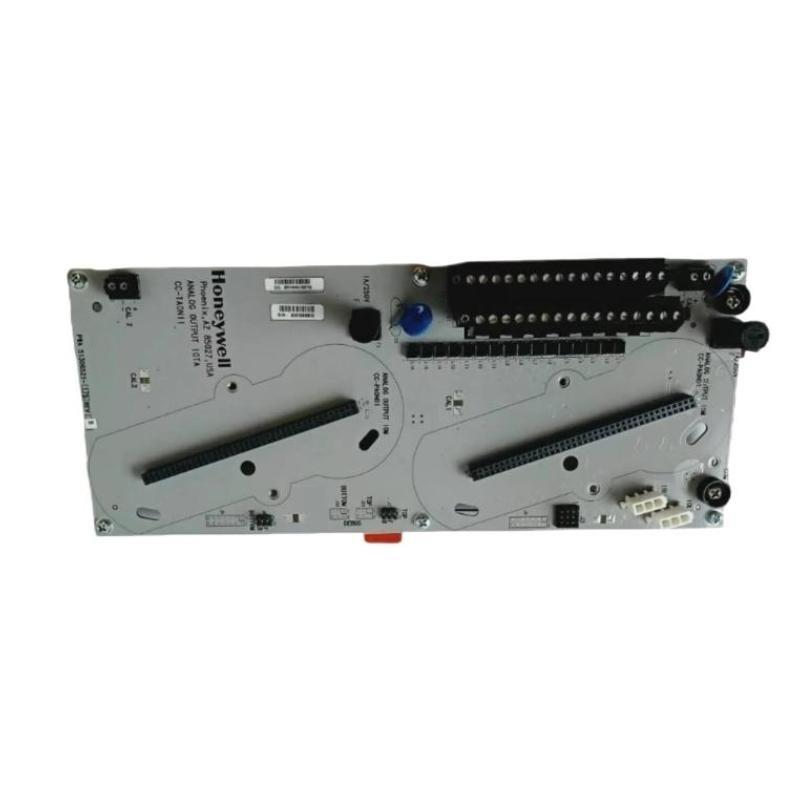

Product Overview
The Honeywell CC-TAON11 Analog Output Module is a high-performance output interface designed for Honeywell’s Experion Process Knowledge System (PKS) and C300 controller platforms. It delivers accurate and stable analog signals to field devices such as control valves, actuators, and other process control equipment. Engineered for mission-critical industrial automation, the CC-TAON11 provides excellent precision, noise immunitéy, and reliability, making it ideal for continuous operation in demanding environments.
Key Features
-
Designed for Honeywell Experion PKS and C300 systems
-
High-resolution analog output for precise process control
-
Multiple isolated output channels for enhanced reliability
-
Excellent signal stability and noise immunitéy
-
Hot-swappable for minimal process downtime
-
Integrated diagnostics for fault detection and maintenance
-
Rugged construction for harsh industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | CC-TAON11 |
| Module Type | Analog Output Module |
| Fabricant | Honeywell |
| System Compatibility | Experion PKS, C300 Controller |
| Output Type | Analog (current or voltage, configurable) |
| Number sur Channels | 8 channels |
| Output Range | 4–20 mA / 0–20 mA / 0–10 V (configurable) |
| Resolution | 12-bit or higher |
| Isolation | Channel-to-channel and channel-to-ground |
| Accuracy | ±0.1% sur span |
| Update Rate | High-speed processing for real-time control |
| Power Supply | Via system backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 125 × 30 × 200 mm |
| Poids | 0.42 kg |
| Certifications | CE, CSA, UL |
Industry Applications
-
Oil & gas production and refining
-
Petrochemical and chemical process control
-
Power generation plants
-
Water and wastewater treatment facilities
-
Pulp and paper manufacturing
-
Pharmaceutical and food processing industries
Questions fréquentes (FAQ)
Q1: Which Honeywell systems is the CC-TAON11 compatible with?
It is designed for Honeywell Experion PKS and C300 controller systems.
Q2: How many analog output channels does it have?
It provides 8 independent, isolated analog output channels.
Q3: What signal ranges are supported?
It supports configurable ranges including 4–20 mA, 0–20 mA, and 0–10 V.
Q4: Can the module be replaced while the system is running?
Yes, it supports hot-swapping when used in a compatible chassis.
Q5: What is the typical accuracy sur the output signal?
±0.1% sur span under normal operating conditions.
Q6: Does it have built-in diagnostics?
Yes, it includes self-diagnostics for channel health and fault detection.
Q7: Is channel-to-channel isolation provided?
Yes, each channel is isolated to improve reliability and safety.
Q8: What is the operating temperature range?
It operates between 0°C and 60°C.
Q9: What types sur field devices can it control?
It can drive control valves, actuators, variable speed drives, and similar process devices.
Q10: Is it certified for industrial use?
Yes, it is CE, CSA, and UL certified for industrial applications.
