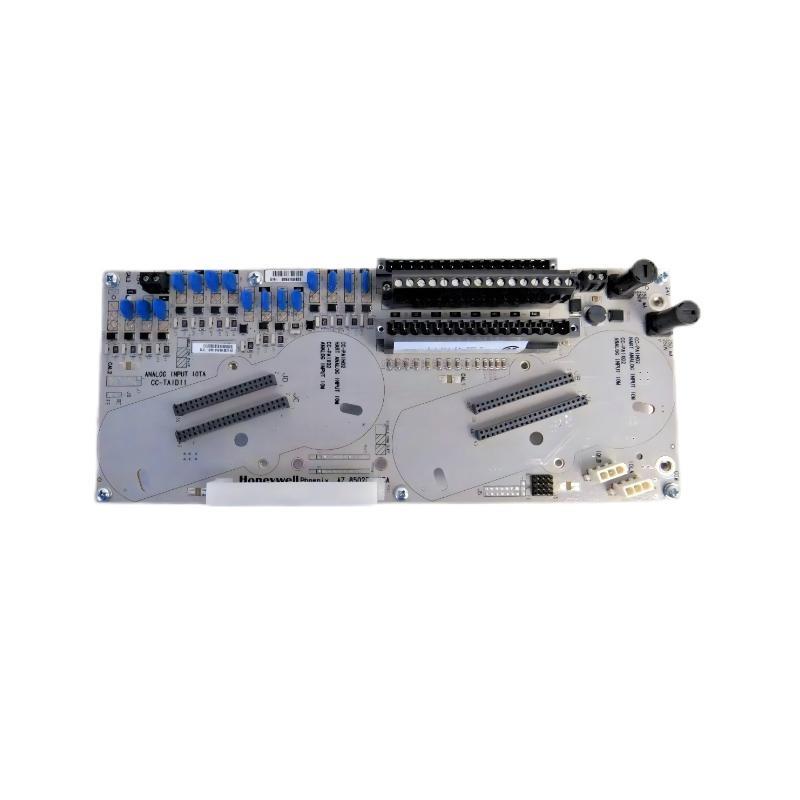

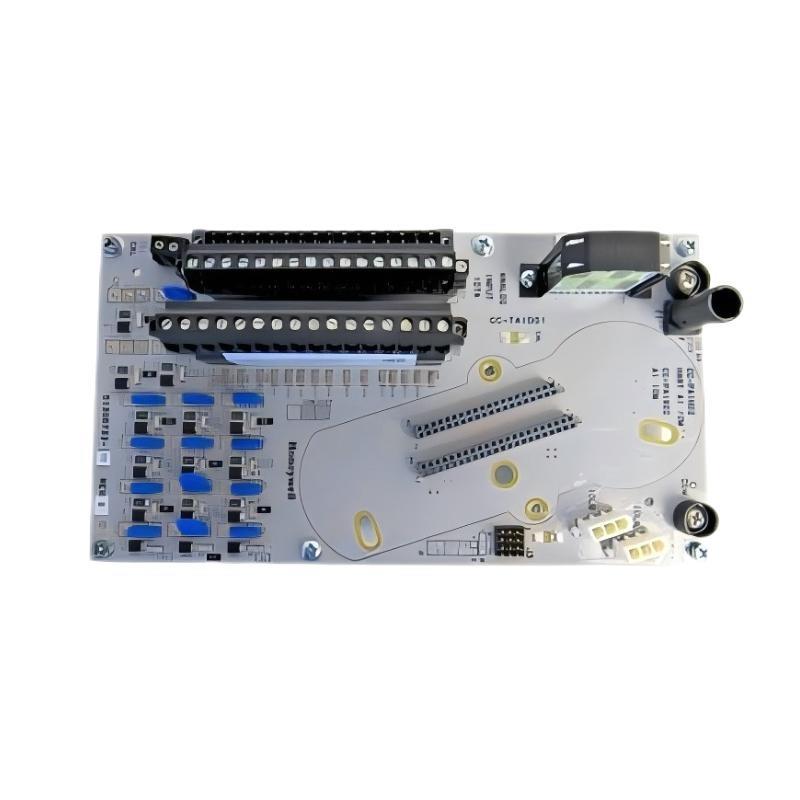

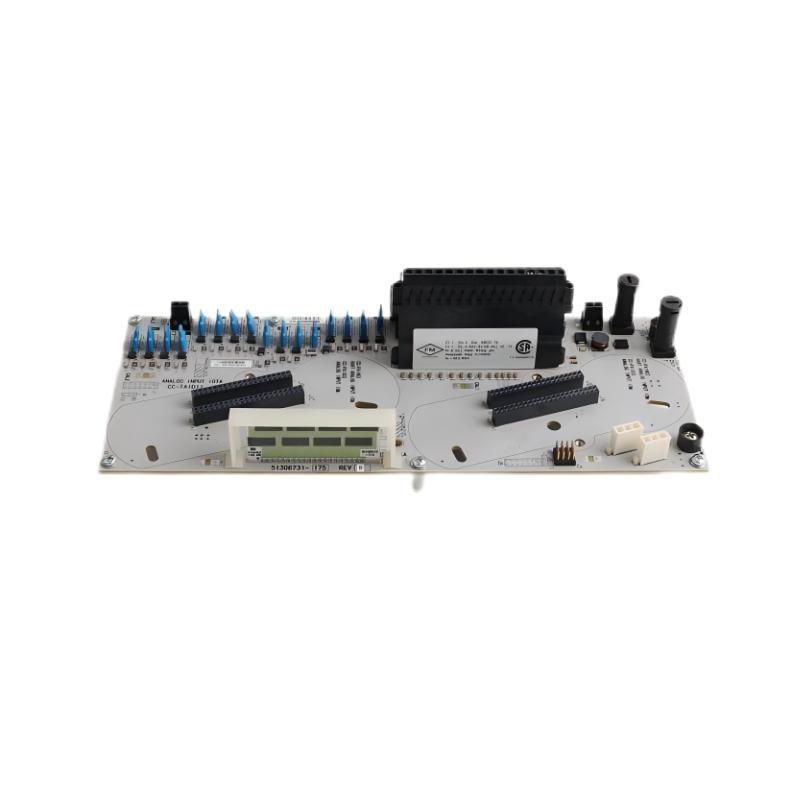

Présentation du produit: Honeywell CC-TAID11 (51306731-175)
The Honeywell CC-TAID11 (51306731-175) is a high-performance Analog Input module used in Honeywell’s Experion PKS and TDC 3000 control systems. As a crucial component within the C300 controller infrastructure, it plays a pivotal role in interfacing field analog signals with the distributed control system (DCS). Engineered for reliability and precision, this module ensures accurate conversion and transmission sur analog signals to facilitate smooth industrial automation processes.
This model is part sur the Process Manager series and integrates seamlessly into the Honeywell Universal IO environment, supporting advanced diagnostics, flexible configuration, and robust fault tolerance. Designed for demanding process industries such as oil & gas, chemical, power generation, and pharmaceuticals, the CC-TAID11 provides high signal fidelity, fast response times, and enhanced system stability.
Product Advantages
-
High Input Accuracy: Offers excellent resolution and signal stability, critical for process control.
-
Redundancy Ready: Compatible with redundant architectures for increased system uptime.
-
Seamless Integration: Easily integrates with Experion and TDC systems with minimal configuration.
-
Advanced Diagnostics: Supports channel-level diagnostics and error detection features.
-
Field Proven Reliability: Built to operate in harsh industrial environments with high MTBF.
-
Reduced Downtime: Hot-swappable design minimizes process interruptions during maintenance.
-
Universal Input Support: Capable sur handling a variety sur analog input types including current and voltage.
-
Compact Form Factor: Enregistrers panel space while providing 16-channel input capacity.
Technical Specifications
| Parameter | Details |
|---|---|
| Fabricant | Honeywell International Inc. |
| Modèle Number | CC-TAID11 |
| Référence | 51306731-175 |
| Module Type | Analog Input Module |
| Input Channels | 16 Single-ended or 8 Differential |
| Input Type | 4-20 mA, 0-10 VDC, Thermocouple (via external conditioning) |
| Resolution | 16-bit |
| Accuracy | ±0.1% sur span |
| Input Impedance | >250 Ohms for current input |
| Channel Isolation | Yes, channel-to-channel and channel-to-ground |
| Update Rate | 10 ms typical |
| Diagnostics | Open wire detection, signal fault monitoring |
| Hot Swappable | Yes |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH non-condensing |
| Power Consumption | <5 Watts |
| Mounting Type | DIN Rail or Panel Mount |
| Dimensions | 221 x 121 x 80mm |
| Poids | 0.2 kg |
| Compliance | CE, UL, CSA, RoHS |
| Compatible Systems | Experion PKS, TDC 3000, C300 Controller |
Applications
-
Oil & Gas Refining: Real-time pressure, temperature, and flow signal acquisition.
-
Power Generation: Monitors turbine performance and fuel levels via analog sensors.
-
Chemical Processing Plants: Integrates analog sensor data into centralized control systems.
-
Water & Wastewater Facilities: Collects analog signals for chemical dosing and flow control.
-
Pharmaceutical Manufacturing: Ensures precision in environmental monitoring and batch control.
-
Pulp & Paper Industry: Acquires data for steam system management and pulp consistency control.
Installation Instructions
-
Ensure the power supply is disconnected before module installation.
-
Mount the CC-TAID11 onto the appropriate carrier base or DIN rail.
-
Connect input signals to the designated terminal blocks (refer to Honeywell wiring diagrams).
-
Configure channel parameters using the control system interface.
-
Verify signal ranges and types are correctly assigned per channel.
-
Restore power and perform module self-check via system diagnostics.
-
Monitor system status and channel health in the Experion or TDC environment.
Questions fréquentes (FAQ)
-
Q: What types sur signals can the CC-TAID11 accept?
A: It accepts 4-20 mA current inputs, 0-10 VDC voltage signals, and can be adapted for thermocouple inputs with external conditioning. -
Q: Is the CC-TAID11 hot-swappable?
A: Yes, it can be replaced without powering down the entire system, minimizing operational interruptions. -
Q: How many channels does the CC-TAID11 support?
A: It supports up to 16 single-ended or 8 differential input channels. -
Q: Can this module detect signal faults automatically?
A: Yes, it includes diagnostics for open wire and other input signal errors. -
Q: What is the resolution sur this module?
A: It provides 16-bit resolution for high-accuracy analog input processing. -
Q: Is the CC-TAID11 compatible with legacy Honeywell systems?
A: Yes, it integrates with both legacy TDC 3000 and modern Experion PKS platforms. -
Q: What certifications does it comply with?
A: It is CE, UL, CSA certified and RoHS compliant. -
Q: Can I configure the input types per channel?
A: Yes, each channel can be individually configured for different analog input types. -
Q: What is the typical operating temperature range?
A: From -20°C to +70°C, suitable for industrial environments. -
Q: Does it support redundant operation?
A: Yes, it is designed to function within a redundant architecture.
6 Related Modèles (Same Series or Function)
| Modèle | Référence | Description | Input Type | Channels |
|---|---|---|---|---|
| CC-TAOX11 | 51308365-175 | Analog Output Module | 4-20 mA | 8 |
| CC-TDIL01 | 51306975-175 | Digital Input Module | Dry Contact | 32 |
| CC-TDOR01 | 51308386-175 | Digital Output Relay Module | Relay Output | 16 |
| CC-PDOB01 | 51405043-176 | Digital Output (24VDC) | DC Output | 16 |
| CC-TCNT01 | 51307022-175 | Pulse Counter Input Module | Pulse/Frequency | 4 |
| CC-PDIL01 | 51405040-175 | Isolated Digital Input Module | 24VDC Input | 16 |
6 Popular Honeywell Modèles (Same Marque)
| Modèle | Référence | Description | Module Type | Channels |
|---|---|---|---|---|
| CC-PCF901 | 51405047-175 | Fieldbus Interface Module | Control Processor | N/A |
| CC-TFB811 | 51308373-175 | Fieldbus I/O Module | Fieldbus | 2 Ports |
| CC-TDOR11 | 51308386-175 | Digital Output Relay Module | Relay Output | 16 |
| CC-PDOB01 | 51405043-176 | Digital Output Module | 24VDC Output | 16 |
| CC-TCNT01 | 51307022-175 | Counter Input Module | Pulse/Frequency | 4 |
| CC-TDIL01 | 51306975-175 | Digital Input Module | Dry Contact | 32 |
