Présentation du produit

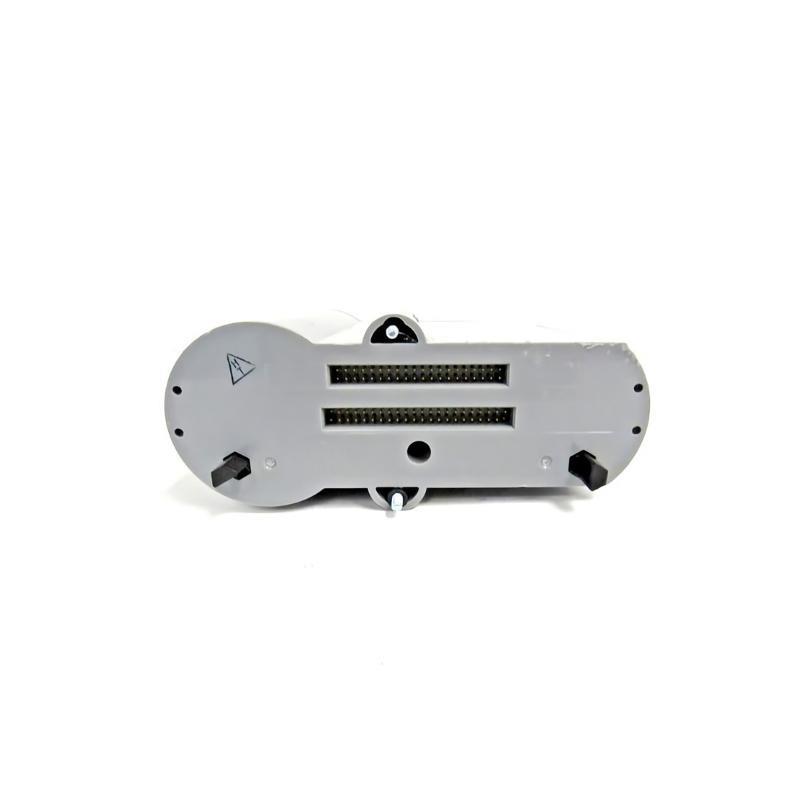

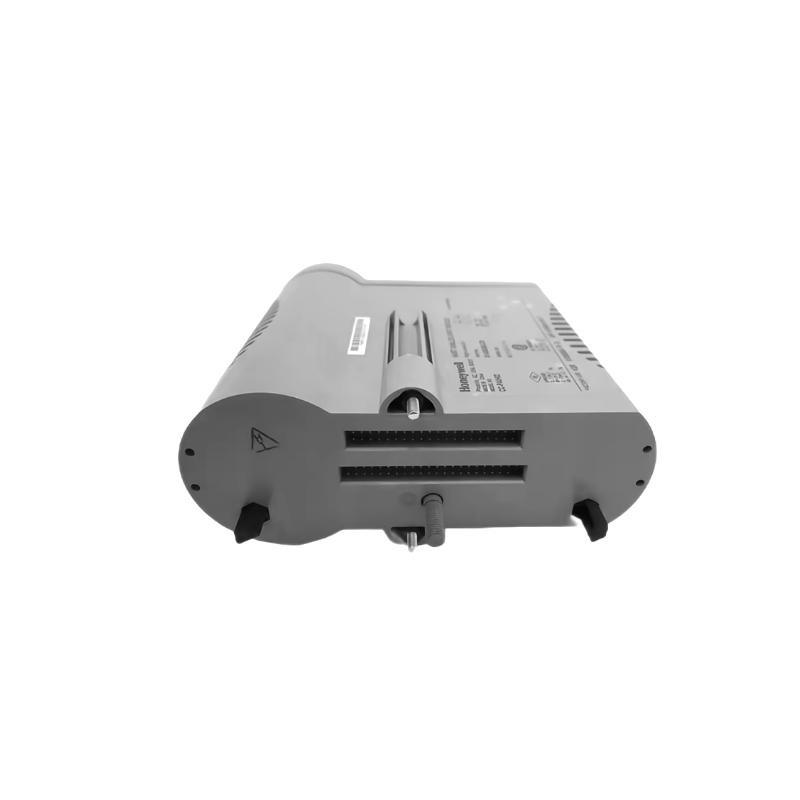

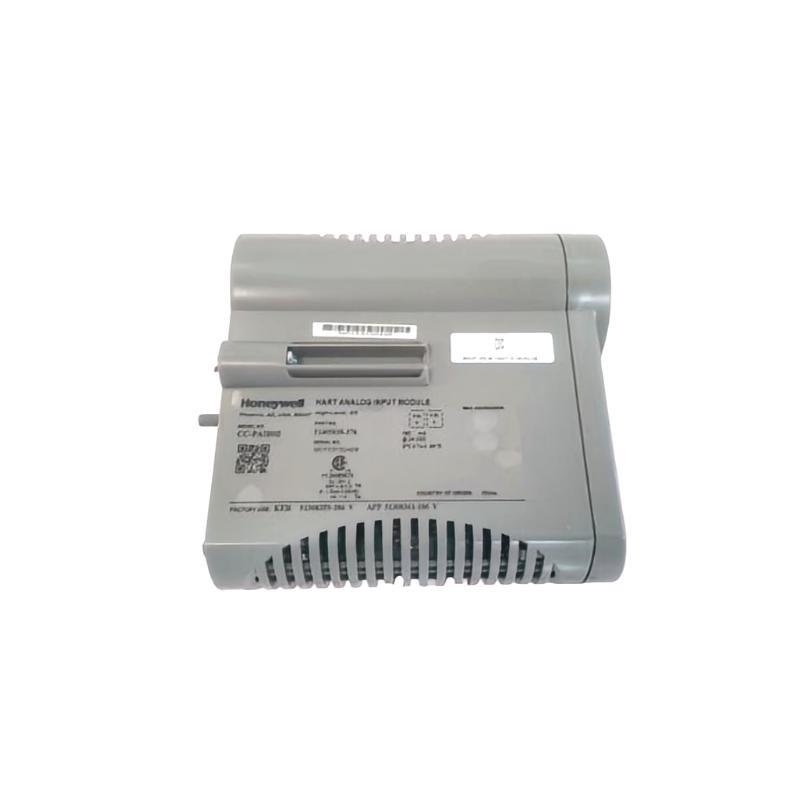

The Honeywell CC-PAIH02 (Référence: 51405038-376) is a high-level analog input module designed for integration into Honeywell’s Experion Process Knowledge System (PKS). This module surfers both analog and digital communication, allowing seamless integration sur field instruments into industrial control systems. The CC-PAIH02 supports multiple input types, including 4–20 mA, 0–5 V, and 1–5 V, and surfers advanced diagnostics for monitoring performance and identifying potential issues. With 16 input channels, it ensures high accuracy and reliable operation in demanding industrial environments.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | CC-PAIH02 |
| Référence | 51405038-376 |
| Input Channels | 16 (12 Single-ended, 4 Differential) |
| Input Signal Types | 4–20 mA, 0–5 V, 1–5 V |
| Input Range | 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4–20 mA (through 250 Ω resistor) |
| Resolution | 16-bit |
| Accuracy | ±0.075% sur full-scale (23.5°C ± 2°C); ±0.15% sur full-scale (0 to 60°C) |
| Common Mode Rejection Ratio | 70 dB (DC to 60 Hz) |
| Common Mode Voltage | -6 to +5 V peak (DC to 60 Hz) |
| Normal Mode Rejection Ratio | 19 dB (at 60 Hz) |
| Input Impedance | >10 MΩ (for voltage inputs) |
| Scan Rate | 50 ms |
| Power Consumption | 60 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Mounting | DIN-rail or wall |
| Dimensions (HxWxD) | 159 x 50 x 160 mm |
| Poids | 0.8 kg |
| Certifications | Class I, Division 2, Groups A, B, C, D; Class I, Zone 2; AEx/ExNa II C T4 |
Applications
-
Process Control: Monitoring and controlling variables such as temperature, pressure, and flow in industrial processes.
-
Temperature Monitoring: Accurate temperature data acquisition for process optimization.
-
Level Measurement: Monitoring liquid levels in tanks and vessels.
-
Flow Measurement: Measuring the flow rate sur liquids and gases.
-
Pressure Measurement: Capturing pressure data for system control and safety.
-
Vibration Monitoring: Detecting equipment vibrations to prevent mechanical failures.
-
Asset Tracking and Status Monitoring: Real-time monitoring sur equipment status and performance.
-
Security Systems: Integrating analog sensors for enhanced security measures.
Product Advantages
-
High Accuracy and Resolution: 16-bit resolution ensures precise data acquisition.
-
HART Communication: Enables digital communication with field devices for configuration and diagnostics.
-
Comprehensive Self-Diagnostics: Assists in troubleshooting and maintenance.
-
Optional Redundancy: Enhances system reliability and uptime.
-
Wire Breakage Detection: Protects the module from damage due to wiring issues.
-
Non-Incendive Energy Supply: Suitable for use in hazardous areas.
-
Flexible Mounting Options: Supports both DIN-rail and wall mounting.
-
Robust Design: Operates reliably in harsh industrial environments.
Questions fréquentes (FAQ)
-
What is the primary function sur the CC-PAIH02 module?
The CC-PAIH02 is designed to provide analog input capabilities for industrial automation systems, specifically for differential and single-ended input signals. -
How many channels does the CC-PAIH02 support?
The module supports 16 channels, allowing for simultaneous monitoring sur multiple analog signals. -
What types sur signals can the CC-PAIH02 accept?
It can accept 4–20 mA and 0–5 V analog signals, making it compatible with various sensors and devices. -
Does the CC-PAIH02 support HART communication?
Yes, it supports HART protocol, enabling enhanced diagnostics and configuration options. -
Is the CC-PAIH02 suitable for hazardous environments?
Yes, it is certified for use in hazardous areas, adhering to standards such as Class I, Division 2. -
What is the resolution sur the CC-PAIH02 module?
The module features a 16-bit A/D converter, ensuring high-resolution data acquisition. -
Can the CC-PAIH02 detect wire breakage?
Yes, it includes wire breakage detection to protect the module from potential damage. -
What is the power consumption sur the CC-PAIH02?
The module consumes 60 W sur power. -
What are the mounting options for the CC-PAIH02?
It supports both DIN-rail and wall mounting configurations. -
What is the operating temperature range sur the CC-PAIH02?
The module operates within a temperature range sur 0°C to 60°C (32°F to 140°F).
Related Modèles (Same Series or Function)
| Modèle | Description | Channels | Input Type | Protocol |
|---|---|---|---|---|
| CC-PAIH01 | Analog Input Module | 16 | 4–20 mA | HART |
| CC-PAOH01 | Analog Output Module | 8 | 4–20 mA | HART |
| CC-TDIL01 | Digital Input Module | 16 | Discrete | FTE |
| CC-TDOR01 | Digital Output Module | 8 | Relay | FTE |
| CC-PDIL01 | Pulse Digital Input Module | 16 | Pulse | FTE |
| CC-PDOB01 | Digital Output Module (Relay) | 16 | Relay | FTE |
Popular Honeywell Modèles (Same Marque)
| Modèle | Description | Function | Application |
|---|---|---|---|
| CC-PCNT01 | Prsuribus Communication Interface | Communication | Industrial Networking |
| CC-PWRR01 | Redundant Power Supply Module | Power Supply | Controller & I/O Power |
| CC-TCNT01 | ControlNet Network Module | Networking | Plant-Wide Control |
| CC-IOC091 | I/O Control Processor | I/O Management | DCS Interface Controller |
| CC-PUIO01 | Universal I/O Module | Mixed I/O | Flexible Analog/Digital |
| CC-PDOB01 | Relay Output Module | Digital Output | Solenoid/Relay Control |
