Présentation du produit

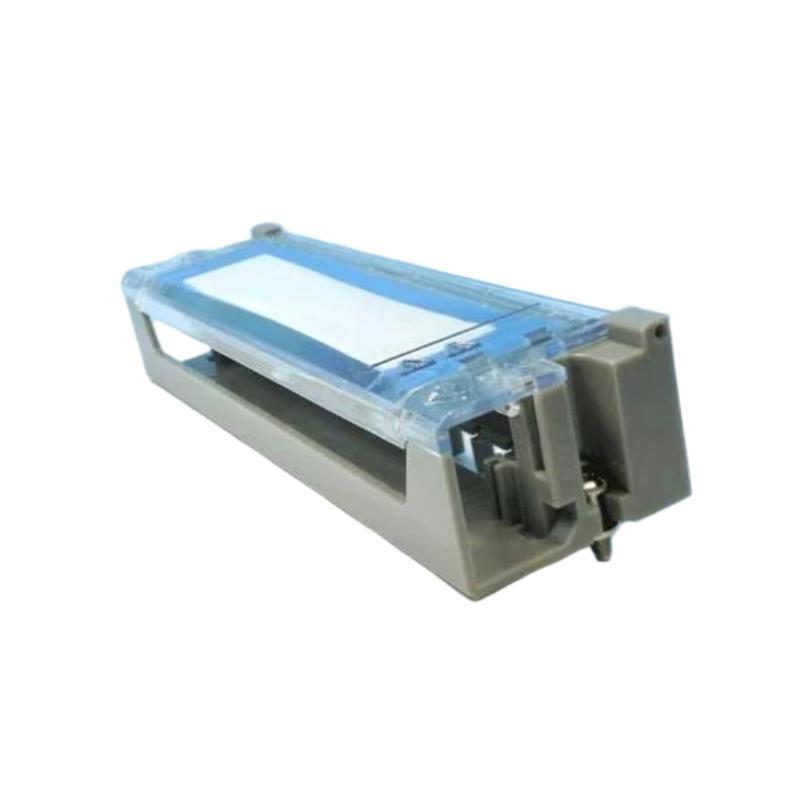

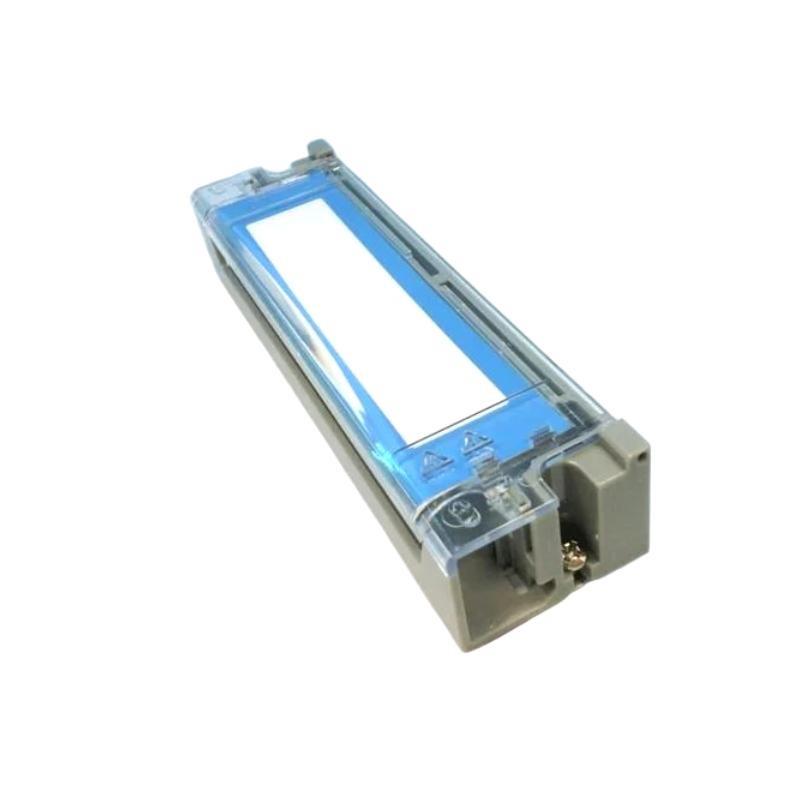

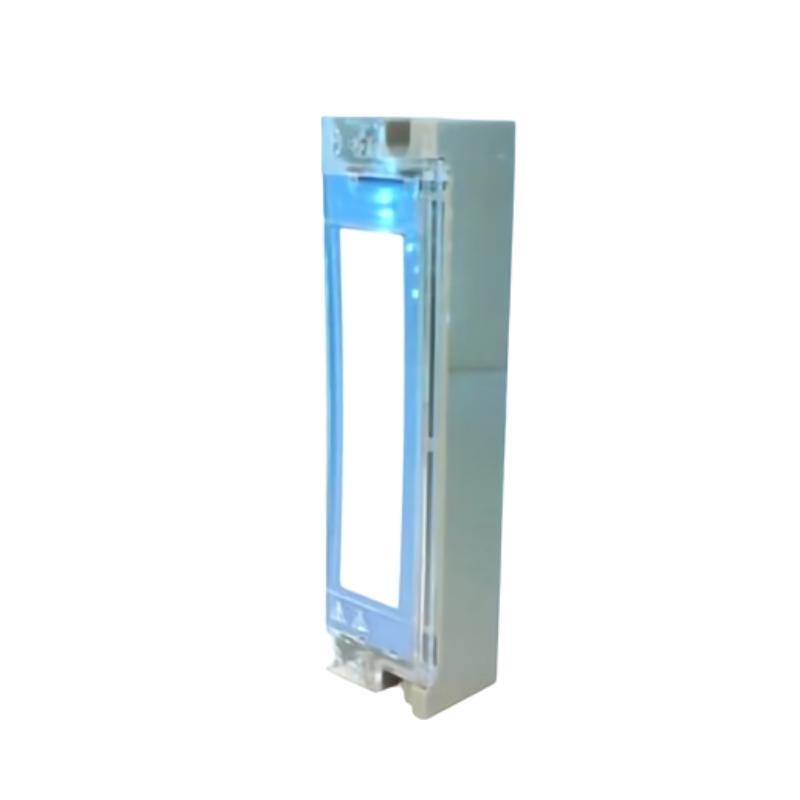

The Honeywell 900TNF-0101 Filler Block Terminal Cover is a protective accessory designed for Honeywell’s HC900 and related process control systems. This cover provides a secure closure for unused or spare terminal slots on I/O modules and racks, ensuring operator safety and preventing accidental contact with live electrical connections.
Engineered for industrial environments, the filler block terminal cover is essential for maintaining system integrity and safety, particularly in complex control panels where exposed terminal points could pose electrical hazards or compromise system reliability. The 900TNF-0101 ensures compliance with industrial safety standards while maintaining easy access for future system expansions.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Modèle | Honeywell 900TNF-0101 |
| Function | Protective filler block cover for unused I/O module terminals |
| Compatibility | Honeywell HC900 racks, I/O modules, and backplanes |
| Material | High-strength industrial-grade plastic |
| Mounting Type | Snap-in installation on terminal slots |
| Color | Gray (standard industrial) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5% – 95% non-condensing |
| Dimensions | 50 × 25 × 10 mm |
| Poids | 0.463 kg |
| Certifications | CE, UL, RoHS compliant |
Product Applications
-
Industrial Control Panels – Protects unused I/O slots in HC900 or other Honeywell racks.
-
Process Automation Systems – Ensures safety and prevents accidental shorts in critical process control environments.
-
Power Generation and Utilities – Covers unused terminal points in distributed control system racks.
-
Chemical and Petrochemical Plants – Enhances operator safety by preventing contact with live connections.
-
Manufacturing Automation – Maintains rack integrity when certain modules are not installed.
-
System Expansion Preparation – Protects spare slots until they are needed for future I/O module installation.
Product Advantages
-
Enhanced Safety – Prevents accidental contact with live terminals, reducing electrical hazards.
-
Modular Compatibility – Fits standard Honeywell HC900 and related racks without modification.
-
Easy Installation – Snap-in design allows rapid installation and removal.
-
Durable Construction – Industrial-grade plastic withstands temperature variations and vibration.
-
Maintains System Integrity – Ensures unused slots do not compromise electrical continuity or cause shorts.
-
Low Maintenance – No additional servicing required once installed.
-
Standardized Color Coding – Gray color provides consistent visual identification sur unused slots.
-
Future-Ready – Allows easy removal for future I/O module installation without tools.
FAQ
-
What systems is the 900TNF-0101 compatible with?
It is compatible with Honeywell HC900 racks, I/O modules, and standard backplanes. -
How is the filler block installed?
It uses a snap-in design that securely attaches to the terminal slot without additional tools. -
Can the filler block be removed for module installation?
Yes, it can be easily removed whenever the slot needs to be populated with a module. -
Does it provide any electrical insulation?
Yes, the industrial-grade plastic provides electrical insulation to prevent shorts and hazards. -
Can it withstand high humidity or dust?
Yes, it operates reliably in 5%–95% non-condensing humidity and typical industrial environments. -
Is the cover compatible with all slot types in the HC900 system?
It is compatible with standard terminal slots for unused I/O modules in Honeywell racks. -
Does it require any maintenance?
No maintenance is required after installation. -
Can the cover withstand physical impact?
Yes, the material is impact-resistant for normal industrial handling conditions. -
Is it color-coded for easy identification?
Yes, the standard gray color identifies it as a filler block for unused slots. -
Can multiple covers be used in one rack?
Yes, multiple 900TNF-0101 covers can be installed in different unused slots sur the same rack.
Recommended Related Modèles (Same Series)
| Modèle | Description |
|---|---|
| 900TNF-0102 | Filler block for larger terminal slots |
| 900TNF-0201 | Terminal cover with snap-lock for redundant racks |
| 900TNF-0300 | Protective cover for analog I/O slots |
| 900TNF-0400 | Snap-in cover for digital output terminals |
| 900TNF-0500 | Insulated filler block for expansion modules |
| 900TNF-0600 | High-visibility filler block for safety critical slots |
Popular Honeywell Modèles (Autres Families)
| Modèle | Description |
|---|---|
| 900C52-0142-00 | HC900 C50 Controller CPU |
| 900CS10-00 | HC900 Control Station HMI |
| 9007-006 | DMCS Communications Card Board |
| 900R04-0200 | 4 Slot I/O Slot Rack |
| CC-PDIL01 | Digital Input Module for HC900 |
| CC-PDOB01 | Digital Output Module for HC900 |
