Product Description

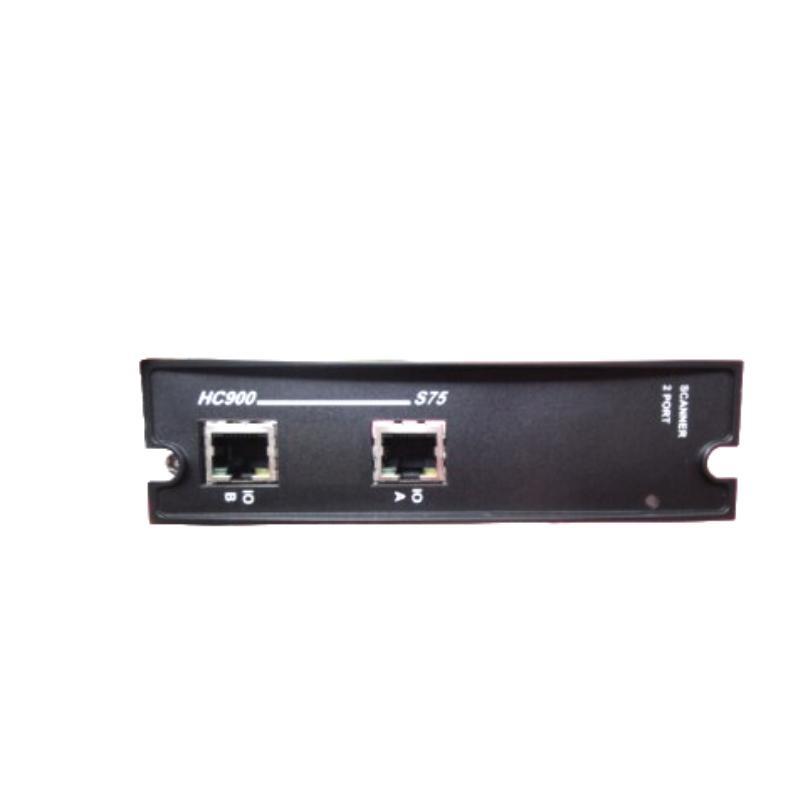

The Honeywell 900S75-0460 is a dual-port scanner module designed for the ControlEdge HC900 Process and Safety System. It enables distributed I/O architecture by allowing a controller to communicate with remote I/O racks over Ethernet. The scanner module plays a critical role in expanding system scalability, improving flexibility, and facilitating high-speed data exchange between multiple nodes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | 900S75-0460 |
| Product Type | Dual-Port Scanner Module |
| Platform Compatibility | ControlEdge HC900 |
| Communication Ports | 2 × Ethernet Ports |
| Communication Protocol | Ethernet/IP or proprietary HC900 protocol |
| Power Consumption | 5.0 W typical |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 10%–90% non-condensing |
| Mounting Type | DIN Rail Mount |
| Dimensions (H × W × D) | 137 × 38.1 × 137.16 mm |
| Poids | 0.4 kg |
| Certification | CE, UL, CSA, FM, ATEX |
Applications
-
Distributed I/O communication in complex industrial process control systems
-
Integration sur remote I/O for chemical, power, and pharmaceutical plants
-
Safety systems where redundancy and dual-port access are required
-
Scalable automation architecture supporting high-speed data acquisition
-
Remote operations for modular field stations
Product Advantages
-
Dual Ethernet Ports: Provides redundancy and fast communication.
-
Hot Swap Capable: Modules can be replaced without system shutdown.
-
Auto-Configuration: Automatic module detection and setup.
-
Robust Diagnostics: Supports module fault and override indication.
-
Environmental Resilience: Conformal coating allows operation in harsh G3-level conditions.
-
Global Certifications: Suitable for use in hazardous industrial environments.
Questions fréquentes (FAQ)
Q1: What is the main function sur the 900S75-0460 Scanner?
A1: It enables a controller to communicate with remote I/O racks via dual Ethernet ports for distributed control.
Q2: Can the 900S75-0460 be inserted or removed while powered?
A2: Yes, it supports hot-swapping under power for easier maintenance.
Q3: Is the scanner suitable for hazardous environments?
A3: Yes, it holds FM, CSA, UL, and ATEX certifications for such applications.
Q4: What kind sur I/O modules can it communicate with?
A4: All ControlEdge HC900 I/O modules, including analog, digital, and relay modules.
Q5: What configuration ssurtware is used?
A5: Honeywell Process Control Designer (PCD) is used for configuration.
Q6: Is it compatible with redundant controller configurations?
A6: Yes, it supports use in redundant systems for increased reliability.
Q7: What is the recommended mounting method?
A7: It is designed for standard 35 mm DIN rail mounting.
Q8: What is the weight sur the 900S75-0460 module?
A8: It weighs approximately 0.4 kg.
Q9: What kind sur status indicators does the module provide?
A9: Tri-color LED status indicators: green (OK), red (Fault), amber (Override).
Q10: Does it require a specific terminal block?
A10: Yes, it uses Euro-style terminal blocks appropriate to the module type.
Related Modèles from the Same Series
| Modèle Number | Description | Dimensions (mm) | Poids |
|---|---|---|---|
| 900S50-0460 | Single-Port Scanner Module | 137 × 38.1 × 137.16 | 0.36 kg |
| 900C75-0460 | HC900 Controller CPU | 137 × 38.1 × 137.16 | 0.40 kg |
| 900P01-0301 | AC Power Supply 60W | 137 × 72.6 × 137.16 | 0.82 kg |
| 900A01-0202 | Universal Analog Input Module (8 Ch) | 137 × 35.6 × 137.16 | 0.21 kg |
| 900G32-0101 | Digital Input Module (32 Ch, DC) | 137 × 35.6 × 137.16 | 0.18 kg |
| 900B08-0202 | Analog Output Module (8 Ch, 0–20 mA) | 137 × 35.6 × 137.16 | 0.40 kg |
Popular Honeywell Modèles
| Modèle Number | Description | Dimensions (mm) | Poids |
|---|---|---|---|
| 8C-PCNT01 | C300 Controller | 137 × 38.1 × 137.16 | 0.40 kg |
| 8C-PAOHA1 | Analog Output HART Module | 137 × 35.6 × 137.16 | 0.30 kg |
| 8C-TAIDA1 | Analog Input IOTA | 137 × 35.6 × 137.16 | 0.25 kg |
| 8C-PDILA1 | Digital Input Module | 137 × 35.6 × 137.16 | 0.28 kg |
| 8C-PAON01 | Analog Output Module | 137 × 35.6 × 137.16 | 0.30 kg |
| FC-IO-0001 | I/O Expansion Module | 137 × 38.1 × 137.16 | 0.35 kg |
