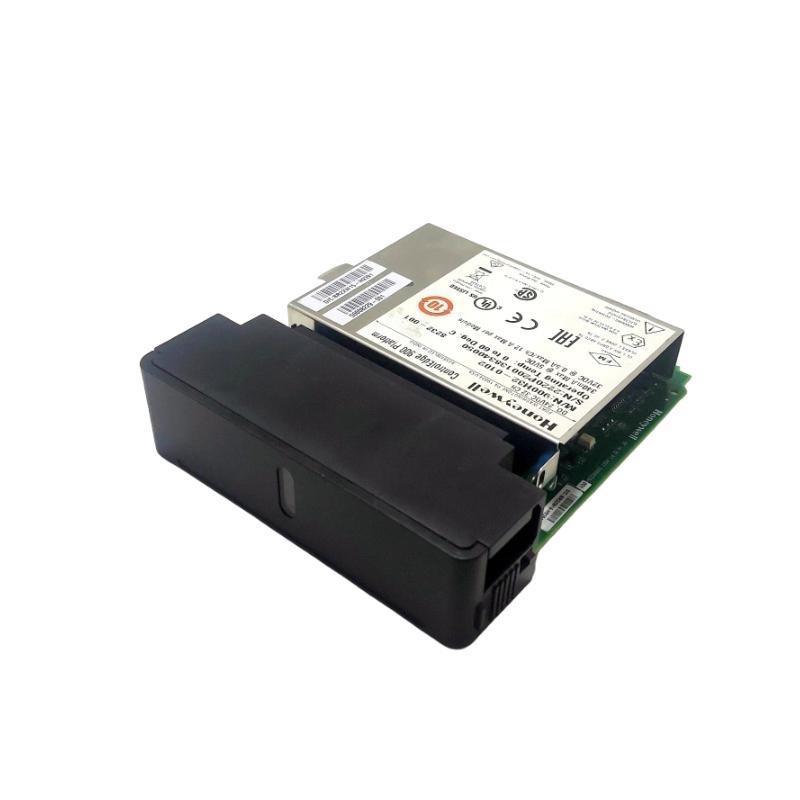

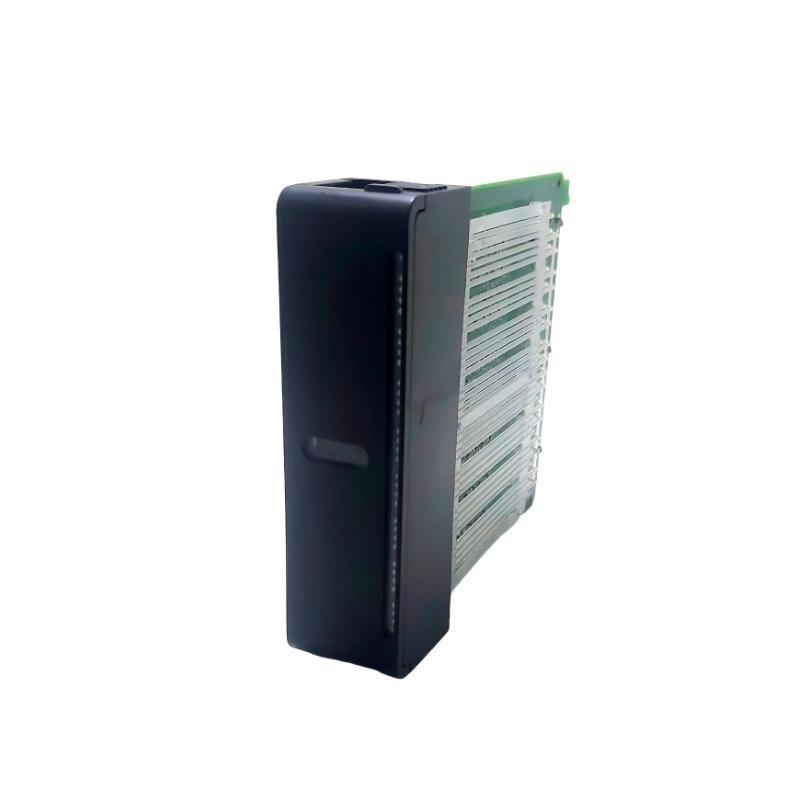

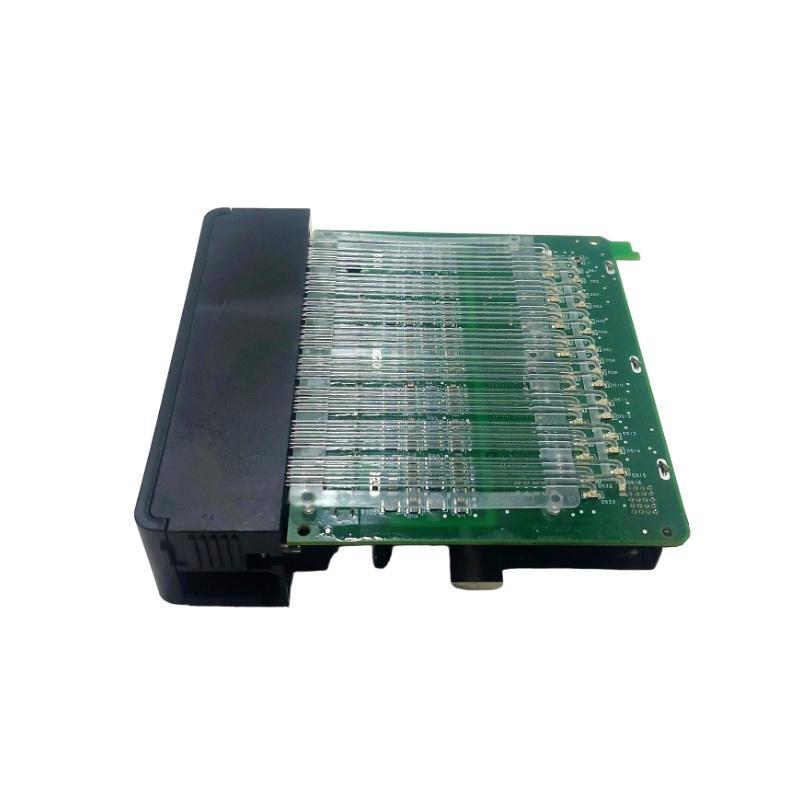

Product Overview
The Honeywell 900H32-0102 32-Point Digital Output Module is a high-density module designed to control and monitor a large number sur digital output devices in industrial automation systems. It is part sur Honeywell’s extensive range sur field devices and is ideal for applications requiring numerous outputs for digital devices such as actuators, relays, and motors. This module provides 32 digital outputs, enabling efficient control across a wide variety sur processes.
It features dry contact (SPDT) output types, ensuring reliable control over high-current devices with a straightforward integration into most industrial control systems. With its compact design and robust functionality, the Honeywell 900H32-0102 is suited for diverse industries including manufacturing, process control, building systems, and more.
This module provides excellent performance and flexibility, making it an essential component in industrial automation and control systems, especially in applications where multiple digital output points are necessary.
Spécifications du produit
Here are the detailed specifications for the Honeywell 900H32-0102 32-Point Digital Output Module:
| Specification | Details |
|---|---|
| Modèle Number | 900H32-0102 |
| Type | 32-Point Digital Output Module |
| Output Type | Dry Contact (SPDT) |
| Number sur Channels | 32 Outputs |
| Voltage Rating | 24 VDC |
| Current Rating | 2 Amps per Channel |
| Dimensions (H x W x D) | 137 × 35.6 × 137.16 mm |
| Poids | 0.18 kg |
| Mounting | DIN Rail or Panel Mount |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Power Consumption | 4 W |
Applications sur the Honeywell 900H32-0102 32-Point Digital Output Module
The Honeywell 900H32-0102 is designed for a variety sur industrial applications, where large numbers sur digital outputs are required for controlling various devices. Some common applications include:
-
Factory Automation: Ideal for controlling production line equipment, actuators, relays, and other devices in an automated manufacturing environment.
-
Process Control: Used to control digital devices such as pumps, valves, and solenoids in chemical, oil, and gas industries.
-
Building Management Systems (BMS): Controls HVAC, lighting, and security devices in large commercial buildings or campuses.
-
Energy Management: Manages energy distribution and control systems by turning on/surf equipment based on system requirements.
-
SCADA Systems: Can be integrated into SCADA systems for monitoring and controlling a wide range sur output devices in real time.
-
Safety Systems: Provides control for emergency shutdown systems, alarms, and other critical safety devices.
Advantages sur the Honeywell 900H32-0102 32-Point Digital Output Module
-
High Output Density: With 32 output points, this module is highly efficient for large-scale control applications, saving valuable space in control panels.
-
Durability and Reliability: Built to operate in harsh industrial environments, surfering durability in temperatures ranging from -20°C to +60°C.
-
Low Power Consumption: Consumes only 4 W sur power, making it an energy-efficient option for industrial automation systems.
-
Flexible Mounting: It supports both DIN rail and panel mounting, making installation easier and more versatile.
-
Cost-Effective: With a compact design and efficient use sur space, the Honeywell 900H32-0102 helps to reduce overall system costs.
-
Easy Integration: Can be easily integrated into existing Honeywell control systems or other compatible systems.
-
Long Life Cycle: Designed for long-term operation with minimal maintenance required, surfering a reliable solution for control systems.
-
Compact Design: Despite its high output density, it maintains a compact footprint, ensuring it fits into systems with limited space.
-
Wide Range sur Applications: Ideal for use in many industries such as manufacturing, energy, and process control.
Questions fréquentes (FAQ)
-
How many output channels does the Honeywell 900H32-0102 provide?
-
The module provides 32 digital output channels.
-
-
What type sur output does this module use?
-
It uses dry contact (SPDT) outputs, suitable for controlling various digital devices.
-
-
What is the maximum current rating per output channel?
-
Each output channel can handle up to 2 Amps.
-
-
What voltage rating is the module designed for?
-
The module operates at 24 VDC.
-
-
What are the dimensions sur the Honeywell 900H32-0102?
-
The dimensions are 137 × 35.6 × 137.16 mm.
-
-
Can the module be mounted on a DIN rail?
-
Yes, it supports DIN rail or panel mounting for flexible installation options.
-
-
What is the weight sur the module?
-
The module weighs 0.18 kg.
-
-
What is the operating temperature range sur this module?
-
It operates within a temperature range sur -20°C to +60°C.
-
-
What is the power consumption sur the Honeywell 900H32-0102?
-
The module consumes 4 W sur power during operation.
-
-
What applications is this module best suited for?
-
It is best suited for factory automation, process control, BMS, and SCADA systems.
-
Recommended Related Modèles
Here are six related models from the same Honeywell series or with similar functionality:
| Modèle | Description | Key Features |
|---|---|---|
| Honeywell 900H32-0103 | 16-Point Digital Output Module | Ideal for smaller applications with 16 outputs |
| Honeywell 900H32-0104 | 32-Point Isolated Output Module | Offers isolated output channels for critical systems |
| Honeywell 900H32-0105 | High-Power 32-Point Digital Output Module | Supports higher current outputs (5 Amps) |
| Honeywell 900H32-0106 | Compact 16-Point Output Module | Space-saving design with 16 outputs |
| Honeywell 900H32-0107 | Relay Output Module with 32 Points | Includes relay-based outputs for control |
| Honeywell 900H32-0108 | Digital Output Module for Harsh Environments | Designed for extreme conditions, with enhanced protection |
Popular Honeywell Modèles
Below are six sur the most popular models from Honeywell, known for their reliability and efficiency:
| Modèle | Description | Key Features |
|---|---|---|
| Honeywell 900H32-0001 | 8-Point Digital Output Module | Ideal for low-output applications |
| Honeywell 900H32-0002 | 16-Point Digital Input Module | Provides precise input control |
| Honeywell 900H32-0003 | 8-Point Analog Output Module | Ideal for applications requiring analog control |
| Honeywell 900H32-0004 | I/O Expansion Module | Expands input/output points for scalability |
| Honeywell 900H32-0005 | Mixed I/O Module | Combines both analog and digital control in one module |
| Honeywell 900H32-0006 | 32-Point Relay Output Module | Provides relay output for high-power devices |
