Présentation du produit

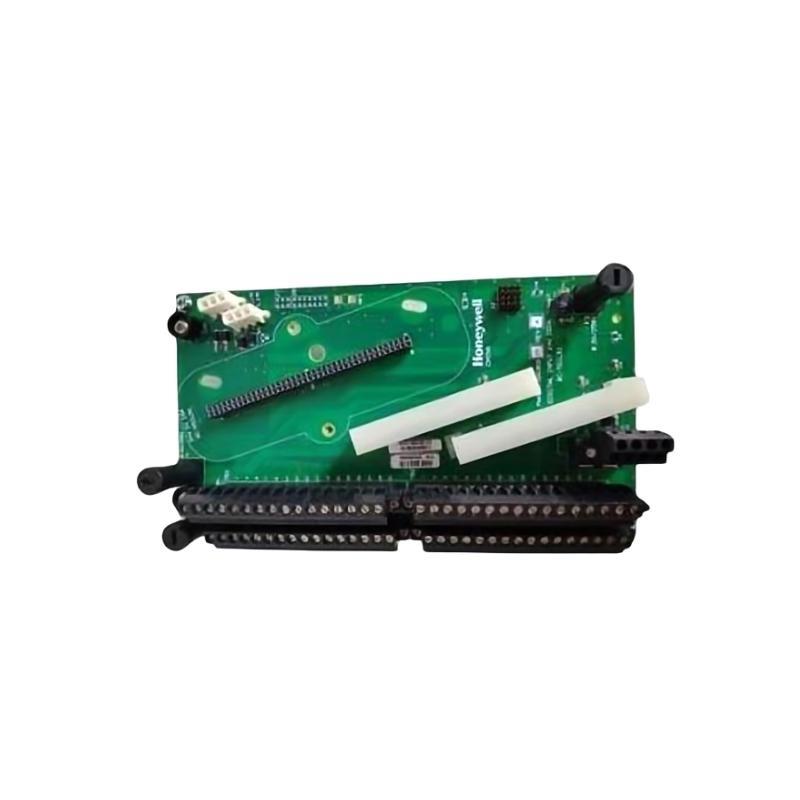

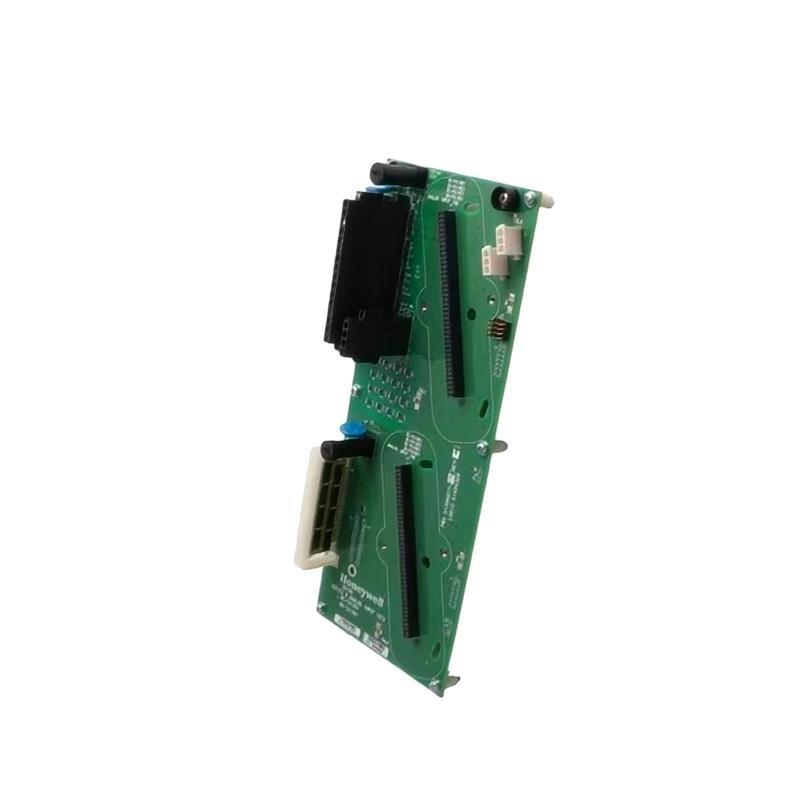

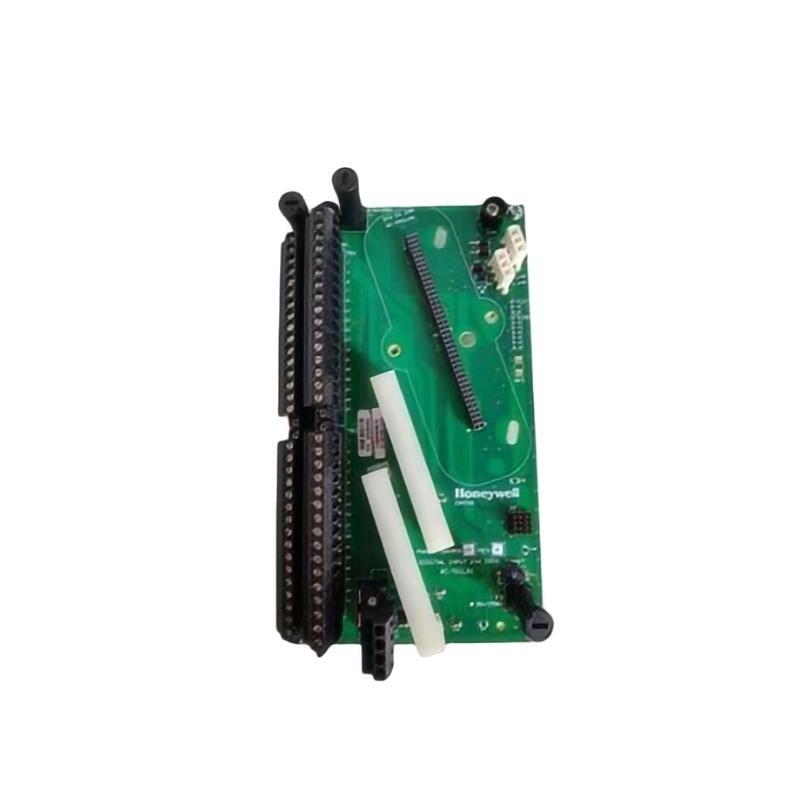

The Honeywell 8C-TAOX61 Analog Output Module, part number 51306981-175, is a robust and precise device engineered for industrial process control environments. Designed to interface seamlessly with Honeywell control systems, this module converts digital control signals into accurate analog outputs. These outputs are used to drive field devices such as valves, actuators, and other analog input equipment essential to the automation process.
Built to meet the stringent requirements sur industries like oil & gas, chemical processing, power generation, and manufacturing, the 8C-TAOX61 surfers exceptional reliability, durability, and performance consistency even in harsh operating conditions. Its compact design allows easy integration into existing control architectures, supporting streamlined installation and maintenance.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | 8C-TAOX61 |
| Honeywell Référence | 51306981-175 |
| Module Type | Analog Output Module |
| Output Channels | Typically 4 independent analog outputs |
| Output Signal Range | 0-20 mA or 4-20 mA (configurable) |
| Power Supply | 24 VDC nominal |
| Response Time | <100 ms |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -50°C to +90°C |
| Humidity | 0 to 95% RH, non-condensing |
| Dimensions (WxHxD) | 220 x 120 x 304.8 mm |
| Poids | 0.7 kg |
| Communication Protocol | Compatible with Honeywell’s control systems (e.g., TDC, Experion) |
| Mounting Type | DIN rail or rack-mounted |
| Certification | CE, UL recognized |
Product Applications
-
Process Control Systems: Utilized to translate digital control commands into precise analog outputs to operate final control elements like valves and dampers.
-
Oil and Gas Industry: Controls hydraulic or pneumatic actuators for valves in upstream and downstream processing.
-
Chemical and Petrochemical Plants: Provides reliable analog outputs for regulating flow, pressure, and temperature control devices.
-
Power Generation: Interfaces with turbine controls and boiler feed systems to ensure optimal plant operation.
-
Water Treatment Facilities: Drives dosing pumps and other analog-controlled equipment to maintain water quality standards.
-
Manufacturing Automation: Controls actuators and motor drives in assembly lines and production machinery.
Product Advantages
-
High Precision and Stability: Ensures consistent analog output signals for accurate control, minimizing process variability.
-
Robust Design: Engineered to withstand extreme environmental conditions including temperature fluctuations and humidity.
-
Easy Integration: Compatible with a wide range sur Honeywell control systems, simplifying upgrade and retrsurit tasks.
-
Compact Footprint: Space-saving design facilitates installation in tight control cabinets.
-
Modular Architecture: Simplifies maintenance and replacement without disrupting the overall system.
-
Flexible Output Configuration: Supports multiple output signal ranges to suit different field devices.
-
Certified Quality: Complies with international standards ensuring reliable operation and safety.
-
Low Power Consumption: Efficient design reduces energy costs in large-scale automation systems.
-
Diagnostic Features: Built-in monitoring helps quickly identify faults and reduces downtime.
-
Long Service Life: Durable components and quality manufacturing extend operational lifespan, reducing total cost sur ownership.
Questions fréquentes (FAQ)
-
What type sur output signals does the 8C-TAOX61 support?
The module supports standard 0-20 mA and 4-20 mA analog output signals, configurable based on application requirements. -
Can this module be used with any Honeywell control system?
It is compatible with most Honeywell process control systems, including TDC and Experion platforms. -
What is the maximum number sur output channels on this module?
Typically, the 8C-TAOX61 provides four independent analog output channels. -
How does the module handle harsh environmental conditions?
It is designed to operate reliably in temperatures from -40°C to +85°C and withstands up to 95% relative humidity without condensation. -
What are the mounting options available?
The module supports DIN rail mounting and can also be installed in standard Honeywell racks. -
Is the module hot-swappable?
No, the module should be powered down before removal or installation to avoid system interruption. -
What kind sur diagnostics are available?
The module provides built-in diagnostics for output channel faults and communication errors to facilitate quick troubleshooting. -
How does this module contribute to process safety?
Reliable analog output signals ensure precise control sur field devices, minimizing risks related to incorrect process parameters. -
What certifications does the module have?
It holds CE and UL certifications, confirming compliance with safety and electromagnetic compatibility standards. -
What is the expected service life sur the 8C-TAOX61?
With proper maintenance, the module can reliably operate for many years, surten exceeding 10 years in industrial environments.
Recommended Related Modèles (Same Series or Similar)
| Modèle Number | Référence | Description | Output Channels | Dimensions (WxHxD) mm | Poids (kg) |
|---|---|---|---|---|---|
| 8C-TAOX62 | 51306981-176 | Analog Output Module, 4 channels | 4 | 50 x 130 x 110 | 0.46 |
| 8C-TAOX63 | 51306981-177 | Analog Output Module, 8 channels | 8 | 50 x 130 x 140 | 0.65 |
| 8C-TAIX61 | 51306981-178 | Analog Input Module, 4 channels | 4 | 50 x 130 x 110 | 0.44 |
| 8C-TAOX64 | 51306981-179 | High precision AO Module | 4 | 50 x 130 x 110 | 0.47 |
| 8C-TOUX61 | 51306981-180 | Universal Output Module | 4 | 50 x 130 x 110 | 0.48 |
| 8C-TBOX61 | 51306981-181 | Analog Output with diagnostics | 4 | 50 x 130 x 110 | 0.49 |
