Présentation du produit

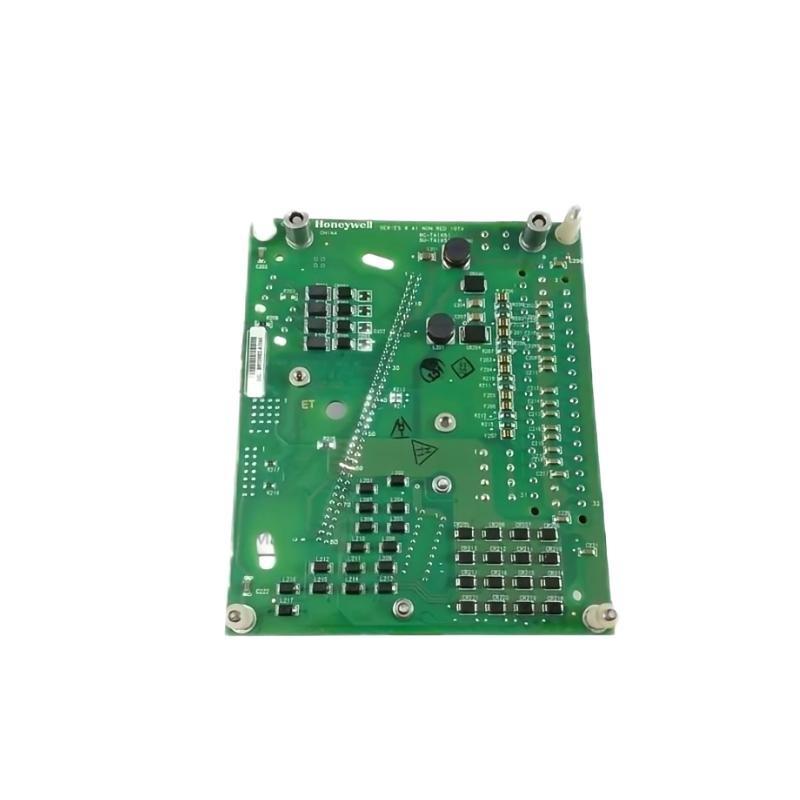

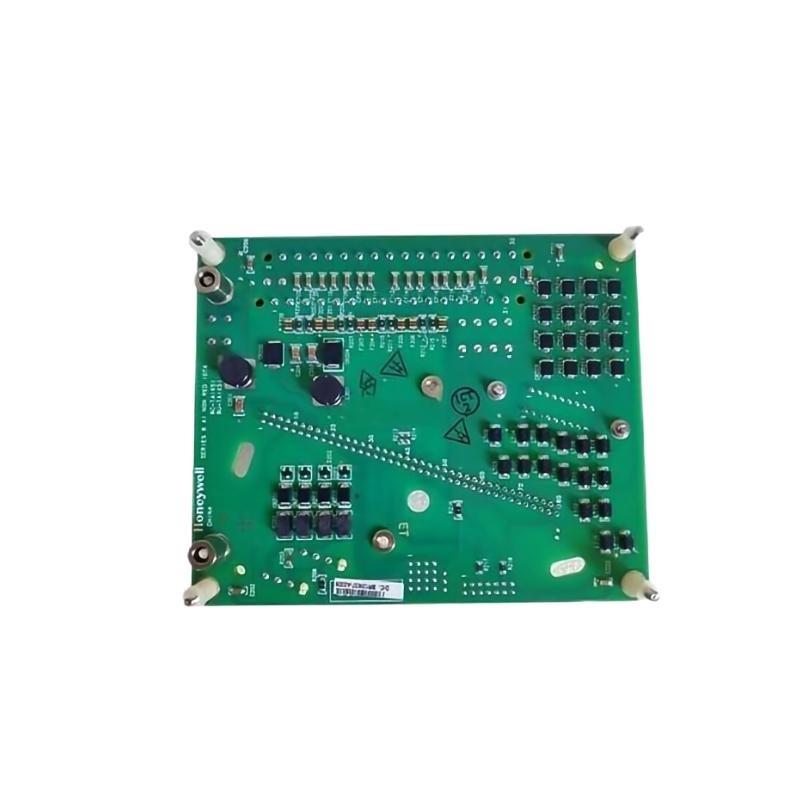

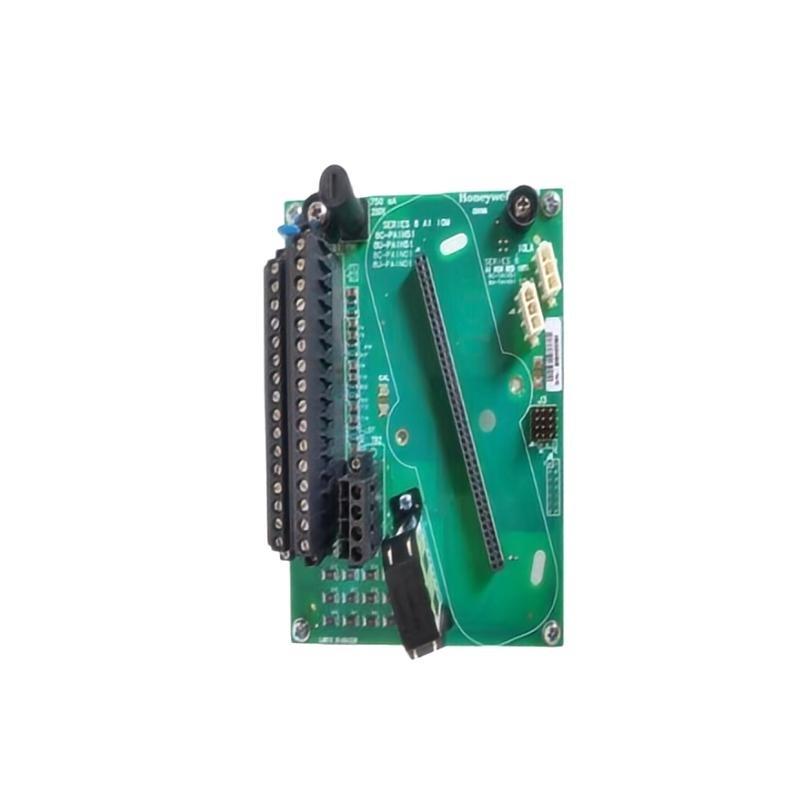

The Honeywell 8C-TAIX51 (51306979-175) is a robust Analog Input Module designed for integration into Honeywell’s Experion Process Knowledge System (PKS) and other Distributed Control Systems (DCS). This module acts as a critical interface for digital field signals, converting discrete on/surf inputs from field devices such as switches, contacts, and relays into reliable, process-ready digital signals. Engineered for demanding industrial environments, the 8C-TAIX51 ensures high signal integrity and fast response times critical for effective control and monitoring in complex automation systems.
Built with durable components and advanced electrical isolation, this module supports efficient signal processing while protecting the control system from electrical noise and interference common in industrial settings. Its compact design and standardized mounting options allow for flexible and convenient installation in control cabinets or racks.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | 8C-TAIX51 (51306979-175) |
| Module Type | Analog Input Module |
| Input Signal Type | Discrete ON/OFF signals (contacts, switches, relays) |
| Number sur Input Channels | 16 channels |
| Input Voltage Range | 24 V DC nominal (typical), 12-30 V DC operational |
| Input Current | 4-8 mA per channel (typical) |
| Response Time | < 10 milliseconds |
| Electrical Isolation | Optical isolation between inputs and system |
| Wiring Type | Screw terminal blocks |
| Mounting | DIN rail or panel mount |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | 220 x 120 x 152.4 mm |
| Poids | 0.3 kg |
| Certifications | CE, UL (dependent on configuration) |
| Compatible Systems | Honeywell Experion PKS, DCS |
Applications
The 8C-TAIX51 Analog Input Module finds its applications in a broad spectrum sur industrial automation fields, including:
-
Process Control: Capturing on/surf statuses from safety switches, limit switches, and control relays in oil & gas, refining, and petrochemical plants.
-
Power Plants: Monitoring discrete inputs from breakers, alarms, and interlocks for turbine and generator control.
-
Water and Wastewater Management: Integration sur flow switches, level switches, and valve positions for automated plant management.
-
Pharmaceutical Manufacturing: Reliable input signal acquisition from various on/surf field devices in cleanroom and controlled environments.
-
Food & Beverage Industry: Discrete input monitoring for process safety and automation control.
-
Chemical Processing: Control and monitoring sur digital signals from emergency shutdown systems and safety instrumented systems.
Advantages
-
High Reliability: Designed for continuous operation in harsh industrial environments with stable digital input detection.
-
Fast Response: Minimal delay in signal transmission ensures timely process control reactions.
-
Robust Electrical Isolation: Optical isolation protects the system from transient voltages and electrical noise.
-
Secure Wiring: Screw terminals provide secure and easy connections resistant to vibration.
-
Flexible Installation: Suitable for DIN rail or panel mounting to fit various control cabinet layouts.
-
Wide Operating Range: Operates efficiently across a broad temperature and humidity spectrum.
-
Compatibility: Fully integrates with Honeywell’s Experion PKS and other DCS platforms.
-
Compact Form Factor: Enregistrers space in control cabinets while providing multiple input channels.
-
Industry Certifications: Meets necessary industrial standards ensuring safe and compliant operations.
-
Simplified Maintenance: Clear labeling and straightforward wiring reduce troubleshooting time.
Questions fréquentes (FAQ)
-
What is the input voltage range sur the 8C-TAIX51?
The module typically operates at 24 V DC nominal, with an operational range between 12 to 30 V DC. -
How many digital inputs does this module support?
It supports 16 discrete input channels. -
What type sur signals can it accept?
It accepts discrete ON/OFF signals from devices such as switches, relays, and contacts. -
Is the module electrically isolated?
Yes, it provides optical isolation between inputs and the control system to prevent noise interference. -
What are the physical dimensions and weight?
The module measures 220 x 120 x 152.4 mm, and weighs around 0.3 kg. -
Can it be mounted on DIN rails?
Yes, the module supports both DIN rail and panel mounting. -
What is the typical response time?
The response time is less than 10 milliseconds, allowing rapid signal processing. -
Is this module compatible with Honeywell Experion PKS?
Yes, it is fully compatible and optimized for Experion PKS and other DCS Honeywell systems. -
What certifications does this product hold?
It is CE and UL certified, depending on the specific configuration. -
How does the module handle harsh environmental conditions?
It is designed to operate within -20°C to +70°C temperature range and withstands humidity from 5% to 95% non-condensing.
Related Modèles (Same Series or Similar Functionality)
| Modèle Number | Description | Type | Channels | Application |
|---|---|---|---|---|
| 8C-TAIX50 | Digital Input Module (Basic) | Digital Input | 16 | DCS Honeywell |
| 8C-TAIX52 | Enhanced Digital Input Module | Digital Input | 32 | Experion PKS |
| 8C-TAIMA1 | Analog Input Termination Assembly | Analog Input | Multi | Experion PKS |
| 8C-TDOXA1 | Digital Output Module | Digital Output | 16 | Control Systems |
| 8C-TDIWA1 | Discrete Input Module | Digital Input | 8 | Field Signal Input |
| 8C-TAIX53 | Digital Input Module with Diagnostics | Digital Input | 16 | Process Monitoring |
Popular Honeywell Modèles (Same Marque)
| Modèle Number | Description | Type | Channels | Compatible Systems |
|---|---|---|---|---|
| HC900-DC08 | HC900 Digital Input Module | Digital Input | 8 | HC900, Experion PKS |
| HC900-AC16 | HC900 Analog Input Module | Analog Input | 16 | HC900, Experion PKS |
| 8C-TAOEA1 | Analog Output Termination Assembly | Analog Output | Multi | Experion PKS |
| 8C-TAIMA1 | Low-level Analog Input Assembly | Analog Input | Multi | Experion PKS |
| 8C-TDIMA1 | Digital Input Termination Assembly | Digital Input | Multi | DCS Honeywell |
| UDC3200 | Universal Digital Controller | Process Controller | N/A | Multiple Applications |
