Présentation du produit

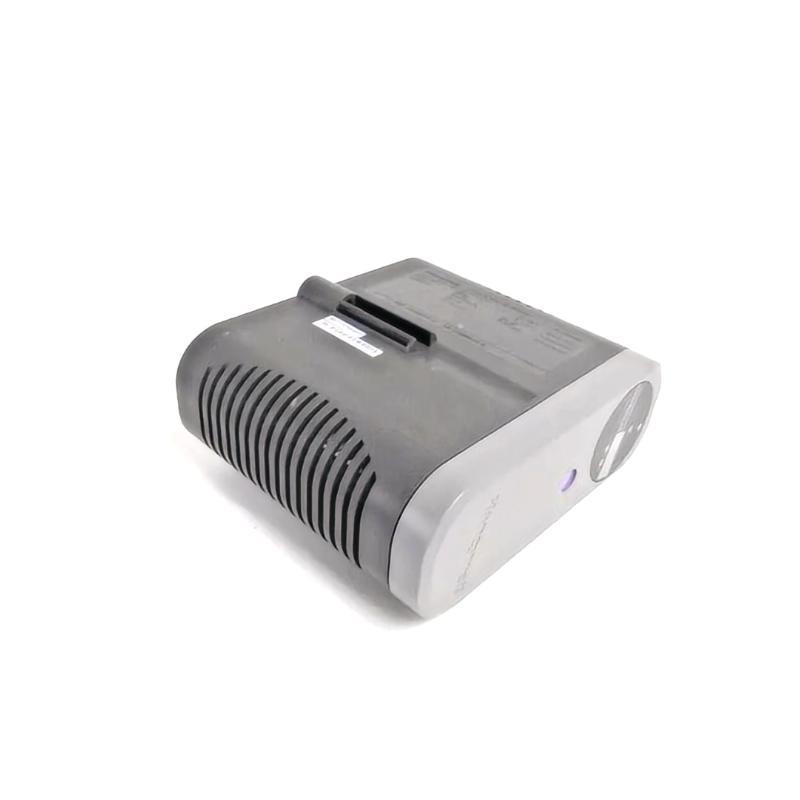

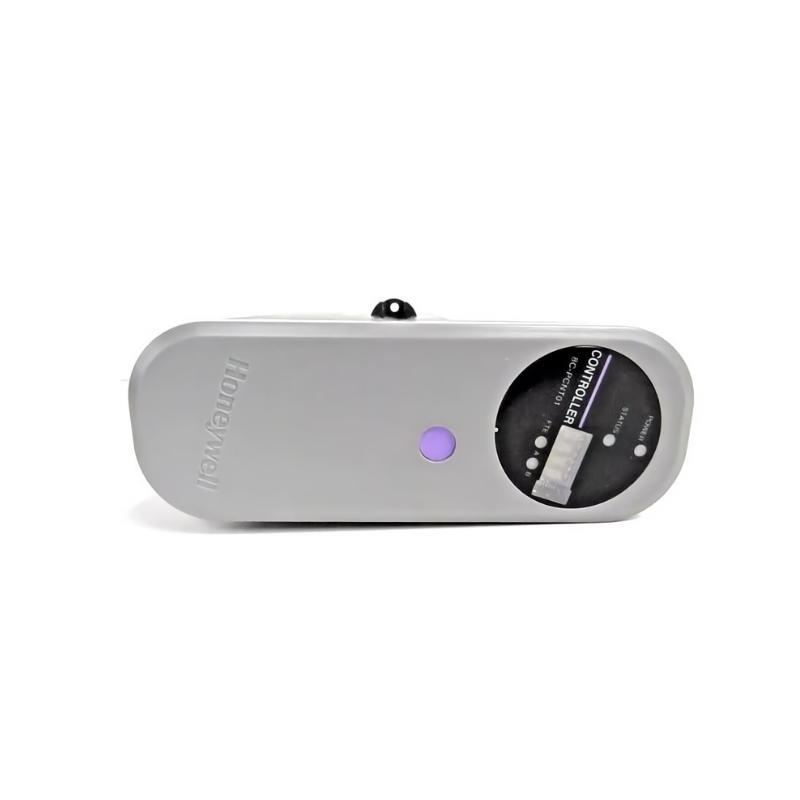

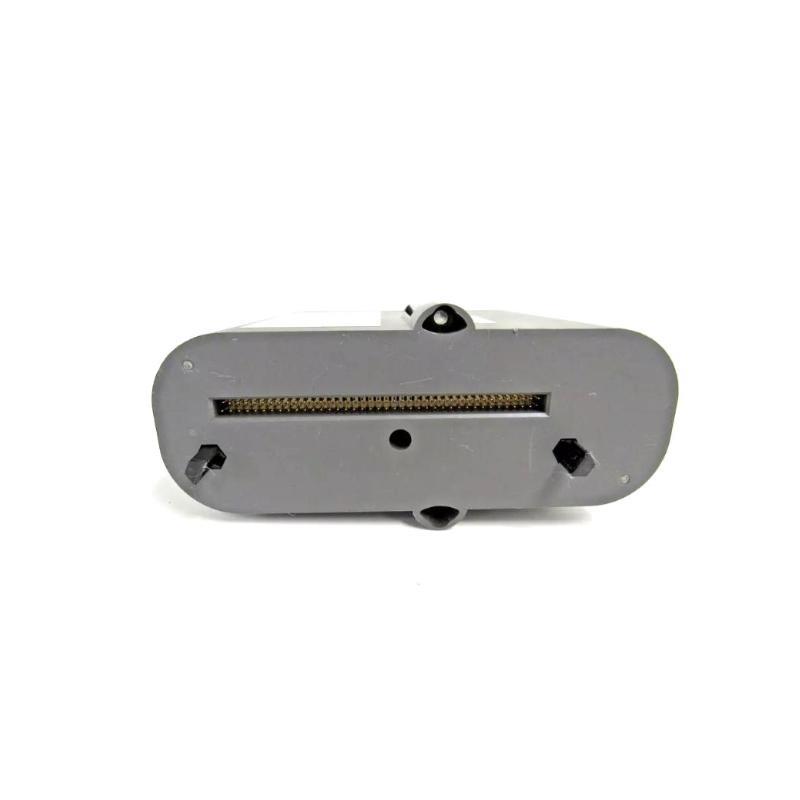

The Honeywell 8C-PCNT01 51454363-175 is a high-performance Series C Controller Module designed specifically for use within Honeywell’s Experion Process Knowledge System (PKS). As a key component sur the C300 control system, this module serves as the central processing engine for process automation tasks, executing control strategies, handling communications, and supporting redundancy for mission-critical applications.
The 8C-PCNT01 is engineered to meet the rigorous demands sur modern industrial process control, combining fast processing, scalable architecture, and seamless integration with Honeywell’s distributed control system (DCS) environments.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | 8C-PCNT01 |
| Référence | 51454363-175 |
| Fabricant | Honeywell International Inc. |
| Product Type | Series C Controller Module |
| System Compatibility | Honeywell Experion PKS, C300 Controller |
| Processor | High-performance embedded CPU |
| Memory | Flash memory with non-volatile storage |
| Execution Time | Sub-millisecond loop execution for standard control |
| Redundancy Support | Yes (paired redundancy with automatic failover) |
| Communication Protocols | FTE (Fault Tolerant Ethernet), HART, Modbus (via FIM) |
| I/O Capacity | Scalable based on backplane configuration |
| Diagnostics | Built-in module health and fault detection |
| Power Supply Voltage | 24 VDC (supplied through the carrier) |
| Mounting Method | DIN rail mount via I/O base |
| Hot Swap Capability | Yes |
| Operating Temperature | -40°C to +70°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Dimensions (W × H × D) | 51 x 267 x 178 mm |
| Poids | 0.5 kg |
| Certifications | CE, UL, CSA, ATEX, IECEx, RoHS compliant |
Product Applications
The Honeywell 8C-PCNT01 module is a vital component in distributed control systems across a range sur process industries. It is responsible for managing control loops, logic execution, and data communications. Its primary applications include:
-
Oil and Gas Production Facilities
Central control for process trains, compressors, and separation systems. -
Refineries and Petrochemical Plants
Managing blend operations, distillation columns, and process heaters. -
Power Generation Stations
Boiler control, turbine regulation, and energy balance systems. -
Chemical Manufacturing
Batch sequencing, continuous process control, and reaction management. -
Pulp and Paper Industry
Monitoring and adjusting pulp consistency, bleaching, and drying processes. -
Pharmaceutical Production
GMP-compliant control for precise formulation and packaging processes.
Product Advantages
-
Fast and Deterministic Control
Offers high-speed control execution, enabling tighter loop control and improved product quality. -
Modular and Scalable
Easily integrates into existing Honeywell Series C systems and can scale with growing process demands. -
Redundancy for High Availability
Supports controller-level redundancy for mission-critical applications, ensuring no single point sur failure. -
Robust Diagnostics
Provides detailed diagnostics and status feedback to the Experion system, enabling proactive maintenance. -
Hot Swappable and Easy Maintenance
Enables replacement without shutting down the system, reducing downtime and maintenance overhead. -
Secure and Reliable Communication
Uses FTE to maintain redundant and secure communication paths for controller data. -
Compliance and Safety
Certified for use in hazardous environments with full compliance to international safety standards.
Questions fréquentes (FAQ)
-
What control systems is the 8C-PCNT01 compatible with?
It is designed for use within Honeywell’s C300 and Experion PKS environments. -
Does this controller support redundancy?
Yes, it can be deployed in a redundant configuration for high availability. -
What type sur mounting does this module require?
It mounts on a DIN rail using a compatible I/O base. -
Is the module hot swappable?
Yes, it supports hot swap for minimal downtime during maintenance. -
What communication protocols are supported?
It supports FTE, HART (via I/O modules), and other protocols via Field Interface Modules. -
What is the operating temperature range?
It operates reliably in environments ranging from -40°C to +70°C. -
What happens if the primary controller fails?
The redundant controller automatically takes over, ensuring uninterrupted control. -
How is the controller programmed or configured?
Configuration is done through Honeywell’s Control Builder and Experion engineering tools. -
Does it include built-in diagnostics?
Yes, real-time status and health diagnostics are available within Experion PKS. -
Can the controller work with legacy Honeywell systems?
Yes, it supports integration with legacy systems through Honeywell’s flexible architecture.
Related Modèles (Same Series or Similar Functionality)
| Modèle | Description | Function | Key Feature |
|---|---|---|---|
| 8C-PCNT02 | Controller Module (Updated version) | Control CPU | Enhanced processing speed |
| 8C-PCNT03 | High-speed Controller | High-performance CPU | Advanced logic execution |
| 8C-TAIX61 | Analog Input Module | Analog Input | 16-channel AI module |
| 8C-TAOX61 | Analog Output Module | Analog Output | 16-bit output accuracy |
| 8C-PAZMA1 | Mixed Signal Output Module | Mixed Analog/Digital | Flexible I/O output |
| 8C-PDILA1 | Redundant Digital Input Module | Digital Input | High reliability DI for C300 |
Popular Honeywell Modèles (High Demand Across Industries)
| Modèle | Description | Type | Application |
|---|---|---|---|
| CC-PCNT01 | C300 Controller CPU | Controller | Core processor for Experion |
| CC-PAIH01 | High-Level Analog Input Module | Analog Input | With HART support |
| FC-TSDI-1624 | Digital Input Module | Digital Input | TDC3000 compatible |
| CC-TAOX11 | Analog Output Module | Analog Output | Part sur C300 family |
| MU-TD0D12 | Digital Output Module | Digital Output | Legacy-compatible |
| 51304584-200 | Field Device Manager Ssurtware Dongle | Ssurtware License | Device configuration and calibration |
