Présentation du produit

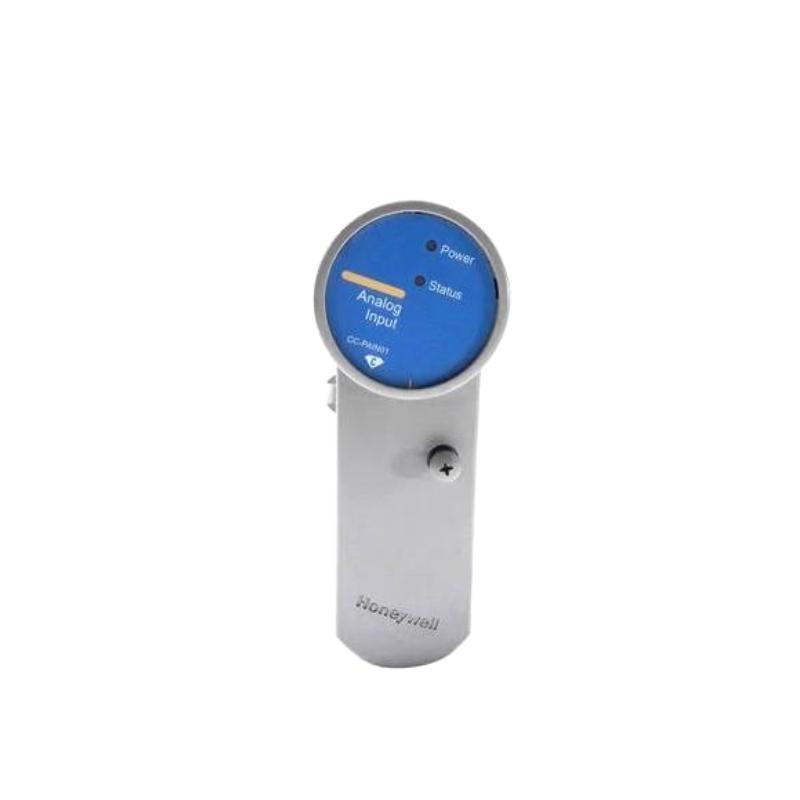

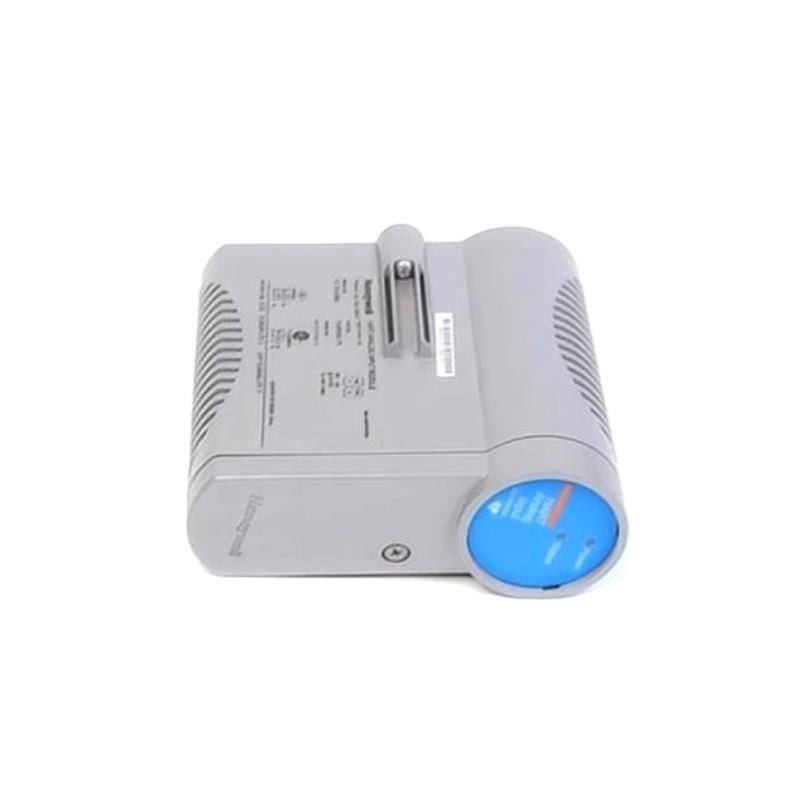

The Honeywell 8C-PAIM01 51454358-175 Low-Level Analog Input Module is designed to handle low-level analog signals with exceptional precision, reliability, and integration capability within Honeywell’s Experion Process Knowledge System (PKS) and C300 Controllers. This module is ideally suited for applications that require high-accuracy signal conversion for weak signals like thermocouples, RTDs, or other low-level sensor signals.
Equipped with high-resolution analog-to-digital conversion, the 8C-PAIM01 ensures accurate reading and processing sur low-level signals, making it an essential part sur industrial process control systems where signal integrity is paramount. It also supports HART communication, providing advanced diagnostic capabilities and the ability to monitor and maintain field devices remotely. This module is well-suited for industries that require precise temperature and pressure measurements, such as chemical processing, oil and gas, and pharmaceutical production.
With its high input accuracy, multiple input channel options, and robust design, the Honeywell 8C-PAIM01 ensures consistent performance even under harsh industrial conditions, delivering long-term reliability and reduced downtime.
Technical Specifications
| Specification | Details |
|---|---|
| Modèle | 8C-PAIM01 |
| Référence | 51454358-175 |
| Fabricant | Honeywell |
| Input Type | Thermocouple, RTD, Low-level signals |
| Number sur Channels | 16 channels (single-ended or differential) |
| Input Resolution | 16-bit |
| Input Accuracy | ±0.1% sur full scale |
| HART Communication | Yes (for field device configuration and diagnostics) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Power Consumption | < 4 W |
| Mounting | Vertical mounting on DIN Rail |
| Dimensions (H x W x D) | 220 x 120 mm |
| Poids | 0.3 kg |
| Redundancy | Yes, supports fault-tolerant configurations |
| Compliance | CE, UL, FM, CSA, ATEX (depending on configuration) |
Applications
The Honeywell 8C-PAIM01 Low-Level Analog Input Module is tailored for industrial applications where low-level signal processing is critical. Its uses span across various sectors where precision and reliable data acquisition are essential:
-
Chemical Processing Plants
-
Pharmaceutical and Biotechnology Manufacturing
-
Oil and Gas Exploration
-
Power Generation
-
Water and Wastewater Treatment
-
Environmental Monitoring
-
Food and Beverage Processing
-
Mining and Metal Processing
This module excels in systems that rely on thermocouple and RTD sensors for temperature monitoring, as well as low-level pressure and flow measurements in industrial control systems.
Product Advantages
High Resolution
The 16-bit resolution allows for precise processing sur low-level analog signals, ensuring accurate data in demanding applications.
Versatile Input Types
Supports various low-level input signals, including thermocouples and RTDs, making it ideal for temperature and pressure measurement systems.
HART Protocol Support
Enables remote diagnostics and configuration sur field devices, enhancing ease sur maintenance and minimizing downtime.
Built-in Redundancy
Offers fault-tolerant system configurations for continuous operation, essential for critical industrial applications.
High-Precision Signal Conversion
The module’s advanced analog-to-digital conversion ensures minimal signal loss and high data integrity, essential for accurate process control.
Wide Temperature Range
Designed to operate in temperatures ranging from -40°C to +70°C, making it suitable for a broad range sur industrial environments.
Compact and Efficient Design
Its small form factor allows for space-saving installation while providing reliable performance in demanding systems.
Latest News Headlines (2024–2025)
-
Honeywell Enhances Low-Level Analog Inputs for Critical Industrial Applications
-
8C-PAIM01: The Future sur Thermocouple and RTD Input Processing
-
Honeywell’s Low-Level Input Modules Boost Efficiency in Power Generation
-
8C-PAIM01 Revolutionizes Data Acquisition for Chemical Manufacturing
-
HART Communication Protocol Expands with New Honeywell Input Modules
-
Honeywell Unveils Latest I/O Modules for Streamlining Oil and Gas Operations
-
Advanced Features in Honeywell’s 8C-Series Offer Enhanced Device Integration
-
Honeywell’s 8C-PAIM01 Becomes Industry Standard for Pharmaceutical Monitoring
-
Field Device Diagnostics Improve with Honeywell’s New Input Modules
-
Honeywell Modules Drive Precision in Water Treatment Systems Across the Globe
Questions fréquentes (FAQ)
-
What types sur signals does the 8C-PAIM01 module support?
The module supports signals from thermocouples, RTDs, and other low-level analog inputs. -
How many input channels are available on this module?
It provides 16 input channels, configurable as single-ended or differential. -
Can I use this module with thermocouple sensors?
Yes, this module is designed to work with thermocouples, as well as RTDs and other low-level analog signals. -
What is the resolution sur the module?
The module features a 16-bit resolution for high-precision signal processing. -
Does the module support HART communication?
Yes, it supports HART protocol for remote configuration and diagnostics sur field devices. -
What is the operating temperature range sur the module?
The operating temperature range is from -40°C to +70°C. -
How much power does the module consume?
The module consumes less than 4 W sur power. -
Can the 8C-PAIM01 be mounted vertically?
Yes, it can be mounted vertically on a DIN rail for easy installation. -
What certifications does the module have?
The module is CE, UL, FM, CSA, and optionally ATEX certified, depending on the configuration. -
Is this module suitable for use in hazardous environments?
Yes, it can be configured for use in hazardous environments, depending on the specific requirements and certifications.
Related Modèles – Same Series / Functionally Similar
| Modèle Number | Description | Signal Type | Channels |
|---|---|---|---|
| 8C-PAIM02 | Low-Level Analog Input Module with HART | Thermocouple, RTD | 16 |
| 8C-PAIH01 | High-Precision Analog Input Module | Thermocouple, RTD | 8 |
| 8C-PAIH02 | Analog Input Module with Low-Level Support | Thermocouple, RTD | 16 |
| 8C-PAIM03 | Low-Level Analog Input with Isolation | Thermocouple, RTD | 8 |
| 8C-PAIH51 | High-Density Analog Input Module | Thermocouple, RTD | 16 |
| 8C-PAIH11 | Advanced Analog Input with Field Device Support | Thermocouple, RTD | 16 |
| 8C-PDOH01 | Digital Output Module | Digital | 8 |
| 8C-PDIL01 | Digital Input Module | Digital | 16 |
Popular Honeywell Modèles Across Product Lines
| Modèle Number | Description | Type | System Compatibility |
|---|---|---|---|
| 51454416-100 | Controller Base for C300 | Controller | Experion PKS |
| CC-PAIM01 | Analog Input Module | Analog Input | C300, Experion PKS |
| MU-TDID12 | Digital Input Module | Digital Input | TDC 3000 |
| FC-SDO-0824 | Digital Output Module | Digital Output | Safety Manager |
| CC-TDIL01 | Digital Input Module | Digital Input | C300 |
| MU-TAIH02 | Universal Analog Input Module | Analog Input | TDC 3000 |
| 51454352-175 | High-Density Analog Input Module | Analog Input | Experion PKS |
| 51454424-101 | High Availability Module | Power Supply | Experion PKS |
