Présentation du produit

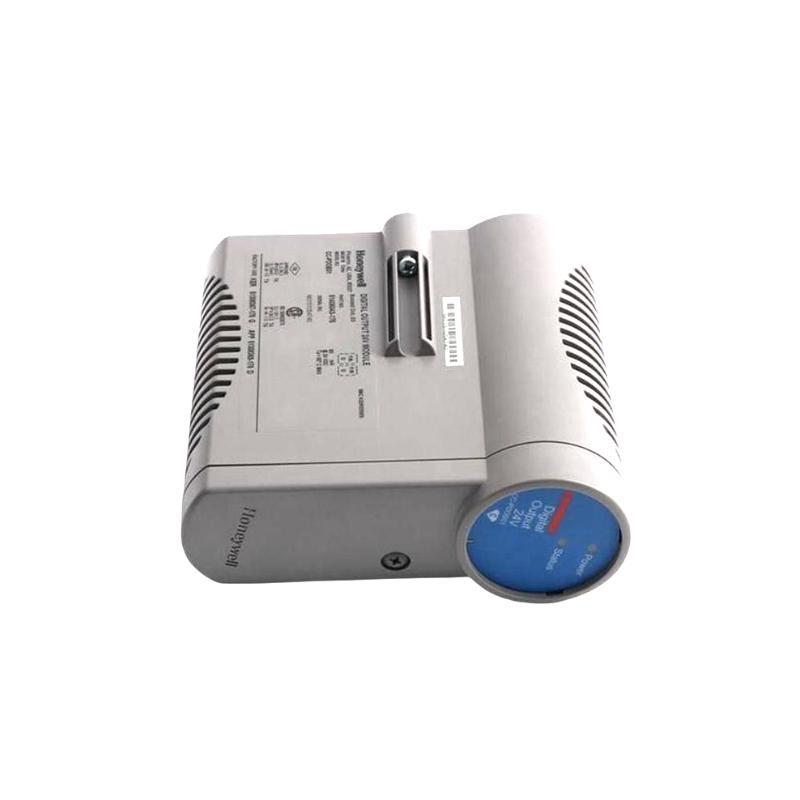

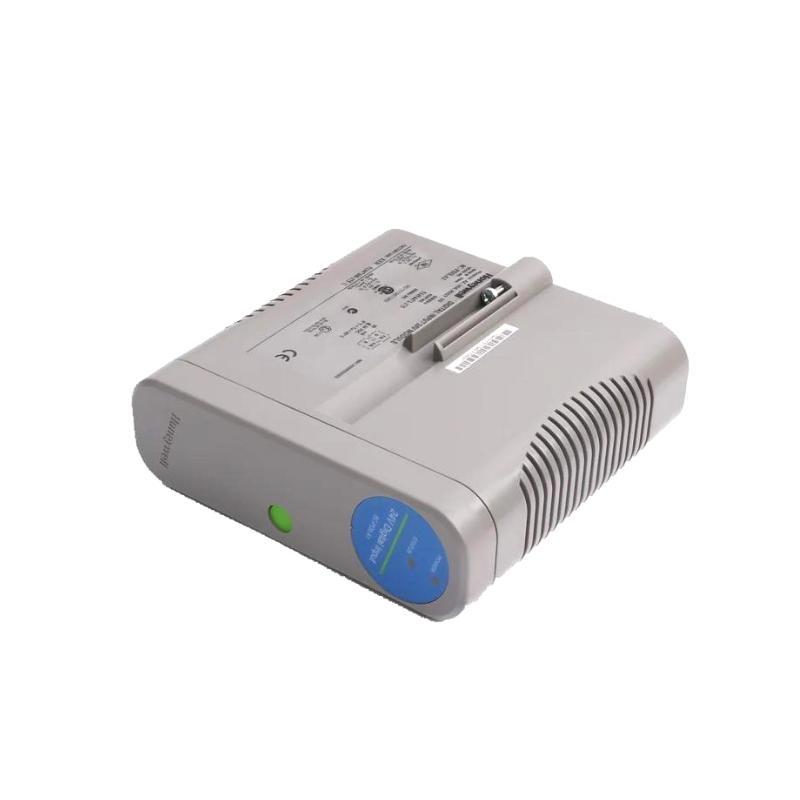

The Honeywell 8C-IP0101 51454362-175 Standard I/O Module is a versatile and reliable module designed for use in Honeywell’s distributed control systems (DCS), including the Experion PKS and other Honeywell control systems. This module plays a crucial role in providing seamless communication between field devices and control systems. It supports a wide range sur input and output types, making it an ideal solution for industries such as chemical processing, power generation, oil and gas, and manufacturing.
This I/O module is designed for reliable, high-performance operation in industrial environments. It supports both digital and analog input/output signals, ensuring that users can easily interface with various field devices. The 8C-IP0101 features a rugged design, is equipped with extensive diagnostic capabilities, and is optimized for high-availability environments, providing enhanced reliability and uptime. Moreover, it is engineered for easy installation, integration, and maintenance.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle | 8C-IP0101 51454362-175 |
| Module Type | Standard I/O Module |
| Input Type | Digital and Analog Inputs |
| Output Type | Digital and Analog Outputs |
| Number sur Channels | 16 Channels (mix sur digital and analog) |
| Signal Type | 24V DC (digital); 4-20 mA or 0-10V (analog) |
| Input Voltage Range | 20.4V to 30V DC (nominal) |
| Output Voltage Range | 20.4V to 30V DC (nominal) |
| Digital Input Voltage Range | 24V DC ±10% |
| Digital Output Voltage Range | 24V DC ±10% |
| Isolation | Channel-to-channel isolation, ground isolation |
| Communication Protocol | Honeywell proprietary protocol |
| Mounting Type | Rack-mounted |
| Environmental Operating États | Temperature: 0°C to 60°C; Humidity: 5% to 95% RH |
| Dimensions (H x W x D) | 100 x 160 x 240 mm |
| Poids | 1.1 kg |
| Power Consumption | Approx. 4 W per module |
| Diagnostic Indicators | LED indicators for status and fault detection |
| System Compatibility | Honeywell Experion PKS, ControlEdge, and other Honeywell control systems |
| Compliance | CE, UL, RoHS |
Applications
The Honeywell 8C-IP0101 Standard I/O Module is widely used in various industrial applications that require reliable input/output signal processing and integration with control systems. The following are common use cases:
-
Chemical & Petrochemical: This I/O module plays a critical role in the chemical and petrochemical industries, helping to monitor and control critical process parameters such as flow, temperature, and pressure in reactors, distillation columns, and pipelines.
-
Oil & Gas: In upstream and downstream operations, this module enables integration with field devices such as pumps, motors, and compressors, ensuring accurate and timely data for process control and safety.
-
Power Generation: The module is widely used in power plants for monitoring and controlling steam generators, turbines, and electrical distribution systems, ensuring efficient and safe plant operation.
-
Pharmaceutical Manufacturing: The module facilitates precise control sur environmental conditions in pharmaceutical production areas, such as air pressure, humidity, and temperature, ensuring compliance with strict industry regulations.
-
Water & Wastewater Treatment: Honeywell’s 8C-IP0101 is used in water treatment plants for monitoring and controlling the treatment process, including flow rates, pH levels, and chemical dosing.
-
Manufacturing Automation: In the manufacturing sector, it provides seamless integration with machinery such as conveyors, packaging equipment, and automated assembly lines.
Product Advantages
-
High Channel Density: The module supports up to 16 channels, surfering a flexible and compact solution for a wide variety sur input and output signals.
-
Reliability and Durability: Built for industrial environments, it features a rugged design that can withstand harsh operating conditions, including high temperatures and electrical noise.
-
Easy Installation and Maintenance: The module is designed for easy rack mounting and can be quickly integrated into Honeywell control systems. Its modular design also allows for straightforward maintenance and upgrades.
-
Advanced Diagnostics: LED indicators on the module provide real-time status updates, making fault detection and system troubleshooting efficient and reducing downtime.
-
Broad Compatibility: Compatible with Honeywell’s Experion PKS, ControlEdge, and other DCS systems, it ensures seamless integration within existing control infrastructures.
-
Comprehensive Input/Output Options: The module supports both digital (24V DC) and analog (4-20 mA, 0-10V) signals, providing versatility in connecting to a wide range sur field devices.
-
Fault Tolerance: Designed for high-availability environments, it ensures system reliability and minimal downtime even in critical applications.
-
Global Certification: The module meets industry certifications such as CE, UL, and RoHS, ensuring compliance with international standards for safety and environmental impact.
Questions fréquentes (FAQ)
-
Q: What types sur inputs and outputs does the 8C-IP0101 module support?
A: It supports both digital (24V DC) and analog (4-20 mA, 0-10V) signals. -
Q: How many channels does the Honeywell 8C-IP0101 module have?
A: The module has 16 channels, which can be a mix sur digital and analog inputs/outputs. -
Q: What is the voltage range for the inputs and outputs?
A: The module operates with a nominal voltage sur 24V DC, with a range sur 20.4V to 30V DC. -
Q: Can the module be used in hazardous environments?
A: The module meets international safety standards (CE, UL), but it is not specifically ATEX-certified for use in hazardous locations. -
Q: How is the module mounted?
A: The 8C-IP0101 is designed for rack-mounted installation. -
Q: What is the operating temperature range for this module?
A: The module operates within a temperature range sur 0°C to 60°C. -
Q: What is the weight sur the Honeywell 8C-IP0101 module?
A: The module weighs 1.1 kg. -
Q: Can this module be used with other Honeywell control systems?
A: Yes, it is compatible with Honeywell’s Experion PKS, ControlEdge, and other Honeywell control systems. -
Q: Does the 8C-IP0101 module provide diagnostic features?
A: Yes, the module has LED indicators for status and fault detection, making diagnostics easy. -
Q: What is the power consumption sur the 8C-IP0101 module?
A: The module consumes approximately 4W sur power during operation.
Recommended Modèles from the Same Series or Related Functionality
| Modèle | Description | Channels | Signal Type | System Compatibility |
|---|---|---|---|---|
| 8C-IP0201 | Standard Analog Input Module | 8 | Analog (4–20 mA, 0–10V) | Honeywell Experion PKS |
| 8C-IP0301 | Digital Output Module with high-speed switching | 16 | Digital (24V DC) | Honeywell Experion PKS |
| 8C-IP0401 | High-Density Digital Input Module | 32 | Digital (24V DC) | Honeywell ControlEdge/Experion |
| 8C-IP0102 | Standard Digital Input Module, Isolated | 16 | Digital (24V DC) | DCS Honeywell & Safety Systems |
| 8C-IP0501 | Mixed Signal I/O Module | 16 | Mixed Digital/Analog | Honeywell Experion Series |
| 8C-IP0601 | High-Resolution Analog Output Module | 16 | Analog (High-Accuracy) | Honeywell ControlEdge/Experion |
Popular Modèles from Honeywell (Cross-Platform and Widely Used)
| Modèle | Description | Function | System Compatibility |
|---|---|---|---|
| CC-TDIL01 | Digital Input Module, TUV Certified | 16 DI | ControlEdge/Experion PKS |
| MC-TDOD12 | Digital Output Module for Safety Applications | 12 DO | Safety Manager, ControlEdge |
| 8U-PAIHA1 | High Accuracy Analog Input Module | 8 AI | Honeywell TDC3000/Experion |
| CC-PAIH01 | High-Density Analog Input Module (with redundancy) | 16 AI | Honeywell Experion PKS |
| CC-PDIL01 | Digital Input Module, Redundant Capable | 16 DI | ControlEdge UOC/Field I/O |
| CC-TAIX01 | Universal Analog Input Module | 8 AI (Universal) | Honeywell C300 Controller Series |
