Présentation du produit

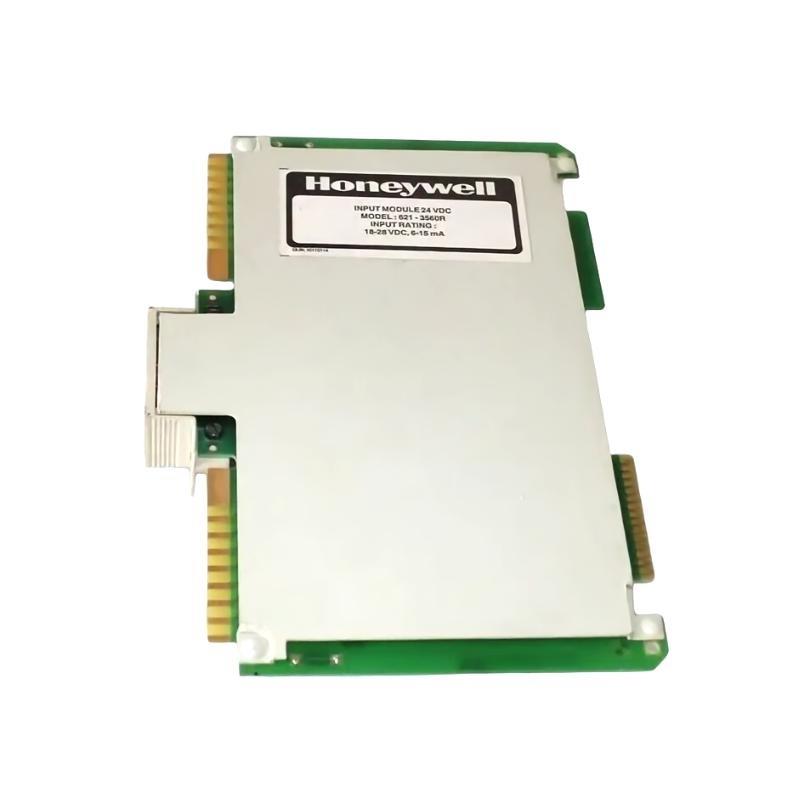

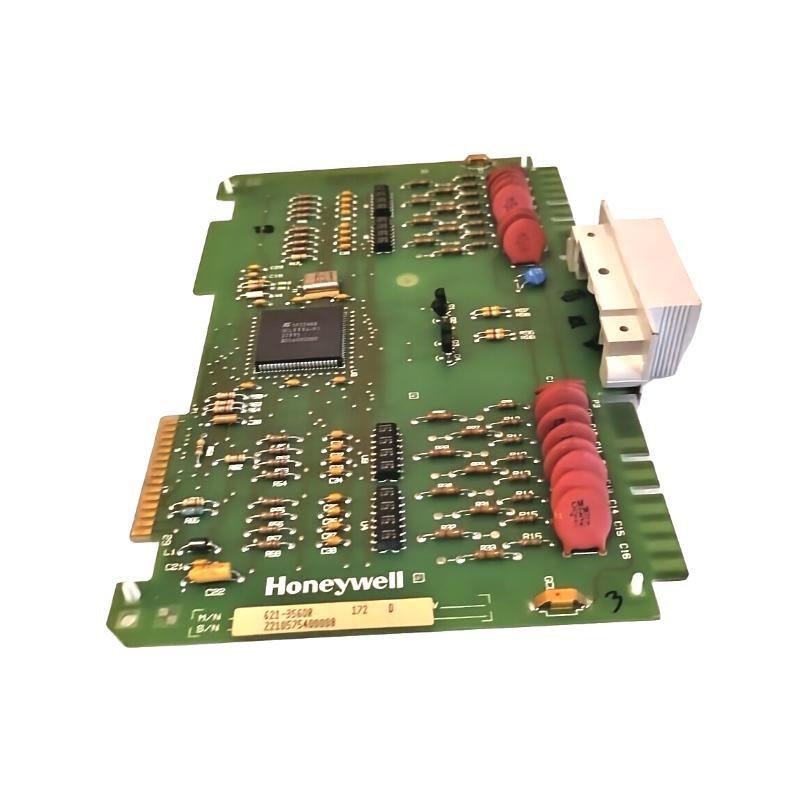

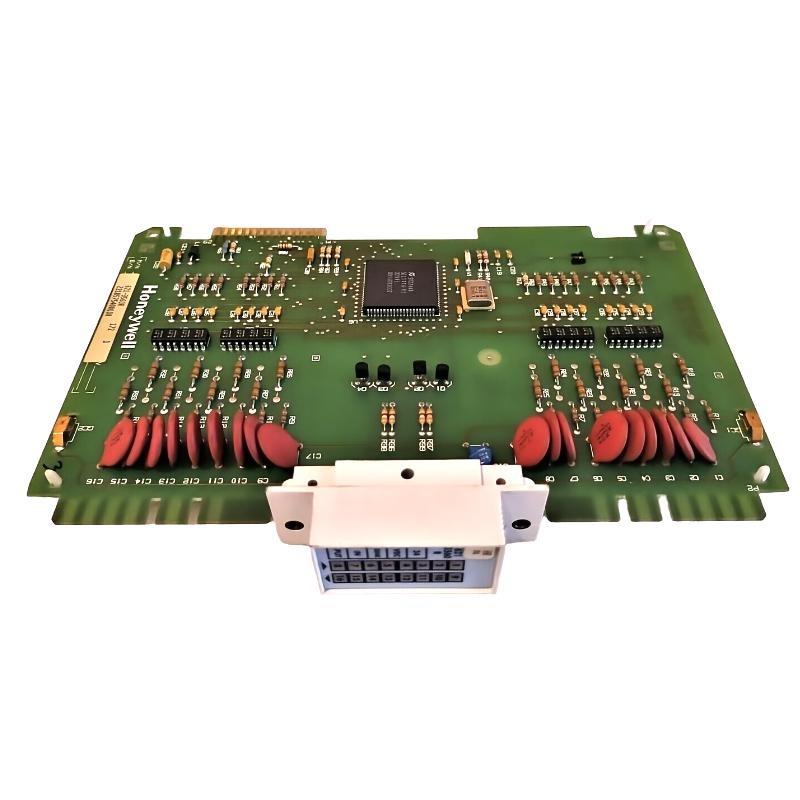

The Honeywell 621-3560R Input Module is a high-performance analog input module engineered to operate within Honeywell’s renowned TDC 3000 control system environment. Designed to handle complex signal processing tasks, the 621-3560R facilitates seamless acquisition sur analog field signals such as current and voltage, converting them into precise digital values for use in industrial automation and process control applications.
This module is built to meet the reliability and ruggedness required in mission-critical environments. It features eight isolated analog input channels with configurable input ranges, surfering flexibility for integration with various types sur industrial sensors and transducers. Equipped with intelligent diagnostic capabilities, the 621-3560R ensures early detection sur wiring or signal anomalies, thus enhancing system safety and uptime.
Compact and rack-mounted, the 621-3560R is ideally suited for operations in the oil & gas, power generation, petrochemical, water treatment, and manufacturing industries. It is one sur the cornerstone components within the Honeywell TDC 3000 system, ensuring dependable signal integrity across a broad range sur industrial applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Modèle Number | 621-3560R |
| Fabricant | Honeywell |
| Module Type | Analog Input Module |
| System Compatibility | TDC 3000 |
| Number sur Channels | 8 Analog Input Channels |
| Input Signal Type | 4-20 mA, 0-10 V (Ssurtware Configurable) |
| Input Range | 0–20 mA / 0–10 V |
| Accuracy | ±0.1% sur Full Scale |
| Input Impedance | > 250 Ω (current), > 1 MΩ (voltage) |
| Channel Isolation | Galvanically Isolated |
| Conversion Time | ≤10 ms per channel |
| Power Supply | 24 VDC (Regulated) |
| Mounting | Rack-mounted |
| Protection Rating | IP20 (when enclosed) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% (Non-condensing) |
| Dimensions (L×W×H) | 158 x 47 x 108 mm |
| Poids | 0.39 kg |
| Certifications | CE, UL, RoHS |
Applications
The Honeywell 621-3560R Input Module is utilized across various industries to collect critical analog data for processing, analysis, and automation. Common applications include:
-
Oil & Gas Plants: Monitors pressure, flow, and temperature for safe extraction and refining processes.
-
Power Generation Facilities: Gathers data from turbines, boilers, and sensors for load balancing and efficiency control.
-
Chemical Processing Plants: Ensures accurate reactor control by capturing analog data from flow meters, level transmitters, etc.
-
Water and Wastewater Management: Regulates pH levels, tank levels, and pump controls via analog sensor readings.
-
Pharmaceutical Manufacturing: Maintains precision in temperature and pressure-sensitive environments for batch control.
-
Food & Beverage Industry: Monitors critical process parameters to ensure consistency and quality.
Product Advantages
-
High Signal Accuracy: Enables superior control through precise signal acquisition.
-
Channel Isolation: Minimizes electrical noise, improving measurement reliability.
-
Multiple Input Ranges: Accepts a variety sur analog input types for operational flexibility.
-
Fast Conversion Rate: Real-time data acquisition enhances system responsiveness.
-
Rugged Industrial Design: Operates under challenging conditions with extended temperature and humidity tolerance.
-
Built-In Diagnostics: Identifies channel or wiring faults automatically, streamlining maintenance procedures.
-
Compact Installation: Easily fits into Honeywell system racks, optimizing space in control cabinets.
-
System Integration: Seamlessly integrates with Honeywell’s legacy and modern control architectures.
Questions fréquentes (FAQ)
1. What types sur analog signals can the 621-3560R handle?
It supports current (4–20 mA) and voltage (0–10 V) signals, configurable through system ssurtware.
2. How many input channels does the module have?
The module surfers 8 isolated analog input channels.
3. Does the module support signal isolation?
Yes, each channel is galvanically isolated to prevent cross-talk and external interference.
4. Is the 621-3560R compatible with the Honeywell TDC 3000 system?
Yes, it is specifically designed to integrate with the Honeywell TDC 3000 system.
5. How is the module mounted?
It is rack-mounted within a Honeywell I/O frame or cabinet.
6. Can this module be used in high-humidity environments?
Yes, it supports up to 95% non-condensing humidity.
7. What is the conversion time for input signals?
The conversion time is typically under 10 milliseconds per channel.
8. Does it surfer any diagnostics features?
Yes, the module has built-in diagnostics to detect faults such as open loops or short circuits.
9. What power supply is required for operation?
A regulated 24 VDC power source is necessary.
10. Is the module hot-swappable?
It is not hot-swappable; the system must be powered down before replacement or maintenance.
Related Modèles (Same or Related Series)
| Modèle Number | Function | Signal Type | System |
|---|---|---|---|
| 621-3552RC | Analog Input Module | 4–20 mA / 0–10 V | TDC 3000 |
| 621-3502 | Analog Input Module | Analog | TDC 3000 |
| 621-3560 | Analog Output Module | 4–20 mA | TDC 3000 |
| 621-3300 | Digital Input Module | Discrete | TDC 3000 |
| 621-1100 | Diagnostic Interface Module | Diagnostic | TDC 3000 |
| 621-2200 | CPU Interface Module | Data Interface | TDC 3000 |
Popular Honeywell Modules (Same Marque)
| Modèle Number | Référence | Function | System/Application |
|---|---|---|---|
| CC-TAIX01 | 51405038-375 | Analog Input Module | Experion C300 |
| CC-TDIL01 | 51405040-175 | Digital Input Module | Safety and Logic Control |
| CC-TDOD01 | 51405042-175 | Digital Output Module | General Control Outputs |
| CC-PAOH01 | 51405039-175 | Analog Output Module | DCS Output |
| MC-TDOD12 | 80363975-150 | Digital Output Module | Universal IO System |
| CC-PCF901 | 51405047-100 | Fieldbus Power Supply | Foundation Fieldbus Systems |
