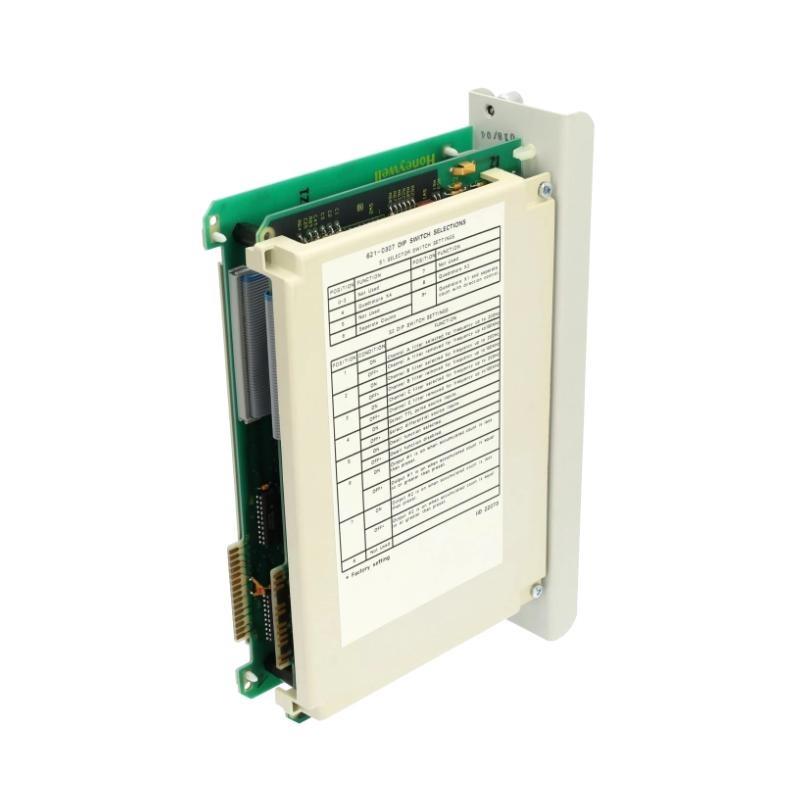

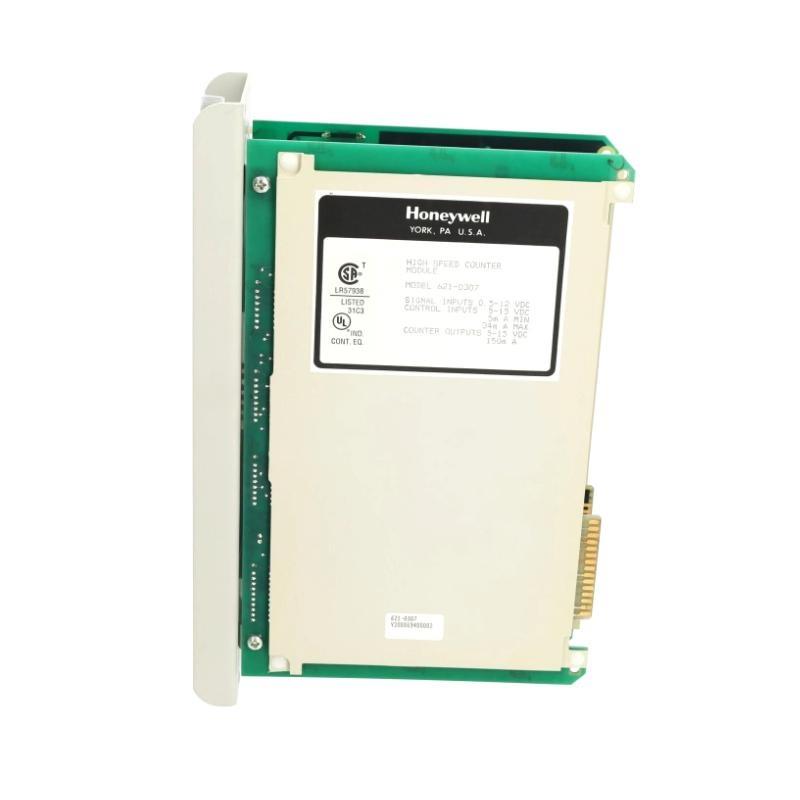

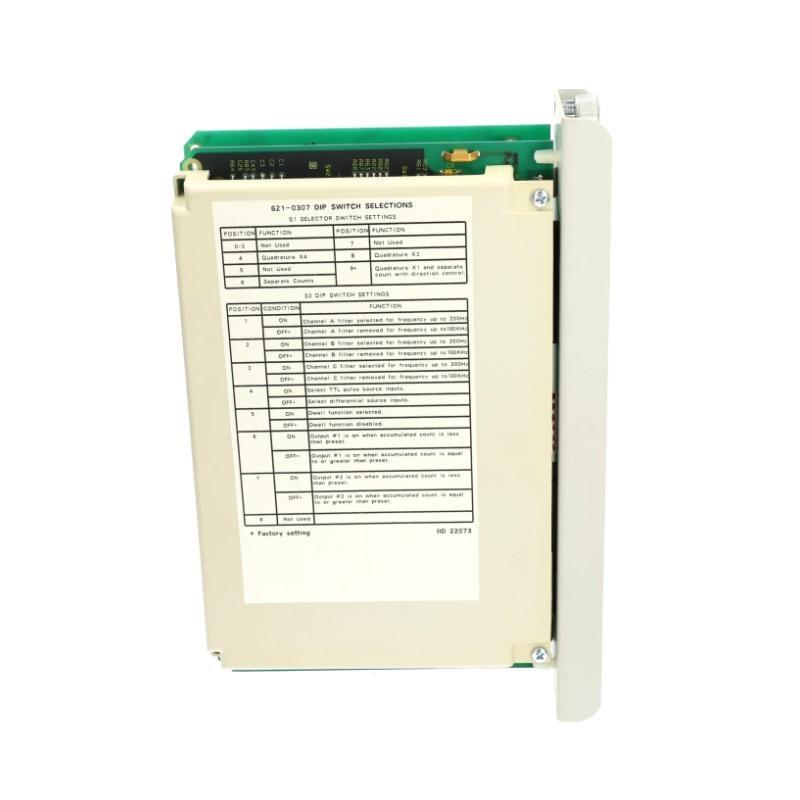

The Honeywell 621-0307 High-Speed Counter Module is a specialized input module designed to perform high-speed counting functions in real-time, making it ideal for industrial environments requiring precise pulse signal tracking. It is part sur Honeywell’s trusted TDC 2000 and TDC 3000 Distributed Control Systems (DCS) and provides fast and reliable pulse processing for critical applications like flow measurement, motion control, and event counting.
This module interfaces directly with encoders, turbine flow meters, proximity sensors, and other pulse-generating devices. Its rapid response capability and dedicated counter logic allow it to accurately measure frequency, pulse width, and event counts independently sur the main controller scan cycle. With isolated inputs and onboard diagnostics, the 621-0307 ensures accurate and interference-free signal processing, even in electrically noisy environments.
The 621-0307 is an essential tool for engineers managing high-speed operations where precise counting and timing are critical for production efficiency and control system responsiveness.
Technical Specifications
| Parameter | Details |
|---|---|
| Modèle Number | 621-0307 |
| Module Type | High-Speed Counter Module |
| Input Channels | 4 independent high-speed counter inputs |
| Input Type | Pulse (TTL, open collector, NAMUR) |
| Max Input Frequency | Up to 25 kHz (typical), depends on signal format |
| Input Isolation | Yes – channel-to-channel and channel-to-ground |
| Counting Modes | Up/Down, Quadrature, Frequency, Pulse Width, Event |
| Max Count Range | 32-bit (4,294,967,295 counts) |
| Response Time | <1 ms per input |
| Internal Diagnostics | Yes – loss sur signal, overflow, error logging |
| Communication Interface | UCN (Universal Control Network) |
| Power Supply | From system backplane |
| Power Consumption | Approx. 5W |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95%, non-condensing |
| Mounting Type | DIN rail or Honeywell backplane |
| Dimensions (W x H x D) | 50 x 130 x 160 mm |
| Poids | 0.79 kg |
| Certifications | CE, UL, RoHS, ISA compliant |
| System Compatibility | TDC 2000, TDC 3000, PlantScape |
Applications
The 621-0307 is engineered for industries where real-time high-speed signal capture and precise counting are essential. Typical application scenarios include:
-
Turbine Flow Metering
Converts pulse signals from flow meters into accurate volumetric data. -
Packaging Machinery
Counts parts or packages passing a sensor at high speed for automated tracking. -
Conveyor Systems
Detects and tallies product unités, enabling inventory monitoring and flow control. -
Motor Speed and Shaft Rotation Monitoring
Captures encoder signals to compute RPM, direction, and acceleration. -
Material Handling
Controls batch quantity based on item count using optical or proximity sensors. -
Industrial Weighing and Filling Systems
Activates process steps based on pulse counts from rotary encoders.
Key Advantages
-
Real-Time High-Speed Performance
Handles pulse rates up to 25 kHz, ensuring accurate capture sur fast events. -
Flexible Counting Modes
Supports multiple counter modes including frequency, up/down, and quadrature. -
32-bit Counter Capacity
Allows high-range event counting without risk sur overflow during long operations. -
Input Isolation
Provides signal integrity by eliminating ground loops and electrical noise. -
System Integration
Natively supported in TDC 2000, TDC 3000, and PlantScape control architectures. -
Onboard Diagnostics
Monitors loss sur signal, overflow, and reports faults to operators. -
Compact Industrial Form Factor
Easy to install in control cabinets, DIN-rail or backplane-compatible. -
Reduces Processor Load
Offloads high-speed counting from the main controller for optimized performance.
Questions fréquentes (FAQ)
-
What is the primary function sur the 621-0307 module?
It performs high-speed counting, pulse width, and frequency measurement for discrete pulse inputs. -
What types sur sensors can be used with this module?
The module accepts pulse inputs from encoders, proximity sensors, turbine meters, and NAMUR-type devices. -
How many counting channels are available?
It provides 4 independent high-speed input channels. -
Can this module detect pulse direction?
Yes, it supports quadrature input mode to detect direction and speed sur rotation. -
What is the maximum pulse rate it can handle?
Typically up to 25 kHz, depending on input type and signal quality. -
Is the input signal electrically isolated?
Yes, each input is isolated to reduce electrical noise and protect the system. -
How does this module communicate with the control system?
It uses Honeywell’s Universal Control Network (UCN) to interface with controllers and I/O processors. -
Does the module support diagnostics?
Yes, including error detection, signal loss alerts, and overflow monitoring. -
Is it suitable for motion control systems?
Absolutely. It is ideal for tracking encoder signals in high-speed motion applications. -
Can it be mounted directly in a field panel?
Yes, it is DIN rail and backplane mountable for flexible installation in control cabinets.
Related Modèles (Same Series or Functional Group)
| Modèle | Description | Function | Compatibility |
|---|---|---|---|
| 621-0022 | Isolated Analog Input Module | Analog Input | TDC 2000/3000 |
| 621-0016 | Digital Input Module | Binary Input | TDC 2000/3000 |
| 621-0017 | Digital Output Module | Binary Output | TDC 2000/3000 |
| 621-0025RC | RTD Input Module (Redundant Capable) | Temperature Measurement | TDC 2000/3000 |
| 621-0071 | Logic Manager Module | Logic Execution | TDC 2000/PlantScape |
| 621-0081 | Remote Communication Interface Module | I/O Network Integration | TDC 2000/PlantScape |
Popular Honeywell Modules (Across Product Lines)
| Modèle | Description | Catégorie | System Compatibility |
|---|---|---|---|
| C300 Controller | Advanced logic and process controller | Distributed Control | Experion PKS |
| HC900 Controller | Hybrid controller for batch and process logic | Process Automation | Experion HS, Standalone |
| 51304493-150 | MC-TDODI12 Digital Output Module | Digital Output | TDC 3000, PlantScape |
| 51401583-100 | AO8 Analog Output Module | Analog Output | Experion, TPS |
| FC-TSDI-1624 | Safety Digital Input Module | Safety System Module | Safety Manager |
| 51400955-100 | DI8 Digital Input Module | Digital Input | TPS |
