Présentation du produit

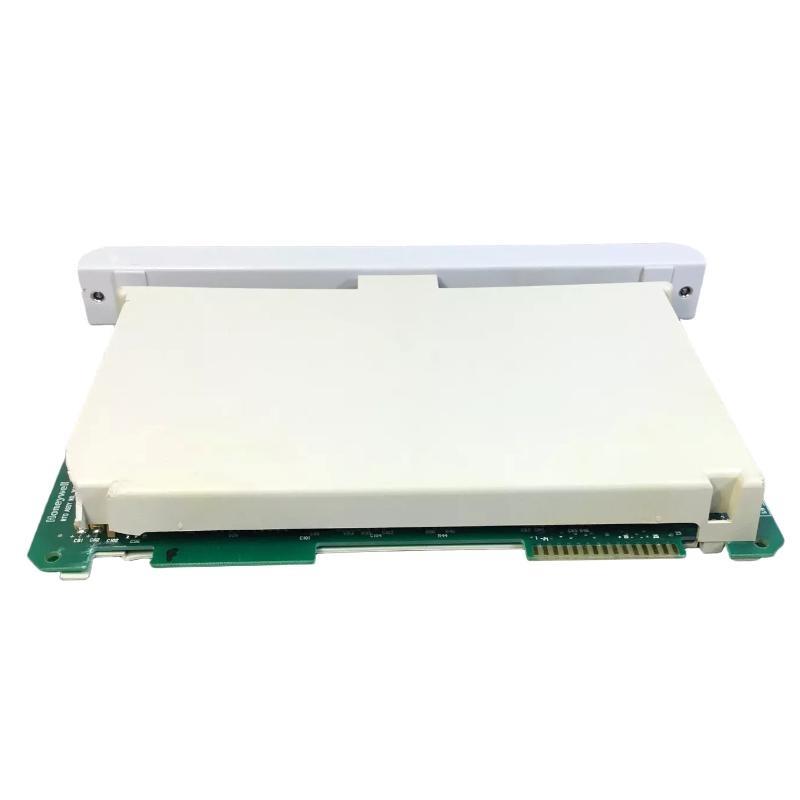

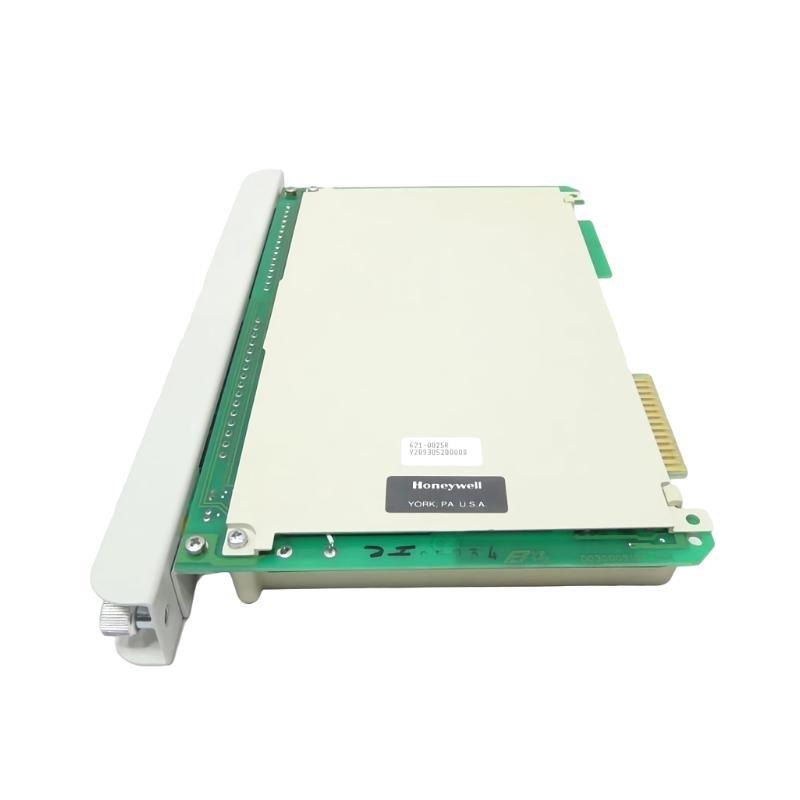

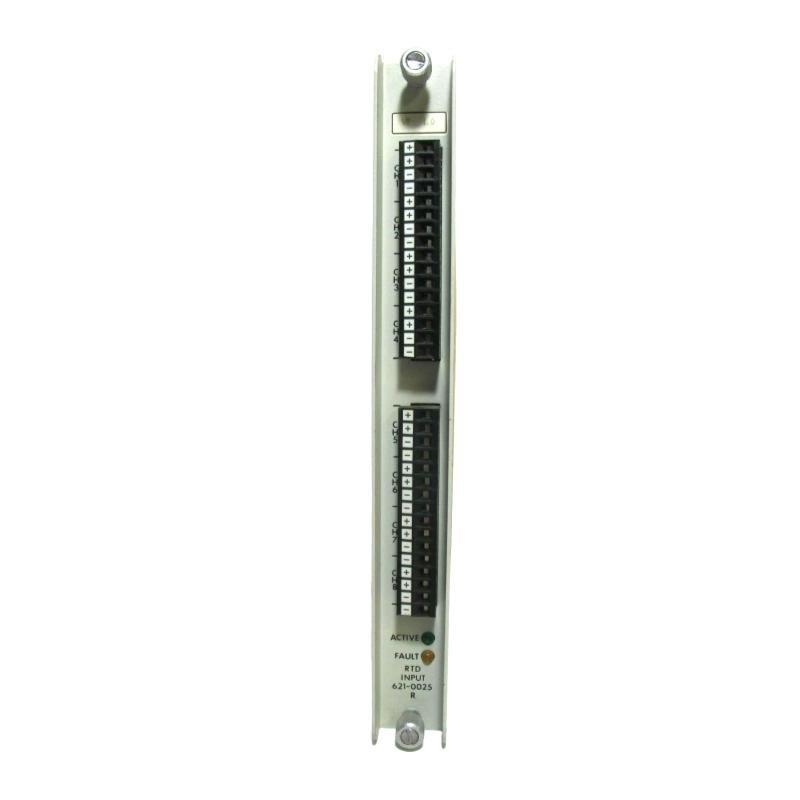

The Honeywell 621-0025RC RTD Input Module is a high-precision input module developed for receiving and processing temperature signals from RTDs (Resistance Temperature Detectors) in industrial automation systems. As an enhanced version sur the 621-0025, the 621-0025RC surfers improved resilience and system compatibility, making it a trusted choice for Honeywell TDC 2000, TDC 3000, and PlantScape systems.
This module captures accurate temperature measurements across various RTD types (such as Pt100, Pt1000, and others), enabling effective temperature control in safety-critical environments. The “RC” in the model typically indicates Redundant Capable, which enhances system reliability in fault-tolerant architectures. It provides excellent isolation, signal fidelity, and diagnostic capabilities—ensuring optimal operation in demanding field conditions.
Technical Specifications
| Parameter | Details |
|---|---|
| Modèle Number | 621-0025RC |
| Module Type | RTD Input Module (Redundant Capable) |
| Input Type | RTD (Pt100, Pt1000, Cu10, Ni120, etc.) |
| Number sur Channels | 8 isolated RTD channels |
| Input Configuration | 2-wire, 3-wire, 4-wire |
| Measurement Range | -200°C to +850°C (varies by RTD type) |
| Resolution | 16-bit |
| Accuracy | ±0.1% sur reading or better |
| Input Isolation | Channel-to-channel and channel-to-ground |
| Open Circuit Detection | Yes |
| Redundancy Support | Yes (for RC variant, supports fault-tolerant systems) |
| Power Supply Voltage | Supplied via backplane |
| Power Consumption | Approx. 4.5W |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Mounting | DIN rail or system backplane |
| Dimensions (W x H x D) | 50 x 130 x 160 mm |
| Poids | 1.41 kg |
| Certifications | CE, UL, RoHS, ISA certified |
| System Compatibility | Honeywell TDC 2000, TDC 3000, PlantScape |
Applications
The Honeywell 621-0025RC is purpose-built for precision temperature monitoring and process optimization across a wide range sur industrial sectors. It is commonly deployed in:
-
Refineries and Petrochemical Plants
Critical temperature measurement in reactors and separation unités. -
Pharmaceutical Manufacturing
Ensures accurate and consistent temperature control in cleanroom operations. -
Power Generation Facilities
Boiler, turbine, and exhaust gas temperature monitoring. -
Food & Beverage Processing
Monitoring fermentation, sterilization, and pasteurization processes. -
Water & Wastewater Treatment
Temperature-sensitive chemical dosing and biological processing control. -
Semiconductor Manufacturing
Ultra-precise thermal monitoring in chip fabrication environments.
Key Advantages
-
Enhanced System Reliability
The RC variant supports redundancy, ideal for mission-critical systems. -
Flexible RTD Support
Supports a wide range sur RTD sensor types and wiring formats (2, 3, or 4-wire). -
Excellent Signal Isolation
Reduces ground loop interference and improves temperature reading integrity. -
Built-in Diagnostics
Detects open circuits and wiring faults, aiding proactive maintenance. -
High Accuracy & Resolution
16-bit resolution with minimal drift ensures precise temperature capture. -
Robust Industrial Design
Built to operate in tough environments with wide temperature and humidity tolerances. -
Direct Integration
Seamless compatibility with legacy and modern DCS Honeywell systems.
Questions fréquentes (FAQ)
-
What does the “RC” in 621-0025RC stand for?
“RC” typically stands for “Redundant Capable,” meaning the module supports use in redundant (fault-tolerant) system configurations. -
Is the 621-0025RC compatible with standard RTDs like Pt100?
Yes, it supports multiple RTD types including Pt100, Pt1000, Cu10, and Ni120. -
Does the module support 3-wire and 4-wire RTD inputs?
Yes, it supports 2-wire, 3-wire, and 4-wire configurations for flexibility. -
Can I use this in a high-temperature industrial cabinet?
The module is rated for operating temperatures from 0°C to 60°C, suitable for most industrial enclosures. -
Is channel-to-channel isolation included?
Yes, each channel is electrically isolated from others and from ground. -
Does the 621-0025RC provide built-in diagnostics?
Yes, including open-circuit detection and basic fault reporting. -
What control systems is this module compatible with?
It integrates with Honeywell’s TDC 2000, TDC 3000, and PlantScape systems. -
Can the module be mounted on DIN rails?
Yes, or it can be slotted into a Honeywell system backplane. -
Is field calibration necessary?
Not typically. Factory calibration is provided, but periodic checks are recommended for critical installations. -
How many channels are available for RTD input?
The module provides 8 isolated RTD input channels.
Related Modèles (Same Series or Functional Group)
| Modèle | Description | Channels | Function |
|---|---|---|---|
| 621-0025 | Standard RTD Input Module | 8 | RTD Temperature Input |
| 621-0022 | Isolated Analog Input Module | 8 | Voltage/Current Input |
| 621-0023 | Isolated Analog Output Module | 8 | Voltage/Current Output |
| 621-0016 | Digital Input Module | 16 | Binary Input |
| 621-0017 | Digital Output Module | 16 | Binary Output |
| 621-9940 | Thermocouple Input Module | 8 | Thermocouple Signals |
