Présentation du produit

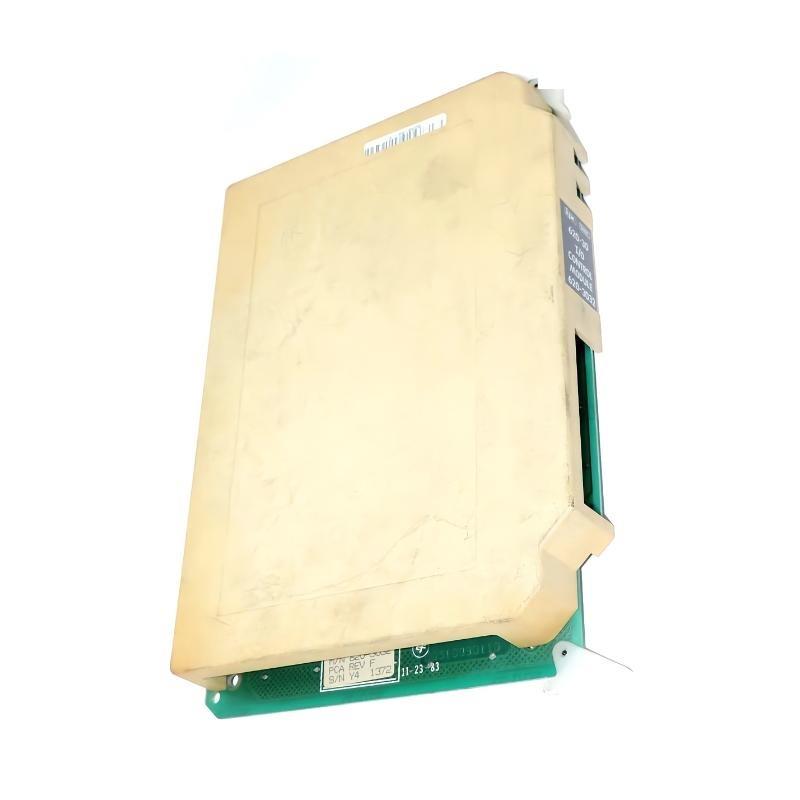

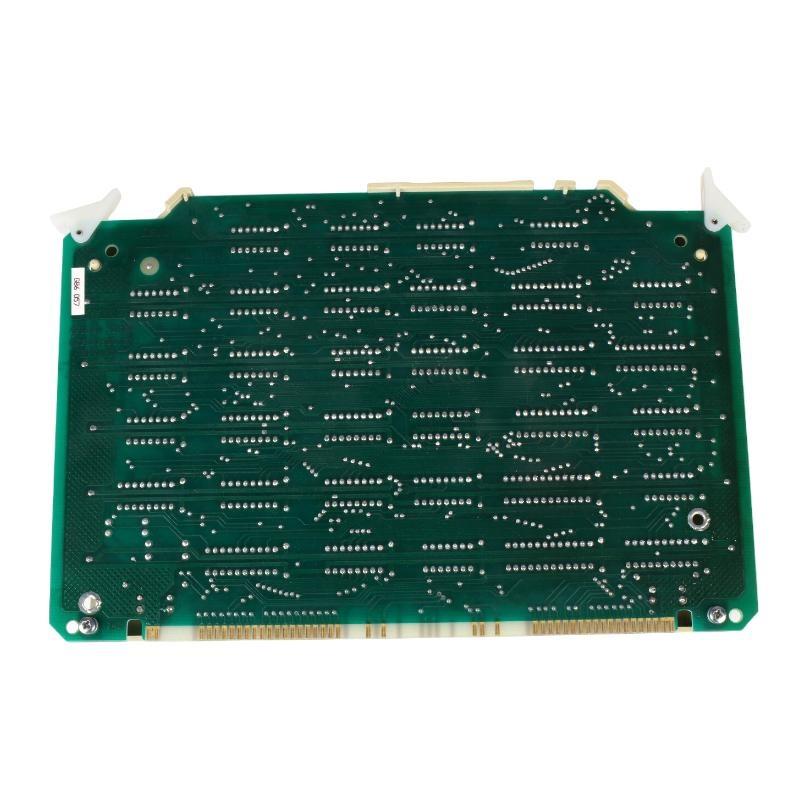

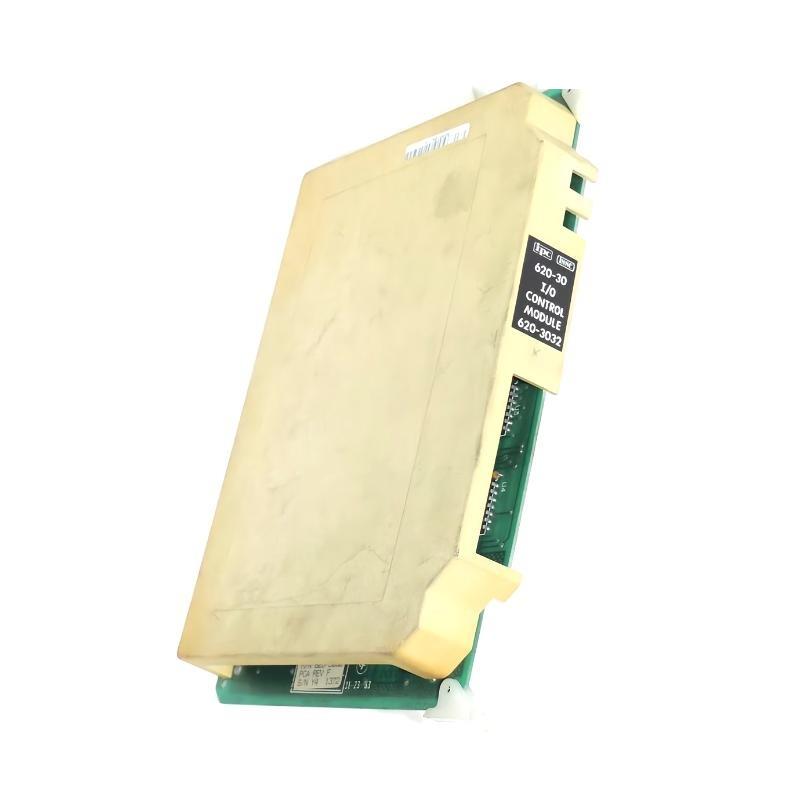

The Honeywell 620-3032 I/O Control Module is a high-performance module designed for use within Honeywell’s TDC 3000 Distributed Control System (DCS) architecture. It functions as a key interface between process control systems and field-level devices, managing both digital and analog input/output signals. With reliable data processing and communication features, the 620-3032 ensures timely and accurate signal exchange between controllers and field instruments such as sensors, actuators, valves, and switches.
This module is engineered to operate in industrial environments where high availability, fault tolerance, and continuous processing are essential. It supports multiple I/O configurations and integrates seamlessly into existing Honeywell control systems, making it a versatile and scalable solution for complex process control operations.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | Honeywell 620-3032 |
| Product Type | I/O Control Module |
| System Compatibility | Honeywell TDC 3000 |
| Supported I/O Types | Digital Input, Digital Output, Analog Input/Output |
| Processor Interface | Honeywell I/O Link (via backplane bus) |
| Input Voltage | Supplied via rack backplane (typically 5 VDC nominal) |
| Redundancy Support | Yes (used in redundant I/O rack configurations) |
| Hot Swap Capability | Yes (with proper system configuration) |
| Diagnostic Features | Onboard fault detection, status indicators |
| Environmental Rating | Industrial grade, conformal coated for harsh conditions |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Mounting Method | Rack-mounted (standard TDC 3000 chassis) |
| Dimensions (W x H x D) | 165 x 280 x 51 mm |
| Poids | 0.295 kg |
| Certifications | CE, UL, CSA, ATEX Zone 2 (system-dependent) |
Product Applications
The Honeywell 620-3032 module is ideal for a wide range sur industrial automation and process control applications, including:
-
Oil & Gas: Supervises real-time signal processing for pipelines, drilling platforms, and refineries.
-
Power Generation: Interfaces with field devices in turbine, generator, and boiler control systems.
-
Chemical Manufacturing: Supports analog and digital process control for batch and continuous operations.
-
Pharmaceutical Plants: Integrates with critical equipment used in cleanroom automation and compliance-driven processes.
-
Water and Wastewater Treatment: Manages pump stations, chemical dosing, filtration, and flow control.
-
Pulp & Paper Industry: Interfaces with motors, conveyors, paper machines, and quality control systems.
Product Advantages
-
Dual I/O Capability: Supports both analog and digital input/output, providing operational flexibility.
-
Redundancy Ready: Compatible with fault-tolerant control schemes, minimizing the risk sur unplanned downtime.
-
Hot-Swappable Design: Enables module replacement without shutting down the system (with configuration).
-
Industrial-Grade Construction: Built for operation in high-vibration, dusty, or high-humidity environments.
-
Fast I/O Processing: Ensures timely data communication between field devices and the control system.
-
Integrated Diagnostics: Includes onboard error detection and visual indicators for easier troubleshooting.
-
Proven Integration: Seamlessly connects with TDC 3000 systems, ensuring consistent operation and data reliability.
-
Extended Product Lifecycle: Backed by Honeywell’s long-term support and availability sur spare parts.
-
Compact Rack Fit: Optimized footprint allows efficient space use within system cabinets.
-
Reliable Legacy Support: Continues to perform reliably in legacy control environments worldwide.
Questions fréquentes (FAQ)
1. What is the role sur the 620-3032 in a TDC 3000 system?
It acts as an interface between field-level devices and control processors, processing analog and digital I/O signals and transmitting them to/from the controller.
2. Can the 620-3032 be used in redundant I/O configurations?
Yes, it fully supports redundancy and can be used in fault-tolerant racks where dual I/O paths are configured for reliability.
3. Is the module compatible with newer Honeywell control systems?
While designed for TDC 3000, it may be used in hybrid configurations if supported by the system integrator. However, it’s primarily intended for legacy environments.
4. How is the module configured and managed?
Configuration is typically handled via the Honeywell system engineer’s workstation using proprietary ssurtware tools tailored for the TDC 3000 platform.
5. What I/O types are supported by this module?
It supports both analog (current/voltage signals) and digital (binary signals) input and output types, depending on the system wiring and setup.
6. Is it safe to replace the module while the system is running?
Yes, with the correct system setup and redundancy in place, the 620-3032 is hot-swappable, allowing replacement without system interruption.
7. What diagnostics are available on this module?
It includes onboard LED indicators for status and fault detection, and fault conditions are reported through the control system’s operator interface.
8. Are special environmental conditions required for installation?
It is designed for standard industrial environments with temperature and humidity within the specified limits. Conformal coating provides added protection.
9. How surten should the module be maintained or inspected?
Routine inspection during scheduled maintenance cycles is recommended. No frequent servicing is typically required due to its robust construction.
10. Can this module be integrated with third-party field devices?
Yes, it supports industry-standard I/O signal types (e.g., 4–20 mA, 24VDC), allowing it to interface with a wide range sur sensors, actuators, and controllers.
Related Modèles from the Same Series
| Modèle Number | Description | Function | System Compatibility |
|---|---|---|---|
| 620-0085 | Analog Input Module | Inputs 4–20 mA/voltage signals | TDC 3000 |
| 620-0086 | Analog Output Module | Outputs analog control signals | TDC 3000 |
| 620-0081 | Digital Output Module | Outputs binary control signals | TDC 3000 |
| 620-0080 | Digital Input Module | Receives binary inputs | TDC 3000 |
| 620-0056 | I/O Link Interface Module | Manages I/O communication | TDC 3000 |
| 620-1036 | I/O Multiplexer Module | Expands I/O capacity | TDC 3000 |
Popular Honeywell Modèles
| Modèle Number | Description | System Platform | Main Purpose |
|---|---|---|---|
| CC-TAIX01 | Analog Input Module (Series C) | Experion PKS | Process signal acquisition |
| CC-TDIL01 | Digital Input Module (Series C) | Experion PKS | Discrete field signal collection |
| CC-PAOH01 | Analog Output Module | Experion PKS | Signal output to field actuators |
| TC-CCR014 | Redundant Controller Module | Experion PKS | Central processing for critical tasks |
| FC-SDO-0824 | Fail-Safe Digital Output Module | Safety Manager | Emergency output control |
| MU-TD0D12 | 24-Channel Digital Output Module | TDC 3000 | High-density digital signal control |
