Product Overview

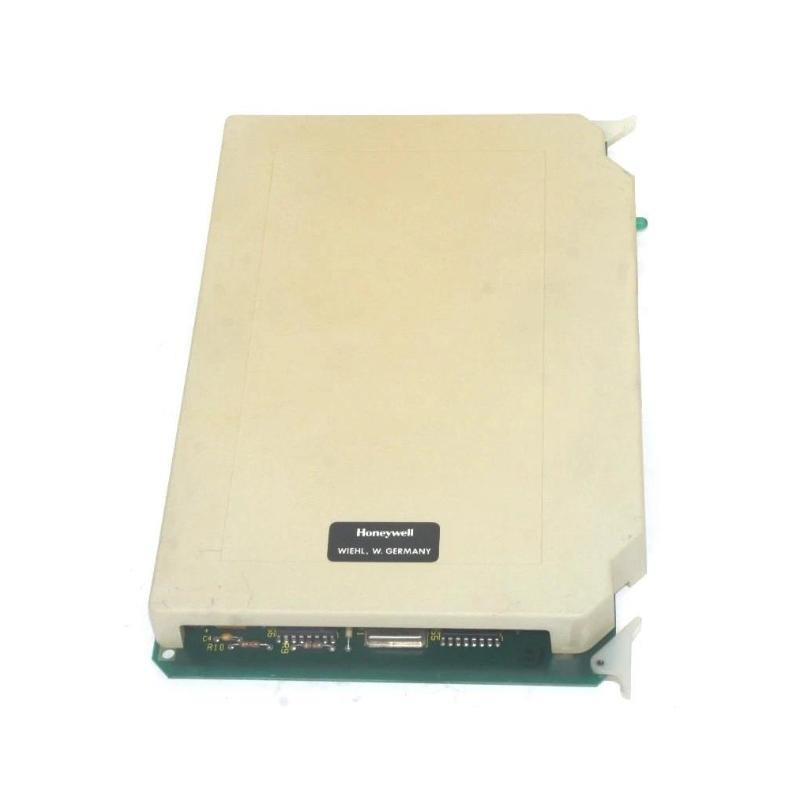

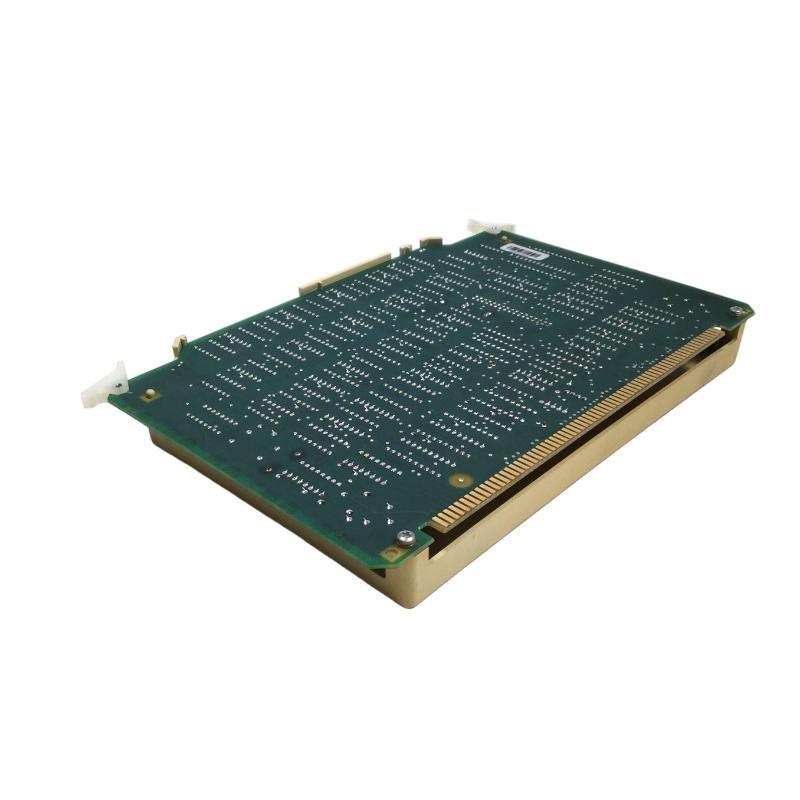

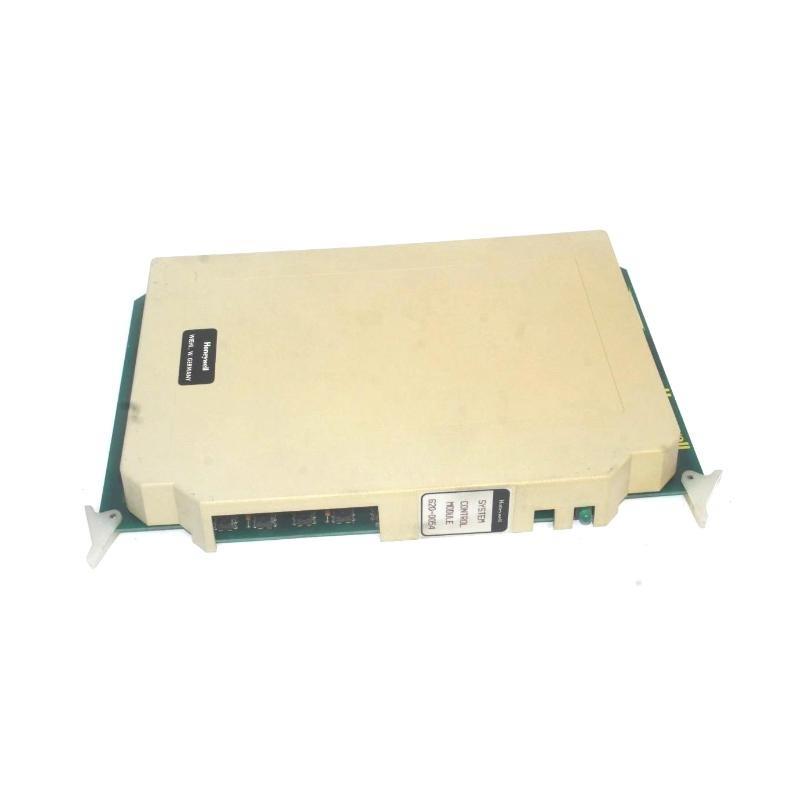

The Honeywell 620-0054 System Control Module is a critical component in Honeywell’s automation solutions, designed for efficient and reliable control sur industrial systems. This control module is built for high-performance operation in complex environments, providing seamless communication, real-time monitoring, and control for various automation processes. It is engineered to meet the demands sur modern industrial systems and surfers flexibility for a variety sur applications, from manufacturing plants to energy management systems.
The 620-0054 system control module is known for its compact design, user-friendly interface, and robust functionality, making it an ideal choice for industries that require fast and efficient control systems. Whether it’s managing industrial machinery, process controls, or data acquisition tasks, this module ensures smooth operation and minimizes the risk sur downtime.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle | 620-0054 |
| Dimensions | 200 x 120 x 55 mm |
| Poids | 0.34 kg |
| Input Channels | 16 (configurable as digital/analog) |
| Output Channels | 8 (configurable as analog/digital) |
| Power Supply | 24 V DC ± 10% |
| Operating Temperature | -10°C to +60°C |
| Communication Protocol | Modbus RTU, TCP/IP, OPC |
| Mounting Type | DIN Rail |
| Protection Class | IP20 |
| Data Transfer Rate | 1 Mbps |
| Compliance | CE, UL, RoHS |
Applications
The Honeywell 620-0054 System Control Module is designed for a wide range sur applications in various industrial sectors:
-
Industrial Automation: Enables the monitoring and control sur various manufacturing processes, optimizing production efficiency and system integration.
-
Process Control: Used to control systems such as valves, pumps, motors, and actuators in chemical plants, refineries, and water treatment facilities.
-
Building Automation: Integrates with HVAC systems, lighting, security, and energy management systems for efficient building control.
-
Energy Management Systems: Collects data from meters and other energy consumption devices to monitor and manage energy usage, improving cost efficiency and sustainability.
-
Oil & Gas: Utilized in upstream, midstream, and downstream applications, helping to control and monitor operations such as drilling, pumping, and refining processes.
-
Automated Testing: Facilitates data collection and analysis in automated test systems, ensuring accurate and reliable test results for production quality control.
By surfering flexibility in input/output configurations, this control module is ideal for industries that require robust control capabilities and real-time data processing.
Product Advantages
-
Compact and Efficient: The 620-0054 control module is designed for installations where space is at a premium. Its small footprint (200 x 120 x 55 mm) allows it to fit easily in control panels.
-
Real-Time Control: With real-time data processing and communication capabilities, the module ensures accurate monitoring and control sur processes.
-
Versatile Input/Output Channels: This module supports 16 configurable input channels and 8 output channels, allowing for a variety sur digital and analog signals to be processed and transmitted.
-
Easy Integration: It supports Modbus RTU, TCP/IP, and OPC communication protocols, making it easy to integrate into existing control systems or automation networks.
-
Robust Construction: Built to endure harsh industrial environments, it has an IP20 rating for protection against dust and water, making it reliable even in challenging conditions.
-
Flexible Mounting: The module can be easily mounted on a DIN rail, ensuring easy installation in various settings such as control cabinets and panels.
-
Efficient Power Consumption: With a 24 V DC power supply requirement and low power consumption, it operates efficiently while minimizing energy usage.
-
Reliable Communication: The module supports high-speed data transfer at 1 Mbps, enabling quick and reliable communication with other devices in the system.
-
Scalable Design: It is designed to scale up to meet the growing needs sur industrial systems, surfering a range sur input/output options for various applications.
Questions fréquentes (FAQ)
Q1: What types sur input signals can be processed by the 620-0054 module?
A1: The module supports 16 configurable input channels, which can be configured to handle digital or analog signals, making it versatile for a variety sur applications.
Q2: What communication protocols are supported by the 620-0054 module?
A2: The module supports Modbus RTU, TCP/IP, and OPC communication protocols, enabling easy integration with other industrial devices and systems.
Q3: What is the power supply requirement for the 620-0054 module?
A3: The module operates on a 24 V DC power supply with a tolerance sur ±10%, making it compatible with standard industrial power systems.
Q4: Can this module be used in outdoor environments?
A4: The module is designed for indoor use with an IP20 rating, meaning it is protected from dust but not from water or outdoor conditions.
Q5: How does the 620-0054 module handle communication with other devices?
A5: The module communicates with other devices using high-speed data transfer (1 Mbps) through Modbus RTU, TCP/IP, or OPC, ensuring efficient and reliable data exchange.
Q6: How many output channels does the 620-0054 module support?
A6: The module has 8 configurable output channels, which can be set to handle either analog or digital signals.
Q7: Is this module suitable for high-temperature environments?
A7: The module operates within a temperature range sur -10°C to +60°C, making it suitable for most industrial environments but not for extreme high-temperature conditions.
Q8: What is the significance sur the module’s IP20 rating?
A8: The IP20 rating means that the module is protected against solid objects greater than 12 mm in diameter, but it is not protected against water. It is suitable for use in controlled environments such as control panels.
Q9: How can the module be mounted?
A9: The 620-0054 module can be easily mounted on a DIN rail, providing secure installation in a wide variety sur industrial settings.
Q10: Is the 620-0054 module compatible with other Honeywell systems?
A10: Yes, it is designed to seamlessly integrate with other Honeywell systems, as well as third-party devices that support Modbus RTU, TCP/IP, or OPC protocols.
Recommended Related Modèles (Same Series or Type)
| Modèle | Description | Dimensions | Poids |
|---|---|---|---|
| 620-0055 | Advanced System Control Module | 200 x 120 x 55 mm | 0.340 kg |
| 620-0056 | Modular System Control Module with I/O | 200 x 120 x 60 mm | 0.350 kg |
| 620-0060 | 16 Channel Data Collection and Control Module | 210 x 130 x 60 mm | 0.380 kg |
| 620-0070 | Multi-Input Control Module with High-Speed Data Processing | 200 x 120 x 55 mm | 0.375 kg |
| 620-0080 | Flexible Control Module with Integrated I/O | 200 x 120 x 55 mm | 0.360 kg |
| 620-0090 | Compact Control Module for Industrial Automation | 200 x 120 x 55 mm | 0.350 kg |
Recommended Popular Honeywell Modèles
| Modèle | Description | Poids |
|---|---|---|
| 620-3032 | Differential pressure sensor, 0–1000 PSI, high accuracy, for industrial applications | 0.280 kg |
| 620-3033 | Pressure sensor, 0–2000 PSI, robust design for harsh environments | 0.290 kg |
| 621-0000 | Temperature sensor, thermocouple, high-temperature range (up to 1200°C) | 0.250 kg |
| 620-3035 | Pressure sensor, 0–5000 PSI, for heavy-duty industrial equipment | 0.300 kg |
| 620-3037 | Industrial flow sensor, supports 4-20 mA output, for fluid measurement | 0.270 kg |
| 621-0002 | Temperature sensor, RTD, for precise low temperature applications | 0.220 kg |
