Présentation du produit

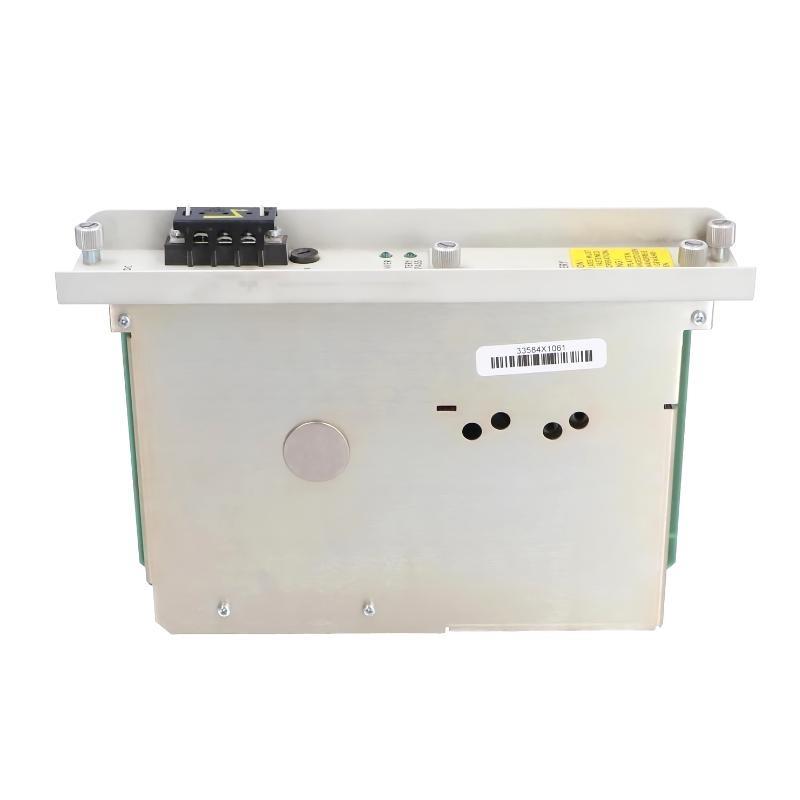

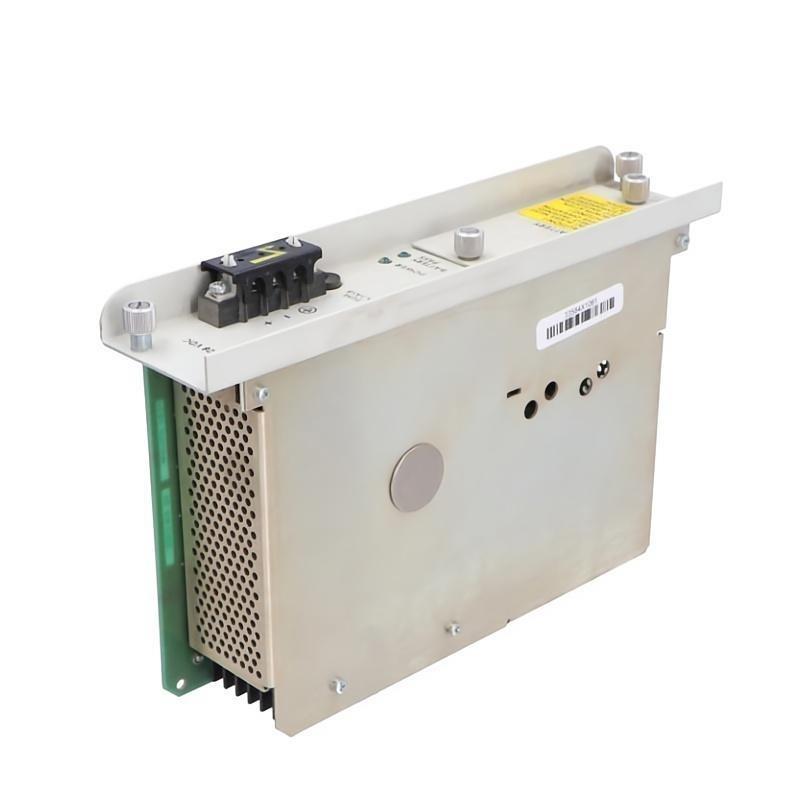

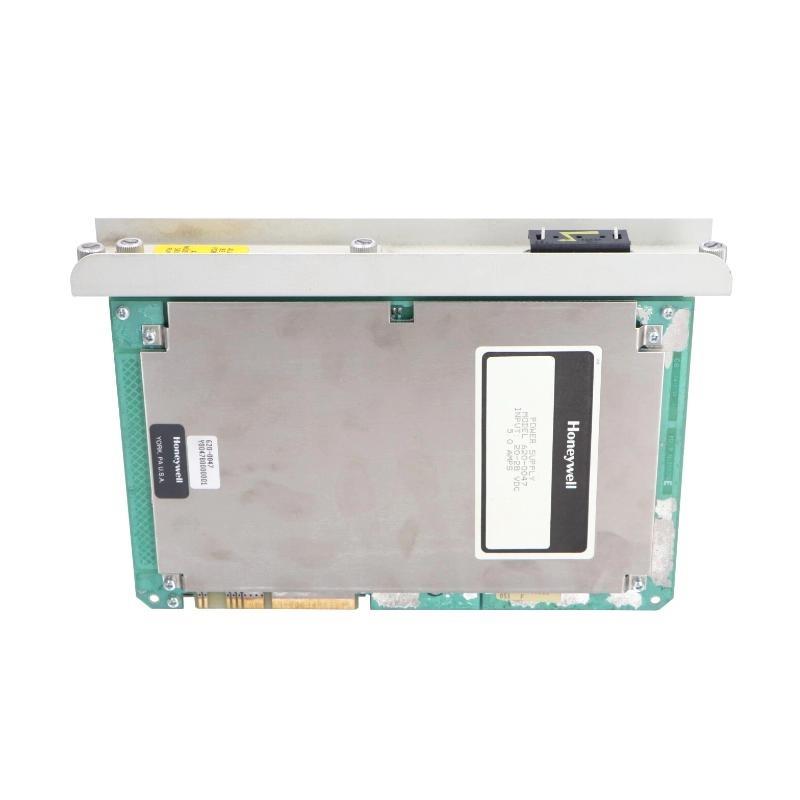

The Honeywell 620-0047 Power Supply Module is an essential component in the Honeywell 620 series programmable logic controller (PLC) system, specifically engineered to provide consistent and reliable power to the CPU and I/O modules within industrial automation environments. Designed with industrial-grade components and tested under harsh conditions, the 620-0047 ensures operational stability and long-term performance.
This power supply module is known for its high reliability, compact design, and efficient voltage regulation, making it suitable for mission-critical applications such as process automation, energy management, and factory control systems. Whether deployed in standalone systems or integrated into large-scale control architectures, the 620-0047 module plays a critical role in maintaining uninterrupted system operation.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | 620-0047 |
| Marque | Honeywell |
| Product Type | Power Supply Module |
| Input Voltage Range | 85–264 VAC (auto-ranging) |
| Input Frequency | 47–63 Hz |
| Output Voltage | 5 VDC, regulated |
| Output Current | 8 A (nominal load) |
| Efficiency | ≥85% |
| Ripple and Noise | ≤50 mVp-p |
| Isolation Voltage | 1500 VAC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Cooling Method | Convection cooled |
| Protection Features | Over-voltage, over-current, short-circuit |
| Mounting Type | DIN rail or backplane |
| Dimensions (W x H x D) | 200 x 120 x 55 mm |
| Poids | 1.64 kg |
| Certifications | CE, UL, CSA |
Product Applications
The Honeywell 620-0047 Power Supply Module is widely used across a range sur industrial and automation systems, including:
-
Process Control Systems (oil & gas, chemical plants, refineries)
-
Factory Automation (assembly lines, robotics)
-
Energy Management Systems
-
Water Treatment Facilities
-
Power Plants and Substations
-
Material Handling Equipment
-
Pharmaceutical Manufacturing Systems
Product Advantages
-
Industrial-Grade Reliability: Designed for 24/7 operation in industrial environments.
-
Wide Input Range: Automatically adapts to different power grid voltages.
-
Comprehensive Protection: Built-in protections against short-circuit, overload, and over-voltage conditions.
-
Compact Footprint: Enregistrers panel space, ideal for modular installations.
-
Long Lifecycle: High MTBF (Mean Time Between Failures), reducing maintenance cost.
-
Easy Integration: Seamless compatibility with Honeywell 620 series and other system components.
-
Minimal Downtime: Hot-swappable capability reduces the time needed for maintenance.
-
Certified Compliance: Meets international safety and quality standards.
-
Low Ripple Output: Ensures stable performance for sensitive digital circuits.
-
Energy Efficiency: Reduces power consumption and operational costs.
Questions fréquentes (FAQ)
-
Is the Honeywell 620-0047 designed for use only in Honeywell systems?
Yes, the 620-0047 Power Supply Module is specifically engineered for the Honeywell 620 PLC system. While technically adaptable in some third-party systems, it’s optimized for full functionality and safety within Honeywell environments. -
What type sur input power does the 620-0047 accept?
It accepts a wide AC input voltage range from 85 to 264 VAC, with an input frequency sur 47–63 Hz, allowing for global deployment across various power standards. -
Does the module include built-in fault protection?
Absolutely. The 620-0047 features protection against overvoltage, overcurrent, and short circuits, ensuring the system stays safe during power disturbances. -
What happens if the module experiences a power surge?
The built-in surge protection circuitry helps absorb and isolate the excess voltage, preventing damage to both the module and connected PLC components. -
How much current can the power supply deliver?
Under standard conditions, the module supplies a steady 8 amps at 5 VDC, which is sufficient for powering the central CPU and multiple I/O modules within a PLC rack. -
Is this module easy to install or replace in the field?
Yes. The design supports quick installation using either DIN rail or backplane mounting. Technicians can also replace it quickly thanks to its modular form factor. -
How does the module handle high-temperature environments?
It’s rated for continuous operation from 0°C to 60°C. However, for installations near the upper temperature limit, proper ventilation should be ensured. -
Can I use this power supply in a redundant configuration?
While the 620-0047 itself is a standalone module, Honeywell systems can be configured for redundancy using additional power modules, such as the 620-0036, to ensure uninterrupted operation. -
Does the 620-0047 generate significant electrical noise?
N° It is designed with low-ripple output and EMI filtering, making it suitable for noise-sensitive industrial electronics and communication modules. -
How frequently does the module require maintenance?
Maintenance is minimal. Routine inspection for dust, secure connections, and ensuring clean ventilation is typically sufficient for reliable long-term use.
Related Modèles (Same Series or Compatible)
| Modèle | Description | Input Voltage | Output Voltage | Output Current |
|---|---|---|---|---|
| 620-0080 | Power Supply, high capacity | 100–240 VAC | 5 VDC | 12 A |
| 620-0040 | Standard Power Supply | 85–264 VAC | 5 VDC | 5 A |
| 620-0036 | Redundant Power Module | 100–240 VAC | 5 VDC | 10 A |
| 620-0081 | Power Supply with diagnostics | 85–264 VAC | 5 VDC | 8 A |
| 620-0050 | Compact Power Supply for tight enclosures | 100–240 VAC | 5 VDC | 6 A |
| 620-0035 | High isolation power supply module | 85–264 VAC | 5 VDC | 7 A |
Popular Honeywell Modèles
| Modèle | Product Type | Description | Compatibility |
|---|---|---|---|
| CC-PAIH01 | Analog Input Module | 16-channel HART analog input | Experion PKS C300 |
| CC-PCNT01 | Pulse Counter Module | High-speed counter input for flow and RPM | C300 Process Controllers |
| 51401416-100 | Redundant Power Supply Module | Industrial redundant PSU for TPS system | TDC 3000 |
| 51303979-100 | Fieldbus I/O Module | Interface for distributed control systems | Experion/TDC |
| CC-PDIL01 | Digital Input Module | 24VDC, 32-channel input module | C300 Controller I/O |
| 51199929-100 | Power Supply | Modular PSU for DC power distribution | TDC 2000/3000 |
