Présentation du produit

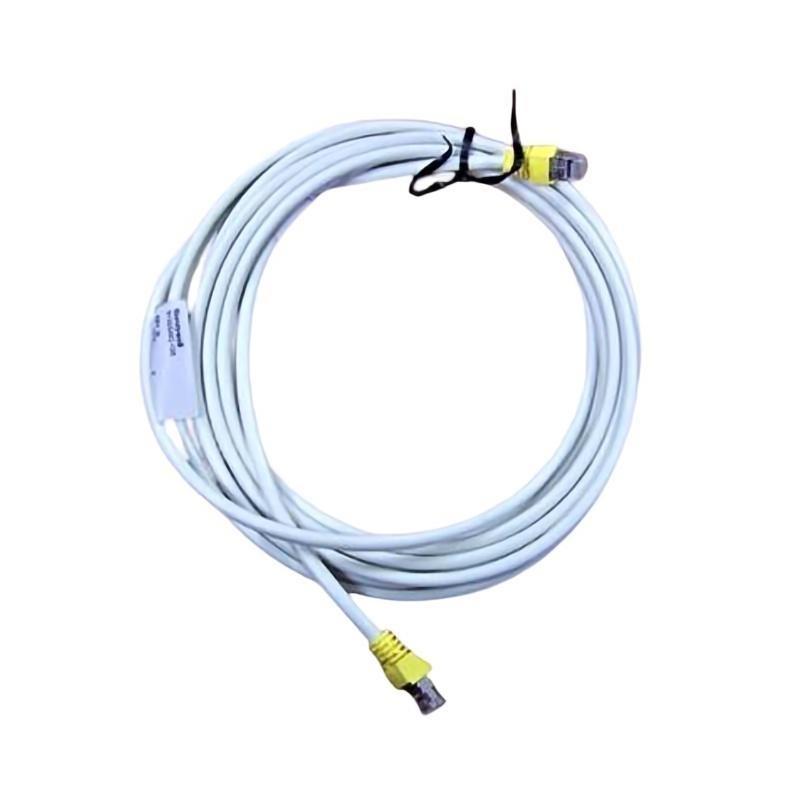

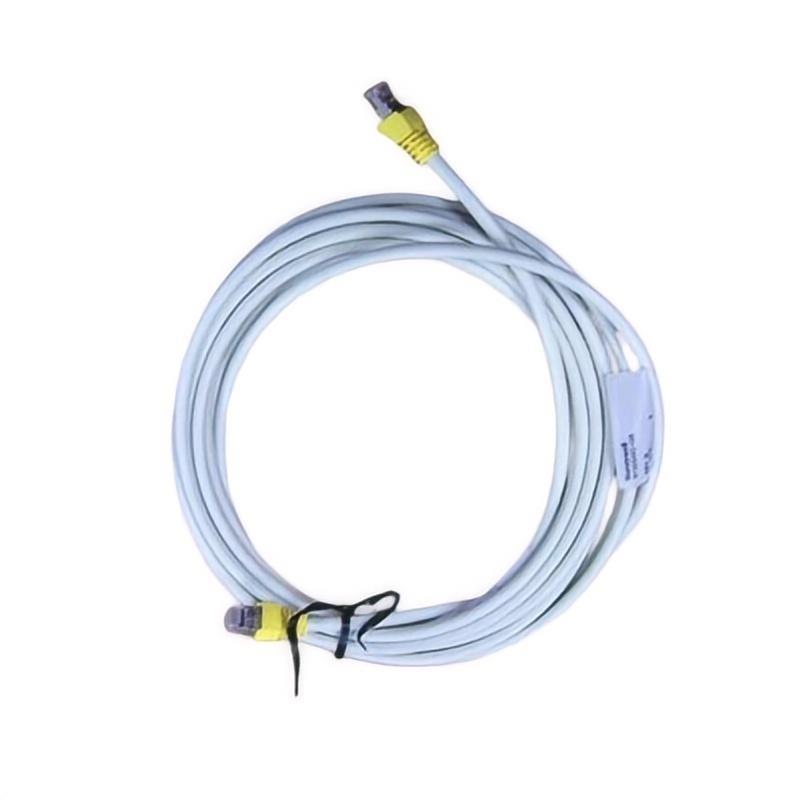

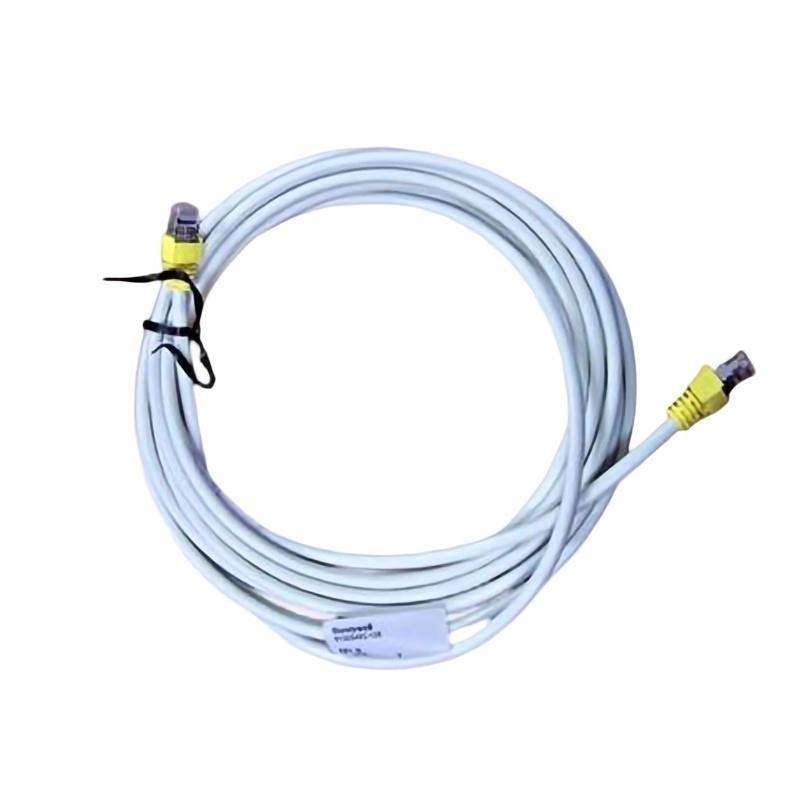

The Honeywell 51305482-199 Cable is an industrial-grade, shielded control and signal cable engineered for use in Honeywell Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), and process automation environments. Designed to deliver superior signal integrity and robust EMI/RFI protection, this cable ensures reliable communication between control modules and field devices in high-noise industrial settings.
With its multi-core tinned copper conductors and dual shielding, the 51305482-199 is built for stable performance over long runs, making it an essential component in Honeywell Experion PKS and TDC 3000 systems. Its rugged insulation and industrial-grade jacket make it suitable for harsh environments, including oil & gas, power generation, and manufacturing plants.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | 51305482-199 |
| Fabricant | Honeywell |
| Function | Industrial Control and Signal Cable |
| Cable Length | 99 meters |
| Conductor Material | Tinned Copper |
| Conductor Type | Multi-core, stranded |
| Insulation Material | High-temperature, flame-retardant PVC or XLPE |
| Shielding | Foil and braided shielding for EMI/RFI protection |
| Jacket Material | Industrial-grade, oil-resistant PVC |
| Voltage Rating | 300V AC/DC |
| Operating Temperature | -20°C to +80°C |
| Flame Rating | UL VW-1 / IEC 60332-1 |
| Compliance | CE, RoHS, UL |
| Package Poids | 3 kg |
Product Applications
-
Honeywell Distributed Control Systems (DCS): Provides reliable wiring for Honeywell Experion PKS and TDC 3000 systems.
-
Industrial PLC Networks: Used for data, control, and communication signals in automated control systems.
-
Instrumentation and Field Wiring: Ideal for connecting sensors, transmitters, and actuators in process plants.
-
Power Generation Facilities: Ensures secure data transmission between turbine control and monitoring systems.
-
Oil & Gas Automation: Designed for high-noise environments requiring strong EMI and RFI immunitéy.
-
Manufacturing and Process Plants: Suitable for control cabinets, robotics, and machine interface wiring.
Product Advantages
-
Excellent Signal Integrity: Low capacitance and premium shielding minimize attenuation and noise interference.
-
Industrial Durability: Resistant to mechanical stress, vibration, and industrial oils for long-term use.
-
Optimized for Honeywell Systems: Seamless integration with DCS Honeywell and PLC architectures.
-
High EMI/RFI Protection: Dual shielding provides robust noise suppression for critical control signals.
-
Stable Long-Distance Performance: Engineered for reliable transmission over extended cable runs.
-
Flame-Retardant and Safe: Meets stringent industrial flame ratings for secure installation in control panels.
FAQ
-
What type sur shielding does the 51305482-199 cable use to minimize noise?
It utilizes a combination sur foil and braided shielding to provide comprehensive EMI/RFI protection in industrial control networks. -
Is the cable designed for both analog and digital signal transmission?
Yes, it supports low-level analog signals as well as high-speed digital communications for Honeywell control systems. -
How does the cable ensure signal integrity over a 99-meter run?
Its low capacitance design and dual shielding reduce signal loss and cross-talk, ensuring stable performance over long distances. -
Can this cable be used in shielded twisted pair (STP) configurations?
Yes, it supports proper shield termination and grounding for STP signal wiring in DCS Honeywell networks. -
What type sur conductor construction does the 51305482-199 feature?
It uses stranded tinned copper conductors, surfering flexibility and corrosion resistance in demanding environments. -
Does the outer jacket resist industrial oils and chemicals?
Yes, the industrial-grade PVC jacket is designed to withstand oils, solvents, and harsh industrial contaminants. -
Is the cable compatible with Honeywell Experion PKS and legacy TDC 3000 systems?
It is fully optimized for seamless integration with both modern and legacy Honeywell control architectures. -
What is the maximum voltage rating supported by this cable?
The 51305482-199 is rated for up to 300V AC/DC, suitable for control and instrumentation circuits. -
Can the cable operate reliably in high-vibration industrial environments?
Yes, the stranded conductor design and rugged insulation provide excellent vibration resistance. -
Does the 51305482-199 meet industrial flame-retardant standards?
It complies with UL VW-1 and IEC 60332-1 ratings, ensuring safe operation in control cabinets and process facilities.
