Présentation du produit

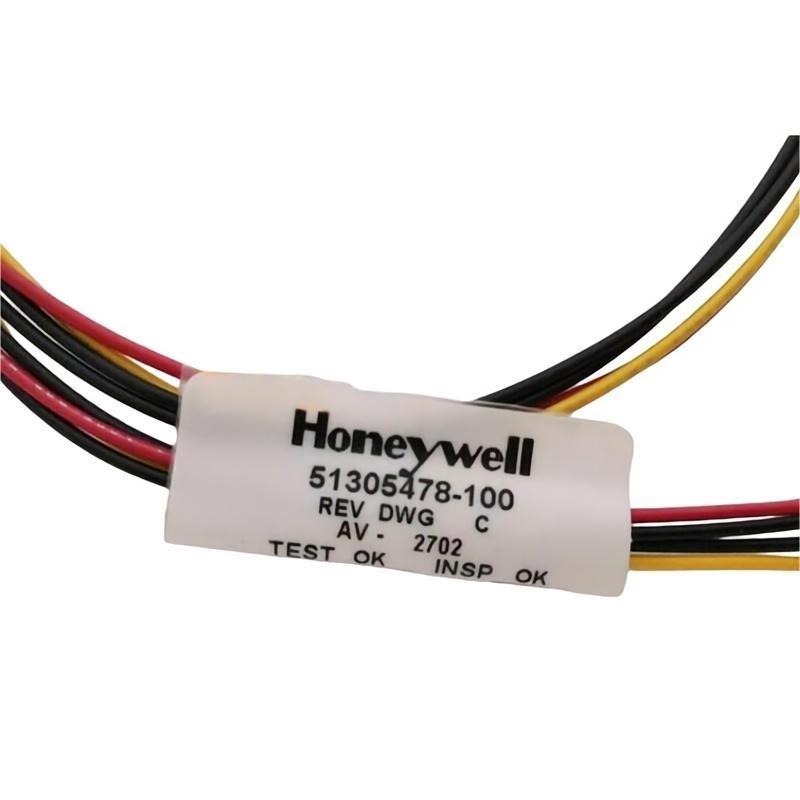

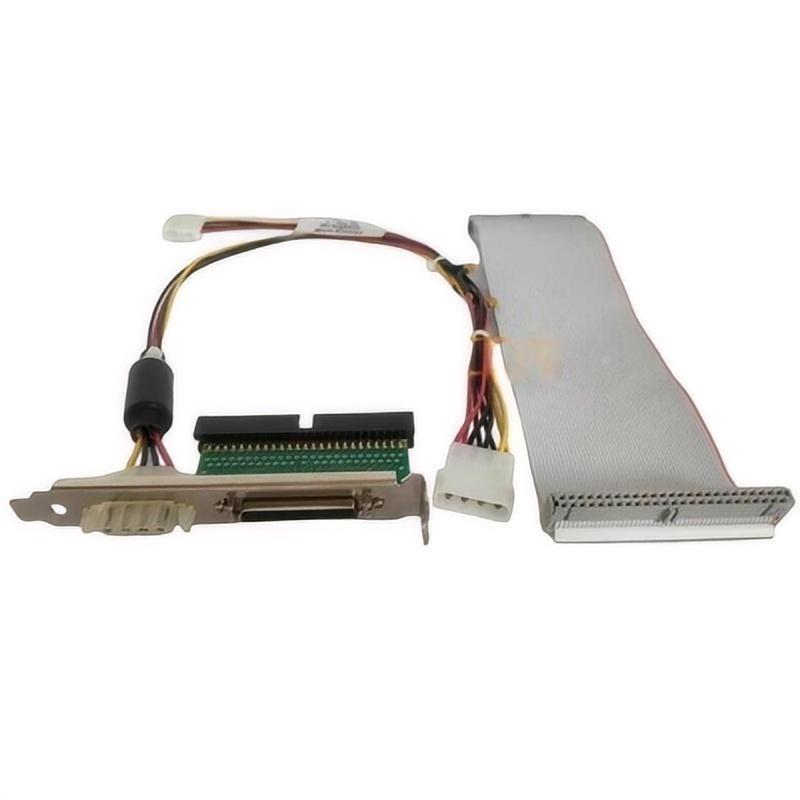

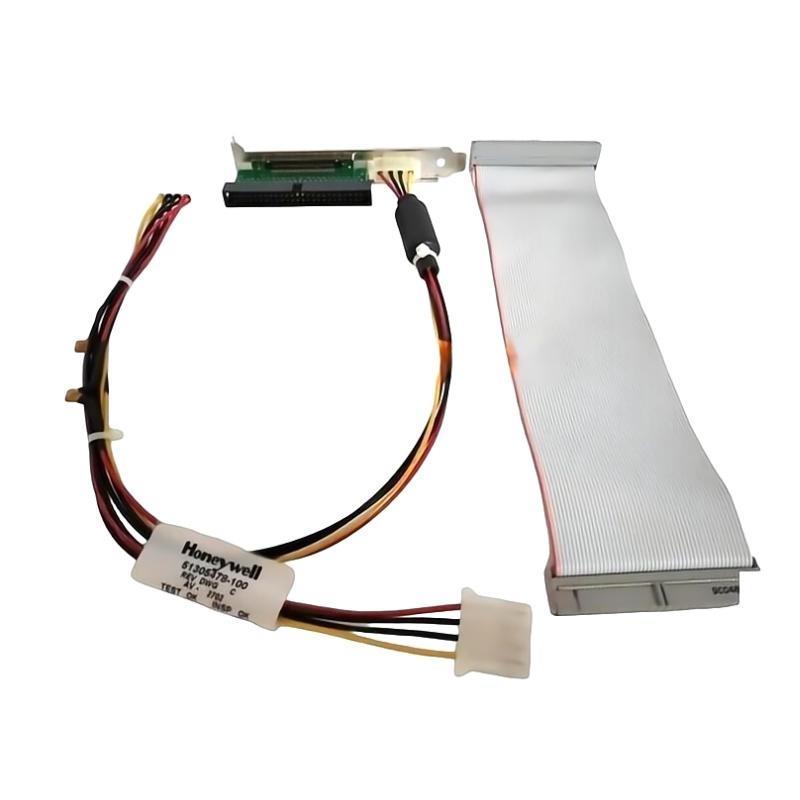

The Honeywell 51305478-100 Cable is a high-quality industrial-grade cable designed specifically for Honeywell control and automation systems. Engineered to deliver reliable signal transmission and robust electrical performance, it is widely used in Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), and industrial instrumentation networks.
Constructed with premium shielding and low-capacitance conductors, the 51305478-100 ensures minimal signal loss and excellent electromagnetic interference (EMI) resistance. Its rugged insulation and industrial-grade jacket make it suitable for demanding process environments, including power generation, petrochemical, and manufacturing facilities.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | 51305478-100 |
| Fabricant | Honeywell |
| Function | Industrial Control and Signal Cable |
| Conductor Material | Tinned Copper |
| Conductor Type | Multi-core, stranded |
| Insulation Material | High-temperature, flame-retardant PVC or XLPE |
| Shielding | Foil and braided shielding for EMI/RFI protection |
| Jacket Material | Industrial-grade, oil-resistant PVC |
| Voltage Rating | 300V AC/DC |
| Operating Temperature | -20°C to +80°C |
| Flame Rating | UL VW-1 / IEC 60332-1 |
| Compliance | CE, RoHS, UL |
| Dimensions | Optional |
| Package Poids | 3 kg |
Product Applications
-
Distributed Control Systems (DCS): Provides secure signal transmission between Honeywell controllers and field devices.
-
PLC and Automation Systems: Used for reliable data and control signal wiring in industrial automation networks.
-
Instrumentation Wiring: Ideal for connecting transmitters, sensors, and actuators in process control environments.
-
Power Generation Plants: Ensures stable communication between turbine control modules and monitoring systems.
-
Oil & Gas Facilities: Suitable for high-noise environments requiring EMI/RFI-resistant cabling.
-
Manufacturing Plants: Provides robust connectivity in robotics, CNC machines, and production line controls.
Product Advantages
-
High Signal Integrity: Low capacitance and superior shielding minimize noise and data errors.
-
Industrial Durability: Built with rugged materials to withstand vibration, temperature extremes, and harsh chemicals.
-
Optimized for Honeywell Systems: Fully compatible with DCS Honeywell and PLC architectures.
-
EMI/RFI Protection: Double shielding ensures reliable operation in electrically noisy environments.
-
Flexible Installation: Multi-core stranded design provides easy routing in control panels and conduits.
-
Long-Term Reliability: High-quality materials reduce degradation and ensure consistent performance.
FAQ
-
What type sur shielding does the 51305478-100 cable use for EMI suppression?
The cable features both foil and braided shielding to provide excellent protection against electromagnetic and radio frequency interference. -
Is the 51305478-100 suitable for analog and digital signal transmission?
Yes, it supports low-level analog signals as well as high-speed digital communication in Honeywell control networks. -
Can the cable be used for grounding shielded twisted pair (STP) connections?
It supports proper shield termination and grounding practices for STP applications in industrial systems. -
What type sur conductor configuration does this cable use?
The cable uses multi-core stranded tinned copper conductors for flexibility and corrosion resistance. -
Does the 51305478-100 meet industrial flame-retardant standards?
Yes, it is tested to meet UL VW-1 and IEC 60332-1 flame resistance ratings for safe use in control cabinets. -
How does the cable maintain signal integrity over long runs?
Its low capacitance design combined with double shielding minimizes attenuation and cross-talk over extended distances. -
Is the cable jacket resistant to industrial oils and chemicals?
The outer jacket is constructed from oil-resistant PVC to withstand typical industrial contaminants. -
Can the 51305478-100 be used in high-vibration environments?
Yes, the stranded conductor design and durable insulation make it suitable for installations exposed to vibration. -
What is the maximum operating voltage supported by the cable?
It is rated for up to 300V AC/DC, making it ideal for control and instrumentation circuits. -
Is the cable compatible with Honeywell Experion PKS and TDC 3000 systems?
Yes, it is specifically engineered to integrate seamlessly with Honeywell Experion and TDC 3000 architectures.
