Présentation du produit

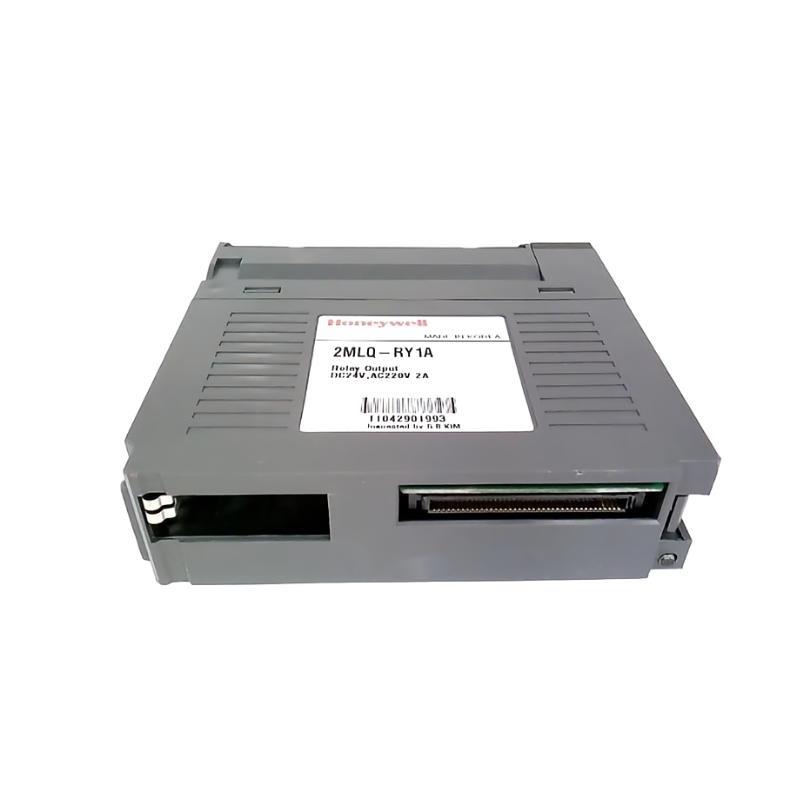

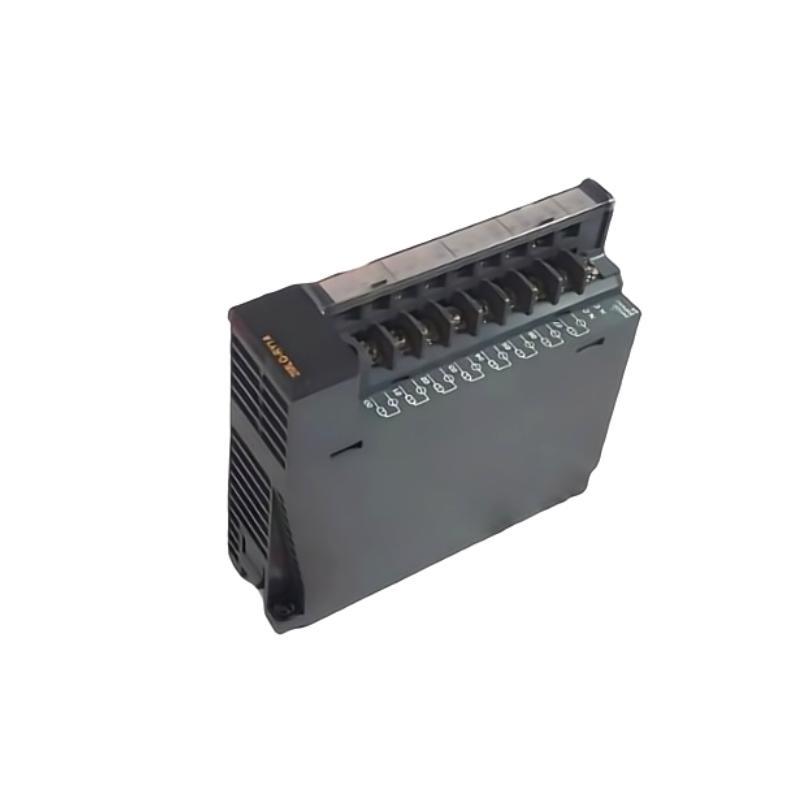

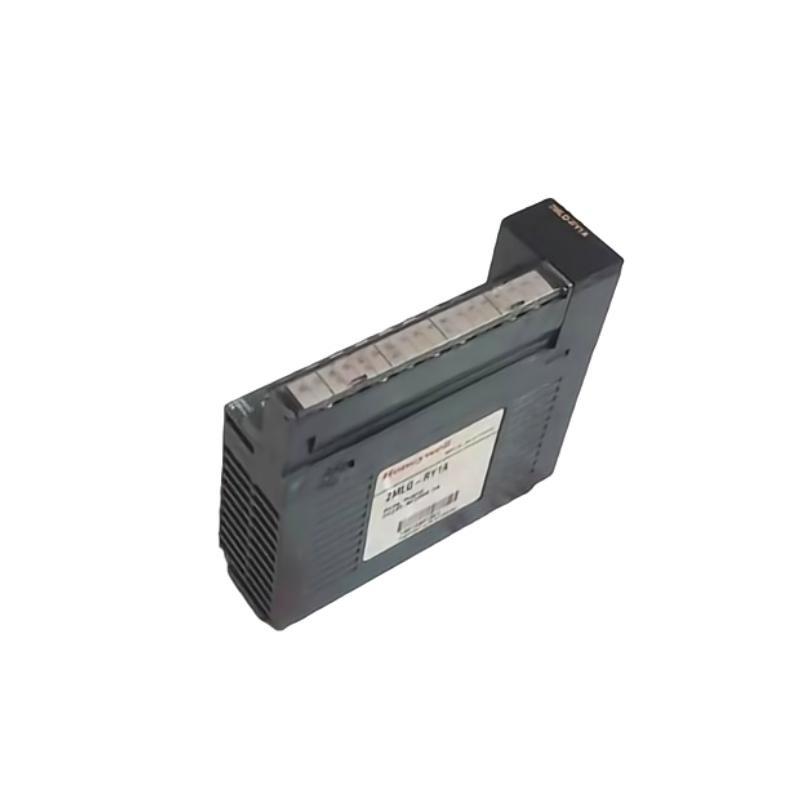

The Honeywell 2MLQ-RY1A Relay Digital Output Module is a key component within Honeywell’s industrial control systems, designed to provide reliable digital relay outputs for process automation. This module allows for the control sur a wide variety sur field devices, such as solenoids, actuators, contactors, and alarms, by converting digital signals from the control system into physical relay contacts.
Thanks to its robust design, excellent electrical isolation, and versatile compatibility with Honeywell’s control platforms, the 2MLQ-RY1A has become an industry standard in sectors where safety, reliability, and performance are paramount. It is suitable for both new installations and upgrades sur existing Honeywell control systems.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Product Name | Honeywell 2MLQ-RY1A Relay Digital Output Module |
| Modèle Number | 2MLQ-RY1A |
| Series | MLQ Series / Honeywell Control Systems |
| Function | Digital Output – Relay |
| Output Type | Relay contact (Form C) |
| Number sur Output Channels | 16 |
| Relay Contact Rating | 2 A @ 30 VDC / 250 VAC resistive |
| Output Isolation | 1500 V RMS minimum |
| Input Power Supply | 24 VDC nominal |
| On/Off Response Time | < 10 ms |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -20°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Protection Features | Relay wear compensation, surge suppression |
| Diagnostics | Channel status LEDs, fault monitoring |
| Mounting Type | DIN-rail or panel mount |
| Dimensions (H x W x D) | 114 × 48 × 127 mm |
| Poids | 0.13 kg |
| Certification | CE, UL, CSA |
Product Applications
The Honeywell 2MLQ-RY1A module is utilized across a broad range sur industries and process environments, including:
-
Oil & Gas
Control sur motor-operated valves (MOVs), safety shutdown systems, and ESD devices. -
Power Generation
Managing breaker operations, alarms, and auxiliary equipment in power stations. -
Chemical Processing
Safe actuation sur chemical feed pumps and other hazardous area equipment. -
Water & Wastewater
Remote control sur pumps, blowers, and treatment process devices. -
Pharmaceutical Manufacturing
Precision control sur process equipment in validated systems. -
Food & Beverage Production
Control sur packaging machinery and automated production lines.
Product Advantages
-
High Reliability
Industrial-grade relays with wear compensation extend service life. -
Flexible Integration
Compatible with a wide range sur Honeywell control systems. -
Electrical Isolation
High isolation between control circuits and field devices enhances system safety. -
Fast Switching
Low response times ensure prompt actuation sur field equipment. -
Built-in Diagnostics
Onboard status LEDs and fault monitoring simplify maintenance and troubleshooting. -
Compact Design
Enregistrers valuable panel space with a high channel density. -
Versatile Mounting
Can be installed on DIN rails or panel-mounted to suit various cabinet layouts. -
Certified for Global Markets
CE, UL, and CSA certifications enable use in international projects.
Questions fréquentes (FAQ)
-
What is the main function sur the 2MLQ-RY1A module?
It provides 16 relay-based digital outputs for controlling field devices. -
How much current can each relay contact handle?
Each relay can handle up to 2 A at 30 VDC or 250 VAC resistive. -
Is this module compatible with Honeywell Experion PKS?
Yes, it integrates seamlessly with Honeywell Experion and other legacy systems. -
Does the module provide channel status indication?
Yes, each channel has an LED indicator for easy visual status confirmation. -
What kind sur isolation is provided?
The module provides a minimum 1500 V RMS isolation between channels and the control side. -
Can it be mounted on a DIN rail?
Yes, the module supports both DIN-rail and panel mounting options. -
What protection features are included?
Relay wear compensation and surge suppression are built into the module. -
How fast is the switching response?
The typical on/surf response time is less than 10 ms. -
What is the operational temperature range sur the module?
The module operates between 0°C to +60°C. -
What certifications does the module carry?
It is CE, UL, and CSA certified for use in global applications.
Recommended Related Modèles
| Modèle Number | Description |
|---|---|
| 2MLQ-DI1A | Digital Input Module |
| 2MLQ-DO1A | Transistor Digital Output Module |
| 2MLQ-AI1A | Analog Input Module |
| 2MLQ-AO1A | Analog Output Module |
| 2MLQ-PT1A | RTD / Thermocouple Input Module |
| 2MLQ-COM1A | Serial Communication Interface Module |
Popular Honeywell Modèles
| Modèle Number | Description |
|---|---|
| CC-TDIL01 | Digital Input Module |
| CC-TDOB01 | Digital Output Module |
| CC-PDIL01 | Pulse Digital Input Module |
| MC-PAOY22 | Analog Output Module |
| FC-TSDI-1624 | 16 Channel Digital Input Module |
| FC-TSRO-0824 | 8 Channel Relay Output Module |
