Présentation du produit

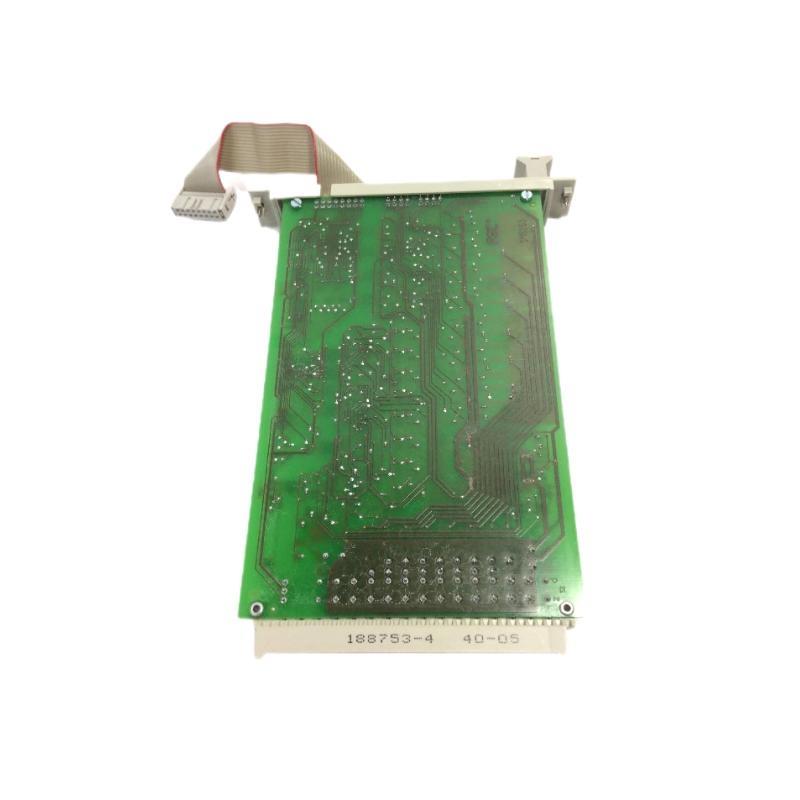

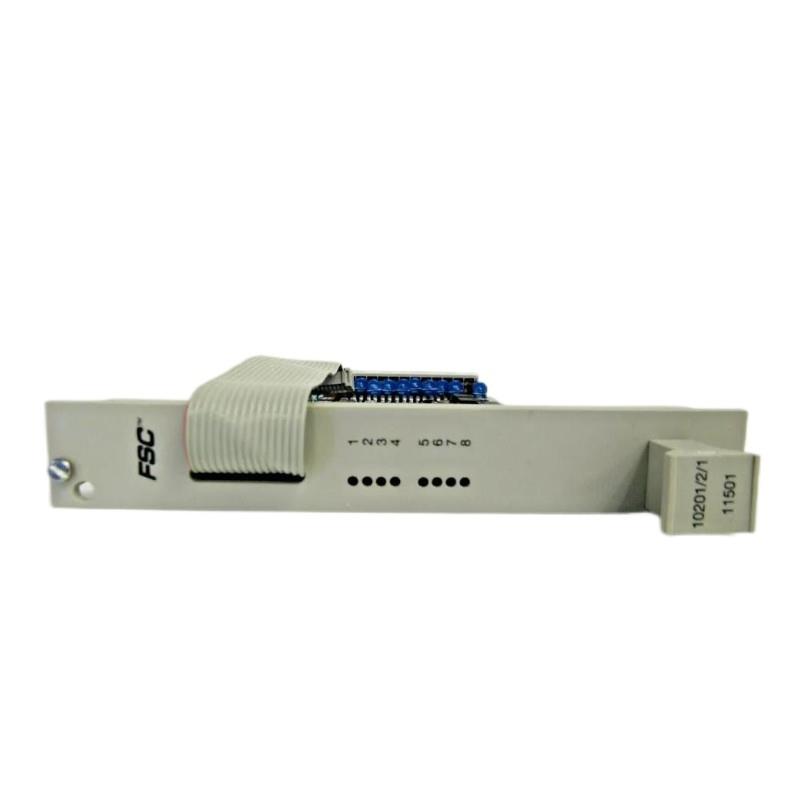

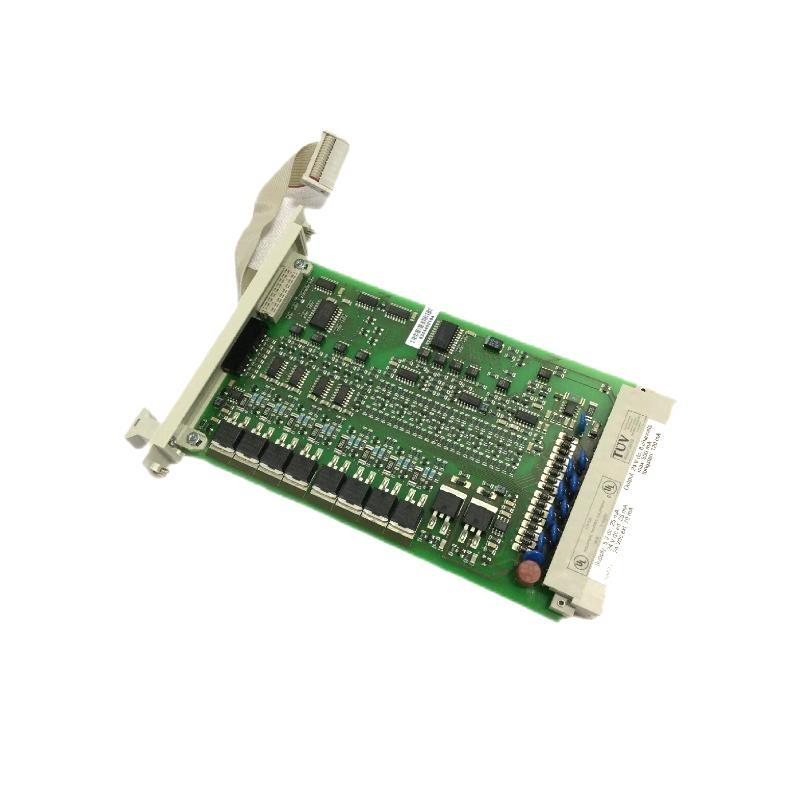

The Honeywell 10201/2/1 9910150046 Fail-Safe Digital Output Module is a high-reliability output module designed for critical industrial applications where safety and system integrity are paramount. Engineered to provide fail-safe operation, this module ensures that in the event sur a system failure, outputs default to a predefined safe state, thereby protecting equipment and personnel.
Spécifications du produit
| Parameter | Specification |
| Modèle Number | 10201/2/1 9910150046 |
| Output Channels | 8 |
| Output Type | Digital (Fail-Safe) |
| Output Voltage | 24 V DC nominal |
| Output Current per Channel | 0.5 A maximum |
| Isolation Voltage | 1500 V AC between channels and system |
| Fail-Safe Functionality | Outputs default to OFF state upon fault detection |
| Power Supply Voltage | 24 V DC |
| Power Consumption | 4 W |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (W × H × D) | 30 x 200 x 150 mm |
| Poids | 0.15 kg |
Product Applications
The 10201/2/1 9910150046 Fail-Safe Digital Output Module is utilized in various industries where safety and reliability are critical:
-
Chemical Processing: Controlling emergency shutdown systems and safety interlocks.
-
Oil and Gas: Managing safety-critical operations such as blowout preventers and emergency shutdown valves.
-
Power Generation: Operating safety systems and critical control functions in power plants.
-
Water Treatment: Ensuring safe operation sur pumps and valves in water and wastewater facilities.
-
Pharmaceuticals: Maintaining safety protocols in manufacturing processes.
-
Food and Beverage: Controlling safety mechanisms in processing and packaging equipment.
Product Advantages
-
Fail-Safe Operation: Ensures outputs revert to a safe state during system faults, enhancing safety.
-
High Reliability: Designed for critical applications requiring consistent and dependable performance.
-
Robust Isolation: 1500 V AC isolation protects the system from electrical noise and potential damage.
-
Compact Design: Small footprint facilitates easy integration into existing control systems without requiring extensive space.
-
Wide Operating Range: Designed to function effectively in harsh industrial environments with extreme temperatures and humidity levels.
-
Easy Maintenance: Modular design allows for straightforward replacement and maintenance procedures.
Questions fréquentes (FAQ)
-
What is the primary function sur the 10201/2/1 9910150046 module?
It provides fail-safe digital outputs, ensuring outputs default to a safe state during system faults. -
How many output channels does the module have?
The module surfers 8 digital output channels. -
What is the output voltage sur the module?
It operates at a nominal output voltage sur 24 V DC. -
What is the maximum output current per channel?
Each channel can handle up to 0.5 A sur current. -
Does the module provide isolation between channels and the system?
Yes, it surfers 1500 V AC isolation between the output channels and the system. -
What happens to the outputs in the event sur a system fault?
The outputs default to an OFF state to ensure safety. -
What are the operating temperature limits sur the module?
The module operates effectively between -20°C to 60°C (-4°F to 140°F). -
Can the module be used in high humidity environments?
Yes, it functions in humidity levels ranging from 5% to 95% RH (non-condensing). -
What are the dimensions and weight sur the module?
The module measures 30 x 200 x 150 mm and weighs 0.15 kg. -
Is the module compatible with other Honeywell control systems?
Yes, it is designed to integrate seamlessly with Honeywell’s control systems.
Recommended Modèles – Same Series or Related
| Modèle Number | Description | Output Channels | Output Type | Fail-Safe Functionality |
| 10201/2/2 | Digital Output Module with standard features | 8 | Digital | No |
| 10201/2/3 | Digital Output Module with enhanced diagnostics | 8 | Digital | Yes |
| 10201/2/4 | Digital Output Module with high-speed outputs | 8 | Digital | No |
| 10201/2/5 | Digital Output Module with isolated channels | 8 | Digital | Yes |
| 10201/2/6 | Digital Output Module with extended temperature range | 8 | Digital | No |
| 10201/2/7 | Digital Output Module with universal output support | 8 | Digital | Yes |
Popular Modèles from Honeywell
| Modèle Number | Description | Application | Catégorie |
| 10301/1/1 | Analog Input Module | Process variable monitoring | Input Module |
| 10401/1/2 | Analog Output Module | Control signal output | Output Module |
| 10501/3/3 | Digital Input Module | Discrete signal monitoring | Input Module |
| 10601/4/4 | Power Supply Module | System power provision | Power Module |
| 10701/5/5 | Processor Module | Central processing unité | CPU Module |
| 10801/6/6 | Alarm Module | System alarm monitoring | Alarm Module |
