Product Description

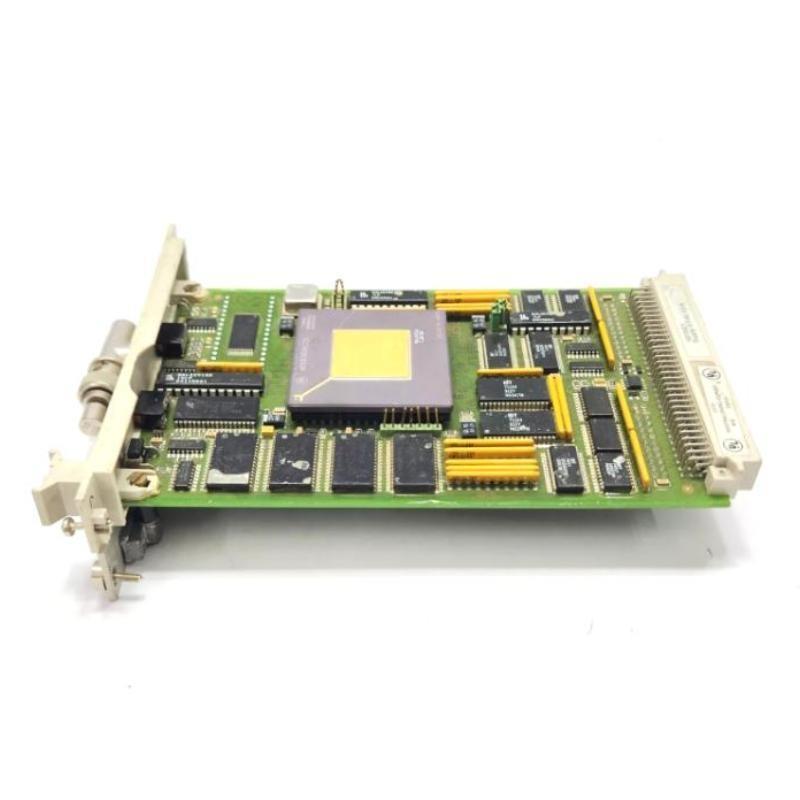

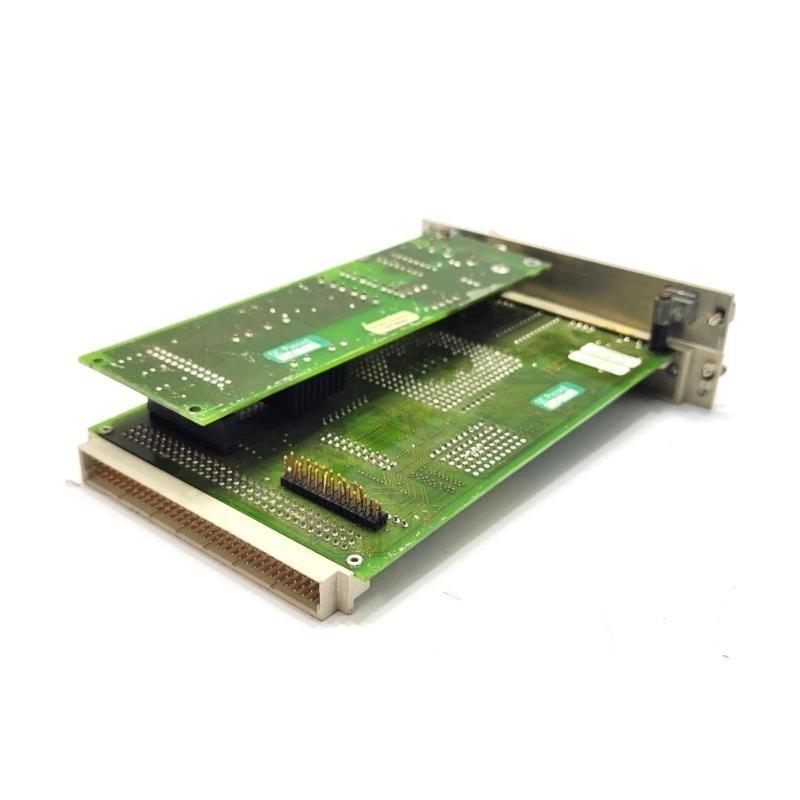

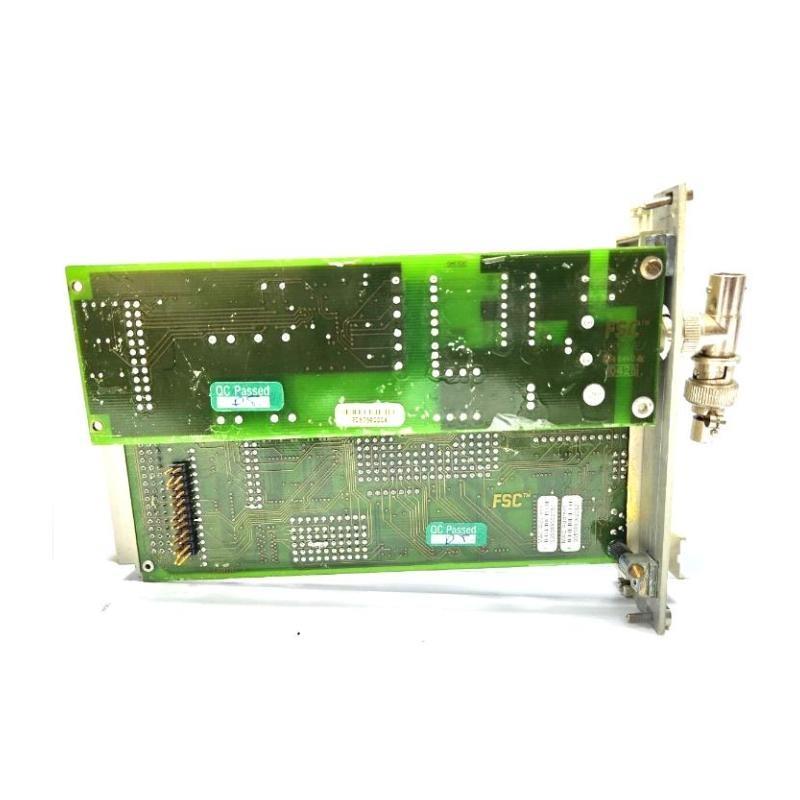

The Honeywell 10018/E/E is a dual Ethernet communication module used in the FSC (Fail Safe Controller) system. It enables high-speed, deterministic communication with external systems and networks, ensuring reliable real-time data exchange. As a core part sur the safety control platform, this module supports PlantScape/Experion system integration for distributed process control and safety applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle | 10018/E/E |
| Product Type | Ethernet Communication Module |
| System | FSC (Fail Safe Controller) |
| Communication Ports | 2 x Ethernet (10/100 Mbps) |
| Protocol Support | TCP/IP, UDP, PlantScape, Experion PKS |
| Operating Voltage | 24 VDC |
| Installation | Mounted in FSC chassis (DIN rail) |
| Dimensions (L×W×H) | 100 × 50 × 30 mm |
| Poids | 0.25 kg |
| Operating Temperature | 0°C to 60°C |
| Humidity | 5% to 95% non-condensing |
Applications
-
Safety-critical process automation in oil & gas, refining, and chemicals
-
Integration sur FSC systems with Experion PKS or PlantScape
-
Industrial Ethernet communication for redundant systems
-
Real-time data exchange in safety instrumented systems (SIS)
-
SIL-rated applications for emergency shutdown (ESD) systems
Product Advantages
-
Dual Ethernet channels ensure redundancy and communication reliability
-
Seamless integration with Honeywell’s Experion PKS and PlantScape systems
-
Designed for use in mission-critical safety applications (SIL compliant)
-
Compact and lightweight design for easy installation
-
Long lifecycle support as part sur the FSC platform
-
Stable and deterministic communication architecture
FAQ Section
Q1: What is the purpose sur the 10018/E/E module?
A1: It provides dual Ethernet connectivity for communication between FSC and external systems like Experion PKS.
Q2: Does it support redundant communication?
A2: Yes, it has two Ethernet ports for redundant networking.
Q3: Can this module be used in SIL-rated applications?
A3: Yes, it is designed for safety-critical environments and supports SIL standards.
Q4: Is it compatible with Experion PKS?
A4: Yes, it integrates directly with Experion PKS and PlantScape systems.
Q5: What is the installation method for this module?
A5: It is typically installed in the FSC chassis and mounted on a DIN rail.
Q6: What are the environmental limits for operation?
A6: It operates within 0°C to 60°C and 5–95% non-condensing humidity.
Q7: How many communication channels does the module surfer?
A7: It surfers two independent Ethernet communication channels.
Q8: What voltage does it operate at?
A8: It operates at 24 VDC.
Q9: What is its form factor?
A9: Its dimensions are 100 × 50 × 30 mm and it weighs 0.25 kg.
Q10: Is the module hot-swappable?
A10: No, it must be powered down before replacement.
Related Modèles (Same Series or System)
| Modèle | Description | Dimensions (mm) | Poids |
|---|---|---|---|
| 10018/E/1 | Ethernet Module for PlantScape | 100 × 50 × 30 | 0.25 kg |
| 10018/2/U | FSC Safety Manager Module | 100 × 50 × 30 | 0.28 kg |
| 10024/F/F | Enhanced COM Module (2x RS232) | 110 × 50 × 30 | 0.27 kg |
| 10024/H/I | COM Module (RS422/485 & CP) | 110 × 50 × 30 | 0.28 kg |
| 10006/2/2 | Diagnostic & Battery Module DBM-DCF | 120 × 60 × 30 | 0.30 kg |
| 10020/1/2 | Quad Processor Module (QPM) | 140 × 50 × 35 | 0.40 kg |
Popular Honeywell Modèles
| Modèle | Description | Dimensions (mm) | Poids |
|---|---|---|---|
| 8C-PCNT02 | Series 8 C300 Controller | 150 × 100 × 40 | 0.45 kg |
| 8C-PAON01 | Analog Output Module | 100 × 50 × 30 | 0.25 kg |
| 8C-PDILA1 | Digital Input Module | 100 × 50 × 30 | 0.25 kg |
| 8C-PDODA1 | Digital Output Module | 100 × 50 × 30 | 0.25 kg |
| 8C-TAIDA1 | Analog Input IOTA | 120 × 60 × 35 | 0.28 kg |
| FC-IO-0001 | I/O Extended Module | 110 × 50 × 30 | 0.26 kg |
