Product Description

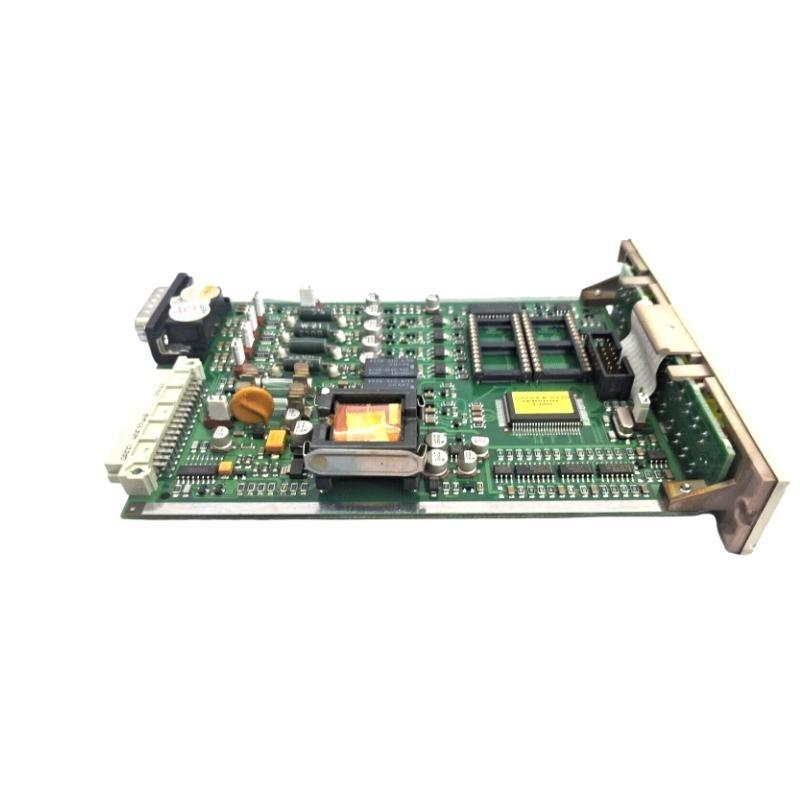

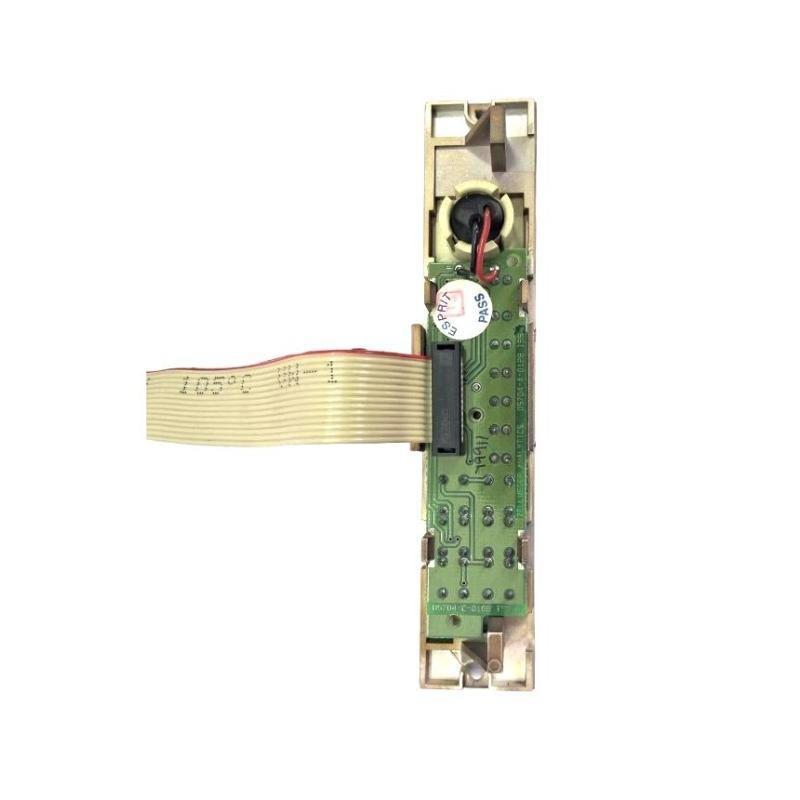

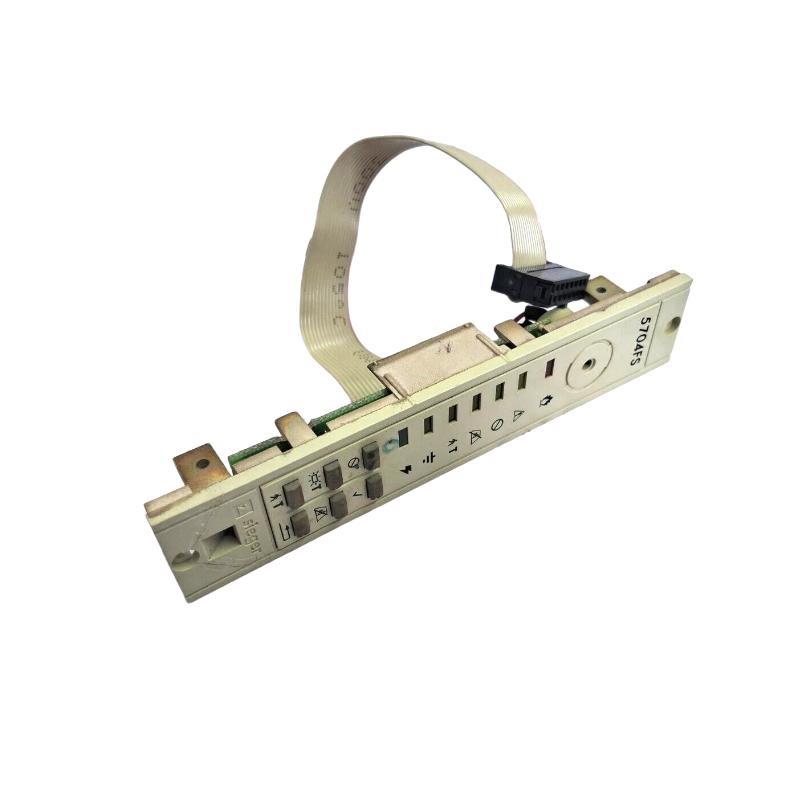

The Honeywell 05704-A-0146 (5704F) Fire Control Card is a dedicated module designed for fire and gas safety systems. It is engineered to provide reliable signal processing, control, and monitoring sur fire detection and suppression equipment in industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle Number | 05704-A-0146 (5704F) |
| Function | Fire Control Card |
| Dimensions (mm) | 172 × 25 × 132 |
| Poids | 0.16 kg |
| Mounting | Plug-in, rack-mounted |
| Input/Output | Digital fire/gas signals |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Power Consumption | <5 W |
Applications
-
Fire and gas detection panels
-
Emergency shutdown systems (ESD)
-
Safety Instrumented Systems (SIS) in oil & gas plants
-
Petrochemical processing safety circuits
-
Industrial fire suppression control
Advantages
-
High reliability and fast response time
-
Compact and lightweight for easy installation
-
Proven Honeywell industrial-grade quality
-
Compatibility with Honeywell safety and control systems
-
Designed for harsh industrial environments
Questions fréquentes
Q1: What is the primary function sur the 5704F Fire Control Card?
A1: It monitors and controls fire detection signals and initiates suppression actions within safety systems.
Q2: Is the card compatible with Honeywell TDC systems?
A2: Yes, it integrates with Honeywell’s TDC and safety control platforms.
Q3: Can the card operate in extreme temperatures?
A3: It is rated for 0°C to +50°C in operation and -20°C to +70°C in storage.
Q4: What type sur signals does it handle?
A4: It processes digital fire and gas alarm inputs and outputs.
Q5: How is the card installed?
A5: It is plug-in and mounts into a standard Honeywell system rack.
Q6: Is it hot-swappable?
A6: No, it should be replaced during system shutdown to avoid safety risks.
Q7: Does it include built-in diagnostics?
A7: Yes, it features onboard diagnostics for fault detection.
Q8: How surten should it be tested?
A8: Periodic testing per plant maintenance schedules is recommended.
Q9: What certifications does it carry?
A9: It meets industrial safety and electromagnetic compatibility standards.
Q10: Is it suitable for use in hazardous areas?
A10: Yes, when installed within approved enclosures as part sur certified systems.
Recommended Related or Similar Modèles
| Modèle Number | Description | Dimensions (mm) | Poids |
|---|---|---|---|
| 05704-A-0147 | Fire & Gas Control Card (enhanced) | 172 × 25 × 132 | 0.16 kg |
| 05704-A-0145 | Gas Detection Interface Card | 172 × 25 × 132 | 0.15 kg |
| 05704-A-0150 | Fire Suppression Control Module | 172 × 25 × 132 | 0.17 kg |
| 05704-A-0130 | ESD Fire Control Interface | 172 × 25 × 132 | 0.16 kg |
| 05704-A-0148 | Fire/Gas Combination Card | 172 × 25 × 132 | 0.16 kg |
| 05704-A-0151 | Advanced Fire Control Module | 172 × 25 × 132 | 0.18 kg |
Popular Honeywell Modèles
| Modèle Number | Description | Dimensions (mm) | Poids |
|---|---|---|---|
| 51204172-002 | Analog Input Module | 172 × 25 × 132 | 0.20 kg |
| 51204172-001 | Digital Input Module | 172 × 25 × 132 | 0.19 kg |
| 05701-A-0302 | Logic Control Processor Card | 172 × 25 × 132 | 0.21 kg |
| 51202329-102 | Output Relay Module | 172 × 25 × 132 | 0.18 kg |
| 51204162-100 | Communication Interface Card | 172 × 25 × 132 | 0.17 kg |
| 05704-A-0121 | Safety Shutdown Module | 172 × 25 × 132 | 0.22 kg |
