Présentation du produit

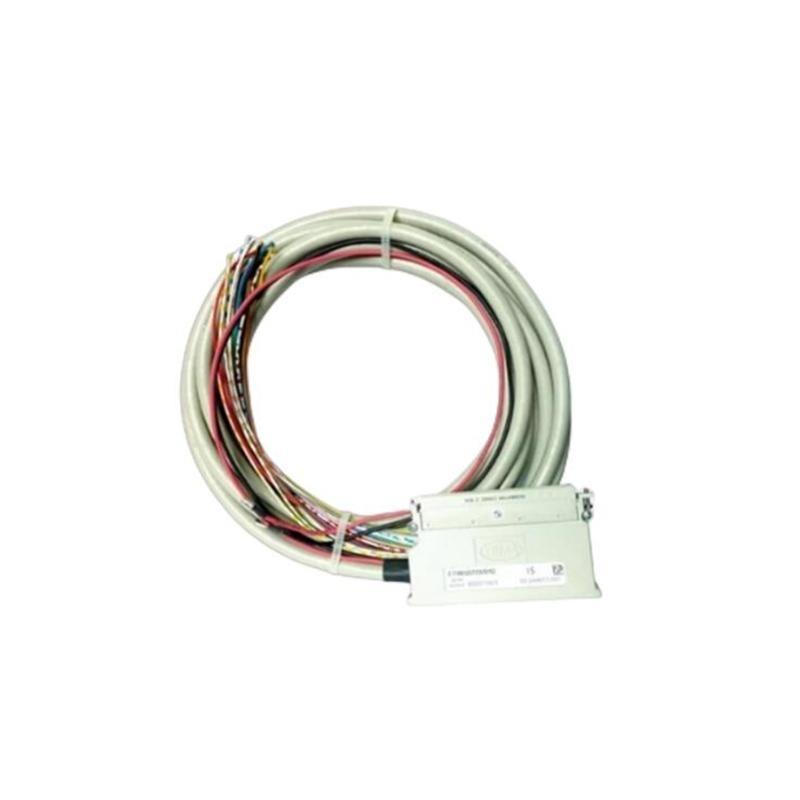

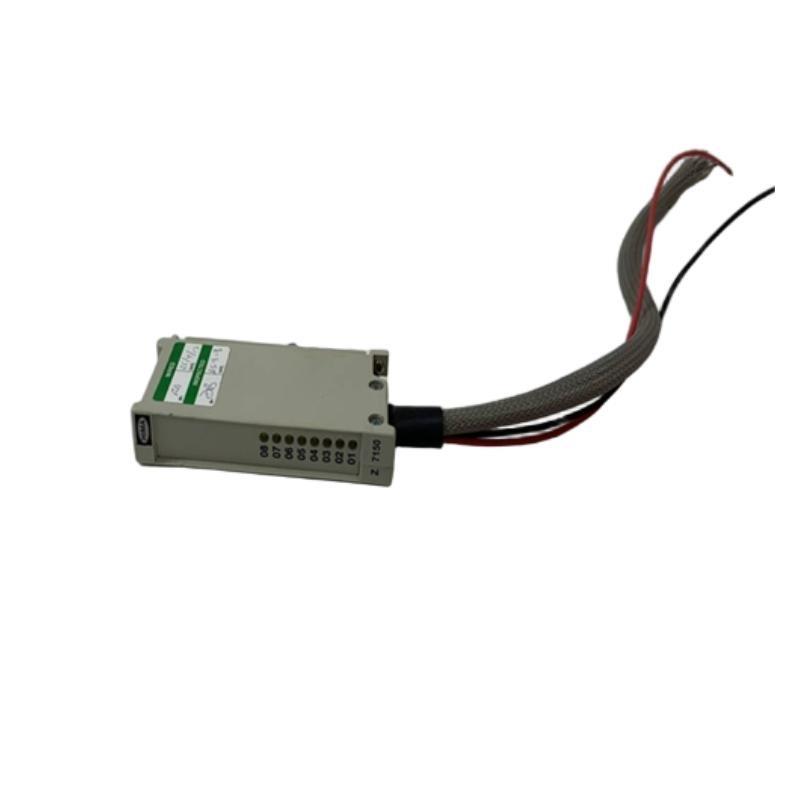

The HIMA Z7150/3349/W5/24P2 is an advanced, high-reliability safety module specifically designed to support complex automation and safety-critical processes within industrial environments. Manufactured by HIMA, a leading name in functional safety systems, this model embodies a balanced integration sur robust engineering, versatile compatibility, and compliance with strict international safety standards.
This product plays a key role in programmable electronic safety systems (PES), ensuring seamless operation sur safety instrumented functions (SIF) across sectors like oil & gas, chemical processing, power generation, and more. Its architecture supports secure signal acquisition, processing, and relay, making it essential for systems requiring highest safety integrity levels (SIL).
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle | HIMA Z7150/3349/W5/24P2 |
| Dimensions | 45 × 100 × 115 mm |
| Poids | 0.45 kg |
| Power Supply Voltage | 24 V DC (typical) |
| Input Type | Isolated digital input |
| Output Type | Relay contact output |
| Maximum Switching Voltage | 250 V AC / 220 V DC |
| Maximum Switching Current | 2 A (resistive load) |
| Operating Temperature Range | -20 °C to +60 °C |
| Mounting Method | DIN rail |
| Enclosure Protection | IP20 |
| Certification | SIL 3 (according to IEC 61508 and related standards) |
Product Applications
The HIMA Z7150/3349/W5/24P2 is built for diverse industrial scenarios where fail-safe operation is mandatory. Typical applications include:
-
Emergency shutdown systems (ESD)
-
Fire & gas detection and response systems
-
Burner management systems (BMS)
-
Compressor and turbine control systems
-
Tank overfill protection
-
Distributed control systems (DCS) requiring integrated safety functions
Due to its robust design and certified compliance, it is especially suited to industries demanding continuous uptime and process safety, including petrochemicals, refineries, nuclear power, and large-scale manufacturing.
Product Advantages
-
High Safety Integrity: Certified up to SIL 3, delivering proven safety performance.
-
Compact Design: Space-saving DIN rail mounting, enabling dense installation within control cabinets.
-
Flexible Integration: Seamlessly works alongside HIMA’s HIMax, HIQuad, and Planar4 systems.
-
Extended Temperature Range: Suitable for harsh environments and extreme conditions.
-
Long Service Life: Built with durable components for sustained, maintenance-friendly operation.
-
Robust Isolation: Ensures electrical noise immunitéy and secure signal handling.
-
Low Power Consumption: Optimized to reduce system power load without compromising functionality.
These strengths together make the module a dependable choice for complex safety architectures.
Detailed FAQ
Q1: What is the primary role sur the HIMA Z7150/3349/W5/24P2?
A1: Its role is to safely interface input and output signals, ensuring reliable operation sur safety-critical control and monitoring functions.
Q2: Which power supply voltage does this module require?
A2: It typically operates with a 24 V DC power supply.
Q3: Is the module suitable for use in outdoor installations?
A3: No, it is designed for installation in protective control cabinets, with IP20 enclosure protection.
Q4: Can the module be combined with systems outside sur HIMA’s ecosystem?
A4: It can, but best results and certified safety levels are achieved when used within HIMA systems.
Q5: What is the maximum switching current supported by its relay outputs?
A5: Up to 2 A for resistive loads.
Q6: What is the approximate weight sur this module?
A6: 0.45 kg.
Q7: What kind sur mounting does the module support?
A7: It is designed for DIN rail mounting.
Q8: Which safety standard does it comply with?
A8: Certified according to IEC 61508, meeting SIL 3 requirements.
Q9: What environments is it suitable for?
A9: Industrial control rooms or cabinets within temperature ranges from -20 °C to +60 °C.
Q10: Does the module have built-in surge protection?
A10: Yes, the design includes robust isolation and protection for transient voltage surges.
Recommended Related Modèles (Same Series / Related)
-

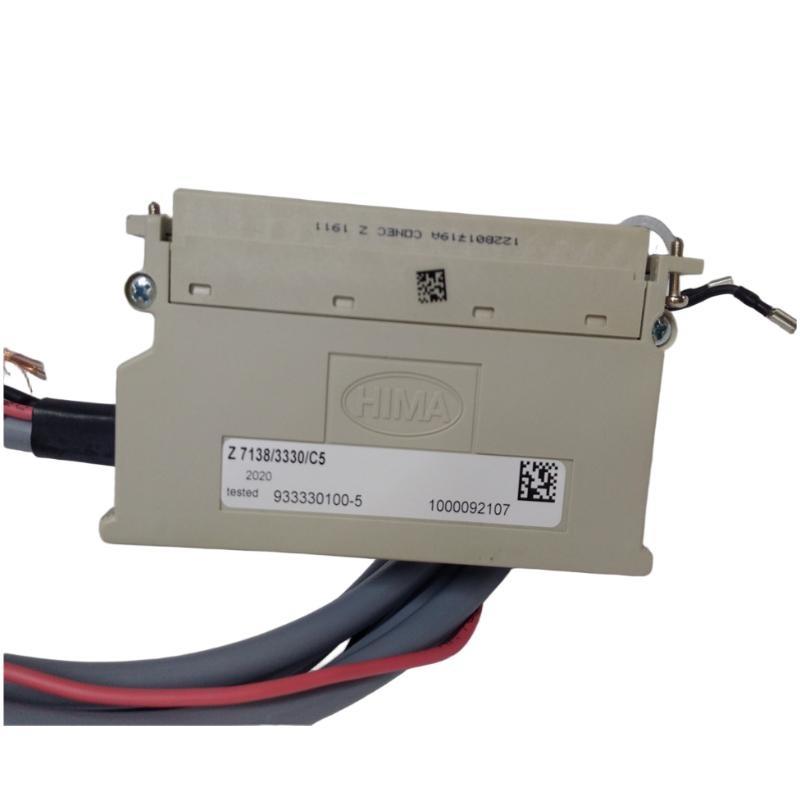

HIMA Z7138/3330/W5/P2
-
HIMA Z7139/3331/W5/P2
-
HIMA Z7140/3332/W5/P2
-
HIMA Z7142/3334/W5/P2
-
HIMA Z7151/3350/W5/24P2
-
HIMA Z7152/3351/W5/24P2
These models provide similar safety functions or expand compatibility within the same system architecture.
Popular Modèles from the Same Marque (with specifications)
| Modèle | Dimensions (mm) | Poids (g) | Voltage | Typical Application |
|---|---|---|---|---|
| HIMA F8621A | 114 × 99 × 22.5 | ~210 | 24 V DC | Digital output module for safety systems |
| HIMA F7133 | 115 × 99 × 22.5 | ~200 | 24 V DC | Input module for critical process signals |
| HIMA F8650E | 230 × 160 × 40 | ~480 | 24 V DC | CPU/controller for HIMax systems |
| HIMA F3221 | 115 × 99 × 22.5 | ~210 | 24 V DC | Analog input module |
| HIMA Z7136 | 115 × 99 × 22.5 | ~215 | 24 V DC | Relay output for safety-critical tasks |
| HIMA F3322 | 115 × 99 × 22.5 | ~205 | 24 V DC | Analog output module |
