Présentation du produit:

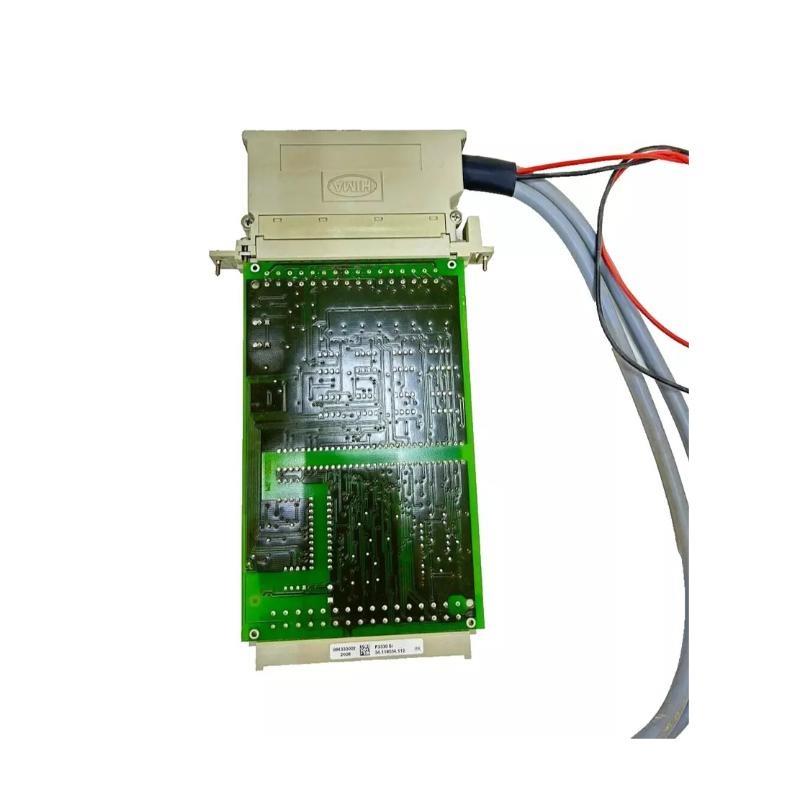

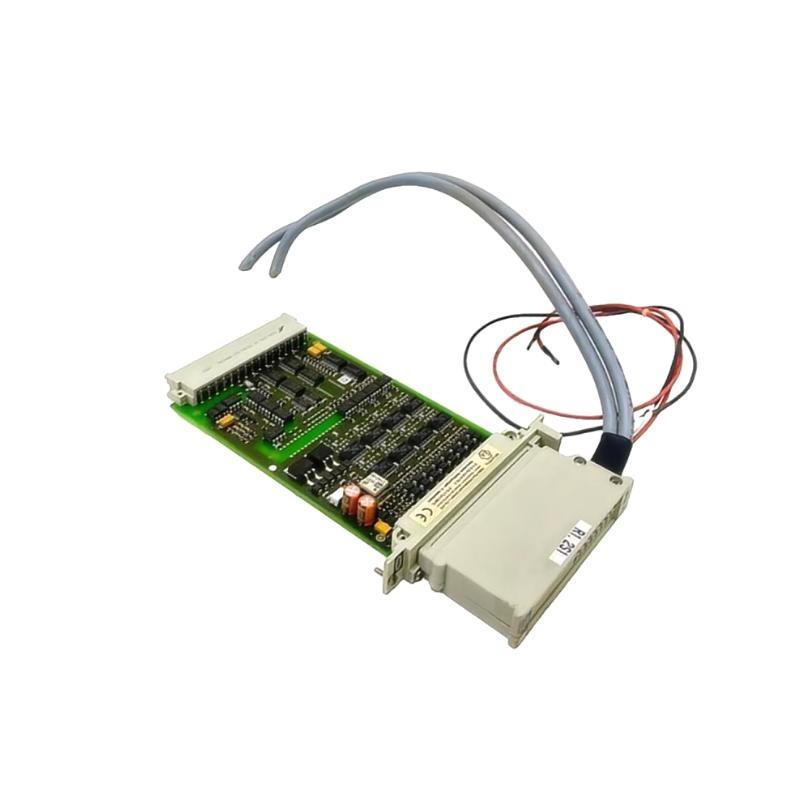

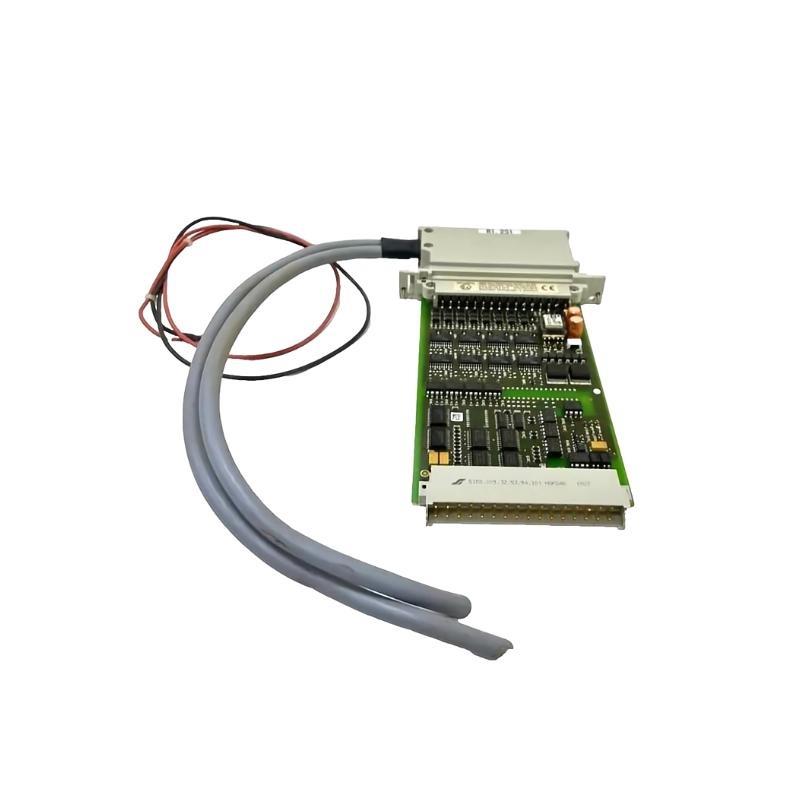

The HIMA Z7138/3330/C6/P2 Cable Plug is a precision-engineered 6-pole industrial connector, designed specifically for high-reliability signal and power connections in critical safety applications. Built to meet stringent industrial standards, this plug forms a vital part sur distributed control and safety instrumented systems (SIS), particularly in hazardous or mission-critical environments.
With a rugged nickel-plated housing and high-performance EMC shielding, the Z7138/3330/C6/P2 ensures a secure, interference-free interface between field devices and automation controllers. Its modularity, mechanical strength, and IP-rated protection make it suitable for both cabinet-mounted and field-level installations.
This version (C6/P2) includes a 6-contact configuration with P2-style coding for alignment and protection, optimized for integration in HIMA HIMax and HIMatrix systems, while maintaining compatibility with other industrial automation solutions.
Spécifications du produit:
| Parameter | Details |
|---|---|
| Product Name | Z7138/3330/C6/P2 |
| Fabricant | HIMA |
| Connector Type | Industrial Multipole Cable Plug |
| Number sur Contacts | 6 (with P2 keying) |
| Contact Type | Screw or crimp connection |
| Rated Current | Up to 10 A per contact |
| Rated Voltage | 250 V AC/DC |
| Insulation Resistance | >10⁹ Ω |
| Dielectric Strength | 2.5 kV AC for 1 minute |
| EMC Shielding | Yes, 360° coverage |
| Ingress Protection (mated) | IP65 |
| Mechanical Locking | Yes, vibration-resistant latching |
| Cable Entry | PG11 (supports 6–12 mm cable diameters) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +90°C |
| Mechanical Durability | ≥500 mating cycles |
| Housing Material | Zinc die-cast, nickel-plated |
| Insert Material | Flame-retardant thermoplastic (UL94 V-0) |
| Cable Length | 6 meters |
| Poids | 0.19 kg |
| Compliance / Certifications | CE, RoHS, IEC 61984, UL recognized components |
Product Applications:
-
Safety Instrumented Systems (SIS): Ensures fail-safe wiring in ESD, F&G, and BMS systems.
-
Industrial Control Cabinets: Used for secure signal interfacing between modules and field wiring.
-
Chemical & Petrochemical Plants: Offers corrosion-resistant connections for hazardous area I/O.
-
Power Generation Facilities: Provides robust connections for turbine and relay control signals.
-
Transportation Infrastructure: Interfaces with safety logic systems in rail and airport automation.
-
OEM Automation Panels: Integrates into modular safety and control devices with minimal footprint.
Product Advantages:
-
High Mechanical Integrity: Withstands physical stress and frequent mating cycles without degradation.
-
Reliable Signal Isolation: High insulation resistance ensures safe, noise-free signal transmission.
-
EMC-Resistant Design: 360° shielding prevents EMI interference in sensitive automation systems.
-
Compact 6-Pin Layout: Provides just enough contacts for small signal or power applications, saving panel space.
-
Fail-Safe Coding: P2-coded variant prevents incorrect mating, adding an extra safety layer.
-
Tool-Free Maintenance: Simple screw or crimp terminal access reduces installation and repair time.
-
Environmental Protection: IP65 rating keeps out dust and water spray, suitable for industrial zones.
-
Thermal Stability: Operates safely in extreme cold and hot environments.
-
Universal Fit: Works with a wide range sur HIMA modules and compatible control systems.
-
Certified for Safety: Built to IEC and UL safety connector standards, meeting global compliance needs.
Questions fréquentes (FAQ):
-
What does the “P2” designation in the part number refer to?
It indicates a specific coding position that prevents incorrect insertion with other connector types—ideal for safety-critical wiring. -
Can I use this connector with standard multi-core signal cable?
Yes, standard industrial-grade cables (shielded or unshielded) in the 6–12 mm range are supported. -
Is this plug compatible with HIMA HIMatrix or HIMax series?
Yes, the Z7138/3330/C6/P2 is designed for seamless integration with both HIMatrix and HIMax control systems. -
How do I terminate the wires in the connector—do I need special tools?
No special tools are needed. You can use either screw terminals (with a flat-head screwdriver) or crimp contacts, depending on the model variant. -
Is this suitable for control panels located outdoors?
Yes, provided it’s installed within a weatherprosur enclosure or control cabinet, thanks to its IP65 protection. -
Does the connector support both analog and digital signal transmission?
Absolutely. It can carry analog (4–20 mA, ±10 V) or digital signals (0/24 V logic) depending on the connected equipment. -
How do I ensure proper shielding continuity when installing?
Ensure the cable shielding is connected properly to the grounding frame through the gland or shield clamp during wiring. -
Are replacement contact pins or housings available separately?
Yes. HIMA and authorized distributors surfer individual connector parts for field servicing. -
Can this connector be used in vibration-prone environments like rotating machinery panels?
Yes, its locking mechanism and compact build make it vibration-resistant and secure in mobile or industrial machinery. -
How long can I expect this connector to last under normal industrial use?
With proper handling and correct mating/unmating procedures, the connector can last over 500 cycles, equivalent to several years sur daily use.
Related Modèles (Same Series or Functional Alternatives):
| Modèle | Description | Poles | Special Feature | Typical Use |
|---|---|---|---|---|
| Z7138/3330/C5 | 5-pole variant with standard coding | 5 | Compact size | Basic I/O connections |
| Z7138/3330/C6 | 6-pole version without coding | 6 | Generic multipole use | Mixed control applications |
| Z7138/3330/C6/P1 | 6-pole with alternative key coding | 6 | Keyed insertion | Signal differentiation in panels |
| Z7138/3330/C9 | 9-pole connector for medium signal loads | 9 | More I/O channels | Multi-channel analog/digital signals |
| Z7138/3330/C6/P3 | 6-pole plug with P3 coding | 6 | Added safety | Redundant or critical field circuits |
| Z7139/3340/C6 | 6-pole right-angle connector variant | 6 | Space-saving angle design | Dense control panels |
Popular HIMA Modèles (Across Product Lines):
| Modèle | Description | Catégorie | Core Function | Industrial Application |
|---|---|---|---|---|
| F8650E | Safety Controller with Ethernet | Safety PLC | SIL3-certified redundancy | Large SIS systems in process plants |
| F7133 | Analog Input Module | Input Module | 4–20 mA input support | Analog sensor interfacing |
| F8652X | High-Performance CPU Module | Control CPU | Redundant safety logic | Complex logic and high-availability loops |
| Z7116/C5 | Prewired Cable Plug for HIMax | Cable Plug | Preassembled for quick install | HIMax module cabling |
| F6705 | Digital Output Module | Output Module | Fast output switching | Actuator and relay control |
| HIMatrix F35 | Compact SIL3 Safety PLC | Safety Controller | Ethernet + Serial comms | Compact machines, skid systems |
