Présentation du produit

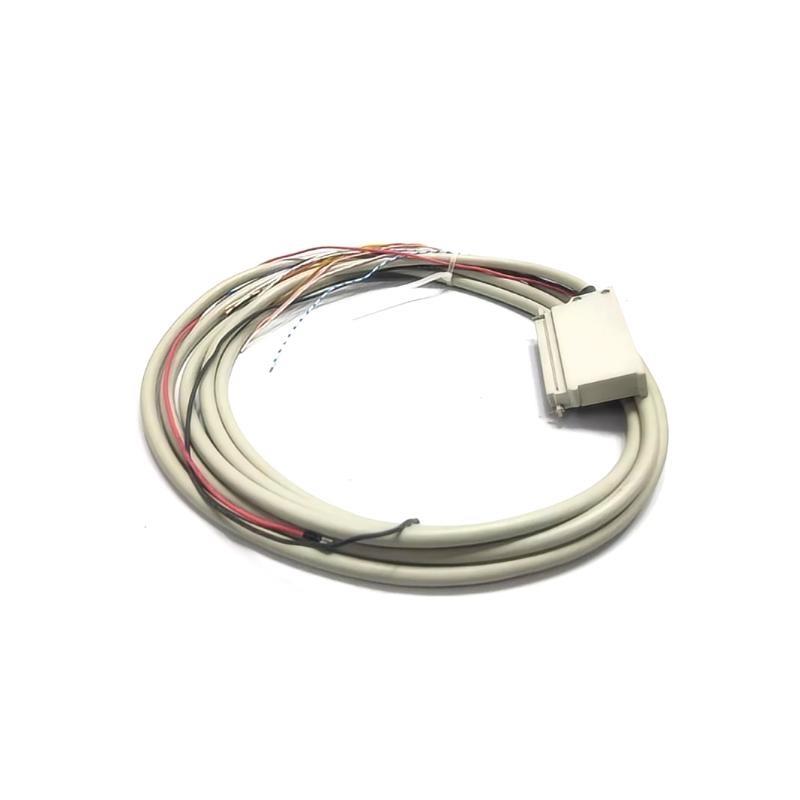

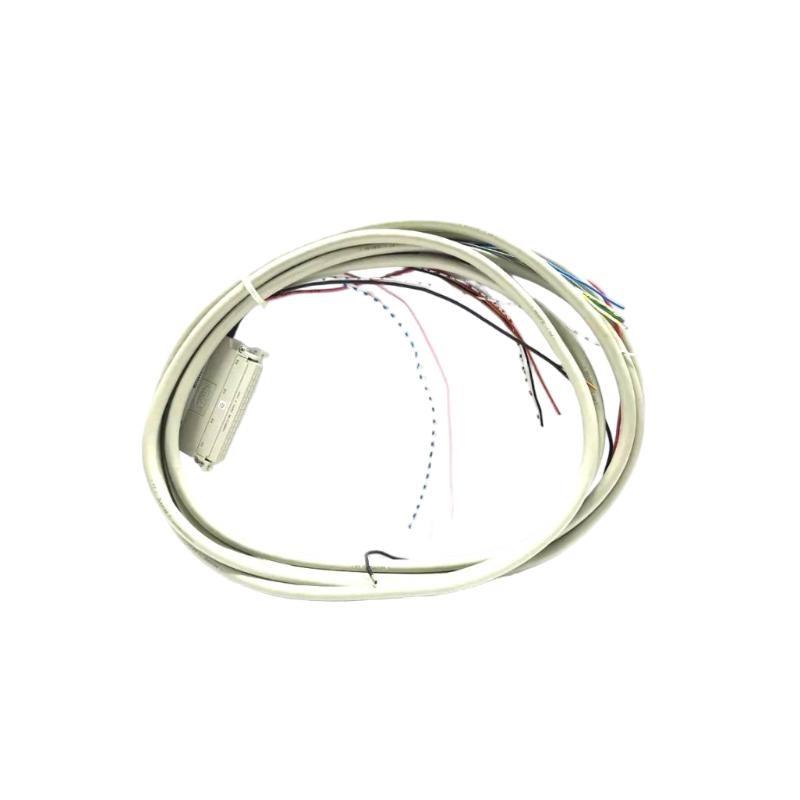

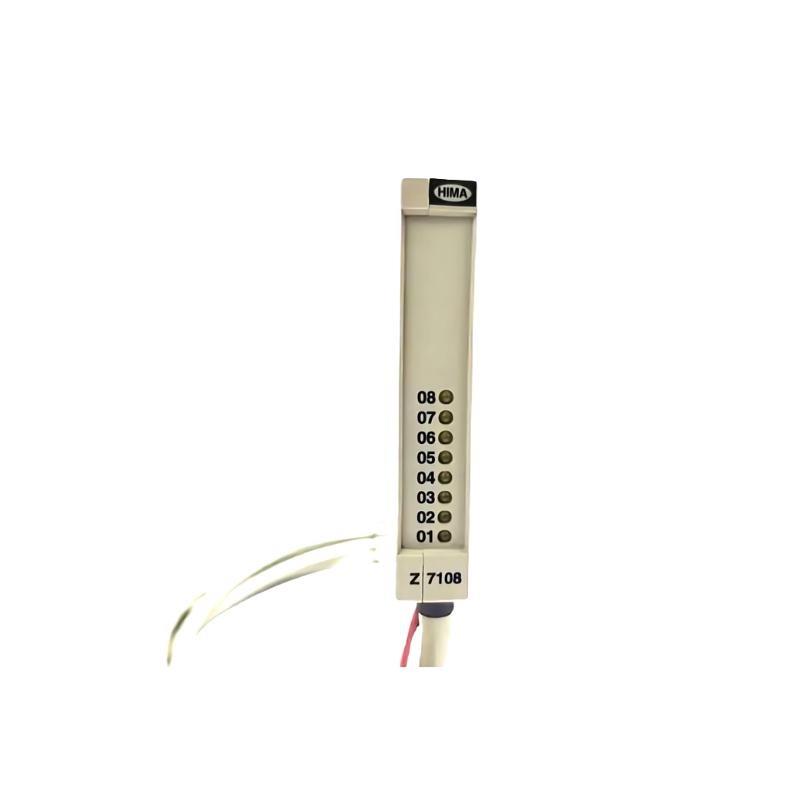

The HIMA Z7108/3237/C8 Cable Plug is a specialized lead marking cable plug designed for integration with HIMA’s F3237 8-channel input modules. Manufactured in Germany, this cable plug ensures secure and reliable connections in safety-critical industrial automation systems. Its robust design and compliance with international standards make it suitable for various demanding applications, including process control, power generation, and factory automation.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | Z7108/3237/C8 |
| Fabricant | HIMA |
| Country sur Origin | Germany |
| Product Type | Lead Marking Cable Plug |
| Compatible Module | F3237 8-Channel Input Module |
| Switching Time | 10 ms |
| Line Impedance | ≤ 50 Ohm (according to DIN 19234) |
| Maximum Line Length | ≤ 1000 m (with 0.5 mm² cross-sectional area) |
| Supply Voltage (US) | 8.2 V |
| Operating Data | 5 VDC / 90 mA; 24 VDC / 170 mA |
| Space Requirement | 4 TE (standardized mounting width) |
| Cable Length | 8 meters |
| Poids | 0.5 kg |
| Protection Class | IP67 (Dust-tight and waterprosur) |
| Material | High-quality plastic housing with metal contacts |
| Compliance Standards | CE, RoHS, UL, IECEx |
Product Applications
The HIMA Z7108/3237/C8 Cable Plug is engineered for use in various industrial applications where safety and reliability are paramount:
-
Process Control Systems: Ensures reliable connections in chemical, oil, and gas industries.
-
Power Generation Facilities: Used in connecting control panels and field devices in energy plants.
-
Factory Automation: Facilitates secure communication between control systems and machinery.
-
Safety Systems: Integral in connecting safety-related devices to HIMA safety controllers.
-
Hazardous Environments: Suitable for areas prone to dust, moisture, or extreme temperatures due to its IP67 rating.
Product Advantages
-
Robust Construction: Durable materials ensure long-lasting performance in harsh conditions.
-
High Protection Class: IP67 rating provides excellent resistance to dust and water ingress.
-
Versatile Compatibility: Designed to work seamlessly with HIMA’s F3237 modules and supports various cable diameters.
-
Easy Installation: User-friendly design allows for quick and secure connections, reducing installation time.
-
Compliance with Standards: Meets international safety and environmental standards, ensuring reliability and safety.
-
Compact Design: Space-saving dimensions make it suitable for installations with limited space.
-
Reliable Signal Transmission: Minimizes signal loss, ensuring consistent communication between components.
-
Temperature Resistance: Operates effectively in a wide temperature range, accommodating various industrial environments.
-
Maintenance-Friendly: Designed for easy maintenance, reducing downtime and operational costs.
-
Enhanced Safety: Provides secure connections, minimizing the risk sur accidental disconnections or failures.
Questions fréquentes (FAQ)
-
What is the primary use sur the HIMA Z7108/3237/C8 Cable Plug?
-
It is used to connect field cables to HIMA’s F3237 8-channel input modules, ensuring secure and reliable signal transmission in safety-critical applications.
-
-
Is the cable plug suitable for outdoor use?
-
Yes, with an IP67 rating, it is dust-tight and waterprosur, making it suitable for outdoor and harsh environments.
-
-
What is the maximum cable length supported?
-
The plug supports cable lengths up to 1000 meters with a cross-sectional area sur 0.5 mm².
-
-
Can it be used with other HIMA modules besides F3237?
-
While specifically designed for F3237, compatibility with other modules should be verified based on technical requirements.
-
-
What materials are used in the construction sur the plug?
-
It features a high-quality plastic housing with metal contacts for durability and reliable performance.
-
-
What are the operating voltage and current specifications?
-
It operates at 5 VDC / 90 mA and 24 VDC / 170 mA, with a supply voltage sur 8.2 V.
-
-
Does the plug comply with international standards?
-
Yes, it complies with CE, RoHS, UL, and IECEx standards.
-
-
What are the weight sur the plug?
-
It weighs 0.5 kg.
-
-
Is the installation process complicated?
-
No, the plug is designed for easy and secure installation, reducing setup time.
-
-
What is the warranty period for the product?
-
We provide one year warranty.
-
Related Modèles from the Same Series
| Modèle | Description | Pins | Protection Class | Temperature Range |
|---|---|---|---|---|
| Z7108/3237/C3 | 3-pin version for smaller control circuits | 3 | IP67 | -40°C to +85°C |
| Z7108/3237/C5 | 5-pin version for standard applications | 5 | IP67 | -40°C to +85°C |
| Z7108/3237/C6 | 6-pin version for medium-scale systems | 6 | IP67 | -40°C to +85°C |
| Z7108/3237/C7 | 7-pin version for complex control systems | 7 | IP67 | -40°C to +85°C |
| Z7108/3237/C9 | 9-pin version for advanced automation systems | 9 | IP67 | -40°C to +85°C |
| Z7108/3237/C10 | 10-pin version for specialized applications | 10 | IP67 | -40°C to +85°C |
Popular HIMA Modèles
| Modèle | Function | Pins | Protection Class | Application |
|---|---|---|---|---|
| Z7101/2337/C5 | 5-pin cable plug for control systems | 5 | IP67 | Process Automation |
| Z7105/3435/C3 | 3-pin connector for field devices | 3 | IP67 | Machine Safety |
| Z7110/2235/C4 | 4-pin cable connector for medium applications | 4 | IP67 | Industrial Control |
| Z7109/3336/C7 | 7-pin cable plug for complex field wiring | 7 | IP67 | Hazardous Areas |
| Z7104/5432/C6 | 6-pin connector for large industrial systems | 6 | IP67 | Automation Control |
| Z7103/2227/C8 | 8-pin field wiring connector for specialized circuits | 8 | IP67 | Power Generation |
