Présentation du produit

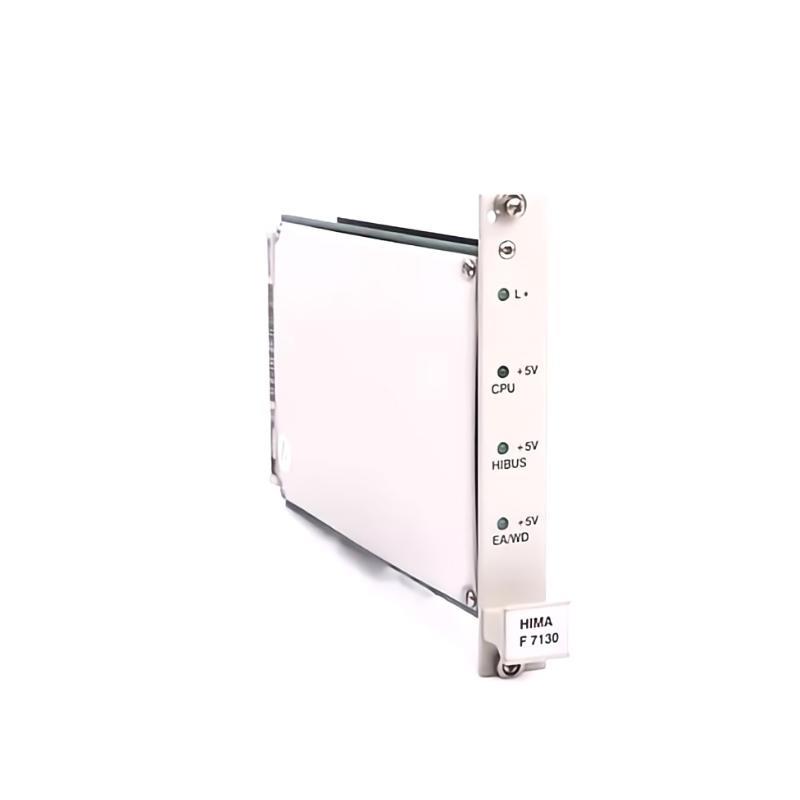

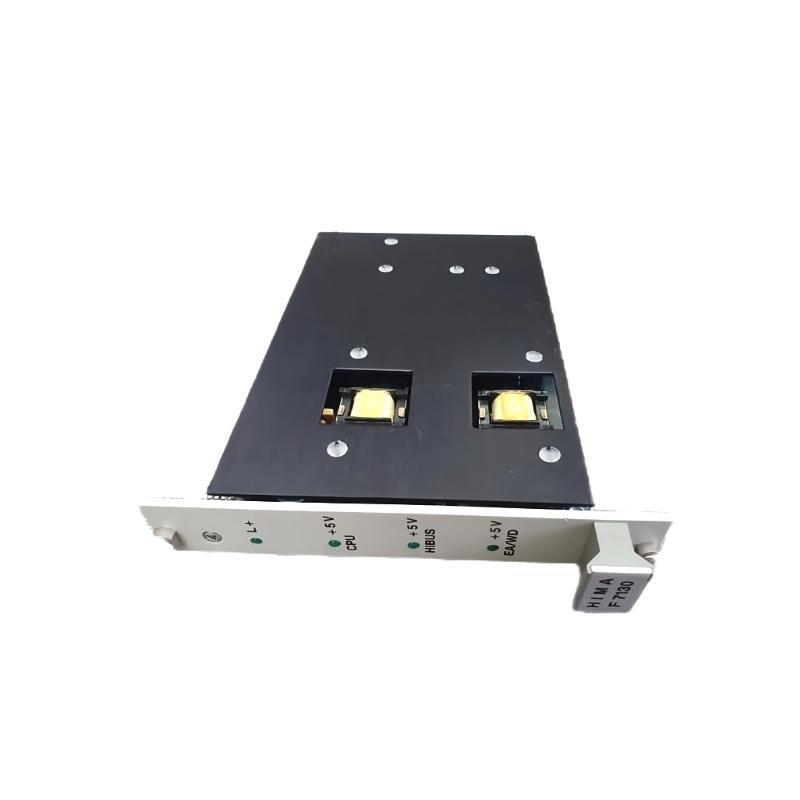

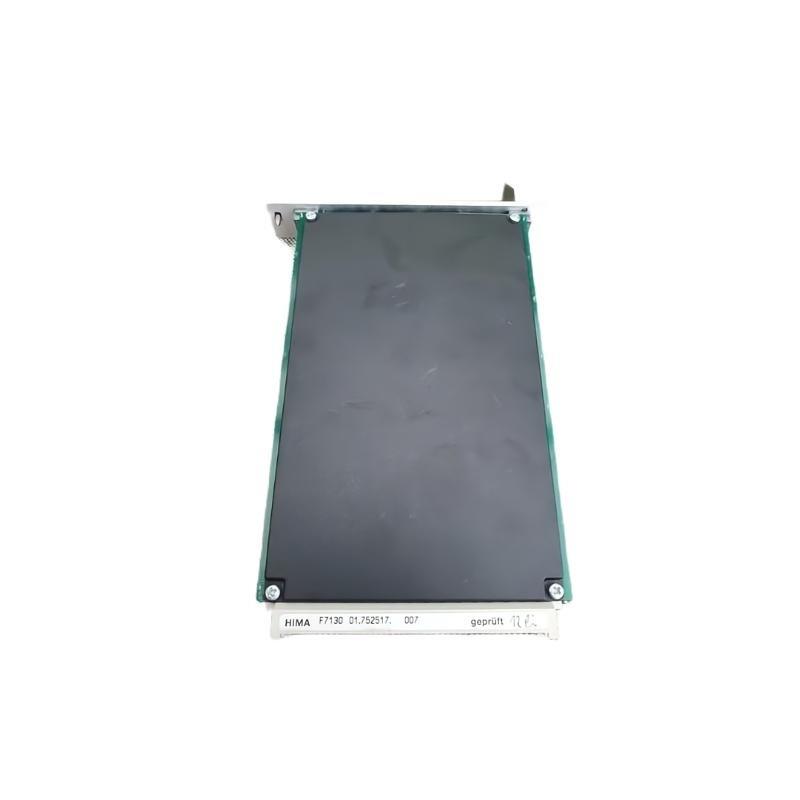

The HIMA F7130 Power Distribution Module is an integral component within HIMA’s trusted range sur safety and automation systems, specifically designed to distribute and monitor power in critical industrial environments. This module ensures a stable and protected power supply to various components within a safety-related control system. Engineered for high reliability and long-term operation, the F7130 is suitable for deployment in SIL 3 safety applications as per IEC 61508.
This module is typically used in conjunction with HIMA’s HIMax or HIQuad platforms, playing a crucial role in isolating, distributing, and managing the power flow within the rack or system cabinet. The F7130 allows for easy diagnostics and maintenance, reducing system downtime and increasing operational efficiency in high-risk industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | HIMA F7130 Power Distribution Module |
| Fabricant | HIMA Paul Hildebrandt GmbH |
| Module Type | Power Distribution Module |
| Function | Power supply distribution and monitoring |
| Power Input Voltage | 24 VDC (nominal), range: 18 to 30 VDC |
| Power Output Channels | Multiple isolated power distribution channels |
| Fuse Protection | Yes, integrated per-channel fusing |
| Monitoring Function | Status LED indicators for each output |
| Backplane Connection | Yes (Plug-in via backplane interface) |
| Hot Swappable | Yes |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Certifications | CE, ATEX, IEC 61508 (SIL 3 compliant) |
| Mounting Type | DIN rail or rack-mounted |
| Cooling | Passive (no fan required) |
| Space requirement | 4 SU |
| Poids | 0.45 kg |
| Compatibility | HIMA HIMax, HIQuad, and other compatible racks |
| Status Indication | Multi-color LEDs for each power output |
| Isolation | Galvanic isolation between input/output |
Applications
The HIMA F7130 module is widely used across various industries that demand high levels sur safety and uninterrupted power distribution:
-
Oil & Gas: Ensures safe and stable power distribution to controllers and I/O systems in hazardous environments.
-
Chemical and Petrochemical Plants: Critical for safety-related process automation and emergency shutdown systems.
-
Power Generation: Provides redundant power distribution for turbine control and plant safety systems.
-
Pharmaceutical Industry: Powers and monitors safety PLC systems in validated, clean environments.
-
Manufacturing: Supports distributed safety systems in automated production lines.
-
Transportation & Rail: Integrated into safety architectures for signaling and control systems.
Product Advantages
-
High Reliability: Designed for continuous operation in critical safety systems.
-
Integrated Monitoring: Visual indication sur each output’s operational state for rapid troubleshooting.
-
SIL 3 Compliant: Suitable for use in high-integrity safety applications.
-
Compact Design: Enregistrers space within control cabinets while surfering extensive functionality.
-
Hot Swappable: Enables replacement without system shutdown, reducing downtime.
-
Isolation Protection: Galvanic isolation enhances protection against voltage fluctuations and interference.
-
Modular Integration: Easily integrates with other HIMA modules within HIMax and HIQuad systems.
-
Robust Construction: Built to withstand industrial temperature and humidity ranges.
-
Reduced Maintenance: Diagnostic LEDs and modular design simplify system maintenance and fault detection.
-
Global Certification: Certified to international safety standards including ATEX and IEC 61508.
Questions fréquentes (FAQ)
-
What is the main function sur the HIMA F7130 module?
The F7130 distributes power to multiple components within a safety automation system and provides visual monitoring for each channel. -
Is the F7130 compatible with the HIMax platform?
Yes, the F7130 is fully compatible with both HIMax and HIQuad systems from HIMA. -
Can the module be hot-swapped during operation?
Yes, the F7130 is hot-swappable, allowing for replacement without shutting down the system. -
Does the F7130 provide fused protection for each channel?
Yes, each power distribution channel includes integrated fuse protection. -
What certifications does this module hold?
It is CE marked and certified according to IEC 61508 for SIL 3 applications. -
What is the power input voltage range for the F7130?
The nominal input is 24 VDC, with an acceptable range sur 18 to 30 VDC. -
Is the F7130 suitable for use in hazardous environments?
Yes, it is suitable for ATEX-certified installations, surten found in oil & gas and chemical plants. -
Can the F7130 be used in redundant power systems?
Yes, it supports redundant configurations for critical system reliability. -
How is the operational status indicated on the module?
Each output channel has dedicated multi-color LEDs for clear status indication. -
What is the installation method for the F7130?
The module is designed for DIN rail or backplane installation in rack systems.
Related Modèles (Same Series or Functionality)
| Modèle | Description | Application |
|---|---|---|
| HIMA F7131 | Power Distribution Module with Extended Features | Redundant power distribution |
| HIMA F7126 | Power Supply Monitoring Module | Power fault detection |
| HIMA F8621A | Digital Output Module | Interfacing with field devices |
| HIMA F8650X | CPU Module with Redundancy | Central processing and control |
| HIMA F7129 | Power Supply Interface Module | Interface for external supplies |
| HIMA F7553 | I/O Power Relay Module | Relay switching for power loads |
Popular Modèles from the Same Marque (HIMA)
| Modèle | Function | Key Feature |
|---|---|---|
| HIMA F8650X | CPU Central Module | SIL 3 certified, redundancy |
| HIMA F7133 | Power Module | Stable power for I/O systems |
| HIMA F6217 | Analog Input Module | Precise signal acquisition |
| HIMA F6705 | Communication Processor | Industrial network interfacing |
| HIMA F7550 | Digital Output Module | Relay-based switching |
| HIMA F3221 | Analog Output Module | Output control for process loops |
