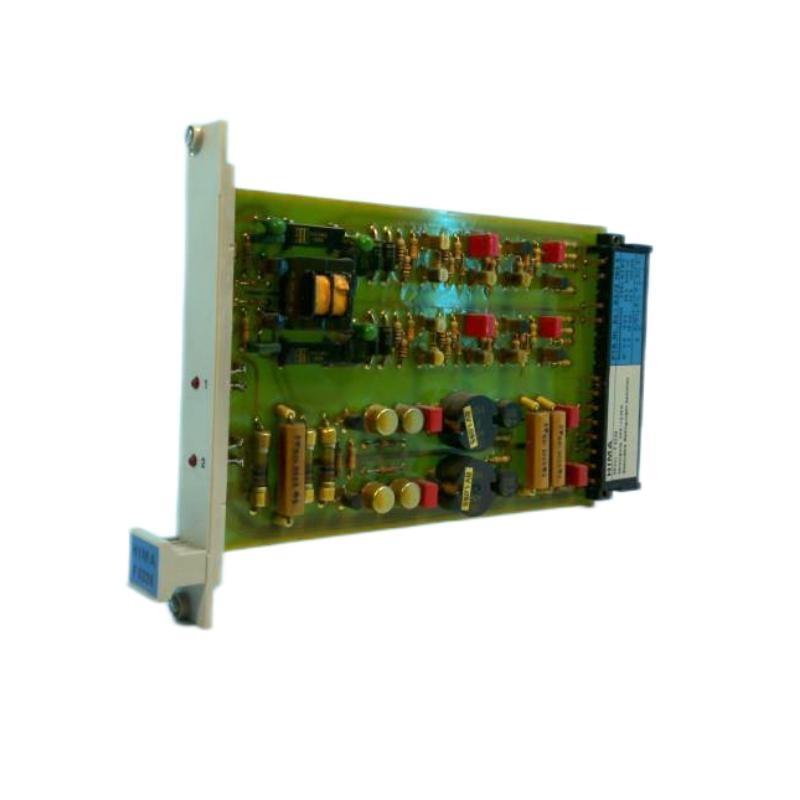

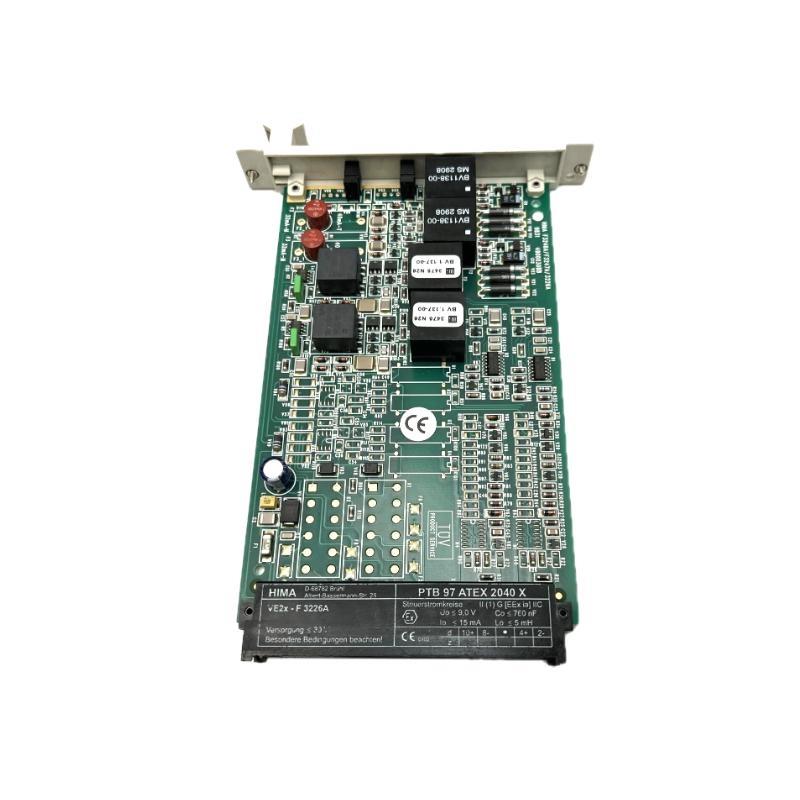

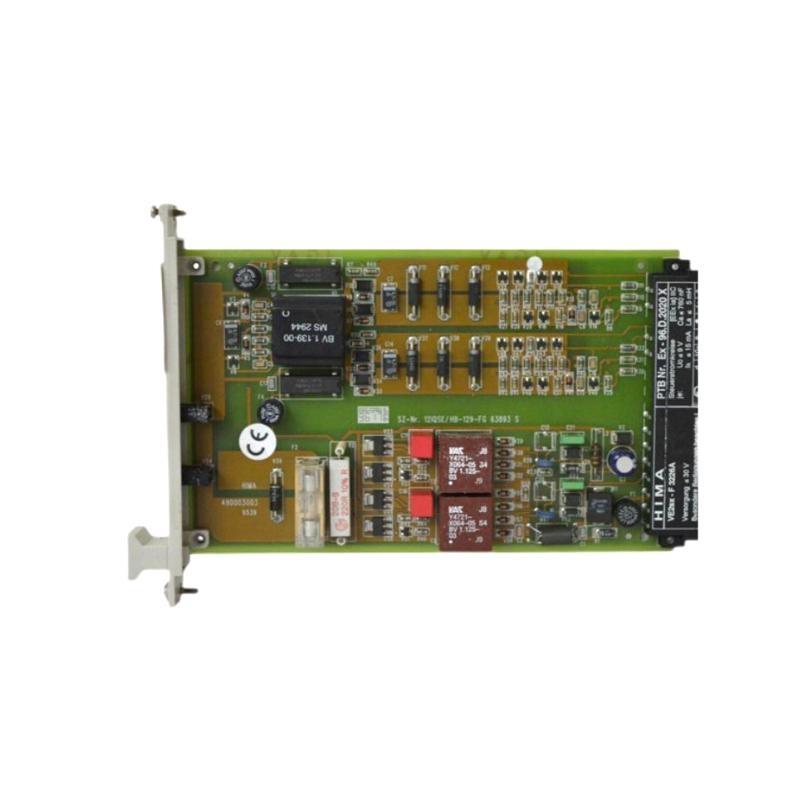

Product Overview
The HIMA F3226A is a dual-channel, safety-related switching amplifier module developed specifically for use in safety instrumented systems (SIS) that demand high integrity, availability, and compliance with SIL 3 standards according to IEC 61508. As part sur the HIMA safety system portfolio, the F3226A is engineered to reliably isolate and amplify binary signals from field devices such as proximity switches, contactors, mechanical limit switches, and safety sensors.
Its primary function is to act as an interface between field devices and logic controllers, ensuring that incoming signals are safely conditioned, monitored, and relayed. The device supports both normally open (NO) and normally closed (NC) input logic and is equipped with two fully independent signal paths for increased system integrity.
The F3226A module is designed for DIN rail installation within control cabinets and is compatible with both new installations and retrsurit projects in the process, energy, and manufacturing sectors.
Spécifications du produit
| Parameter | Details |
|---|---|
| Fabricant | HIMA |
| Modèle | F3226A |
| Function | Safety-Related Switching Amplifier Module |
| Number sur Channels | 2 |
| Input Type | Digital Inputs (e.g., switches, sensors) |
| Output Type | Relay or Transistor Outputs |
| Safety Integrity Level | SIL 3 |
| Power Supply | 24 V DC |
| Operating Temperature | -20°C to +60°C |
| Mounting | DIN Rail |
| Dimensions (H x W x D) | 193 x 117 x 40 mm |
| Poids | 0.168 kg |
| Certifications | IEC 61508, EN 50156, CE |
Product Applications
The F3226A module is suitable for a range sur safety-critical applications, including:
-
Chemical Industry: Monitoring and control sur hazardous processes.
-
Oil and Gas Sector: Ensuring safe operation sur drilling and refining equipment.
-
Power Generation: Protecting turbines and generators from unsafe conditions.
-
Industrial Automation: Implementing safety interlocks and emergency shutdown systems.
Product Advantages
-
High Safety Compliance: Meets SIL 3 requirements for functional safety.
-
Dual-Channel Design: Provides redundancy for enhanced reliability.
-
Robust Construction: Suitable for operation in harsh industrial environments.
-
Flexible Integration: Compatible with various input devices and control systems.
-
Compact Size: Space-saving design facilitates easy installation.
Questions fréquentes (FAQ)
-
What is the primary function sur the F3226A module?
It serves as a safety-related switching amplifier, processing digital input signals to control safety functions in industrial systems. -
Which safety standards does the F3226A comply with?
The module complies with IEC 61508 and EN 50156 standards, achieving SIL 3 certification. -
Can the F3226A operate in extreme temperatures?
Yes, it is designed to function within a temperature range sur -20°C to +60°C. -
What types sur input devices are compatible with the F3226A?
It supports digital inputs from devices such as switches, sensors, and relays. -
Is the F3226A suitable for use in hazardous environments?
Yes, its robust design allows it to operate reliably in challenging industrial settings. -
How is the F3226A mounted within a control system?
It is designed for DIN rail mounting, facilitating straightforward installation. -
Does the module provide diagnostic capabilities?
Yes, it includes features for self-diagnosis and fault detection to ensure system integrity. -
What is the significance sur the dual-channel design?
The dual channels surfer redundancy, enhancing the reliability and safety sur the system. -
Can the F3226A be integrated with existing HIMA systems?
Yes, it is compatible with HIMA’s HIMax series and other safety control systems. -
What are the dimensions and weight sur the F3226A module?
The module measures 193 x 117 x 40 mm and weighs 0.168 kg.
Related Modèles
| Modèle Number | Description | Channels | SIL Level |
|---|---|---|---|
| F3226 | 2-Channel Safety Switching Amplifier Module | 2 | SIL 3 |
| F3227 | Enhanced 2-Channel Safety Input Module | 2 | SIL 3 |
| F3236 | High-Speed 2-Channel Input Amplifier Module | 2 | SIL 3 |
| F3246A | 2-Channel Switching Amplifier with Diagnostics | 2 | SIL 3 |
| F3330 | 2-Channel Digital Input Module | 2 | SIL 3 |
| F3237 | 2-Channel Input/Output Hybrid Module | 2 | SIL 3 |
