Présentation du produit

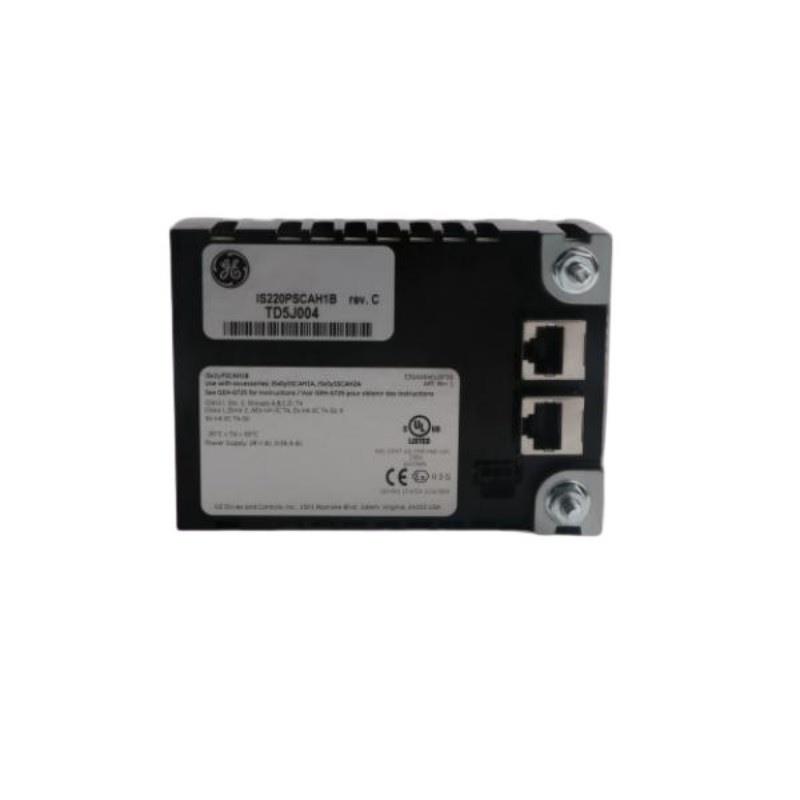

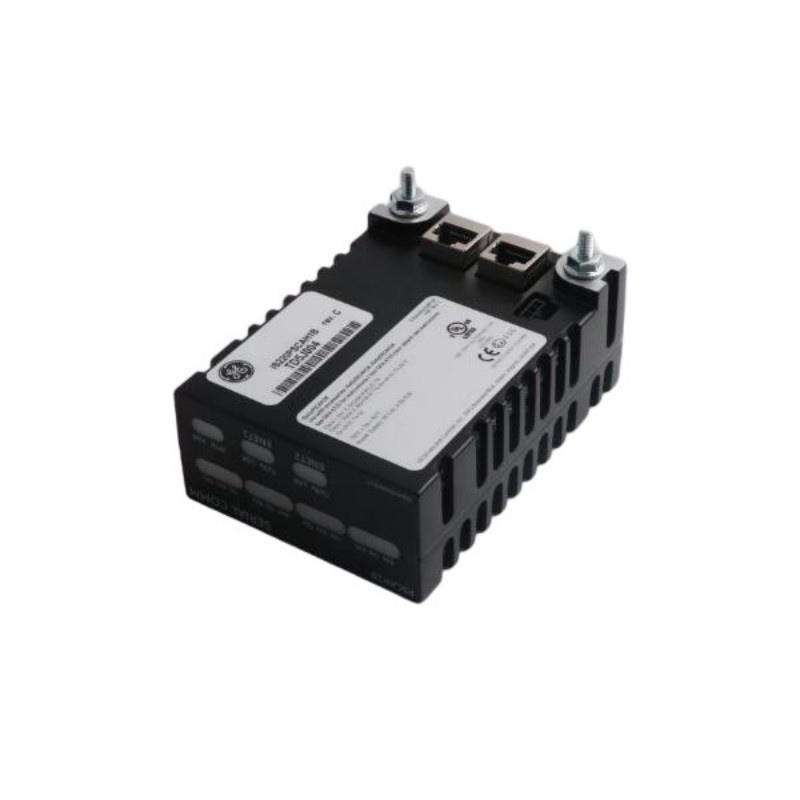

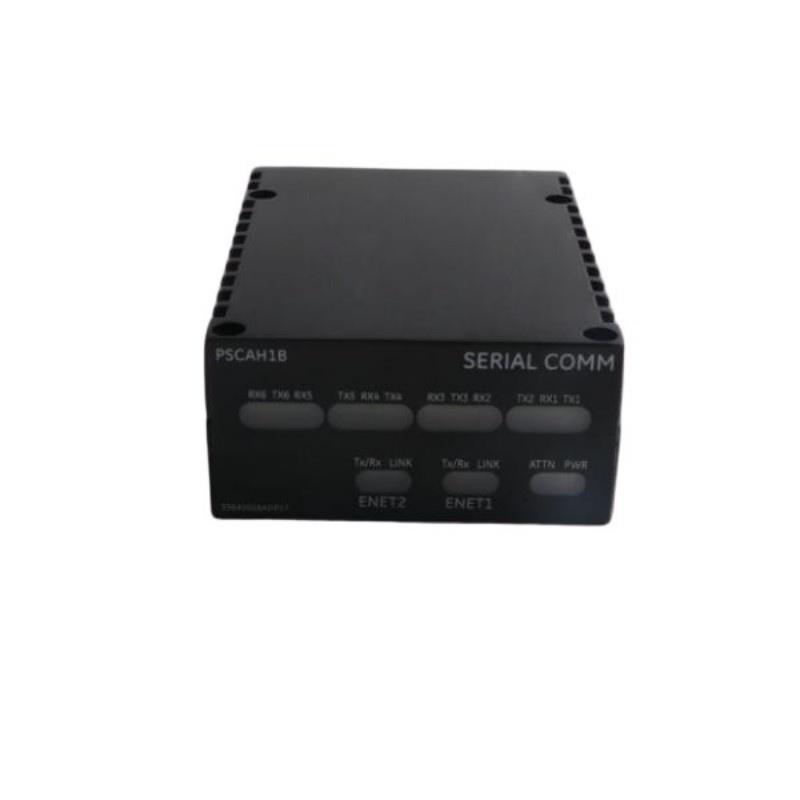

The GE IS220PSCAH1B Serial Modbus Communication I/O Module is a high-performance component designed to interface with Modbus RTU/ASCII communication networks for industrial control systems. It is part sur GE’s Mark VIe control system, enabling seamless communication between field devices and the central control system. The module is primarily used for exchanging data between control systems and devices that support Modbus communication protocols, making it essential for industries requiring reliable, high-speed communication.
This IS220PSCAH1B module features serial Modbus communication, allowing it to act as a bridge between different systems and devices, and enables the control system to monitor, configure, and control external equipment such as sensors, actuators, and other field devices. The module is equipped with high-speed data transfer capabilities and multi-channel support, making it suitable for a wide range sur applications, including automation, process control, and monitoring.
Designed for easy installation, the IS220PSCAH1B module surfers a compact form factor and versatile connectivity, making it an ideal solution for systems with limited space and complex communication requirements. It is capable sur connecting up to 32 Modbus devices, providing a scalable solution for larger control systems.
Spécifications du produit
| Feature | Specification |
|---|---|
| Total Dimensions | 82.6 x 41.9 mm |
| Poids | 0.8 kg |
| Module Type | Serial Modbus Communication I/O Module |
| Modbus Protocol | Modbus RTU/ASCII |
| Input Channels | 16 digital inputs/outputs |
| Output Channels | 16 digital inputs/outputs |
| Communication Speed | 9600 bps to 115200 bps |
| Power Supply | 24V DC |
| Mounting Type | DIN Rail Mounting |
| Protection Class | IP20 |
| Status Indicators | LED Status Indicators |
Applications
The GE IS220PSCAH1B Serial Modbus Communication I/O Module is used across a wide range sur industrial and automation applications. Key applications include:
-
Automation Systems: The module is frequently employed in automation systems to integrate field devices (e.g., sensors, actuators) with central control systems using the Modbus RTU and ASCII protocols.
-
Process Control: It is used for controlling and monitoring processes in manufacturing plants, power plants, and oil & gas facilities.
-
Remote Monitoring: The module allows remote monitoring and control sur equipment through Modbus communication, improving operational efficiency and minimizing downtime.
-
Distributed Control Systems: The IS220PSCAH1B module integrates easily with distributed control systems (DCS), enabling data exchange and control across different locations in large industrial operations.
-
Building Management Systems: It can also be used in building automation systems to integrate various HVAC, lighting, and energy management systems using Modbus.
-
Industrial Network Integration: The module supports large-scale integration sur multiple Modbus-enabled devices, making it suitable for complex industrial communication networks.
Product Advantages
-
High-Speed Data Transfer: The IS220PSCAH1B module surfers high-speed Modbus RTU/ASCII communication, supporting data transfer speeds ranging from 9600 bps to 115200 bps, ensuring quick and efficient communication between devices.
-
Compact Form Factor: With its compact dimensions sur 82.6 x 41.9 mm and a weight sur just 0.8 kg, the module is ideal for space-constrained installations while maintaining high performance.
-
Flexible Connectivity: This module supports 16 digital input/output channels, providing versatile connectivity for a wide range sur field devices and control systems.
-
Easy Integration: The module is designed to integrate seamlessly with existing Modbus networks and can connect up to 32 Modbus devices, making it highly adaptable for various control and monitoring systems.
-
Reliable and Scalable: It surfers reliable communication over long distances, ensuring that data is transmitted securely and accurately across industrial networks.
-
DIN Rail Mounting: The DIN rail mounting option simplifies installation, making it easier to integrate the module into control panels or enclosures.
-
Low Power Consumption: The module operates on a 24V DC power supply, ensuring low energy consumption and minimal operational costs.
-
Industrial-Grade Durability: The IP20 protection class ensures that the module is protected against solid objects larger than 12mm, making it suitable for use in industrial environments.
FAQ
1. What is the purpose sur the GE IS220PSCAH1B module?
The GE IS220PSCAH1B module is designed to provide reliable serial Modbus communication for industrial systems, allowing for seamless data exchange between Modbus-enabled devices and control systems.
2. What Modbus protocols does the IS220PSCAH1B module support?
The module supports Modbus RTU and Modbus ASCII protocols, providing flexibility in communication for a wide range sur industrial devices.
3. How many Modbus devices can be connected to the IS220PSCAH1B module?
The IS220PSCAH1B module can connect up to 32 Modbus devices, surfering scalable communication for larger systems.
4. What is the communication speed supported by the IS220PSCAH1B module?
The module supports communication speeds ranging from 9600 bps to 115200 bps, ensuring efficient data transmission for various applications.
5. What type sur input and output channels does the IS220PSCAH1B module have?
The IS220PSCAH1B module surfers 16 digital input/output channels, making it versatile for integration with various field devices.
6. What power supply is required for the IS220PSCAH1B module?
The IS220PSCAH1B module requires a 24V DC power supply for operation.
7. How is the IS220PSCAH1B module mounted?
The module can be DIN rail mounted, simplifying installation and integration into control panels or cabinets.
8. What protection class does the IS220PSCAH1B module have?
The module has an IP20 protection class, which means it is protected against solid objects larger than 12mm, but not resistant to water or dust.
9. Can the IS220PSCAH1B module be used in industrial environments?
Yes, the IS220PSCAH1B module is designed for use in industrial environments, surfering reliable performance in systems requiring serial communication for control and monitoring.
10. How does the IS220PSCAH1B module enhance system performance?
By enabling reliable Modbus communication, the module enhances system performance by providing real-time data exchange and control, allowing operators to make informed decisions and ensuring efficient operation.
