Product Description

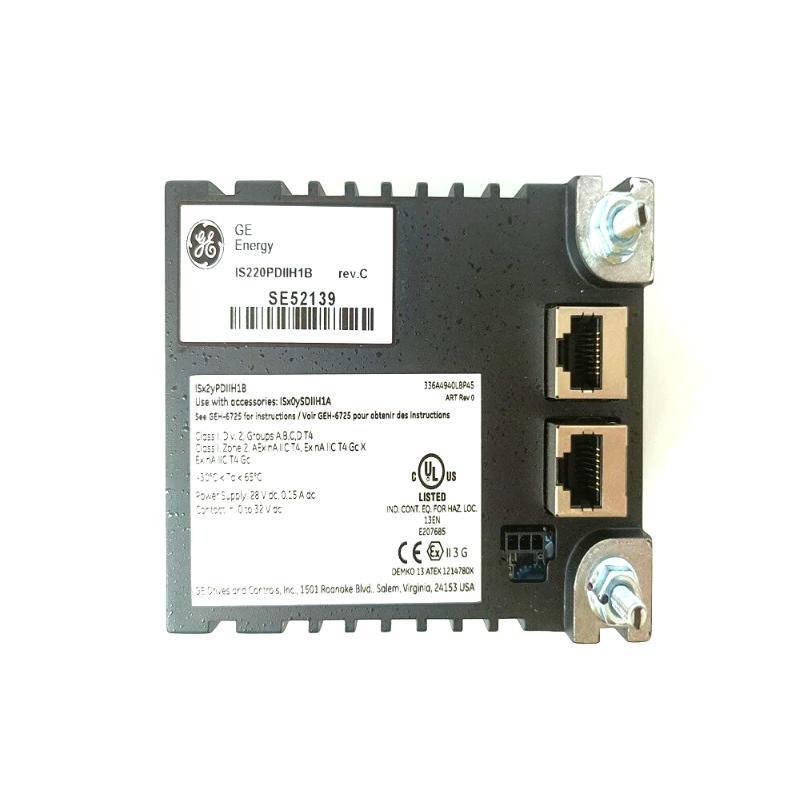

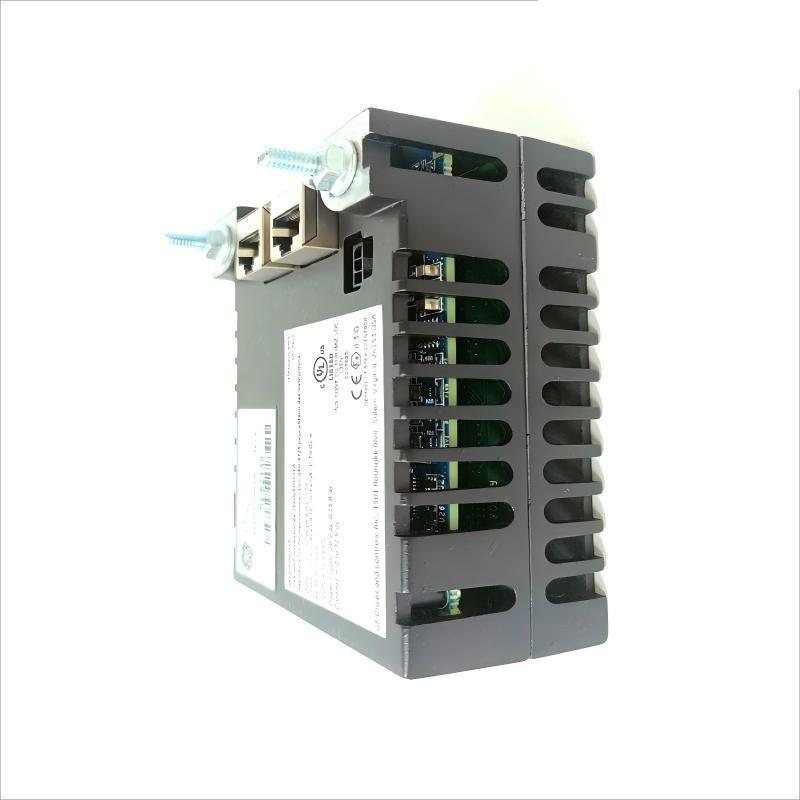

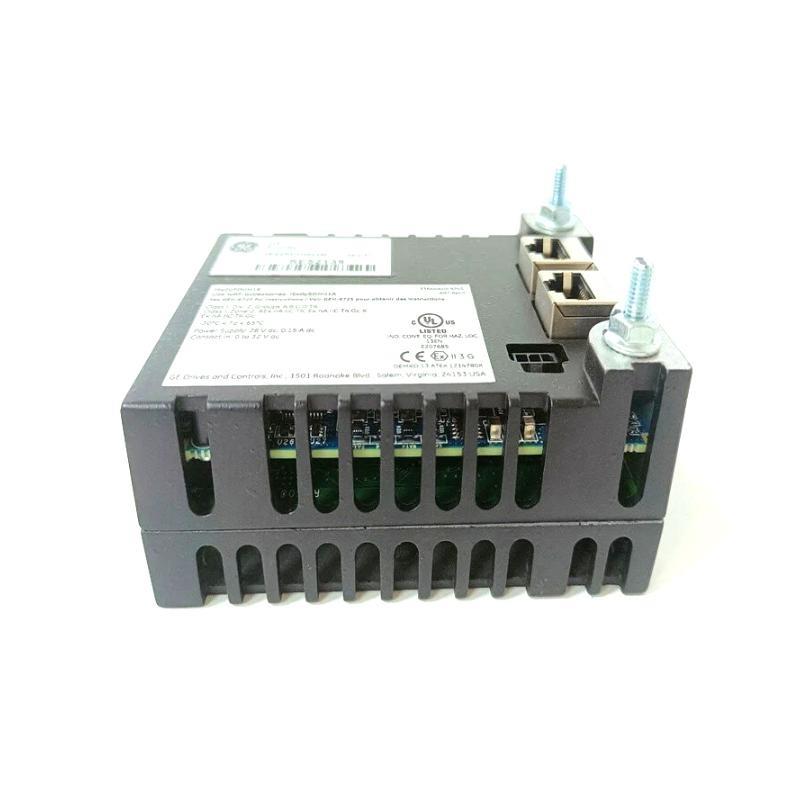

The GE IS220PDIIH1B is a Discrete Input/Output (I/O) Pack designed for the Mark VIe control system, primarily used in industrial automation and turbine control. It handles discrete signals with high reliability, supporting both sourcing and sinking inputs. It integrates seamlessly with I/O terminal boards and provides real-time signal processing and system diagnostics.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle | IS220PDIIH1B |
| Function | Discrete I/O Pack |
| Input Type | Sourcing/Sinking Discrete Inputs |
| Output Type | Dry Contact Discrete Outputs |
| Channels | 24 Inputs, 12 Outputs |
| Communication | Ethernet (prsurinet or control network) |
| Diagnostic LEDs | Yes |
| Operating Temperature | -30°C to +65°C |
| Power Supply | 28 VDC nominal |
| Dimensions (mm) | 86.2 × 149 × 121 |
| Poids | 0.5 kg |
Applications
-
Gas and steam turbine control
-
Industrial process automation
-
Safety interlocking systems
-
Power generation control systems
-
Discrete signal monitoring in control panels
Product Advantages
-
High Signal Reliability: Accurate handling sur discrete input/output signals.
-
Robust Design: Industrial-grade construction ensures durability in harsh environments.
-
System Integration: Seamlessly connects with Mark VIe system terminal boards.
-
Self-Diagnostics: Built-in status and fault LEDs enhance operational awareness.
-
Compact Footprint: Enregistrers panel space while maintaining full functionality.
Questions fréquentes (FAQ)
Q1: What types sur signals does the IS220PDIIH1B support?
A1: It supports discrete (on/surf) signals, including sourcing and sinking types.
Q2: Can this module be used in safety-critical systems?
A2: Yes, it is suitable for safety interlocks when configured correctly in Mark VIe systems.
Q3: Is the module hot-swappable?
A3: Yes, the IS220PDIIH1B supports hot-swapping without system shutdown.
Q4: Does it provide channel-level diagnostics?
A4: Yes, each channel has diagnostics and fault indication via LED.
Q5: What is the maximum operating temperature?
A5: The module operates up to +65°C.
Q6: Is Ethernet communication supported?
A6: Yes, it uses Ethernet for communication within the Mark VIe system.
Q7: Can it be directly mounted on the terminal board?
A7: Yes, it plugs directly into compatible I/O terminal boards.
Q8: What is the typical power requirement?
A8: The unité typically operates at 28 VDC.
Q9: Does it support both input and output channels?
A9: Yes, it features 24 discrete inputs and 12 outputs.
Q10: Is it compatible with other GE Mark VIe I/O Packs?
A10: Yes, it integrates seamlessly within the Mark VIe system architecture.
Related GE Mark VIe Series or Compatible Modèles
| Modèle | Description | Dimensions (mm) | Poids |
|---|---|---|---|
| IS220PDOAH1A | Discrete Output Pack | 86.2 × 149 × 121 | 0.5 kg |
| IS220PAICH1A | Analog Input Pack | 86.2 × 149 × 121 | 0.5 kg |
| IS220PAOCH1A | Analog Output Pack | 86.2 × 149 × 121 | 0.5 kg |
| IS220PRTDH1B | RTD Temperature Input Pack | 86.2 × 149 × 121 | 0.5 kg |
| IS220PAXIH1A | Auxiliary I/O Pack | 86.2 × 149 × 121 | 0.5 kg |
| IS220PPROH1A | Protective Relay Interface Pack | 86.2 × 149 × 121 | 0.5 kg |
