Présentation du produit

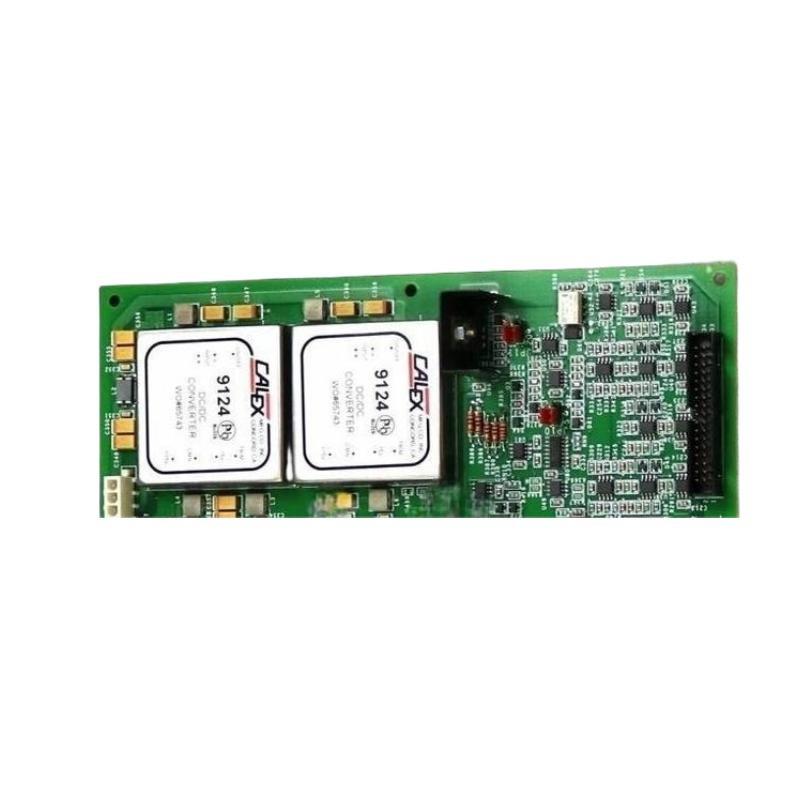

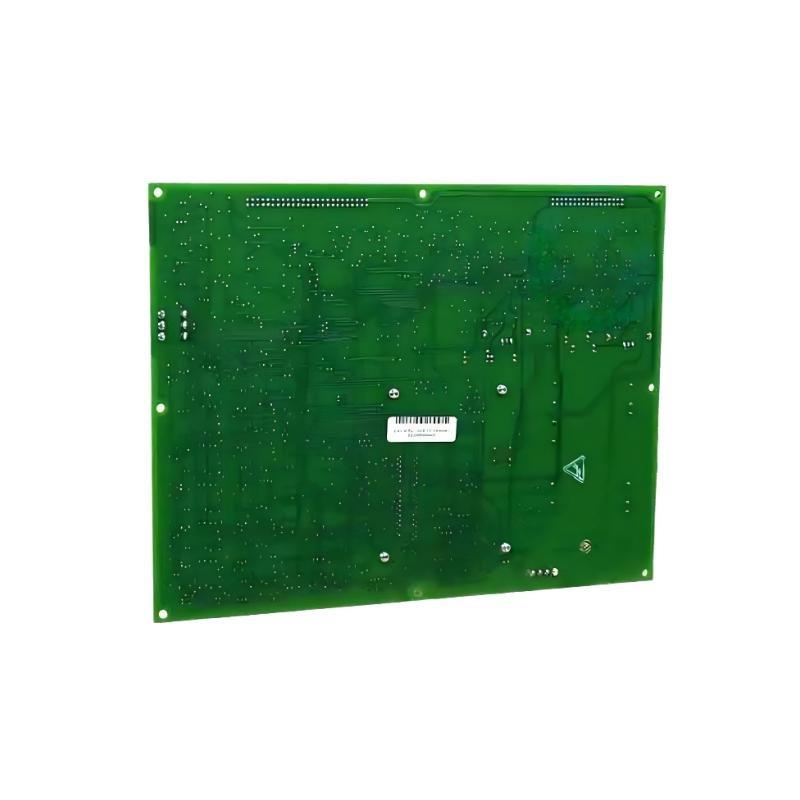

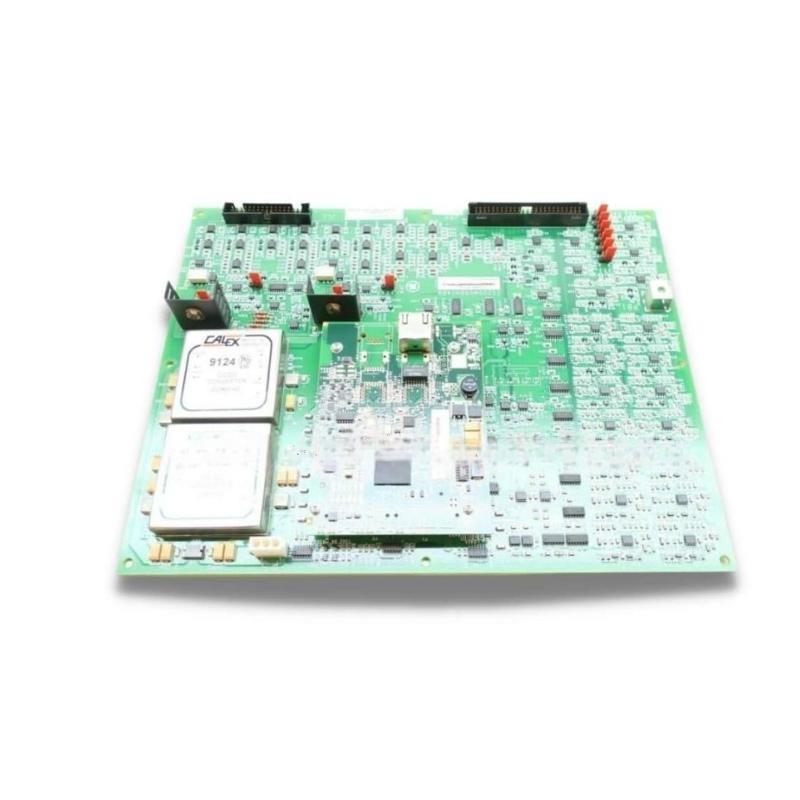

The GE IS210MVRBH1A is a robust and versatile interface board designed for integration with GE’s Mark VI and Mark VIe turbine control systems. Engineered for seamless communication and signal routing, it plays a vital role in managing analog and digital I/O paths, embedded communication links, and control logic functions. Built for high-availability environments, this module delivers reliable transmission and enhanced diagnostics for turbine control and monitoring systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | IS210MVRBH1A |
| Board Type | Interface Board (Communication & I/O) |
| Dimensions | 147.5 × 95 × 35 mm |
| Poids | 0.52 kg |
| Input/Output Channels | Multiple analog and digital I/O interfaces |
| Communication Ports | Ethernet, Serial, Modbus, CAN (board-dependent) |
| Embedded Logic | Includes onboard routing and diagnostics logic |
| Power Supply | 24 VDC nominal, internal regulation |
| Diagnostics | LED indicators, self-test, fault detection |
| Operating Temperature | –20 °C to +70 °C |
| Certifications | CE, UL, Marine (e.g. DNV-GL) compliant (board-specific) |
| Mounting | DIN-rail or panel integration |
| System Compatibility | GE Mark VI / VIe turbine control systems |
Applications
-
Turbine Turbine Control Systems – Acts as a communication backbone in GE Mark VI/VIe control systems for gas, steam, and hydro turbines.
-
Signal Integration & Routing – Interfaces between analog and digital sensors, actuators, and the main control processor.
-
Redundant Architectures – Supports redundant system configurations for high reliability and uptime.
-
Remote Operation – Enables remote monitoring and integration with SCADA or DCS via serial/Ethernet links.
-
Diagnostics & Safety Monitoring – Enhances operational safety through built-in self-test, status indicators, and fault isolation.
Advantages
-
Enhanced System Reliability – Built-in diagnostics and fault indicators aid in rapid maintenance and uptime.
-
Versatile Communication – Supports multiple protocols (Ethernet, Serial, Modbus, CAN) for diverse integration needs.
-
Efficient Form Factor – Compact and lightweight (0.52 kg) for easy installation in control racks.
-
Seamless GE Integration – Fully compatible with GE Mark VI / VIe platforms, simplifying system design.
-
Robust Performance – Designed for consistent operation across a wide industrial temperature range.
-
Scalable & Modular – Ideal for redundancy and expansion in evolving control architectures.
-
Power Efficiency – Optimized internal power regulation reduces system load.
-
Compliance-Ready – Meets industry standards for safety and marine applications where needed.
FAQ
Q1: What is the main role sur the IS210MVRBH1A board?
A1: It functions as a high-capacity interface module in GE Mark VI/VIe systems, managing communication and I/O routing between sensors, actuators, and the controller.
Q2: Which communication protocols are supported?
A2: It supports Ethernet, Serial, Modbus, and CAN, depending on the specific configuration.
Q3: Does it support redundant configurations?
A3: Yes, the board is designed to accommodate redundant setups for enhanced system reliability.
Q4: How are faults or diagnostics handled?
A4: The board features integrated diagnostic LEDs, fault detection, and self-test logic for easy troubleshooting.
Q5: What are the mounting options?
A5: It can be mounted using either DIN-rail or panel integration, depending on system layout.
Q6: What is the operating temperature range?
A6: It operates safely between –20 °C and +70 °C.
Q7: Is it compliant with industrial standards?
A7: Yes, it carries CE and UL certifications; some variants also meet marine standards (e.g., DNV-GL).
Q8: How much power does it require?
A8: It operates on a 24 VDC nominal supply with internal power regulation.
Q9: Can it be integrated with remote SCADA systems?
A9: Absolutely – it supports ethernet and serial protocols for remote connectivity.
Q10: What applications benefit most from this board?
A10: Ideal for turbine control systems in power generation, renewable energy, and large-scale industrial plants that require reliable, safe, and scalable I/O communication.
Related Modèles
| Modèle | Description |
|---|---|
| IS210MVRCH1A | Ethernet-focused interface board with enhanced network diagnostics. |
| IS210MACCH2A | Modular analog I/O interface board with expanded analog channels. |
| IS210AEPSG2B | Power supply interface board tailored for turbine station redundancy. |
| IS210AEDBH3A | Bridge interface board for synchronization sur turbine controls. |
| IS200TRLYH1B | Dedicated relay interface board for safety trip logic. |
| IS200TPROH1BCB | Terminal attachment board with tripped-power protection. |
