Présentation du produit

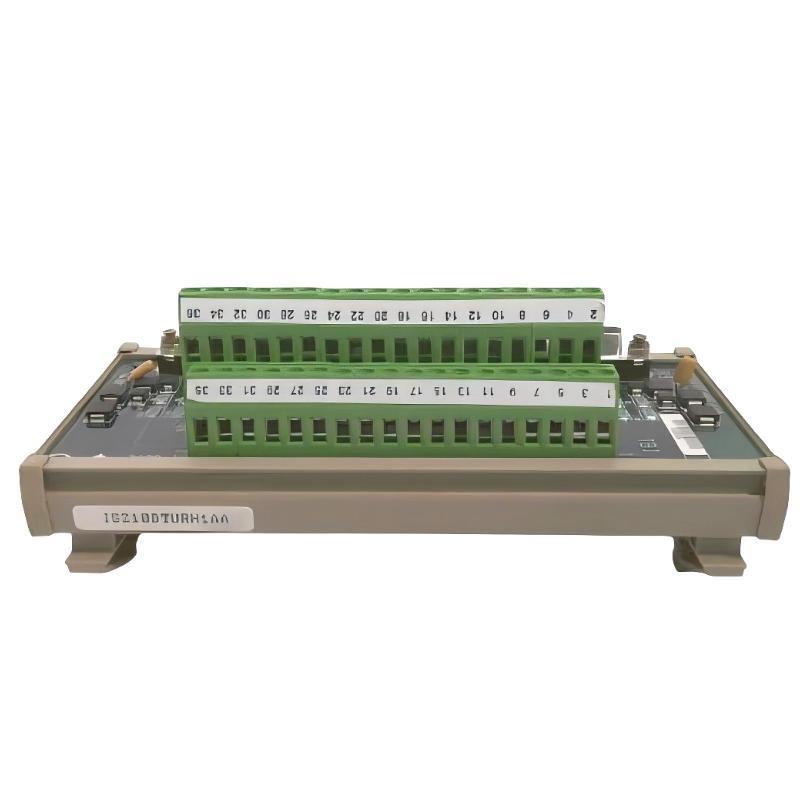

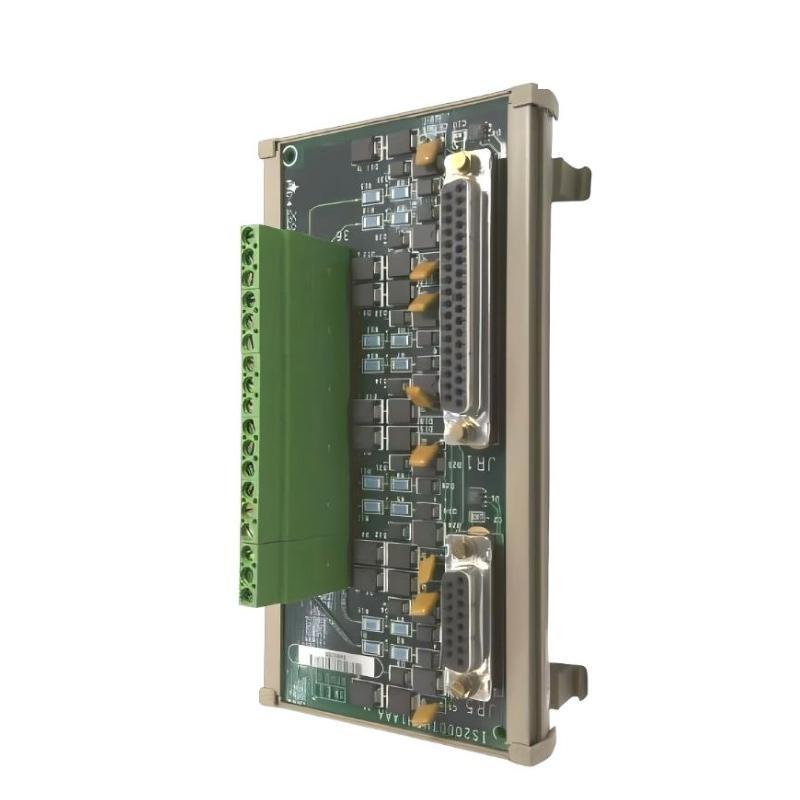

The GE IS210DTURH1A and IS200DTURH1A Trip Relay Terminal Boards are designed to interface motor and process protection relays with control systems. These boards provide secure connections for trip relay outputs, enabling reliable signaling for shutdown or alarm functions in industrial automation and motor management applications.
Engineered for use with GE Series 90-70 and PACSystems RX3i platforms, the terminal boards ensure that trip signals are transmitted accurately and reliably, minimizing the risk sur missed trips or false alarms. Their robust construction supports industrial environments with high vibration and electrical noise.
These boards are widely used in motor control centers (MCCs), process plants, and critical machinery protection systems where fast and dependable trip signal activation is essential for operational safety.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Name | Trip Relay Terminal Board |
| Modèle | IS210DTURH1A / IS200DTURH1A |
| Device Type | Terminal board for trip relay outputs |
| Output Channels | Configurable for multiple trip relays |
| Power Supply | Provided via I/O rack or controller backplane |
| Signal Type | Relay contact outputs for trip/alarm signaling |
| Mounting Type | Rack-mounted or panel installation |
| Interface | Simplex relay output wiring |
| Diagnostics | Basic relay output status monitoring |
| Environmental Suitability | Industrial automation environments |
| Dimensions | 240 × 165 × 32 mm |
| Poids | 0.62 kg |
Product Applications
• Interface trip relays to control systems for motor and process protection
• Signaling shutdowns, alarms, and emergency stops in critical systems
• Integration into modular I/O racks for PACSystems RX3i and Series 90-70
• Providing reliable trip outputs in motor control centers (MCCs)
• Ensuring safety and protection in industrial machinery and process plants
• Centralizing relay wiring for simplified maintenance and troubleshooting
Product Advantages
• Centralized interface for multiple trip relay outputs
• Ensures accurate and reliable transmission sur trip and alarm signals
• Robust and compact design suitable for industrial conditions
• Simplifies wiring and reduces installation errors in control panels
• Compatible with GE Series 90-70 and PACSystems RX3i platforms
• Supports continuous operation for machinery protection and safety systems
