Présentation du produit

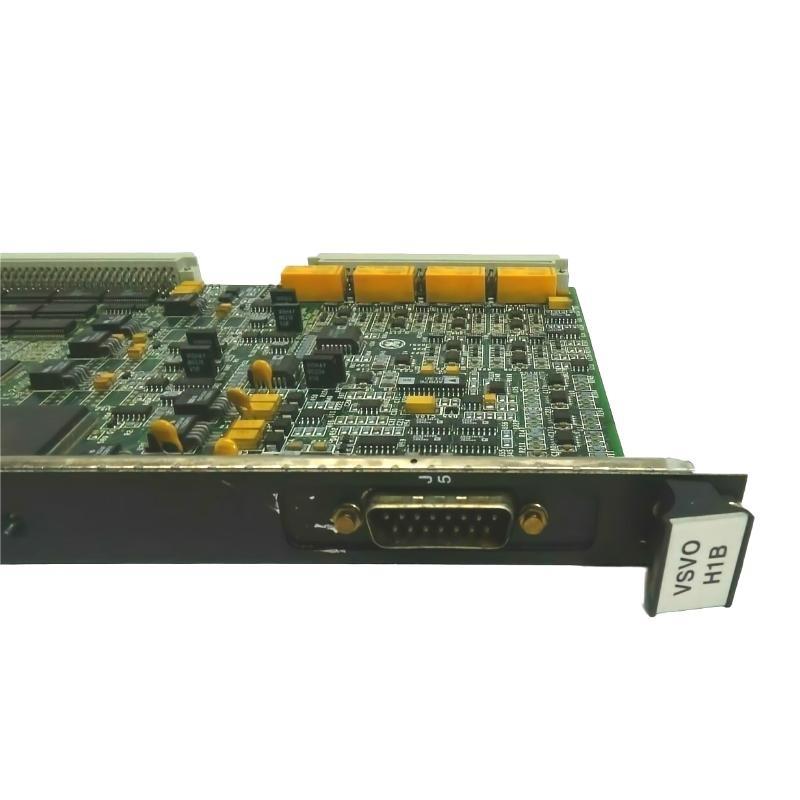

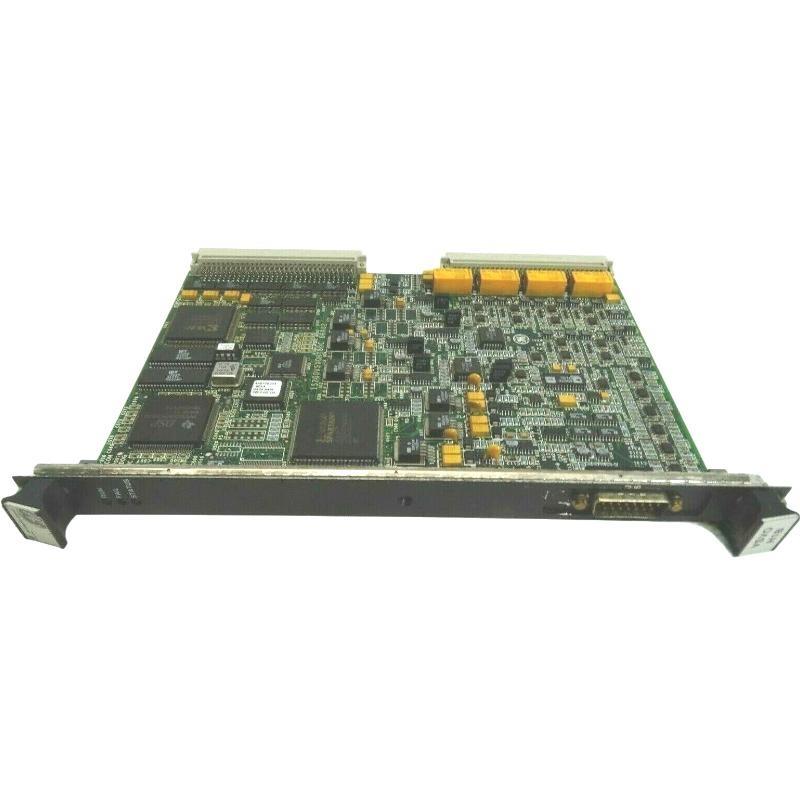

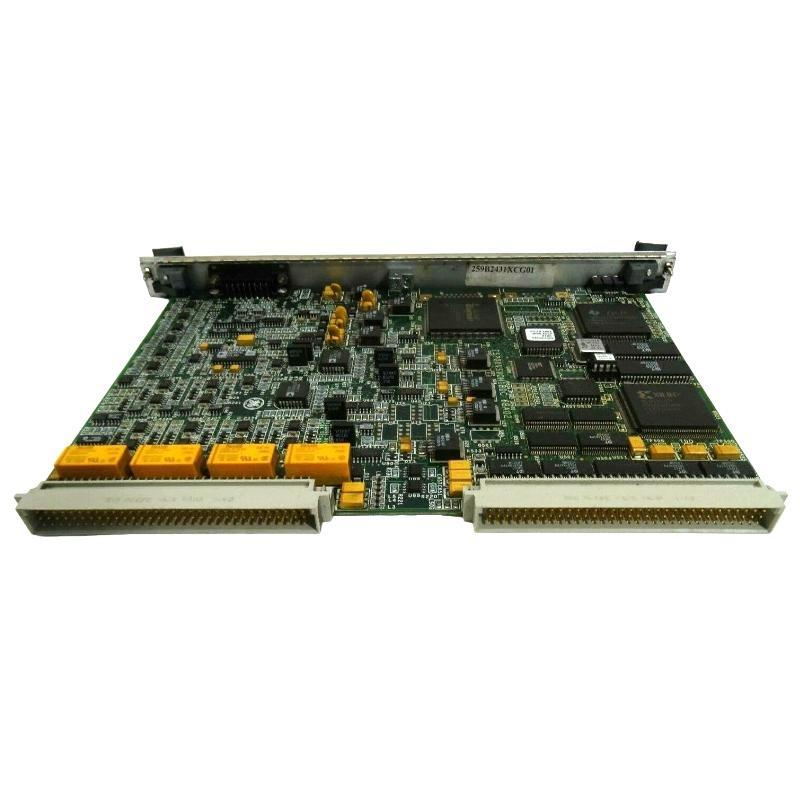

The GE IS200VSVOH1B VME Servo Control Board is a high-performance motion control module designed for use in GE Mark VI turbine and industrial automation systems. It provides precise servo motor control, position feedback processing, and real-time motion coordination for applications requiring high accuracy and reliability.
As part sur the Mark VI platform, the IS200VSVOH1B integrates seamlessly with VME-based control systems, enabling advanced closed-loop control sur actuators, hydraulic systems, and electro-mechanical drives. It features high-speed digital signal processing, robust feedback interfaces, and multiple output options to deliver consistent performance in demanding industrial environments.
Built for critical control applications in power generation, oil and gas, and heavy industry, this board surfers a rugged design with EMI immunitéy and reliable operation over a wide temperature range, making it a core component in turbine governor control and precision motion applications.
Spécifications du produit
| Parameter | Details |
|---|---|
| Product Modèle | GE IS200VSVOH1B VME Servo Control Board |
| Function | Servo Motion Control and Feedback Processing |
| Control Type | Closed-loop PID-based servo control |
| Supported Actuators | Hydraulic, pneumatic, and electric servo drives |
| Feedback Interfaces | LVDT, RVDT, Resolver, Encoder |
| Analog Outputs | ±10 V command outputs |
| Digital I/O | Configurable discrete inputs/outputs |
| Processing Unité | High-speed DSP for real-time control |
| Communication Interface | VME backplane interface |
| Power Supply Requirement | +5 VDC, ±15 VDC typical |
| Response Time | < 1 ms loop update rate |
| Mounting Type | VME Rack/Card Cage Mounted |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Compliance Standards | UL, CE, RoHS, IEC |
| Dimensions (H x W x D) | 280 x 33 x 220 mm |
| Poids | 0.635 kg |
Product Applications
The GE IS200VSVOH1B is used in a wide range sur industrial control and motion applications, including:
-
Turbine Governor Control: Provides precise servo actuation for steam and gas turbine governors.
-
Hydraulic Servo Systems: Controls hydraulic actuators for high-force applications.
-
Generator Excitation and Load Control: Integrates with servo mechanisms in generator systems.
-
Industrial Automation: Used for closed-loop control sur actuators and precision positioning devices.
-
Oil and Gas Systems: Provides motion control for critical valve and actuator systems in hazardous environments.
-
Mark VI Control Integration: Designed to work as part sur GE Mark VI VME-based control platforms.
Product Advantages
-
High-Precision Servo Control: Ensures accurate actuator positioning with fast loop response.
-
Versatile Feedback Support: Interfaces with LVDT, RVDT, resolver, and encoder devices for flexible sensing.
-
Advanced DSP Processing: Real-time control algorithms enable stable and efficient motion control.
-
Industrial-Grade Design: Rugged construction with EMI immunitéy for harsh industrial environments.
-
Seamless Mark VI Integration: Fully compatible with VME-based GE Mark VI turbine control systems.
-
Fast Response Time: Sub-millisecond control loop updates for high-performance applications.
FAQ
-
What type sur actuators can the IS200VSVOH1B control?
It can control hydraulic, pneumatic, and electric servo drives in closed-loop configurations. -
Which feedback devices are supported?
The board supports LVDT, RVDT, resolver, and encoder feedback signals. -
What is the typical analog output range for servo control?
The board provides ±10 V command outputs for driving servo amplifiers. -
Is the IS200VSVOH1B compatible with GE Mark VI systems?
Yes, it is specifically designed for VME-based Mark VI turbine and process control systems. -
What is the control loop update rate sur the board?
The IS200VSVOH1B achieves a typical loop update rate sur less than 1 ms. -
Does the board use digital signal processing (DSP)?
Yes, it integrates a high-speed DSP for executing real-time servo control algorithms. -
What type sur mounting does the IS200VSVOH1B require?
It is designed for installation in VME racks or card cages used in Mark VI systems. -
Can it be used for turbine governor control applications?
Yes, it is widely used for precise servo actuation in steam and gas turbine governors. -
What are the required power supply voltages?
The board typically operates on +5 VDC and ±15 VDC supplied via the VME backplane. -
Does the board provide galvanic isolation?
Yes, it includes isolation between control and field interfaces to enhance system safety.
Related Modèles (Same Series or Similar)
| Modèle | Description | Key Features |
|---|---|---|
| GE IS200VSVOH1A | VME Servo Control Board | Earlier hardware revision with similar functionality |
| GE IS200DSPXH1D | Digital Signal Processor Board | High-speed DSP for turbine control systems |
| GE IS200VAICH1C | Analog Input Board | Handles precise analog input signals |
| GE IS200VCCC H1B | Control Card Communication Board | Provides VME backplane communication |
| GE IS200VCRCH1B | Contact Input/Relay Output Board | Discrete I/O interfacing for Mark VI |
| GE IS200VGENH1B | Generator Monitor and Trip Board | Monitors generator conditions and initiates trips |
Popular Modèles from the Same Marque
| Modèle | Product Type | Application |
|---|---|---|
| GE IS220PDIOH1A | Discrete Input/Output Pack | Flexible I/O for Mark VIe control systems |
| GE IS220PAICH1B | Analog Input Pack | High-accuracy analog data acquisition |
| GE IS200TRLYH1B | Relay Output Board | Multiple relay outputs for process control |
| GE IS200TREGH1B | Trip Emergency Board | High-speed trip control for safety systems |
| GE IS200VVIBH1C | Vibration Monitoring Board | État monitoring for rotating machinery |
| GE IS200VRTDH1D | RTD Input Board | High-accuracy temperature measurement |
