Présentation du produit

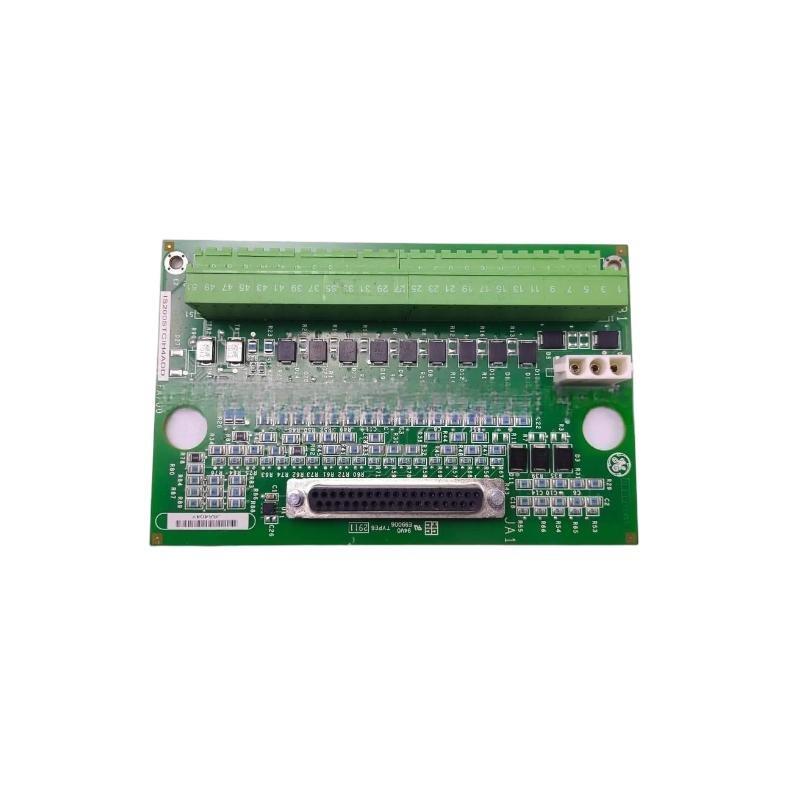

The GE IS200STCIH4A is a single-channel contact input terminal board designed for integration within GE’s 7000 series industrial control systems. This terminal board provides input signal conditioning for various types sur machinery and control systems, surfering reliable and accurate digital input monitoring in a compact form factor. The terminal board is designed to accept contact input signals, providing critical data to the system’s processor for analysis and control decisions.
Measuring 36 x 130 x 135 mm and weighing 0.3 kg, the IS200STCIH4A is compact and lightweight, ensuring that it fits into systems where space is at a premium. It is engineered for high-performance industrial applications, surfering superior flexibility, reliability, and compatibility with GE’s control systems.
This terminal board is built to handle harsh industrial environments, ensuring continued reliable operation even in the most challenging conditions. It features robust connectors for secure installation and surfers high-speed data processing to support the most demanding applications in automation systems.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle | IS200STCIH4A |
| Type | Single-Channel Contact Input Terminal Board |
| Dimensions (L x W x H) | 36 x 130 x 135 mm |
| Poids | 0.3 kg |
| Input Type | Contact Input |
| Input Voltage | 24 VDC |
| Connector Type | Phoenix Contact Terminal Block |
| Operating Temperature | -40°C to +70°C |
| Power Consumption | 24V DC |
| Mounting | DIN Rail Mount |
| Environmental Protection | IP20 (for internal use) |
Applications
The GE IS200STCIH4A Single-Channel Contact Input Terminal Board has a wide range sur industrial and automation applications, primarily in GE control systems and process control environments. Key applications include:
-
Industrial Control Systems: Used in PLC and DCS systems, the terminal board allows for accurate digital signal conditioning from machines, helping to monitor critical system inputs such as safety alarms or machine status indicators.
-
Automation Systems: It provides critical input signal processing for automated control systems in industries like manufacturing, energy, and utilities, enabling data acquisition and analysis.
-
Alarm and Safety Systems: The terminal board is ideal for systems requiring high-reliability monitoring sur safety-related inputs, such as fire alarms, emergency shutsurf signals, or safety interlocks.
-
Process Monitoring: It supports real-time monitoring and control sur industrial processes by reliably transmitting input signals from field devices to the main control system.
-
Data Acquisition: It can be used in data acquisition systems for industrial automation, providing accurate input from various sensors, switches, and relays.
-
Remote Monitoring: In remote industrial or power generation systems, it is crucial for integrating field devices into the control system for data collection and decision-making.
Product Advantages
-
Compact Size: At 36 x 130 x 135 mm, the GE IS200STCIH4A is compact and lightweight, making it ideal for installation in systems where space is limited, without compromising performance.
-
High Reliability: Designed for 24 VDC input, it surfers robust and stable performance, ensuring continuous operation even in harsh industrial environments.
-
Versatile Applications: The board can be used across various industries for safety monitoring, process control, automation systems, and data acquisition, making it a versatile solution for industrial automation.
-
Easy Installation: With DIN rail mounting, the terminal board can be easily installed in control cabinets or panels, simplifying the integration process in existing systems.
-
Long-Derniering Durability: The IS200STCIH4A is designed for industrial-grade use, with a wide operating temperature range sur -40°C to +70°C, ensuring durability and consistent performance in extreme conditions.
-
Efficient Signal Processing: It processes input signals with high accuracy, ensuring real-time data transmission to the system’s processor, which is critical for quick decision-making and timely responses.
-
Compatible with GE Control Systems: As part sur the GE 7000 series, the board integrates seamlessly with GE’s control systems, providing full compatibility and easy integration with existing hardware.
Questions fréquentes (FAQs)
Q1: What is the input voltage for the GE IS200STCIH4A terminal board?
A1: The GE IS200STCIH4A terminal board accepts 24 VDC input, which is a standard voltage for many industrial control systems.
Q2: What are the dimensions sur the GE IS200STCIH4A terminal board?
A2: The terminal board measures 36 x 130 x 135 mm, making it compact and space-efficient for installation in control panels.
Q3: What is the weight sur the GE IS200STCIH4A terminal board?
A3: The terminal board weighs 0.3 kg, which is lightweight for easy handling and installation.
Q4: How is the GE IS200STCIH4A mounted?
A4: The GE IS200STCIH4A terminal board can be mounted using DIN rail mounting, which is a common method for industrial control systems.
Q5: What is the operating temperature range sur the GE IS200STCIH4A?
A5: The board operates within the temperature range sur -40°C to +70°C, making it suitable for use in both hot and cold industrial environments.
Q6: What type sur input does the GE IS200STCIH4A accept?
A6: This terminal board accepts contact input signals, ideal for monitoring machine status, safety devices, or relay outputs.
Q7: Is the GE IS200STCIH4A suitable for harsh environments?
A7: Yes, it is built to withstand harsh industrial conditions, and it has an IP20 rating, indicating protection against dust and water ingress for internal use.
Q8: How does the GE IS200STCIH4A connect to the control system?
A8: The terminal board uses Phoenix Contact terminal blocks for secure electrical connections to other components in the control system.
Q9: What industries use the GE IS200STCIH4A terminal board?
A9: It is widely used in industries such as manufacturing, energy, utilities, and automation for monitoring and controlling process signals.
Q10: Can the GE IS200STCIH4A terminal board be used in data acquisition systems?
A10: Yes, it is ideal for use in data acquisition systems, providing input signal conditioning and reliable data transmission to the main system processor.
Related Modèles
| Modèle | Description | Input Type | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|
| IS200STCIH4B | Dual-Channel Contact Input Terminal Board | Contact Input | 40 x 150 x 140 | 0.4 |
| IS200STCIH4C | Single-Channel Input Terminal Board | Contact Input | 35 x 125 x 130 | 0.28 |
| IS200STCIH4D | Single-Channel Input Terminal Board | Contact Input | 36 x 130 x 135 | 0.3 |
| IS200STCIH5A | Multi-Channel Contact Input Terminal Board | Contact Input | 50 x 160 x 150 | 0.5 |
| IS200STCIH5B | Dual-Channel Input Terminal Board | Contact Input | 45 x 145 x 145 | 0.45 |
| IS200STCIH5C | Dual-Channel Input Terminal Board | Contact Input | 48 x 150 x 155 | 0.48 |
