Experimental Overview

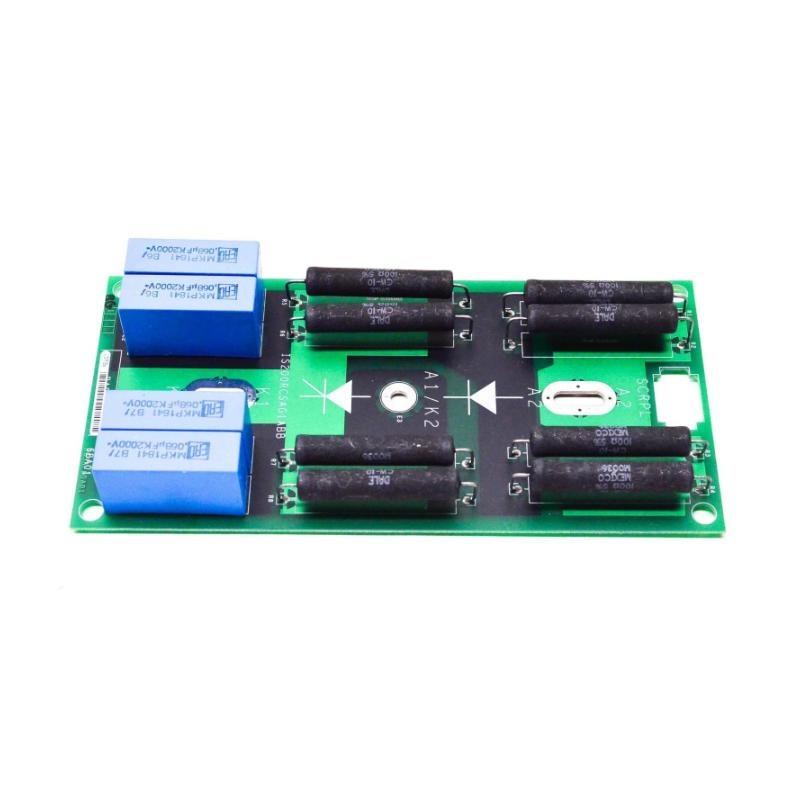

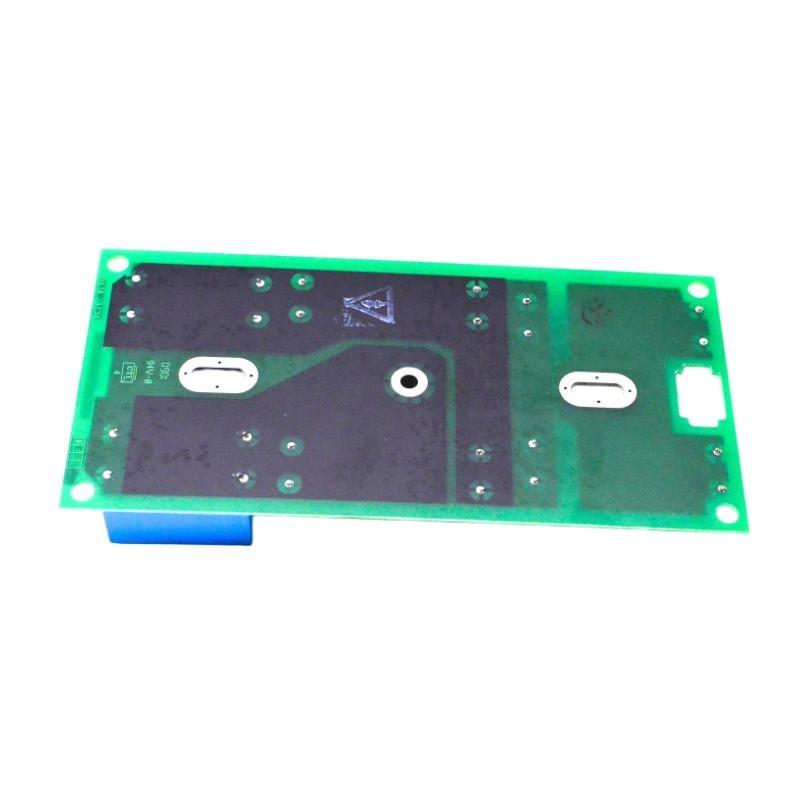

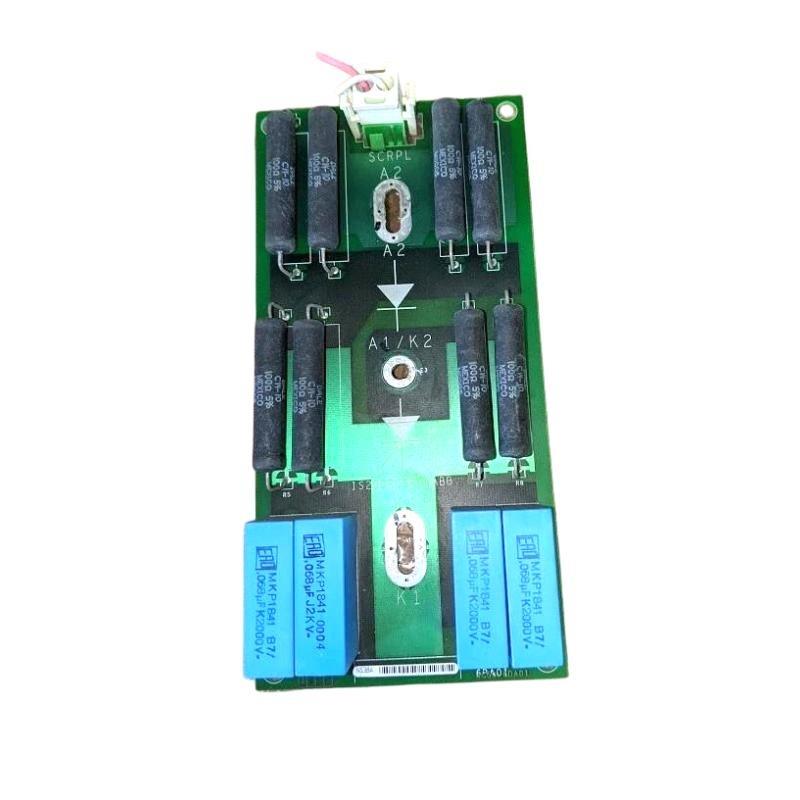

The IS200RCSAG1ABB is a specialized control system module designed to provide precise coordination between field devices and CPU logic. In R&D lab testing, this module demonstrates exceptional stability under rapidly changing input conditions and surfers highly predictable output timing. Its architecture is engineered to support critical industrial processes where minimal latency and signal integrity are essential.
Technical Prsurile and Physical Details
| Feature | Details |
|---|---|
| Marque | GE |
| Module Type | Control System Module |
| Operating Voltage | 24V DC |
| Discrete Channels | 12 programmable I/O channels |
| Maximum Current per Channel | 0.5A |
| Response Time | <2 ms |
| Dimensions (L × W × H) | 145 mm × 90 mm × 48 mm |
| Poids | 0.68 kg |
| Operating Temperature | -20°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Signal Isolation | Opto-isolated |
| Certifications | UL, CE, RoHS |
Laboratory Observations
During controlled testing, engineers noted:
-
Low-latency response: Output signals maintained sub-2 ms propagation delays even when multiple channels were active.
-
Stable signal isolation: No cross-talk observed between adjacent channels, even under high-voltage transients.
-
Consistent LED feedback: Each channel’s diagnostic LED accurately reflected real-time operation, aiding rapid troubleshooting.
-
Thermal resilience: Module function remained within specification limits across extended temperature cycles.
These attributes make the IS200RCSAG1ABB highly reliable for experimental validation sur new control sequences before plant deployment.
Practical Applications in Industrial R&D
-
Prototype assembly lines: Allows testing sur new actuator and sensor configurations with minimal setup time.
-
High-precision motion control: Provides deterministic timing for robotic arms and CNC systems.
-
System integration trials: Facilitates safe and isolated communication between new control hardware and legacy GE CPUs.
-
Safety interlock simulations: Ensures that emergency sequences are executed without delay or error.
In lab scenarios, this module allows engineers to verify system behavior under simulated field stresses.
Advantages for Engineers and R&D Teams
-
Deterministic timing: Crucial for validating fast sequences and process interlocks.
-
Signal integrity assurance: Built-in isolation prevents noise from interfering with sensitive channels.
-
Compact design: Fits easily in experimental control racks.
-
Visual diagnostics: LED indicators speed up iterative testing and troubleshooting.
-
High durability: Resists vibration and thermal cycling, common in lab setups.
-
Flexible integration: Compatible with a variety sur GE CPUs and I/O modules.
