Présentation du produit

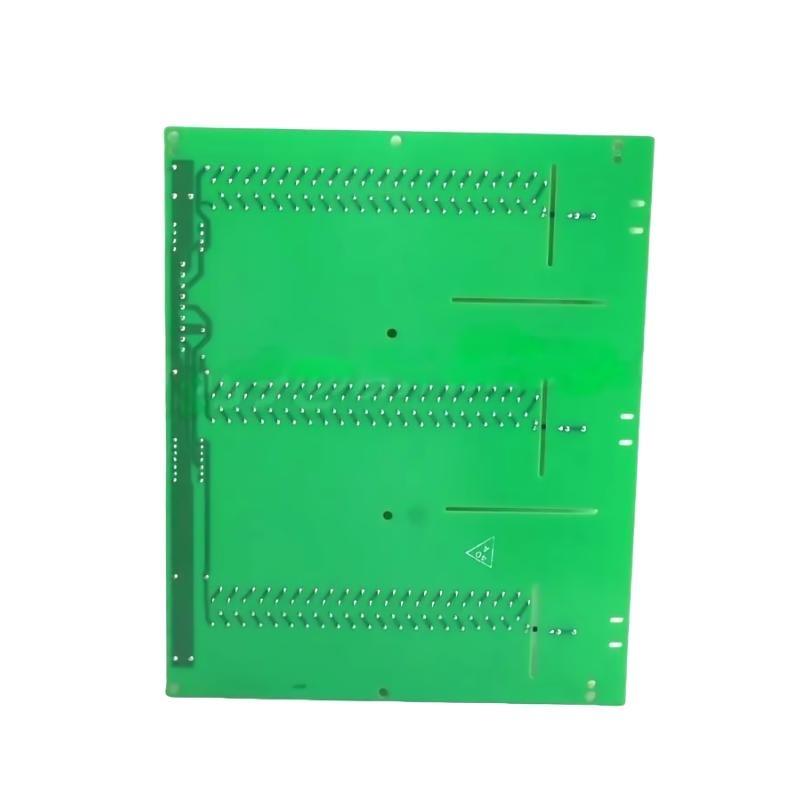

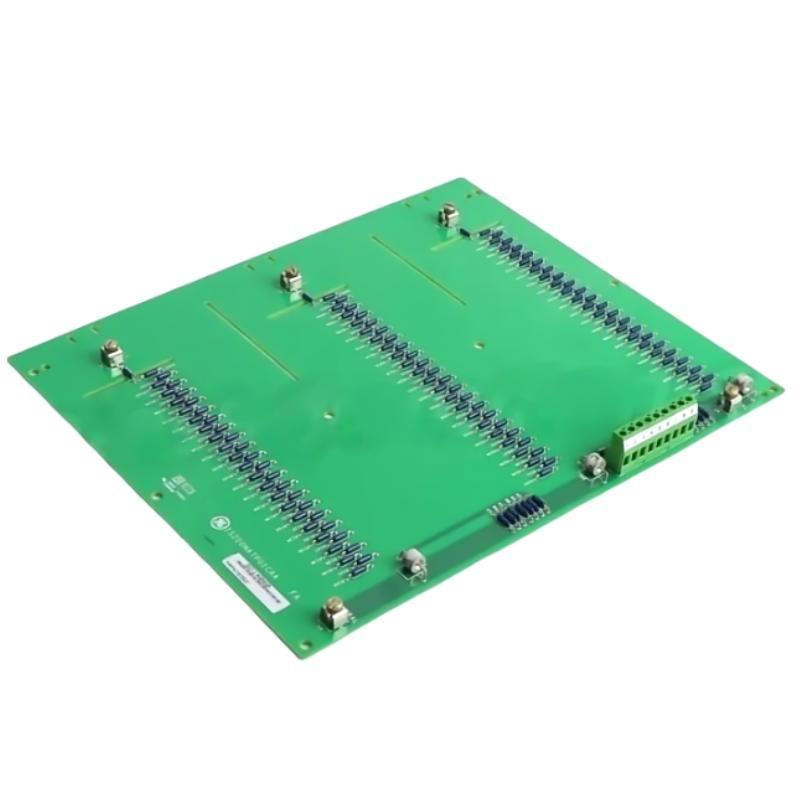

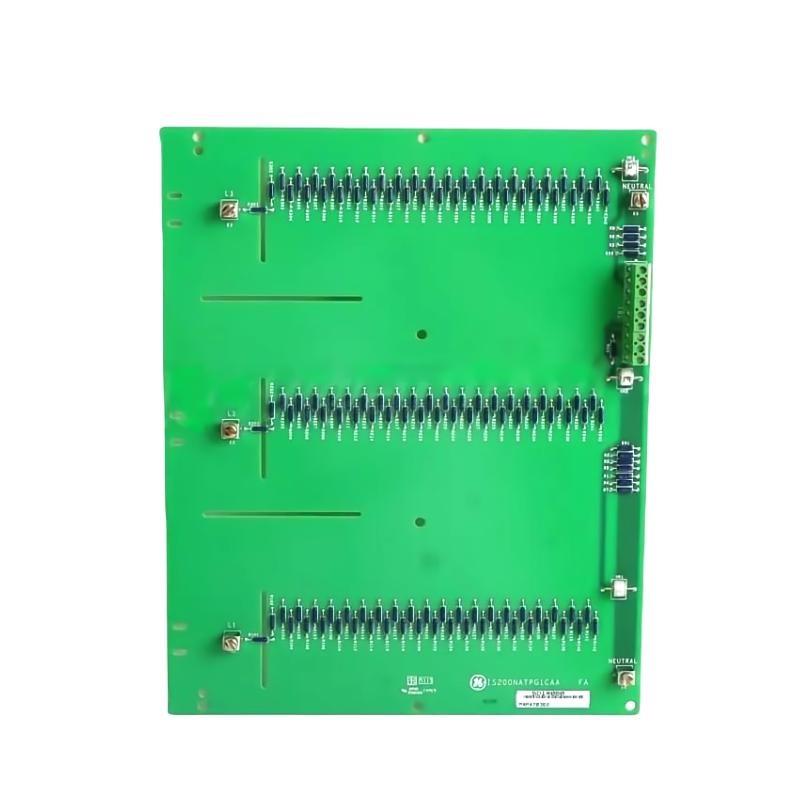

The GE IS200NATPG1CAA is a Control Assembly Backplane Module designed for use in GE Mark VI and Mark VIe control systems, specifically serving as a high-density backplane that enables communication and power distribution between multiple I/O, control, and interface modules. This backplane is essential for organizing and structurally supporting the installation sur printed circuit boards (PCBs) within a control cabinet or VME chassis.
Engineered for reliable, real-time communication and synchronization, the IS200NATPG1CAA connects controllers to I/O modules, terminal boards, and other critical components. Its robust signal integrity design and fault-tolerant architecture ensure that control signals, analog data, and diagnostics flow seamlessly throughout the system.
The module plays a vital role in high-reliability industrial automation and turbine control environments, making it an indispensable part sur GE’s distributed control infrastructure.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle | IS200NATPG1CAA |
| Référence | IS200NATPG1CAA |
| Module Type | Control Assembly Backplane |
| Function | Physical and electrical interface for system control modules |
| Signal Type | Digital, analog, control, and power bus |
| Slot Configuration | Supports multiple module slots (varies by application) |
| Supported Modules | VME CPU, IONet, TREG, TRLY, VCMI, DSPX, and others |
| Communication Bus | VME, IONet, Ethernet (through module interfaces) |
| Power Distribution | Supplies +5V, ±15V, and other required voltages to modules |
| Backplane Protocol | VME64 architecture compliant |
| Hot Swap Capability | Dependent on connected module configuration |
| Mounting Type | Rack-mounted in control cabinet |
| Material | Multilayer PCB with reinforced fiberglass epoxy |
| Diagnostics | Passive component – no active diagnostics |
| System Compatibility | GE Mark VI, Mark VIe |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH non-condensing |
| Dimensions (W × H × D) | 425 × 290 × 40 mm |
| Poids | 0.5 kg |
| Certifications | CE, UL, CSA |
Product Applications
The GE IS200NATPG1CAA is deployed in industrial automation and turbine control systems, where high-speed backplane communication and modular system design are essential. Its applications include:
-
Gas and Steam Turbine Control Systems – Providing the physical foundation for controller and I/O module interconnection in critical energy applications.
-
Balance sur Plant (BoP) Systems – Supporting subsystems such as pumps, fans, and compressors through integrated control.
-
Industrial Automation Panels – Enabling communication between logic processors, signal conditioners, and relay modules.
-
Power Generation Plants – Serving as the structural and electrical backbone for centralized turbine control platforms.
-
SCADA and DCS Architectures – Offering streamlined wiring and signal routing for distributed control elements.
-
Marine and Naval Applications – Supporting real-time control in ruggedized environments where vibration and temperature stability are essential.
Product Advantages
-
Modular Flexibility: Allows system integrators to customize configurations with various I/O and controller cards.
-
High-Speed Signal Integrity: Designed for use with VME64 architecture to ensure low-latency, noise-resistant communication.
-
Centralized Power Distribution: Efficiently supplies required voltages to all mounted modules, reducing wiring complexity.
-
Structural Integration: Simplifies physical installation sur multiple circuit boards into a single system chassis.
-
GE Mark VI/VIe Compatibility: Seamlessly integrates with standard GE control platforms for easy deployment and expansion.
-
Reliable Connectivity: Ensures proper signal routing between all functional modules, minimizing downtime risks.
-
Industrial Durability: Manufactured using high-grade PCB material suitable for harsh operational conditions.
-
Simplified Maintenance: Provides clear modular layout for service access and upgrades.
Questions fréquentes (FAQ)
-
Which GE systems are compatible with the IS200NATPG1CAA backplane?
It is designed for GE Mark VI and Mark VIe control platforms. -
Does the backplane support VME communication architecture?
Yes, it supports VME64 standard architecture and is compatible with GE VME-based modules. -
Can analog and digital signals be routed simultaneously through this backplane?
Yes, it supports both analog and digital signal types for integrated system operations. -
Is this module hot-swappable?
The backplane itself is passive; hot-swapping depends on the active modules connected to it. -
Does the backplane include embedded diagnostics?
No, the backplane is a passive component and does not include onboard diagnostics. -
How is power supplied to modules via the backplane?
Power is distributed through integrated bus lines that deliver multiple voltage rails. -
What types sur modules can be mounted on this backplane?
Common modules include VCMI, DSPX, TRLY, TREG, and VME CPU cards. -
Can it be used in redundant system configurations?
Yes, it supports systems designed with controller and I/O redundancy. -
Is shielding required for use in high-EMI environments?
Shielding is recommended for high-noise areas but the board design supports EMI-resistant communication. -
What is the typical wiring method used with this backplane?
Ribbon cable connectors and pin headers are typically used for module interconnection.
