Présentation du produit

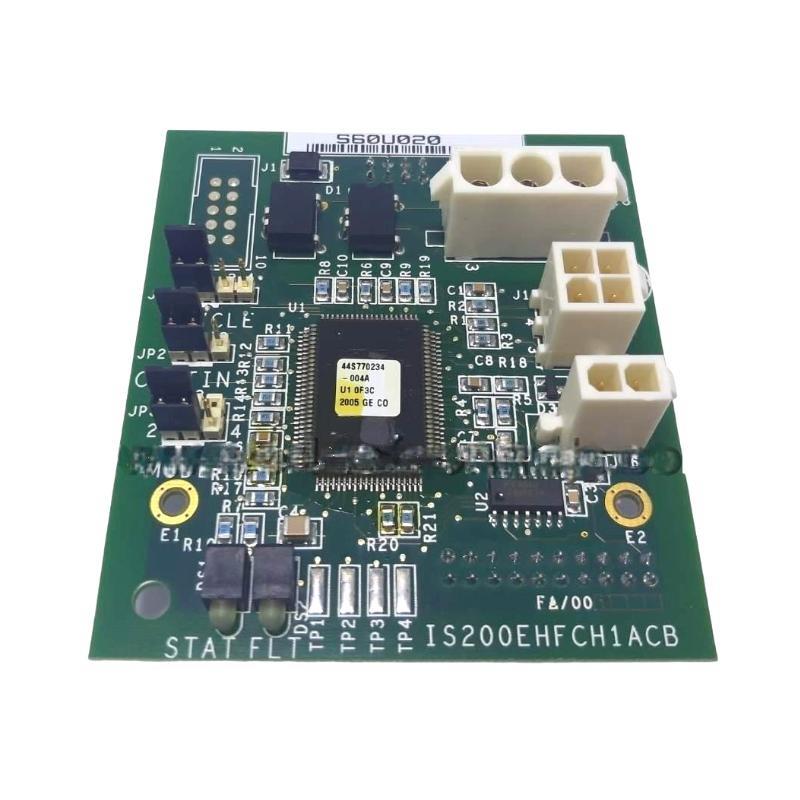

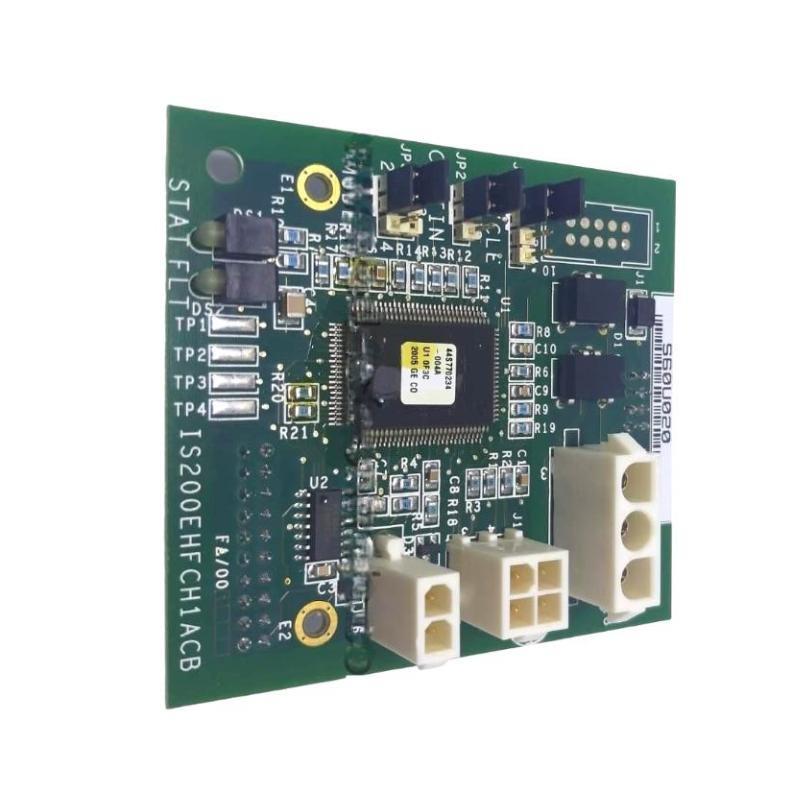

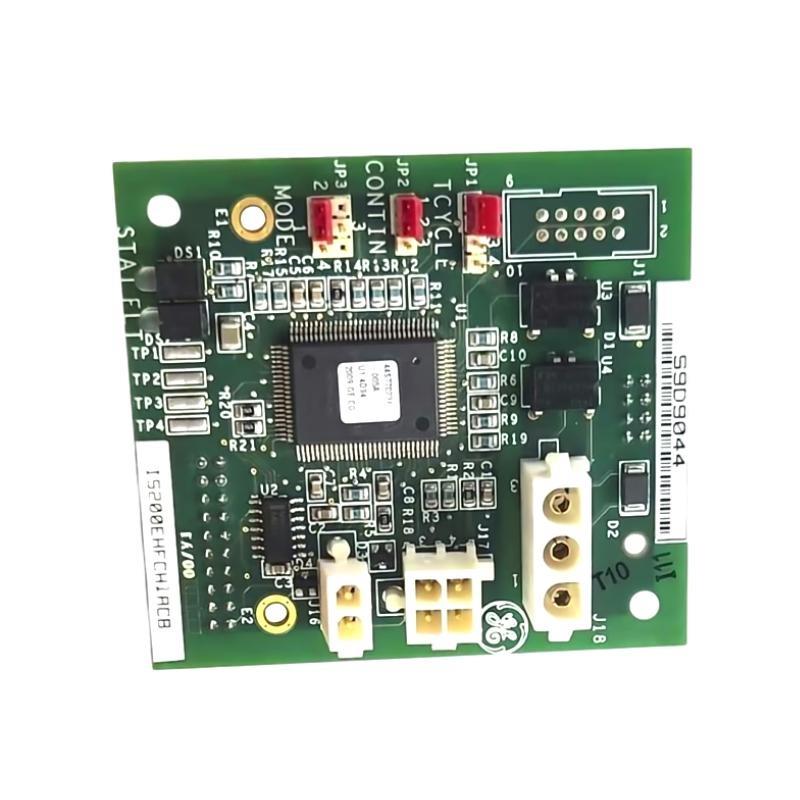

The GE IS200EHFCH1A is an Exciter Fan Control (EHFC) Module, designed as a critical component sur the EX2100 Excitation Control System. This module plays a pivotal role in regulating and monitoring the cooling fans used within the exciter’s enclosure, ensuring safe thermal operating conditions for power electronics and control modules.
With advanced monitoring, control logic, and alarm interfacing capabilities, the IS200EHFCH1A ensures that the cooling infrastructure runs optimally to prevent overheating and thermal degradation sur high-power semiconductor devices. It supports dual fan configurations, failure detection, speed monitoring (when applicable), and remote trip signaling in the event sur cooling anomalies.
By automating fan operation based on temperature thresholds or system logic, the EHFC board enhances the operational reliability, longevity, and safety sur the EX2100 exciter and associated generator control systems. Its modular construction allows easy integration, diagnostics, and replacement in field applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Fabricant | General Electric (GE) |
| Référence | IS200EHFCH1A |
| Product Type | Exciter Fan Control Module |
| System Compatibility | GE EX2100 Excitation Control System |
| Control Function | Fan start/stop, status detection, alarm triggering |
| Fan Interface | Supports single or dual fan configurations |
| Fan Voltage Compatibility | Typically 115/230V AC or 24V DC fans (external dependent) |
| Control Output | Relay contact outputs to fan drives |
| Monitoring Features | Overcurrent, open fan, short circuit, speed feedback (optional) |
| Alarm/Trip Interface | Connects to system alarm and trip circuitry |
| Power Supply Requirement | Typically 28 VDC or from system backplane |
| Communication | Discrete I/O and relay signaling |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95%, non-condensing |
| Mounting Type | Rack-mounted (standard EX2100 chassis) |
| Cooling Method | Convection via system airflow |
| Compliance Standards | UL, CE, RoHS (application dependent) |
| Dimensions (L × W × H) | 267 × 216 × 25 mm |
| Poids | 2.5 kg |
Product Applications
The IS200EHFCH1A Exciter Fan Control board is primarily deployed in GE EX2100 systems but can also be found in related exciter and generator control environments where active thermal regulation is critical. Applications include:
-
Excitation systems for synchronous generators
-
Turbine generator auxiliary cooling systems
-
Industrial power supply enclosures
-
Medium-voltage drive cabinet cooling
-
Motor control center (MCC) fan regulation
-
Heavy industrial automation systems with temperature-sensitive power electronics
This module is essential for preserving the thermal integrity sur systems that rely on consistent airflow and fan performance, especially in high-reliability power generation environments.
Product Advantages
-
Automated Fan Control
Ensures real-time activation and deactivation sur fans based on thermal and logic parameters, reducing unnecessary wear and energy use. -
Comprehensive Fan Monitoring
Detects fan failure conditions such as open winding, short circuits, or loss sur speed—improving system awareness and fault response. -
System Safety Integration
Integrates with alarm and trip circuits, allowing proactive shutdown in the event sur cooling loss to protect expensive power electronics. -
Modular Replacement
Rack-mount design enables rapid field replacement or maintenance without extensive downtime. -
Durable and Industrial-Grade
Built to withstand the demands sur power stations, turbine halls, and other heavy-duty applications with high EMI and vibration levels. -
Reliable Communication
Supports clear signal output and input paths to ensure error-free fan control and response tracking. -
Low Maintenance
Designed for longevity with minimal component failure rates and high MTBF. -
Optimized for EX2100
Seamlessly integrates with GE’s EX2100 control ecosystem, requiring no additional interfacing hardware.
Questions fréquentes (FAQ)
-
What is the primary function sur the IS200EHFCH1A board?
The EHFC module manages the operation and health monitoring sur exciter cooling fans within GE EX2100 excitation systems. -
Can the module control more than one fan?
Yes, it is capable sur supporting and monitoring multiple fans in redundant configurations. -
How does the board detect fan failure?
It monitors for open circuits, overloads, and in some cases, lack sur expected speed feedback to determine failure conditions. -
Does the board include trip or alarm relay outputs?
Yes, it connects to system-level trip and alarm relays to initiate protective actions when cooling failure is detected. -
Is the IS200EHFCH1A compatible with all EX2100 systems?
It is designed specifically for use within the EX2100 family and is typically compatible across different EX2100 configurations. -
What kind sur power supply does it require?
Power is usually supplied via the backplane or a dedicated low-voltage DC input, commonly 28 VDC. -
Is the module hot-swappable?
No, it should only be replaced when the system is powered down and properly isolated. -
Does the board need ssurtware configuration?
Configuration is generally handled at the system level. The EHFC module itself does not require embedded ssurtware changes. -
What happens if a fan fails during operation?
The module signals the fault, triggers an alarm or trip (depending on system setup), and allows redundancy (if dual fans are installed) to mitigate failure impact. -
Are there onboard diagnostics or indicators on the EHFCH1A module?
The board is equipped with onboard LEDs to indicate fan status, power availability, and fault conditions, simplifying local diagnostics.
