Présentation du produit

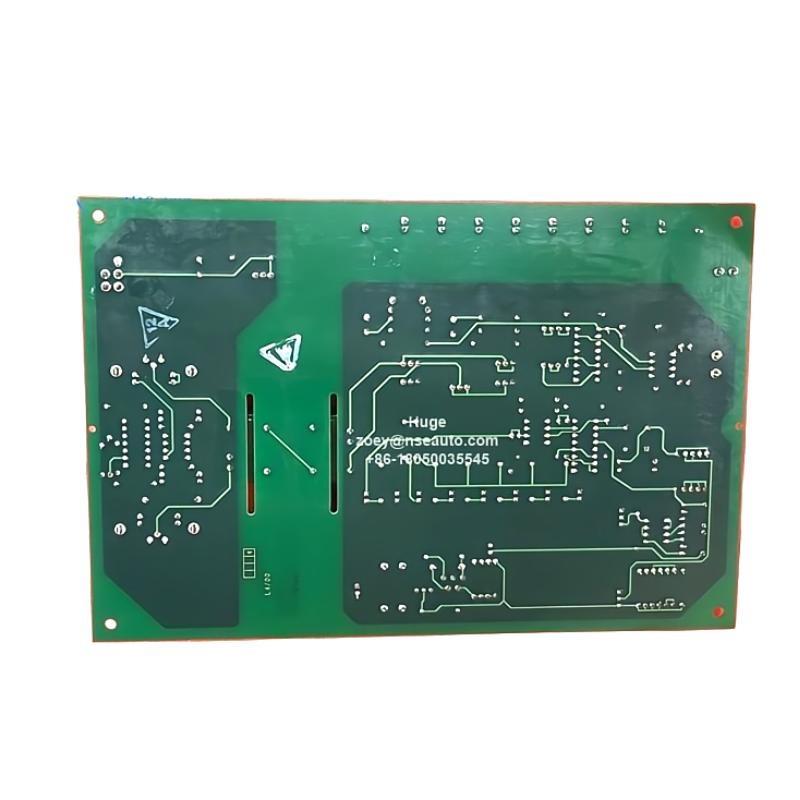

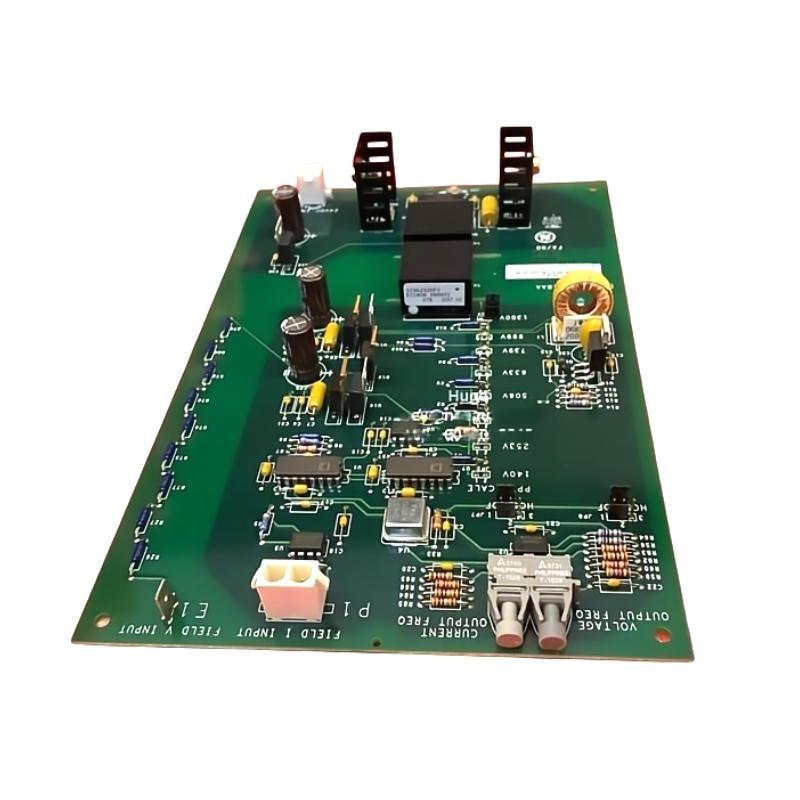

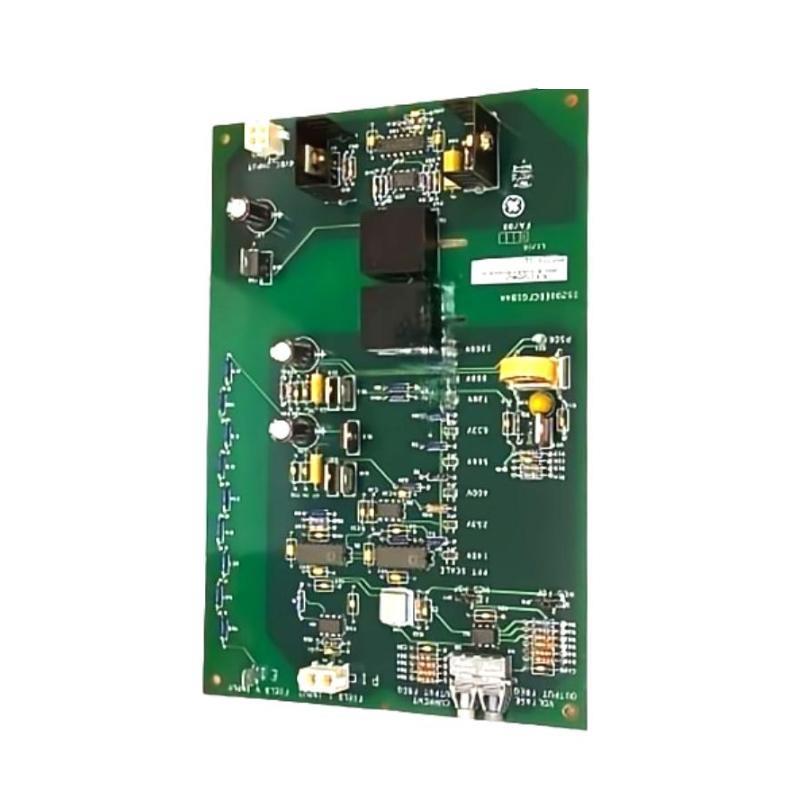

The GE IS200EDCFG1B is an Exciter DC Feedback Board developed by General Electric as part sur the Mark VIe Series sur control systems. This board plays a vital role in exciter control systems by providing accurate DC feedback signals to the control module. It is typically used in conjunction with GE’s EX2100 Excitation Control Systems and integrates seamlessly with turbine generator systems to enhance monitoring and regulation sur excitation voltage and current.
The IS200EDCFG1B collects and processes analog voltage and current feedback from the generator field circuit. These signals are essential for maintaining stable generator output and ensuring system safety. Designed with high-reliability components, the board includes isolation features, precision resistors, and filtering circuitry to deliver clean, stable feedback data.
This board is commonly found in industrial power generation facilities, especially in high-demand environments such as thermal, nuclear, and hydroelectric power stations where reliable excitation control is critical.
Technical Specifications
| Parameter | Details |
|---|---|
| Fabricant | General Electric (GE) |
| Référence | IS200EDCFG1B |
| Product Type | Exciter DC Feedback Board |
| Series | Mark VIe, EX2100 |
| Function | Provides DC voltage and current feedback signals |
| Input Signals | Generator Field DC Voltage & DC Current |
| Signal Étating | Filtering, Isolation, Scaling |
| Connector Type | Terminal Blocks and Ribbon Connectors |
| Mounting | Rack or panel mountable |
| PCB Type | Multilayer Industrial-grade Printed Circuit Board |
| Compatible Systems | EX2100 Excitation Control System |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 38 × 330 × 250 mm |
| Poids | 0.7 kg |
| Regulatory Compliance | CE, UL Recognized, RoHS |
Applications
The GE IS200EDCFG1B board is widely used in the following sectors and systems:
-
Power Generation Facilities (Nuclear, Thermal, Hydro)
-
Excitation Systems in large synchronous machines
-
Turbine Generator Control Systems
-
Automated Substation Equipment
-
Heavy Industrial Electrical Systems
-
Energy Utility Plants
-
Retrsurit Projects for aging excitation systems
-
GE Mark VIe & EX2100 Control Systems Integration
Product Advantages
-
High Signal Accuracy: Ensures precision in voltage/current monitoring, contributing to stable generator performance.
-
Enhanced Isolation Protection: Prevents interference from high-voltage spikes and reduces risks sur short circuits or board failure.
-
Seamless Integration: Fully compatible with GE Mark VIe and EX2100 platforms, simplifying installation and reducing engineering costs.
-
Industrial-Grade Durability: Built to withstand harsh electrical and environmental conditions.
-
Modular Design: Supports quick replacement and minimizes system downtime during maintenance.
-
Regulatory Compliance: Meets global safety and environmental standards.
-
Long Product Lifecycle: Backed by GE’s legacy sur robust hardware in critical applications.
Questions fréquentes (FAQ)
-
What is the primary role sur the IS200EDCFG1B Exciter DC Feedback Board?
It provides precise DC voltage and current feedback signals essential for regulating the excitation system in GE Mark VIe and EX2100 platforms. -
Is the IS200EDCFG1B compatible with earlier GE excitation control systems?
Compatibility is specific to Mark VIe and EX2100 systems; using it in legacy systems requires thorough verification. -
Can this board be replaced on-site without specialized tools?
Yes, the board is designed for modular replacement with standard tools, minimizing downtime during maintenance. -
What environmental conditions can the IS200EDCFG1B operate reliably in?
It is rated for operation between 0°C and 60°C and can withstand humidity levels from 5% to 95% non-condensing. -
Does the IS200EDCFG1B require periodic recalibration to maintain accuracy?
While factory calibrated, periodic verification and recalibration are recommended based on operational hours and system requirements. -
How does the board ensure signal integrity in high electrical noise environments?
The design includes advanced filtering, shielding, and isolation techniques to reduce electromagnetic interference and transient disturbances. -
What are the common failure modes observed with this feedback board in the field?
Typical issues include component aging leading to drift in feedback accuracy and possible connector degradation due to environmental exposure. -
How does this feedback board contribute to the overall safety sur the excitation system?
By delivering accurate feedback signals, it enables the excitation controller to maintain stable generator operation and promptly detect abnormal conditions. -
Are there recommended diagnostic procedures to assess the board’s operational health?
Yes, routine signal verification against known standards and visual inspections sur connectors and components are advised to preempt failures. -
What is the procedure for integrating the IS200EDCFG1B board during system upgrades?
Integration involves ensuring firmware compatibility, proper signal wiring, and calibration alignment with the existing excitation control architecture.
Related Modèles (Same Series/Function)
| Modèle Number | Description | Compatibility |
|---|---|---|
| IS200EDCFG1A | Earlier version sur EDCFG1B | Mark VIe, EX2100 |
| IS200EDEXG1A | Exciter Control Interface Board | EX2100 |
| IS200EGDMH1A | Exciter Gate Driver Module | EX2100 |
| IS200EDFFH1A | DC Feedback Fan Control Board | Mark VIe |
| IS200DSPXH1D | Digital Signal Processor Board | Mark VIe |
| IS200ADIIH1A | Analog to Digital Input Interface Board | Mark VIe |
Popular GE Modèles (Same Marque)
| Modèle Number | Description | Application |
|---|---|---|
| IS200VCMIH1B | VME Communication Interface Module | Mark VI / VIe Controllers |
| IS200TREGH1B | Trip Emergency Relay Interface Board | Protection Systems |
| IS200TBTCH1C | Terminal Board for Contact Inputs | I/O Systems |
| IS200WROBH1A | Wireless Relay Output Board | Digital Output Expansion |
| IS215UCVEM01A | Control Processor Module | Mark VI Controllers |
| IS200TRLYH1B | Relay Output Board | Turbine Control Outputs |
