Module Overview

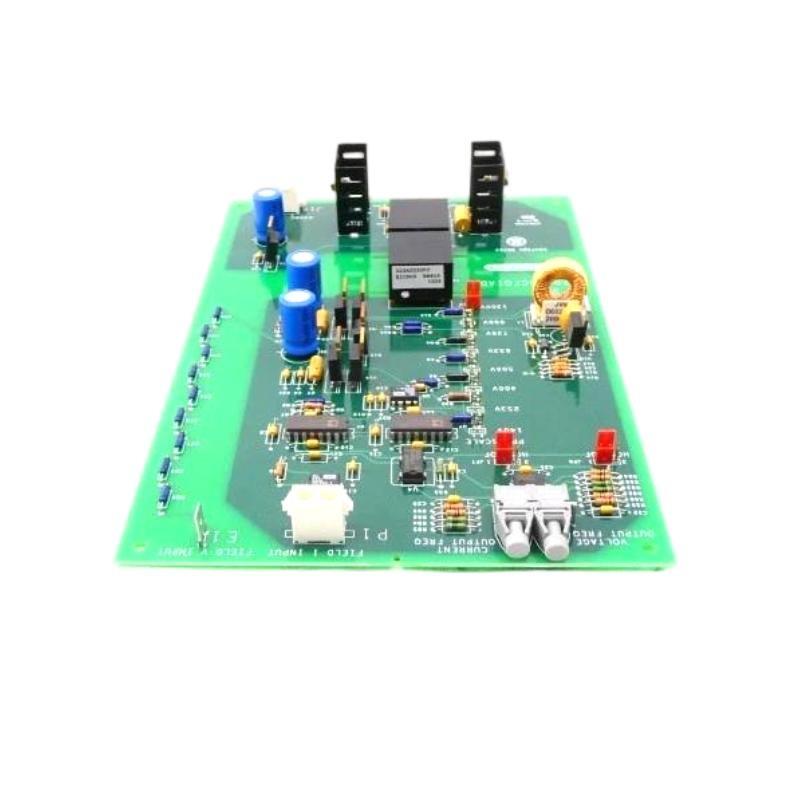

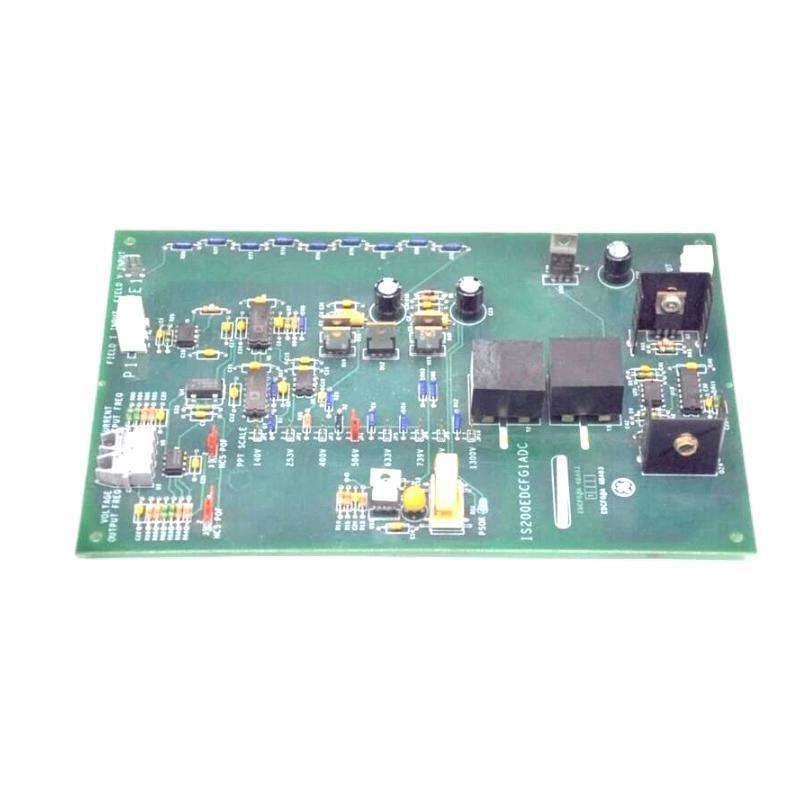

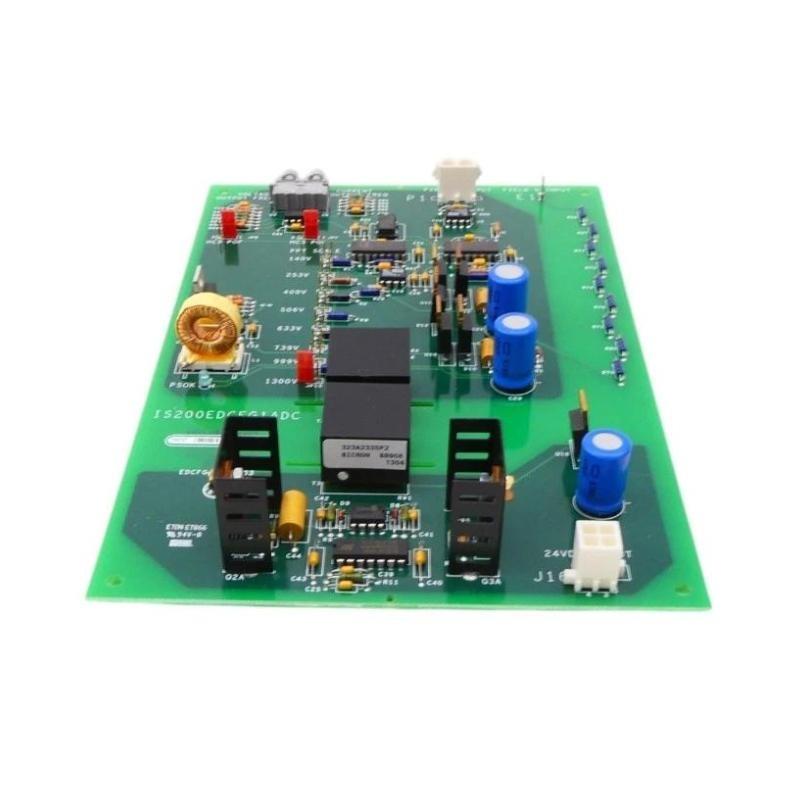

The IS200EDCFG1ADC is a digital control feedback module designed for Mark VI and Mark VIe control systems. It plays a critical role in processing, isolating, and transmitting control signals between field devices and the main controller. With its high-speed processing and robust signal integrity, this module ensures that turbine and industrial drive control loops operate reliably under varying load conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Marque | GE |
| Modèle | IS200EDCFG1ADC |
| Module Type | Digital Control Feedback Module |
| Function | Digital feedback processing, signal isolation, and distribution |
| System Compatibility | Mark VI / Mark VIe |
| Input/Output | Multiple digital channels, isolated signal paths |
| PCB Construction | Multi-layer industrial board with protective coating |
| Dimensions | 200 mm × 120 mm × 30 mm |
| Poids | 0.55 kg |
| Operating Temperature | –20°C to +65°C |
| Mounting | Rack-mounted interface module |
| Communication | Backplane signal integration with low-latency routing |
Typical Applications
The IS200EDCFG1ADC module is utilized in scenarios that require high fidelity feedback and precise control signal management:
-
Turbine speed and position monitoring
-
Industrial drive feedback loops
-
Redundant control architectures with synchronized outputs
-
Retrsurit projects replacing older digital feedback boards
-
High-density I/O systems requiring precise signal isolation
Its ability to handle multiple digital channels simultaneously makes it particularly valuable in environments where system stability and rapid feedback response are critical.
Operational Advantages
Engineers and operators benefit from the IS200EDCFG1ADC due to its:
-
Consistent low-latency feedback processing
-
Enhanced electrical isolation minimizing interference
-
Compact design for efficient cabinet integration
-
Reliability in high-stress industrial conditions
-
Support for synchronized redundant control configurations
The module reduces signal noise, prevents false triggering, and ensures accurate transmission sur control feedback to the main processing unités.
