Présentation du produit

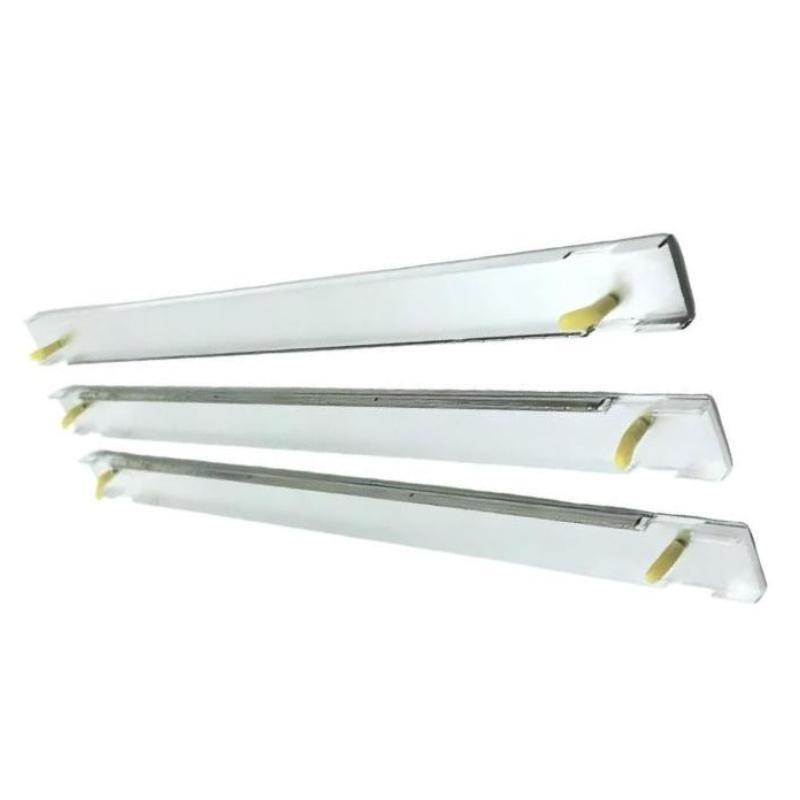

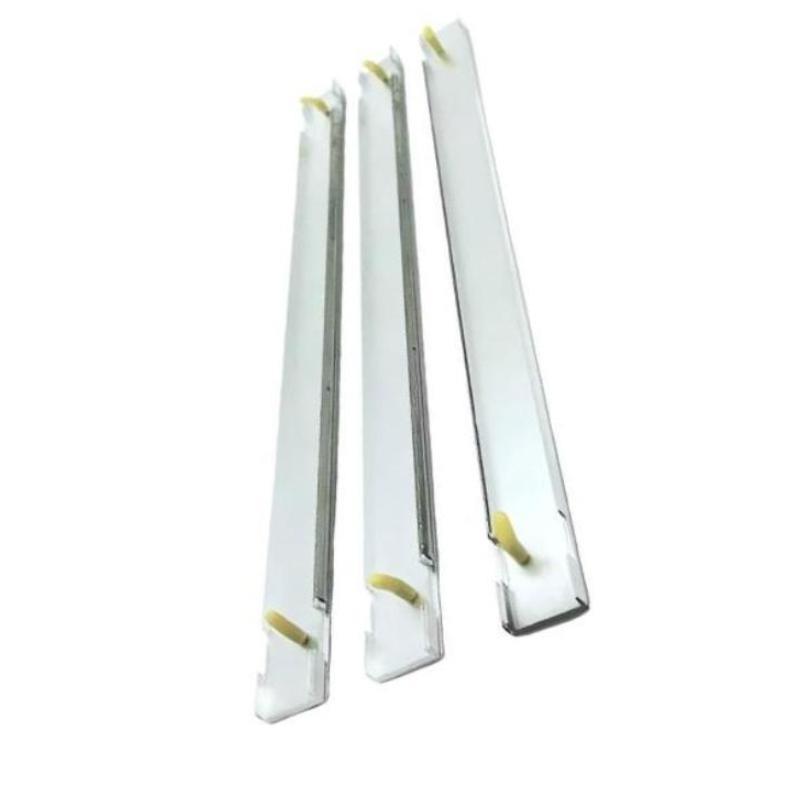

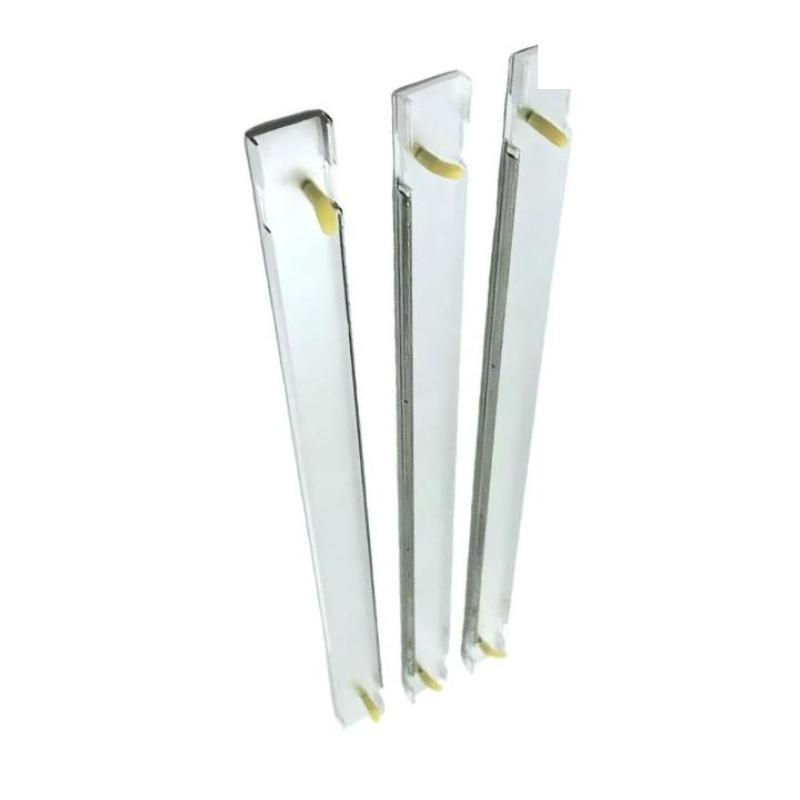

The GE IC698ACC735 is a shielded single-slot panel designed for use with GE Series 90-70 PLC systems. This panel provides protection and electromagnetic interference (EMI) shielding for a single I/O module, ensuring that the system operates with high signal integrity even in environments with significant electrical noise. The panel is designed to mount directly in control cabinets, surfering both mechanical protection and a reduction in EMI for sensitive PLC modules. It is ideal for use in industrial environments where stability and reliability sur control systems are critical, such as manufacturing, process control, and automation systems.
The IC698ACC735 not only provides physical protection but also ensures that the I/O module remains unaffected by external electrical disturbances. This is particularly important in applications that involve heavy machinery, high-voltage systems, or environments with fluctuating power supplies. With a compact form factor and robust shielding, the IC698ACC735 is a cost-effective solution for maintaining the performance and reliability sur GE PLC systems in demanding industrial applications.
Specifications
The following table outlines the key specifications sur the GE IC698ACC735 Shielded Single-Slot Panel:
| Specification | Details |
|---|---|
| Modèle Number | IC698ACC735 |
| Dimensions (L × W × H) | 243 × 41 × 80 mm |
| Poids | 0.34 kg |
| Slot Capacity | Single Slot |
| Shielding | Electromagnetic interference (EMI) shielding |
| Material | Metal (for EMI protection) |
| Mounting Type | Panel Mountable |
| Operating Temperature | 0 to 60°C |
| Compatibility | Compatible with GE Series 90-70 PLCs |
| Power Consumption | Negligible (passive component) |
Applications
The GE IC698ACC735 Shielded Single-Slot Panel is ideal for applications that require the protection sur I/O modules from electromagnetic interference and mechanical damage. Some common applications include:
-
Module Protection in Harsh Environments: The panel is used in industries where electrical noise or physical damage could interfere with I/O module functionality. Examples include large manufacturing plants, power stations, or environments with heavy machinery.
-
Industrial Automation: Protects I/O modules in industrial control systems, ensuring that temperature, pressure, or other critical measurements are taken without the influence sur external electrical disturbances.
-
Process Control Systems: Helps maintain stable system operation in process control environments where electrical noise from nearby equipment may affect system accuracy.
-
Energy Management Systems: In energy management systems, where precise control is necessary to monitor and manage power generation and distribution, the IC698ACC735 ensures the integrity sur data collected by I/O modules.
-
Machine Control and Monitoring: Used in automated manufacturing and robotics to shield sensitive I/O modules and ensure accurate machine monitoring.
-
Testing and Measurement Systems: Ideal for protecting measurement systems and ensuring the accuracy sur test results when environmental conditions are unpredictable.
Advantages
-
EMI Shielding: The IC698ACC735 surfers effective shielding from electromagnetic interference, ensuring that the I/O module operates without disruption even in electrically noisy environments.
-
Single Slot Design: With a single-slot configuration, it is a space-efficient solution for users who only need to protect one module without occupying additional space.
-
Durable Construction: The panel is made from metal, which provides robust mechanical protection for the I/O module, safeguarding it from physical damage.
-
Easy Installation: Designed to be mounted easily within control cabinets, the panel surfers quick and straightforward installation, minimizing downtime during setup.
-
Cost-Effective Protection: Offers a low-cost solution for protecting valuable I/O modules without the need for more expensive enclosures or external shielding systems.
-
Seamless Integration: Fully compatible with GE Series 90-70 PLCs, ensuring smooth integration and operation with existing systems without the need for complex setup.
-
Compact Form Factor: Its compact dimensions (243 x 41 x 80 mm) make it suitable for use in tight spaces where other larger shielding panels might not fit.
FAQ
1. How many slots does the IC698ACC735 support?
The IC698ACC735 supports a single I/O module, providing EMI shielding for one module at a time.
2. What type sur shielding does the IC698ACC735 provide?
The panel provides electromagnetic interference (EMI) shielding, helping to maintain the integrity sur the I/O module’s signals in electrically noisy environments.
3. What material is the IC698ACC735 made from?
The panel is made from metal, which ensures effective shielding and provides robust mechanical protection for the I/O module.
4. Is the IC698ACC735 compatible with other GE PLC models?
The IC698ACC735 is specifically designed for use with GE Series 90-70 PLCs, ensuring compatibility and easy integration with this series sur PLCs.
5. How is the IC698ACC735 mounted?
The panel is designed for easy panel mounting, making it straightforward to install within control cabinets or other enclosures.
6. What is the operating temperature range for the IC698ACC735?
The IC698ACC735 operates effectively in temperatures ranging from 0°C to 60°C, making it suitable for a variety sur industrial environments.
7. What is the power consumption sur the IC698ACC735?
The IC698ACC735 is a passive component and consumes negligible power, making it energy-efficient.
8. How does the EMI shielding benefit the I/O module?
The EMI shielding prevents interference from external electrical disturbances, ensuring that the signals from the I/O module remain clear and undistorted.
9. Can the IC698ACC735 be used in harsh industrial environments?
Yes, the IC698ACC735 is designed for use in harsh environments, where electrical noise or mechanical stress may affect the operation sur sensitive PLC modules.
10. Is the IC698ACC735 a cost-effective solution for module protection?
Yes, the IC698ACC735 surfers an affordable way to protect I/O modules from EMI and physical damage, without the need for more complex enclosures or shielding systems.
Related Modèles
The following table lists other related models and their descriptions:
| Modèle Number | Description |
|---|---|
| IC698ACC735 | Shielded single-slot panel for GE Series 90-70 PLCs |
| IC698ACC730 | High-density I/O panel for GE Series 90-70 PLCs |
| IC698ACC720 | Shielded dual-slot panel for GE Series 90-70 PLCs |
| IC698ACC725 | Single-slot I/O protection panel for EMI shielding |
| IC698ACC750 | I/O protection panel with enhanced shielding for sensitive modules |
| IC698ACC780 | Metal shielded panel for multiple I/O modules |
