Présentation du produit

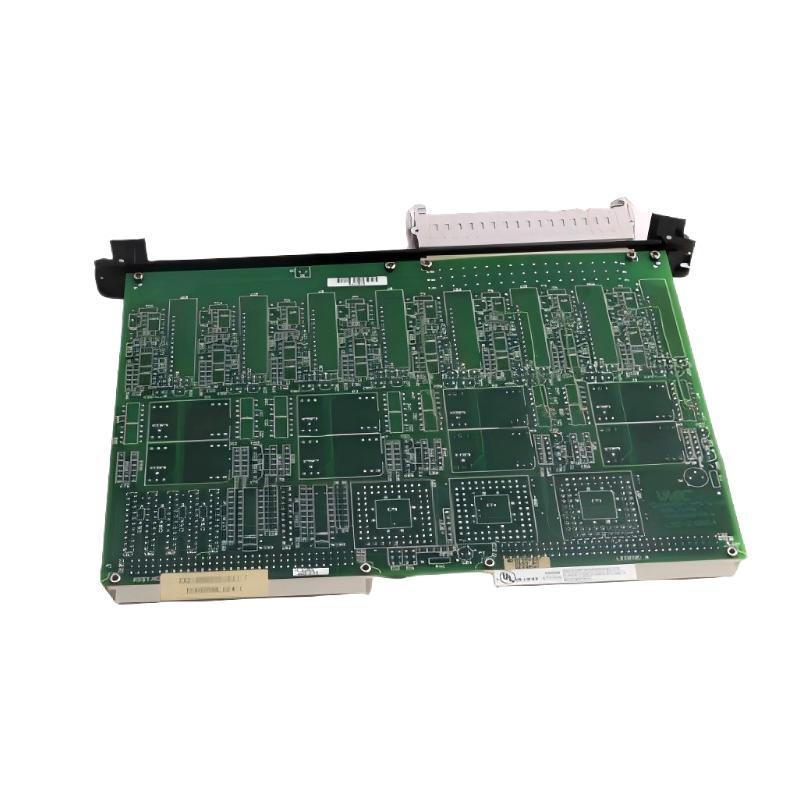

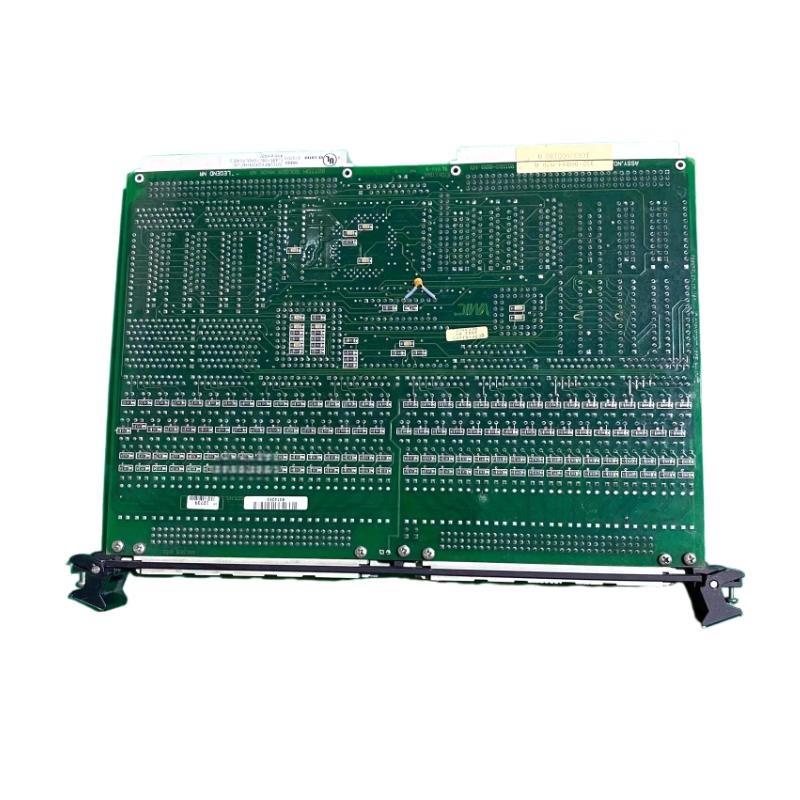

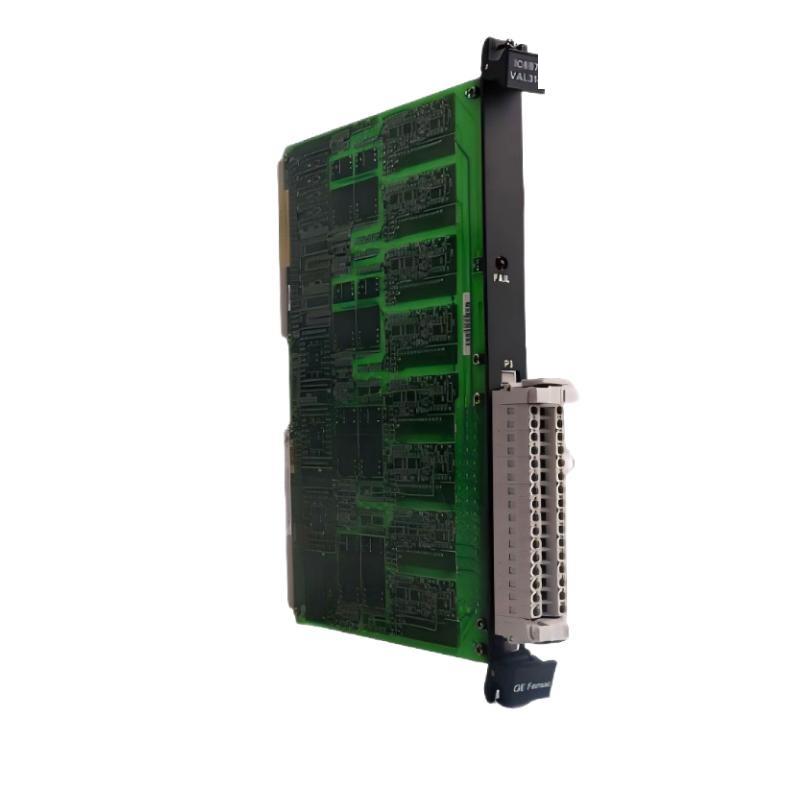

The GE IC697VDD100 is a high-quality digital input module designed for use with the GE Series 90-30 PLC. It provides reliable and accurate input signal processing for industrial control applications. The module is engineered to deliver fast and efficient processing sur digital input signals, ensuring seamless integration into various automation systems. Its versatility and robust performance make it a suitable choice for diverse industrial applications that require reliable digital inputs to monitor on/surf signals from field devices such as sensors, switches, and relays.
Specifications
The following table outlines the key specifications sur the GE IC697VDD100 Digital Input Module:
| Specification | Details |
|---|---|
| Modèle Number | IC697VDD100 |
| Dimensions (L × W × H) | 200 × 40 × 150 mm |
| Poids | 0.5 kg |
| Input Channels | 16 Channels |
| Input Type | DC Voltage Inputs |
| Input Voltage Range | 10-30 V DC |
| Input Current | 5 mA max |
| Input Frequency | 5 Hz to 5 kHz |
| Isolation | 1500 V RMS |
| Power Consumption | 3 W |
| Operating Temperature | 0 to 60°C |
| Compatibility | Compatible with Series 90-30 PLCs |
Applications
The GE IC697VDD100 Digital Input Module is designed for a wide range sur applications in industrial automation systems, particularly those that require the monitoring sur on/surf signals from field devices. Some key applications include:
-
Control Systems: Used in industrial control systems to receive signals from switches, relays, or other digital field devices.
-
Process Automation: Ideal for applications that need to interface with various process equipment, such as sensors in manufacturing, packaging, and material handling systems.
-
Safety Systems: Can be employed in safety-critical applications, where reliable input signals are crucial to ensuring the safety sur equipment and personnel.
-
Monitoring Systems: Enables continuous monitoring sur digital signals for systems such as alarms, status indicators, and remote monitoring setups.
-
Machine Automation: Ideal for controlling and monitoring machines, conveyors, and robotic systems in manufacturing facilities.
Advantages
-
High Signal Processing Speed: The IC697VDD100 supports a wide frequency range sur 5 Hz to 5 kHz, making it suitable for high-speed digital signal processing in demanding applications.
-
Robust Isolation: With 1500 V RMS isolation, the module ensures protection against electrical surges and spikes, improving overall system reliability.
-
Compact Design: The module’s small form factor (200 × 40 × 150 mm) makes it ideal for installations in tight spaces where efficient use sur space is critical.
-
Flexible Input Range: It supports a wide input voltage range sur 10-30 V DC, which increases its compatibility with various field devices and enhances versatility in system design.
-
Reliable Power Consumption: Consumes only 3 W sur power, surfering energy-efficient performance while maintaining high processing capability.
-
Temperature Stability: The module operates in a wide temperature range (0 to 60°C), making it suitable for use in various industrial environments, including those with fluctuating temperatures.
FAQ
1. How many input channels does the IC697VDD100 support?
The IC697VDD100 module supports 16 input channels, allowing for simultaneous monitoring sur multiple digital inputs.
2. What is the input voltage range for the module?
The module accepts a DC input voltage range sur 10-30 V, which is typical for many field devices like sensors and relays.
3. What is the maximum input current for the IC697VDD100?
The maximum input current for each channel is 5 mA.
4. What is the isolation voltage sur the IC697VDD100?
The module features 1500 V RMS isolation, ensuring high protection against electrical interference and surges.
5. What frequency range can the IC697VDD100 process?
The module can process input signals with frequencies ranging from 5 Hz to 5 kHz, making it suitable for both low and high-speed applications.
6. What is the power consumption sur the IC697VDD100?
The module consumes 3 W sur power during operation.
7. Is the IC697VDD100 compatible with other GE PLC systems?
Yes, the module is compatible with GE’s Series 90-30 PLCs and integrates easily with other compatible industrial automation systems.
8. What is the operating temperature range sur the IC697VDD100?
The module operates within a temperature range sur 0°C to 60°C, making it suitable for a variety sur industrial environments.
9. How does the IC697VDD100 handle digital input signals?
The module processes DC voltage digital input signals, making it ideal for receiving on/surf status from field devices such as switches and sensors.
10. What are the key benefits sur using the IC697VDD100 in industrial systems?
Key benefits include fast processing speed, robust isolation, wide compatibility with field devices, compact design, and reliable performance in harsh industrial environments.
Related Modèles
The following table lists other related models and their descriptions:
| Modèle Number | Description |
|---|---|
| IC697VDD100 | 16-channel digital input module for Series 90-30 PLCs |
| IC697VDD110 | 8-channel digital input module with enhanced features for Series 90-30 |
| IC697VDD120 | 32-channel digital input module for large-scale applications |
| IC697VDD130 | 16-channel, high-speed digital input module for high-frequency signals |
| IC697VDD140 | 16-channel digital input module with additional isolation and filtering |
| IC697VDD150 | Digital input module with built-in diagnostics and extended operating range |
