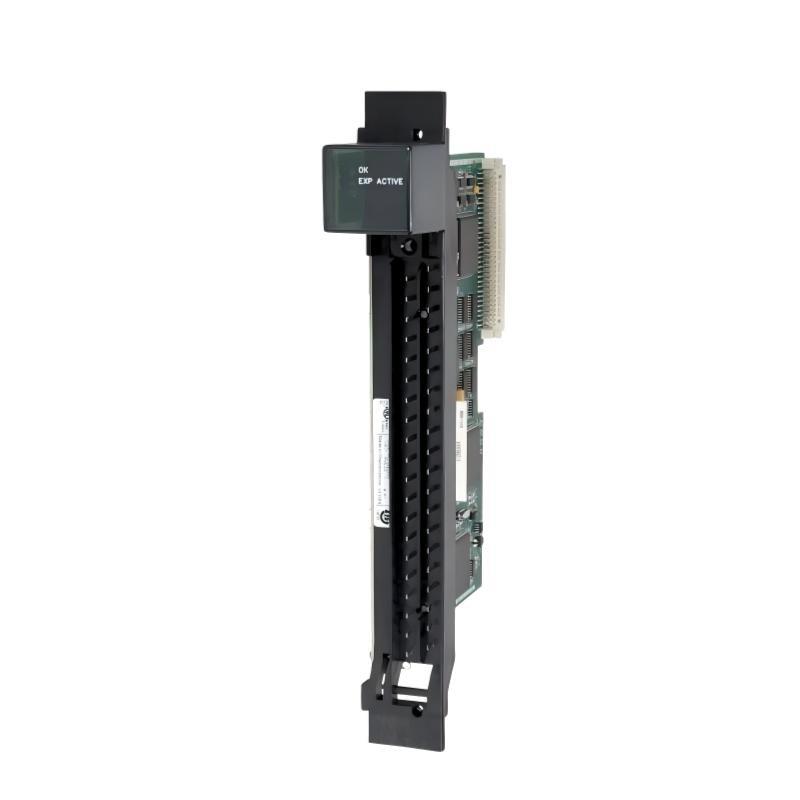

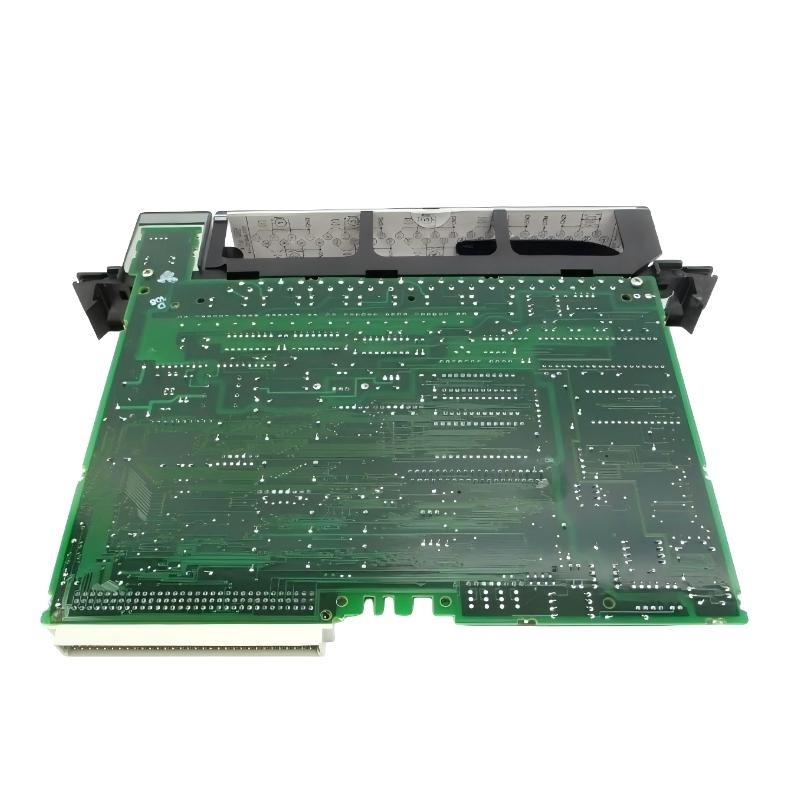

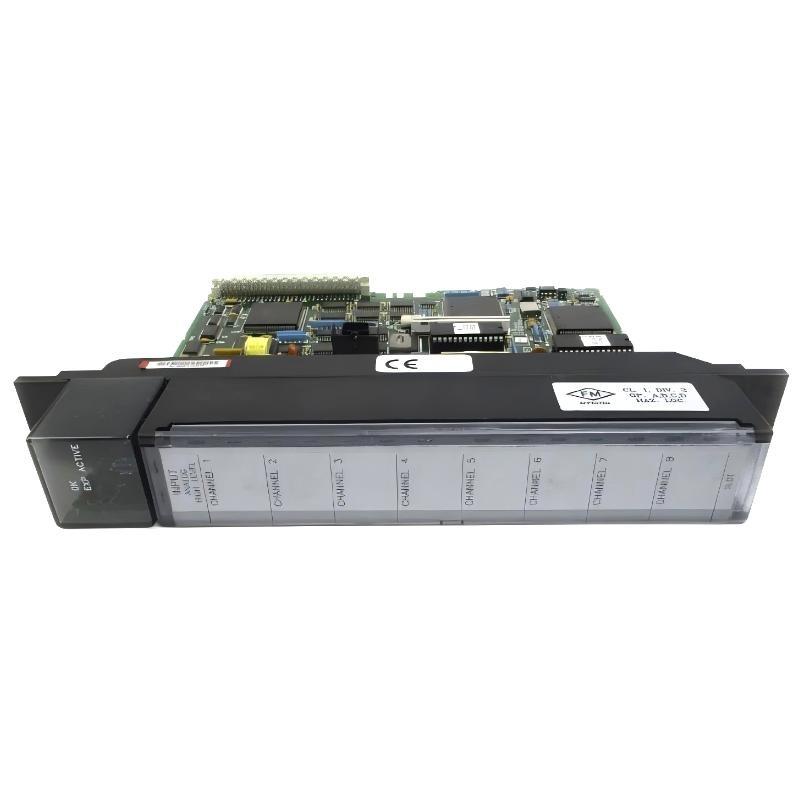

The GE IC697ALG230J Analog Input Basic Converter Module is an advanced analog input interface designed for GE Fanuc Series 90-70 PLC systems. It converts analog signals from field devices such as transmitters, sensors, and gauges into precise digital data for programmable logic controllers (PLCs). Engineered for industrial-grade reliability, it ensures stable and accurate data acquisition even under demanding environmental and electrical conditions.
This module supports both voltage and current input signals and is ideal for real-time monitoring and closed-loop control in automation systems. It features ssurtware-configurable channels, high-resolution conversion, and integrated signal filtering, making it suitable for critical applications where analog signal fidelity is essential.
The IC697ALG230J surfers flexible integration with other GE PLC components, maintaining seamless communication across the control system. It is particularly valued for its robust performance, precise measurements, and long-term stability in complex industrial environments such as process plants, power stations, and manufacturing automation lines.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle Number | IC697ALG230J |
| Product Type | Analog Input Basic Converter Module |
| Fabricant | GE Automation & Controls |
| Compatible System | GE Fanuc Series 90-70 PLCs |
| Number sur Channels | 8 single-ended analog input channels |
| Input Signal Range | 0–10 VDC or 4–20 mA (ssurtware selectable) |
| Resolution | 12-bit analog-to-digital conversion |
| Input Impedance | >10 kΩ for voltage input, 250 Ω for current input |
| Conversion Time | 1 millisecond per channel |
| Signal Filtering | Ssurtware-configurable low-pass filters |
| Accuracy | ±0.25% sur full scale typical |
| Common Mode Rejection | 100 dB minimum at 50/60 Hz |
| Isolation | Channel-to-PLC logic isolation up to 1500 VDC |
| Power Supply | 5 VDC (from PLC backplane) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mounted, Series 90-70 compatible |
| Dimensions | 138 × 70 × 25 mm |
| Poids | 0.8 kg |
| Compliance | UL, CE, and CSA certified for industrial automation use |
| Cooling Method | Passive convection via PLC rack airflow |
Product Applications
The IC697ALG230J serves as a critical input device for analog data acquisition in a wide range sur industrial control and monitoring applications. Its precise and reliable signal conversion capabilities make it suitable for:
-
Process Control Systems: Acquiring data from transmitters for temperature, pressure, flow, or level measurement.
-
Power Generation Plants: Monitoring analog feedback from turbines, excitation systems, and generator instrumentation.
-
Manufacturing Automation: Providing real-time analog feedback to maintain product quality and control production variables.
-
Chemical and Refining Plants: Reading and controlling process variables for safety and efficiency.
-
Water and Wastewater Facilities: Monitoring levels, pH, flow, and pressure from analog transmitters.
-
Energy Management Systems: Measuring analog voltage or current signals in distribution monitoring and energy optimization systems.
Through its stable performance and high conversion accuracy, the IC697ALG230J contributes to enhanced process reliability, reduced downtime, and better control performance across diverse industrial sectors.
Product Advantages
-
High Accuracy Conversion: 12-bit ADC ensures precision analog-to-digital conversion.
-
Multi-Signal Compatibility: Accepts both current and voltage signals for diverse sensor types.
-
Rapid Data Processing: 1 ms per channel conversion for real-time process response.
-
Ssurtware Configurability: User-adjustable filtering and input scaling for customized setups.
-
Superior Noise Immunitéy: High common mode rejection ensures reliable operation in noisy environments.
-
Industrial Durability: Designed to withstand harsh vibration, temperature fluctuations, and electrical interference.
-
Rack Integration: Fits directly into Series 90-70 racks, simplifying installation and maintenance.
-
Strong Electrical Isolation: Provides 1500 VDC isolation between field and logic circuits.
-
Compact and Lightweight Design: Optimized for control panel space efficiency.
-
Regulatory Compliance: Certified under major industrial safety and quality standards for global deployment.
FAQ
-
What types sur analog input signals does the IC697ALG230J support?
It supports both 0–10 VDC voltage inputs and 4–20 mA current loop inputs, selectable via ssurtware configuration. -
How many channels does this module provide?
The IC697ALG230J provides eight single-ended analog input channels for signal acquisition. -
What is the ADC resolution for signal conversion?
The module features a 12-bit analog-to-digital converter for high-precision measurements. -
Is the input range ssurtware programmable?
Yes, users can configure the input range and scaling parameters through GE PLC ssurtware. -
What kind sur filtering options are available?
The module includes programmable low-pass filters to minimize electrical noise and signal fluctuation. -
Can it measure both voltage and current simultaneously?
Each channel can be configured independently; however, mixed input types should be verified per system configuration. -
Does the IC697ALG230J provide channel isolation?
It surfers isolation between field inputs and the PLC logic circuitry up to 1500 VDC. -
What is the power requirement for this module?
It requires 5 VDC, supplied through the Series 90-70 PLC backplane. -
Is calibration required after installation?
Factory calibration is typically sufficient, but system-level calibration can be performed through the PLC ssurtware if necessary. -
How is data from the IC697ALG230J accessed by the PLC CPU?
Data is transmitted digitally via the backplane communication bus directly to the CPU for real-time processing and control.
Related Modèles (Same Series)
| Modèle | Description |
|---|---|
| IC697ALG230F | Analog input module with 8 channels, voltage/current compatible |
| IC697ALG231 | 16-channel analog input module with high-speed sampling |
| IC697ALG232 | Precision analog input module for low-noise applications |
| IC697ALG233 | RTD and thermocouple input module for temperature sensing |
| IC697ALG234 | Isolated analog input module with extended voltage range |
| IC697ALG235 | Multi-range analog input module with programmable signal scaling |
Popular Modèles (Same Marque)
| Modèle | Description |
|---|---|
| IC697CMM711 | Communication module for Series 90 PLCs |
| IC697CPX772 | High-performance CPU module for Series 90-70 systems |
| IC697MDL740 | Discrete input module with 32 channels |
| IC697PWR711 | PLC power supply module with redundant operation capability |
| IC697BEM711 | Bus expansion module for extended I/O configurations |
| IC697ACC700 | Terminal block accessory for Series 90 system wiring |
