Présentation du produit

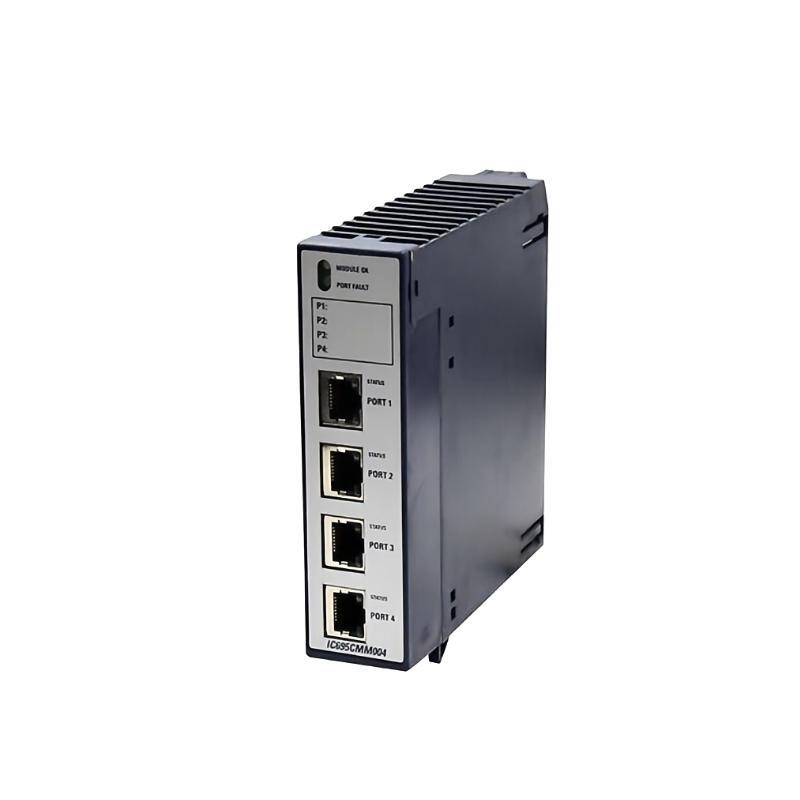

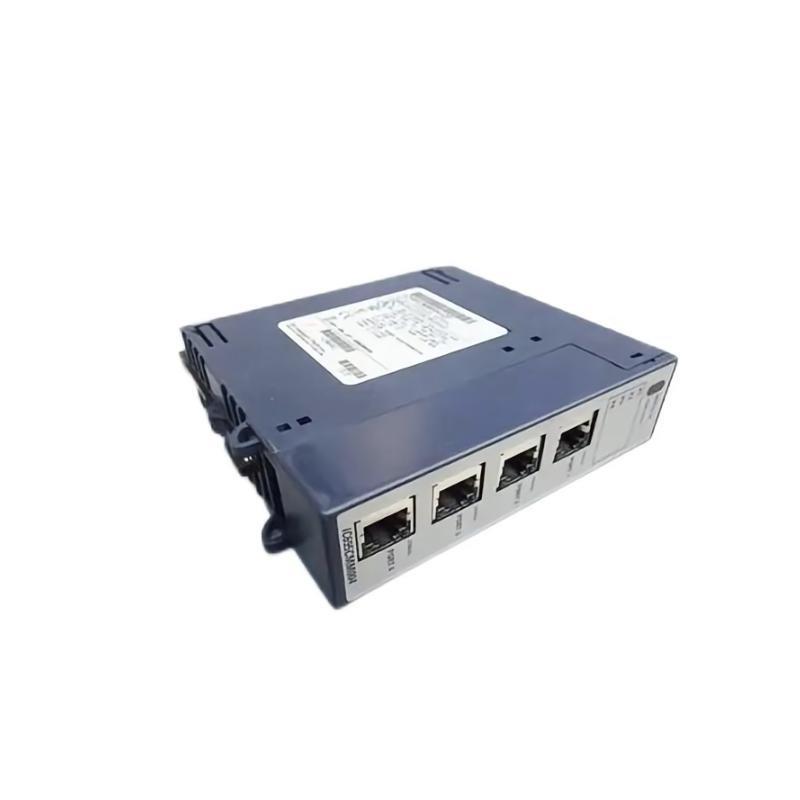

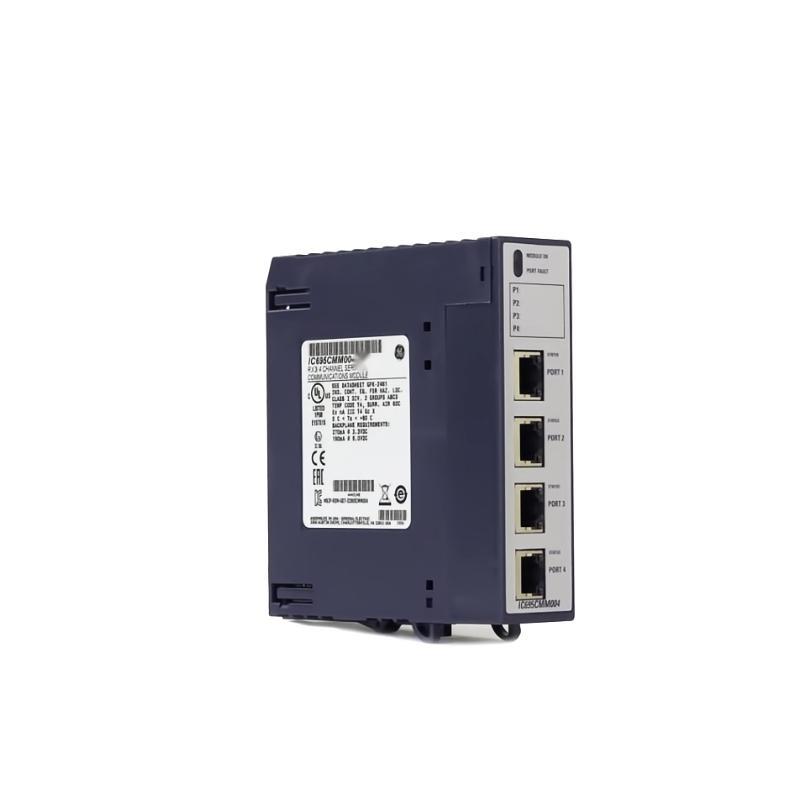

The GE Fanuc IC695CMM004 is a serial communications module designed for the PACSystems RX3i series sur programmable logic controllers (PLCs). It provides four independent, isolated serial ports, supporting various communication protocols such as Modbus Master/Slave, DNP3 Master/Slave, CCM Slave, and Serial I/O. This module enables seamless integration and communication with a wide range sur serial devices, making it ideal for diverse industrial automation applications.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | IC695CMM004 |
| Fabricant | GE Fanuc / Emerson Automation |
| Series | PACSystems RX3i |
| Number sur Serial Ports | 4 independent, isolated ports |
| Supported Protocols | Modbus Master/Slave, DNP3 Master/Slave, CCM Slave, Serial I/O |
| Port Types | RS-232, RS-485/422 (4-wire full duplex or 2-wire half duplex) |
| Baud Rates | 1200, 2400, 4800, 9600, 19.2K, 38.4K, 57.6K, 115.2K |
| Data Bits | 7 or 8 |
| Stop Bits | 1 or 2 |
| Parity | Even, Odd, None |
| Flow Control (RS-232) | Hardware (RTS/CTS) or None |
| Isolation | Port-to-backplane and frame ground: 250 VAC continuous; 1500 VAC for 1 minute |
| Power Requirements | 0.7 A @ 3.3 VDC; 0.15 A @ 5 VDC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 120 x 100 x 25 mm |
| Poids | 0.1 kg |
| Mounting | Universal Backplane |
| LED Indicators | Module OK, Port Fault, Port Status |
| Hot Swap Capability | Yes |
| Maximum Modules per CPU | 6 in the main CPU backplane |
| Certifications | UL, CE, ATEX, IECEx |
| Garantie | 12 months |
Applications
-
Industrial Automation: Facilitates communication between PLCs and serial devices such as HMIs, barcode scanners, and other controllers.
-
Process Control Systems: Enables integration sur various sensors and actuators for monitoring and control.
-
Energy Management: Assists in data acquisition from energy meters and other monitoring devices.
-
Building Automation: Integrates HVAC systems, lighting controls, and security systems through serial communication.
-
Transportation Systems: Connects to devices in traffic management and railway control systems.
-
Water and Wastewater Treatment: Interfaces with flow meters, level sensors, and other instrumentation.
Product Advantages
-
Versatile Communication: Supports multiple protocols, allowing integration with a wide range sur devices.
-
Quad Independent Ports: Enables simultaneous communication with multiple devices or networks.
-
Electrical Isolation: Protects the system from electrical noise and potential damage.
-
Hot Swap Capability: Allows for module replacement without shutting down the system, minimizing downtime.
-
Compact Design: Enregistrers space in control panels and facilitates easy installation.
-
Robust Construction: Designed to withstand harsh industrial environments.
Questions fréquentes (FAQs)
-
What types sur communication protocols does the IC695CMM004 support?
-
It supports Modbus Master/Slave, DNP3 Master/Slave, CCM Slave, and Serial I/O protocols.
-
-
Can the module be used with both RS-232 and RS-485/422 interfaces?
-
Yes, it supports both RS-232 and RS-485/422 communication standards.
-
-
Is it possible to hot-swap the IC695CMM004 module?
-
Yes, the module supports hot swapping, allowing for replacement without system shutdown.
-
-
How many IC695CMM004 modules can be installed per CPU?
-
Up to six modules can be installed in the main CPU backplane.
-
-
What are the power requirements for the module?
-
It requires 0.7 A at 3.3 VDC and 0.15 A at 5 VDC.
-
-
What is the operating temperature range sur the module?
-
The module operates within a temperature range sur 0°C to 60°C.
-
-
Does the module provide electrical isolation?
-
Yes, it surfers 250 VAC continuous isolation between ports and the backplane.
-
-
What are the dimensions and weight sur the IC695CMM004?
-
The module measures 120 x 100 x 25 mm and weighs 0.1 kg.
-
-
How is the module configured?
-
Configuration is done through Prsuricy Machine Edition ssurtware.
-
-
What certifications does the IC695CMM004 have?
-
It is certified with UL, CE, ATEX, and IECEx standards.
-
Related Modèles (Same Series or Function)
| Modèle | Description | Number sur Ports | Supported Protocols |
|---|---|---|---|
| IC695CMM002 | 2-Port Serial Communications Module | 2 | Modbus, DNP3, CCM |
| IC695ETM001 | Ethernet Interface Module | 2 Ethernet Ports | Ethernet/IP, Modbus TCP |
| IC695ALG600 | Analog Input Module | 8 Channels | – |
| IC695ALG608 | Analog Output Module | 8 Channels | – |
| IC695PSD140 | Power Supply Module | – | – |
| IC695CPU310 | Central Processing Unité | – | – |
Popular GE Fanuc Modèles (Same Marque)
| Modèle | Description | Function | Application |
|---|---|---|---|
| IC695CHS012 | 12-Slot Universal Backplane | Backplane | Module Integration |
| IC695CHS016 | 16-Slot Universal Backplane | Backplane | Module Integration |
| IC695CPU320 | Central Processing Unité | CPU Module | Industrial Automation |
| IC695PSA140 | Power Supply Module | Power Supply | Power Management |
| IC695PNS001 | Prsuribus Network Interface Module | Communication Module | Network Connectivity |
| IC695RMX128 | Redundancy Memory Xchange Module | Redundancy Module | System Redundancy |
