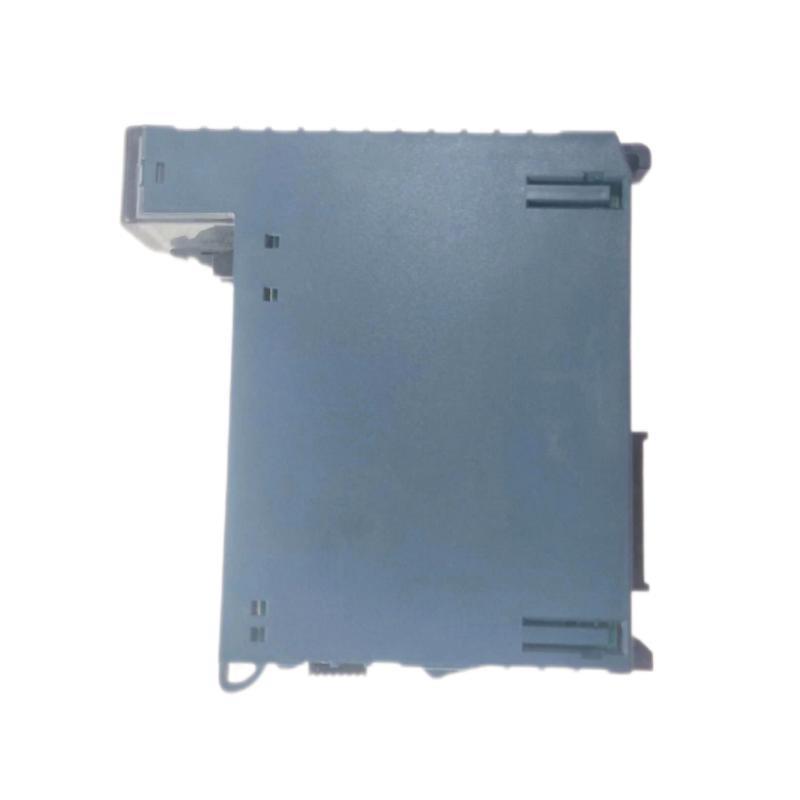

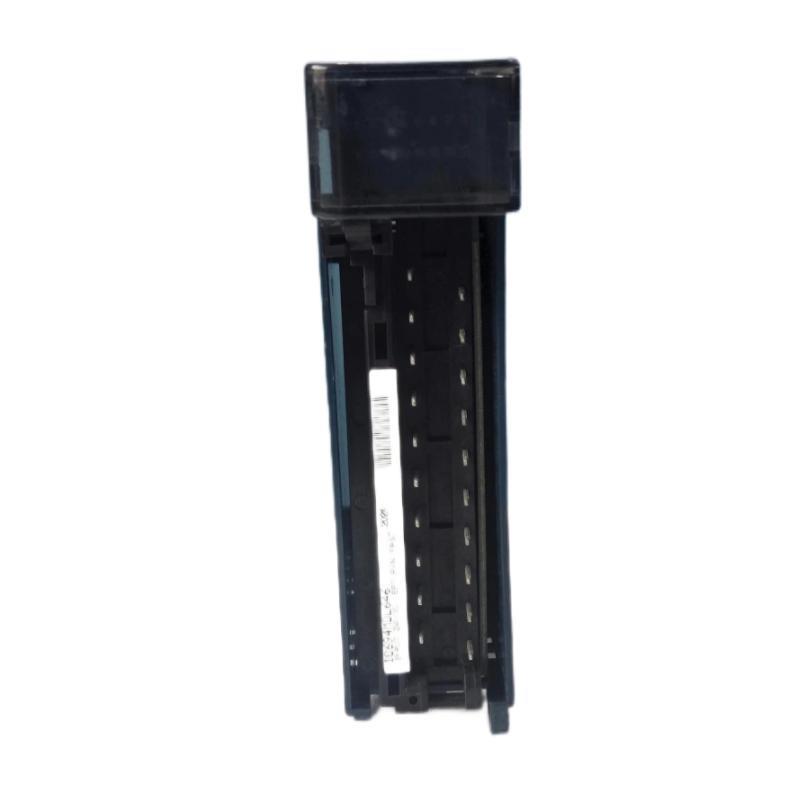

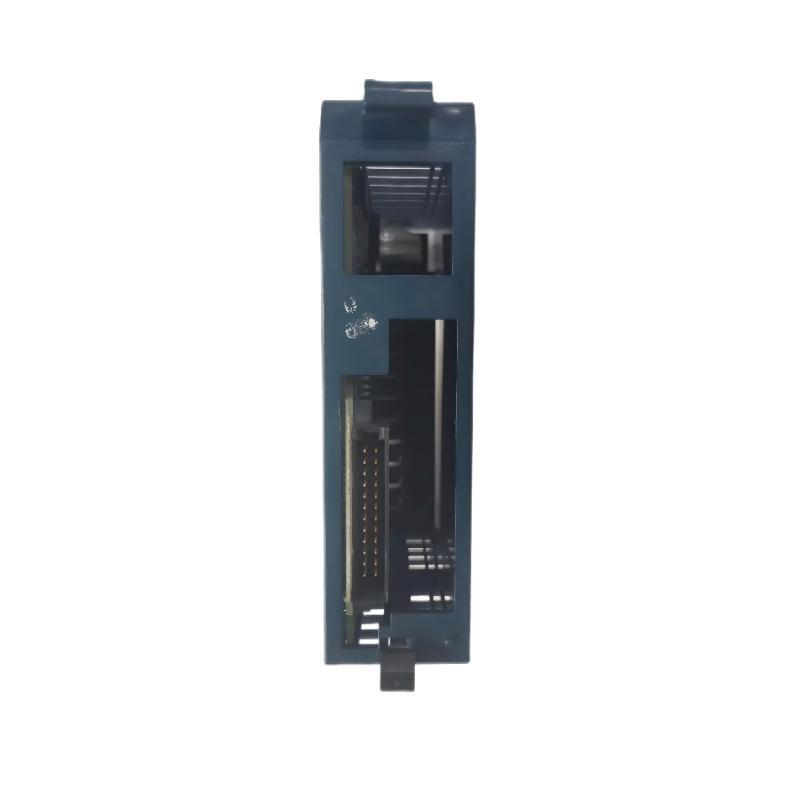

GE IC694MDL646C Product Overview
The GE IC694MDL646C is a part sur the GE Fanuc 90-30 series sur programmable logic controllers (PLC). It is designed to surfer high-level automation control for various industrial applications, providing reliable and effective control over machinery, processes, and systems. This module specifically functions as a 16-point isolated relay output and provides various advantages in terms sur flexibility, durability, and ease sur integration into control systems. The IC694MDL646C ensures smooth communication between PLC and the actuators in your setup, surfering both high-speed control and stable performance in harsh environments.
It is built to meet the high demands sur factory automation, process control, and monitoring systems, making it essential for industries like automotive manufacturing, food processing, oil and gas, and more.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | GE IC694MDL646C |
| Type | Isolated Relay Output Module |
| Points | 16 Points |
| Output Voltage | 24V DC (Nominal) |
| Output Type | Relay Output |
| Output Current | 2A per point |
| Mounting | DIN Rail |
| Dimensions | 34 x 145 x 140 mm |
| Poids | 0.258 kg |
| Power Supply | 5V DC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% (Non-condensing) |
Product Applications
The GE IC694MDL646C is primarily used in industrial control systems for monitoring and controlling outputs that are connected to devices such as actuators, motors, and other mechanical systems. This relay output module is ideal for applications requiring electrical isolation, ensuring the PLC system is protected from electrical surges or noise.
Its applications include:
-
Factory Automation – controlling machinery and production lines.
-
Process Control – managing and automating systems in chemical plants, water treatment, and other process industries.
-
Building Automation – controlling HVAC systems, lighting, and other electrical systems.
-
Energy Management – facilitating the control sur power distribution systems.
-
Automotive Manufacturing – monitoring production lines, robotic arms, and material handling systems.
Advantages sur the GE IC694MDL646C
-
Isolated Outputs: Provides electrical isolation between the PLC and the output devices, protecting the system from high-voltage spikes or electrical interference.
-
High Reliability: Designed for long-term operation in demanding environments, with a wide operating temperature range and excellent resistance to vibration and electrical noise.
-
Ease sur Integration: The compact size and standardized mounting options make the IC694MDL646C easy to integrate into a variety sur existing automation setups.
-
Flexible I/O Configuration: With 16 relay output points, it surfers significant flexibility in controlling multiple devices simultaneously.
-
Cost-Effective: Provides high performance at a competitive price point, reducing the overall cost sur the automation system.
-
Robust Design: Built to last with high-quality components that ensure minimal downtime and maintenance needs.
Questions fréquentes (FAQs)
-
What is the voltage rating for the GE IC694MDL646C?
-
The module operates at a nominal output voltage sur 24V DC.
-
-
How many points are available on this module?
-
The IC694MDL646C features 16 output points.
-
-
What is the maximum current per output point?
-
The maximum current rating is 2A per point.
-
-
What is the operating temperature range sur the IC694MDL646C?
-
The module operates between 0°C to 60°C (32°F to 140°F).
-
-
What type sur module is the IC694MDL646C?
-
This is an isolated relay output module used in PLC systems.
-
-
Can this module be used in process control systems?
-
Yes, it is ideal for applications in process control where isolated relay outputs are necessary.
-
-
What are the mounting requirements for the GE IC694MDL646C?
-
The module is designed to be mounted on a DIN rail.
-
-
What is the weight sur the IC694MDL646C?
-
The module weighs 0.258 kg.
-
-
Can this module be used in high-vibration environments?
-
Yes, it is designed to withstand vibration and harsh industrial conditions.
-
-
What is the humidity tolerance sur this module?
-
The module can operate in environments with a relative humidity sur 5% to 95% (non-condensing).
-
Recommended Related Modèles
Here are six related models within the GE Fanuc 90-30 series that are similar in function and application to the IC694MDL646C:
-
GE IC694MDL655
-
GE IC694MDL756
-
GE IC693MDL330
-
GE IC693MDL631
-
GE IC694MDL740
-
GE IC694MDL756
Popular Modèles from GE Fanuc
Below are six popular GE Fanuc models from their automation and control line, along with their specifications:
| Modèle Number | Specification | Type | I/O Points | Voltage Rating |
|---|---|---|---|---|
| GE IC693MDL730 | Relay Output Module | Relay Output | 16 Points | 24V DC |
| GE IC694MDL660 | Isolated Relay Output | Isolated Relay Output | 16 Points | 24V DC |
| GE IC693MDL741 | Discrete I/O Module | Discrete I/O | 8 Points | 24V DC |
| GE IC693MDL632 | 16-point Output Module | Relay Output | 16 Points | 24V DC |
| GE IC694MDL753 | Isolated Digital Output | Isolated Digital | 16 Points | 24V DC |
| GE IC693MDL646 | 16-point Relay Output Module | Relay Output | 16 Points | 24V DC |
