Présentation du produit

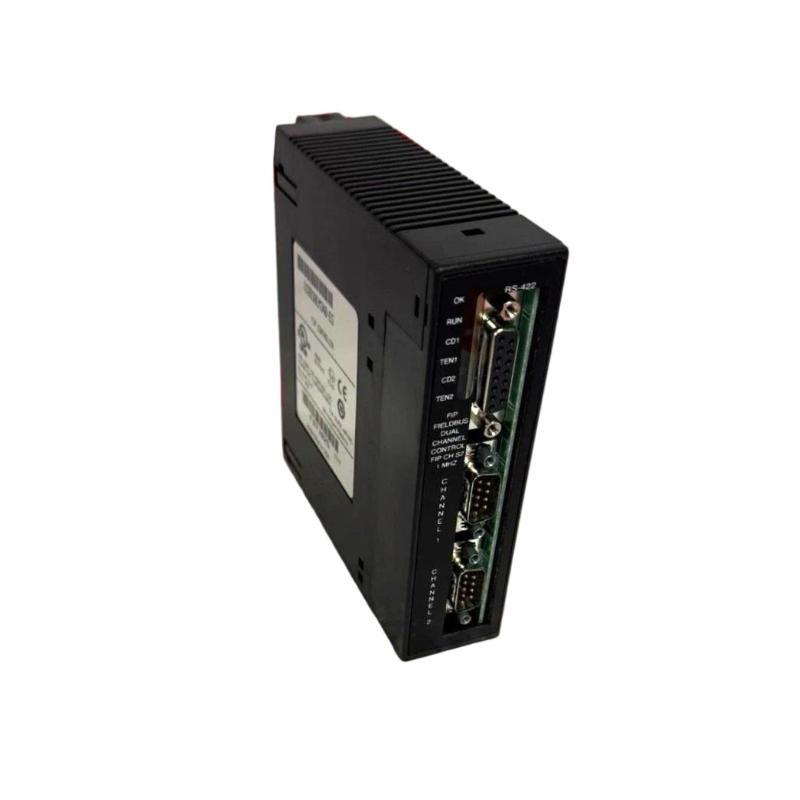

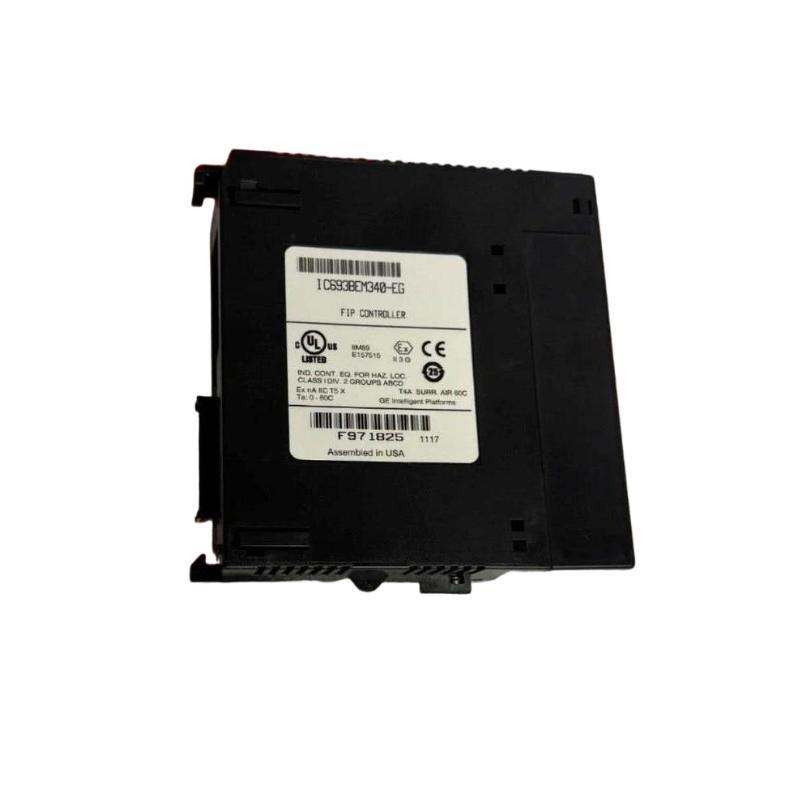

The GE IC694BEM340 is a bus controller designed for use with the RX3i PLC systems, providing a robust and flexible interface for communication between the PLC and distributed I/O systems. As a key component in the automation infrastructure, this module manages the communication sur data between the local I/O devices and the central control system. The IC694BEM340 supports multiple network communication protocols, ensuring seamless integration and high-speed data transmission across industrial automation systems.
This bus controller module allows for the connection sur remote I/O racks to a central PLC, facilitating real-time data exchange and centralized monitoring. By handling the network interface and communication between various field devices, it ensures efficient operation and precise control within large-scale industrial systems. The IC694BEM340 is an essential piece sur equipment for systems that require distributed control across wide networks and enables system scalability as production demands grow.
Product Parameters
| Parameter | Value |
|---|---|
| Dimensions | 34 x 145 x 140 mm |
| Poids | 0.37 kg |
| Bus Type | Ethernet/IP, Modbus TCP |
| Number sur I/O Modules | Up to 16 |
| Data Transmission Speed | 10/100 Mbps |
| Power Supply | 24V DC |
| Communication Protocol | EtherNet/IP, Modbus TCP |
| Mounting | Rack-mounted |
| Operating Temperature | 0°C to +60°C |
| Status Indicators | LEDs for status |
Product Applications
The GE IC694BEM340 Bus Controller is a versatile communication interface used in a wide range sur industrial applications that require distributed control and data acquisition. Some sur the most common uses include:
-
Industrial Automation: Integrates remote I/O modules with a central PLC to control devices such as sensors, actuators, and relays, improving process automation in manufacturing plants.
-
Process Control: In applications like chemical processing or oil and gas, the IC694BEM340 facilitates the transfer sur real-time process data to the PLC for monitoring and control.
-
Energy Management: Used to connect remote meters and energy devices, ensuring seamless data flow to central control systems for energy monitoring and analysis.
-
Material Handling Systems: Ensures reliable data exchange between controllers and devices in large, distributed material handling networks such as conveyor systems.
-
Building Automation: Controls HVAC, lighting, and other critical systems in large buildings by connecting remote devices to a centralized control system.
-
Remote Data Collection: Collects data from various sensors and field devices located in remote locations, making it ideal for applications where equipment is spread out across large areas.
Product Advantages
-
Multi-Protocol Support: The IC694BEM340 supports both EtherNet/IP and Modbus TCP communication protocols, providing flexibility in system integration.
-
Scalable System: The bus controller can handle up to 16 I/O modules, making it ideal for applications with varying levels sur complexity and the need for future system expansion.
-
High-Speed Data Transmission: With a data transmission speed sur 10/100 Mbps, the module ensures efficient and fast communication between the PLC and remote devices.
-
Real-Time Data Handling: Enables real-time data exchange between field devices and the central control system, allowing for better monitoring and decision-making.
-
Flexible Integration: Works with a wide range sur I/O modules and field devices, making it adaptable to various industrial applications.
-
Compact and Efficient: The IC694BEM340 is compact (34 x 145 x 140 mm) and lightweight (0.37 kg), making it easy to integrate into existing systems without requiring significant space.
-
Reliable Performance: Operating in a temperature range from 0°C to +60°C, it is designed for reliable performance in a variety sur industrial environments.
-
Easy Installation: Rack-mountable design simplifies installation and maintenance in industrial control panels.
-
Status Indicators: Built-in LEDs provide clear visual feedback, making it easier to monitor and troubleshoot the system.
-
Industry Standard Compliance: The IC694BEM340 is designed to meet industrial standards for safety and performance, ensuring reliable operation in demanding environments.
FAQ
-
What communication protocols does the IC694BEM340 support?
The IC694BEM340 supports EtherNet/IP and Modbus TCP communication protocols, allowing for flexible integration with various industrial systems. -
How many I/O modules can be connected to the IC694BEM340?
The module can connect up to 16 remote I/O modules, making it suitable for medium to large-scale industrial control systems. -
What is the maximum data transmission speed sur the IC694BEM340?
The module supports data transmission speeds sur up to 100 Mbps, ensuring fast and efficient communication between the PLC and remote devices. -
What is the operating temperature range sur the IC694BEM340?
The IC694BEM340 operates within a temperature range sur 0°C to +60°C, making it suitable for a wide range sur industrial environments. -
How is the IC694BEM340 mounted?
The module is rack-mounted, which simplifies its installation and integration into industrial control panels. -
What is the power supply requirement for the IC694BEM340?
The module requires a 24V DC power supply to operate. -
Does the IC694BEM340 have any built-in diagnostic features?
Yes, the module features built-in LEDs for status indication, providing clear feedback on the operational status sur the device. -
What types sur applications can benefit from using the IC694BEM340?
The IC694BEM340 is ideal for industrial automation, process control, energy management, material handling, building automation, and remote data collection. -
Is the IC694BEM340 compatible with other I/O modules?
Yes, the module works with a wide range sur I/O modules and field devices, providing flexibility for various industrial applications. -
Can the IC694BEM340 be used in harsh industrial environments?
Yes, with its wide operating temperature range and rugged design, the module is well-suited for demanding industrial environments.
Related Modèles
| Modèle | Description |
|---|---|
| IC694BEM341 | A variant surfering extended communication capabilities for larger distributed systems. |
| IC694BEM342 | A version with additional diagnostics and remote monitoring capabilities for enhanced system reliability. |
| IC694BEM343 | A high-density module designed for use in complex systems with a larger number sur remote I/O devices. |
| IC694BEM344 | A compact model with reduced I/O support for smaller systems, perfect for applications with fewer remote devices. |
| IC694BEM345 | A ruggedized version designed for harsh environments with additional protection features for industrial use. |
| IC694BEM346 | A modular version with extended compatibility for third-party devices, surfering flexible integration into various control systems. |
